ATN OTS LT 320 Manual

BLACK HOT / WHITE HOT MODE

IMAGE QUALITY

Using our new Obsidian LT Core and Cutting-Edge sensors for sharp crisp images and extended range.

Compact and Ergonomic — Simple Controls

Comfortable 25 mm eye relief

ULTRA LOW POWER CONSUMPTION

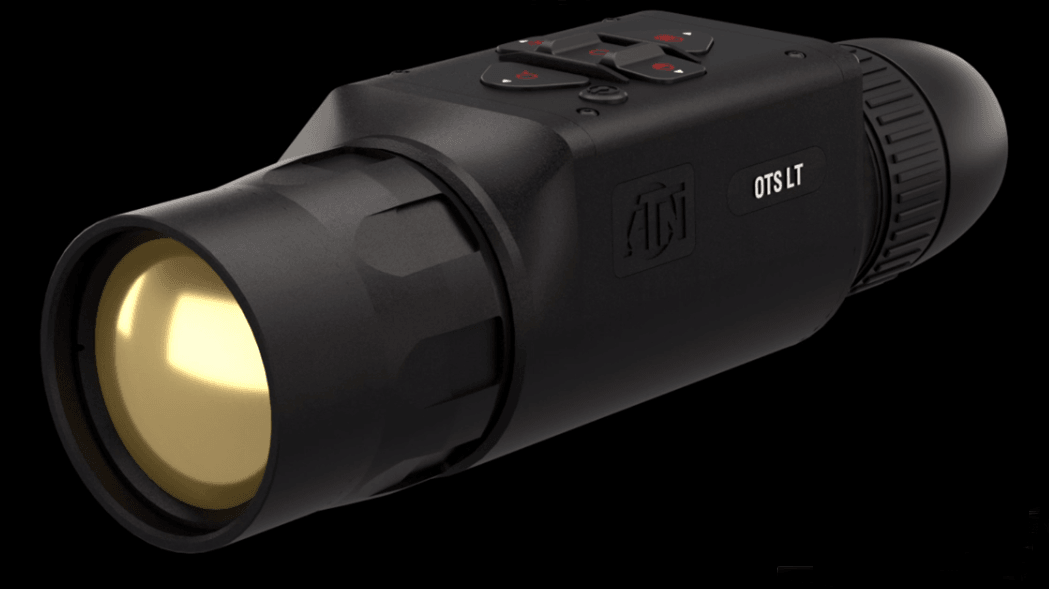

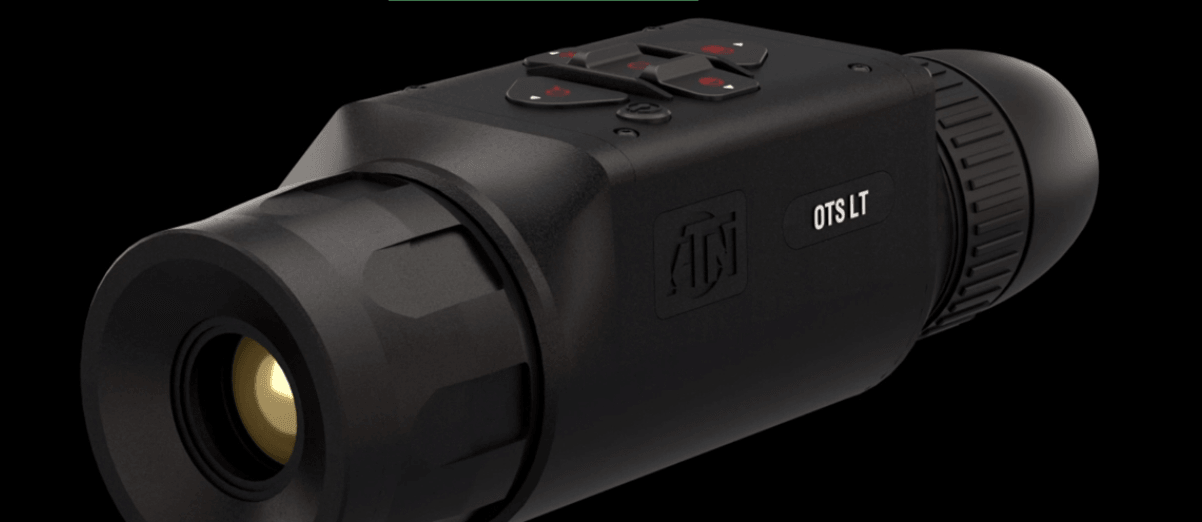

Digital handheld thermal monocular with over 10+ hrs of continuous use

LIGHTWEIGHT

Lightweight and Ergonomic — this is one tool you'll want at all times!

TECHNICAL SPECIFICATIONS

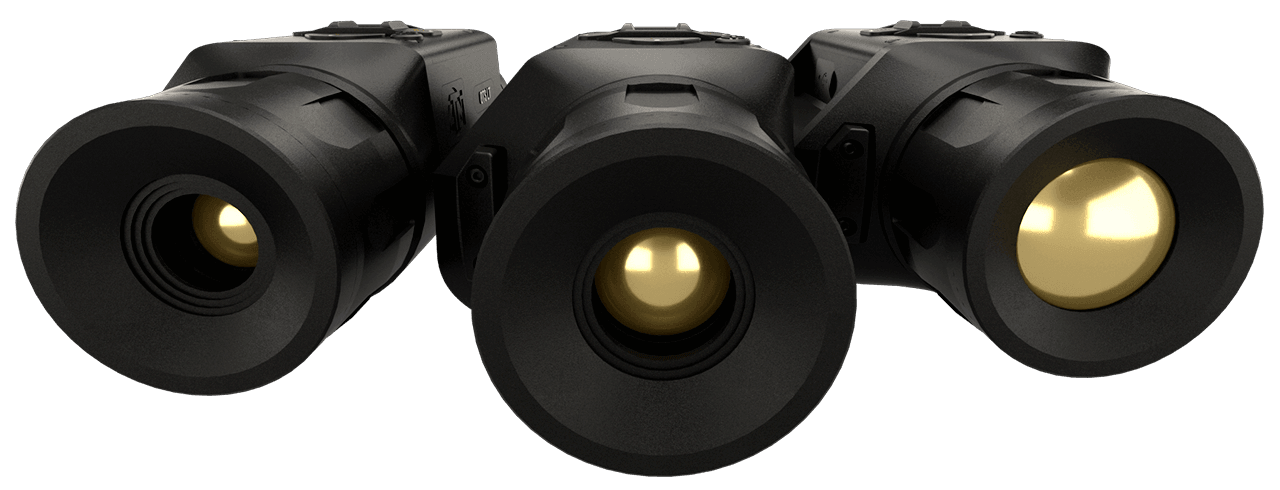

ATN OTS LT 320 2-4X

• SKU: TIMNOLT319X
• Magnification: 2-4x
• Field of view: 11.4x8.6

• Sensor: 320x240 px/12 μm 60 Hz
• Core: ATN Obsidian IV Dual Core T
• Micro-Display: 1280x720 HD Display

• Eye relief: 25 mm
• Mount: 30 mm Standard Rings (included)

• Battery life (Li-ion): 9+ hrs

• Color modes: White Hot / Black Hot
• Battery Type: Internal Lithium-Ion Battery
• Operating Temperature: -20°F to +120°F / -28°C to 48°C
• Human Detection Range: 535

• Human Recognition Range: 380

• Human Identification Range: 230
• Waterproof rating / IP rating: Weather resistant
• Dimensions (body only): 195x75x66 mm

• Weight: 1.2 lb/560 g
• Warranty: 3 years

ATN OTS LT 320 3-6X

• SKU: TIMNOLT325X
• Magnification: 3-6x
• Field of view: 8.8x6.6

• Sensor: 320x240 px/12 μm 60 Hz
• Core: ATN Obsidian IV Dual Core T
• Micro-Display: 1280x720 HD Display

• Eye relief: 25 mm
• Mount: 30 mm Standard Rings (included)

• Battery life (Li-ion): 9+ hrs

• Color modes: White Hot / Black Hot
• Battery Type: Internal Lithium-Ion Battery
• Operating Temperature: -20°F to +120°F / -28°C to 48°C
• Human Detection Range: 910

• Human Recognition Range: 455

• Human Identification Range: 290
• Waterproof rating / IP rating: Weather resistant
• Dimensions (body only): 195x75x66 mm

• Weight: 1.2 lb/560 g
• Warranty: 3 years

ATN OTS LT 320 4-8X

• SKU: TIMNOLT335X
• Magnification: 4-8x
• Field of view: 6.3x4.7

• Sensor: 320x240 px/12 μm 60 Hz
• Core: ATN Obsidian IV Dual Core T
• Micro-Display: 1280x720 HD Display

• Eye relief: 25 mm
• Mount: 30 mm Standard Rings (included)

• Battery life (Li-ion): 9+ hrs

• Color modes: White Hot / Black Hot
• Battery Type: Internal Lithium-Ion Battery
• Operating Temperature: -20°F to +120°F / -28°C to 48°C
• Human Detection Range: 1510

• Human Recognition Range: 680

• Human Identification Range: 340
• Waterproof rating / IP rating: Weather resistant
• Dimensions (body only): 195x75x66 mm

• Weight: 1.2 lb/560 g
• Warranty: 3 years

ATN OTS LT 320 6-12X

• SKU: TIMNOLT350X
• Magnification: 6-12x
• Field of view: 4.5x3

• Sensor: 320x240 px/12 μm 60 Hz
• Core: ATN Obsidian IV Dual Core T
• Micro-Display: 1280x720 HD Display

• Eye relief: 25 mm
• Mount: 30 mm Standard Rings (included)

• Battery life (Li-ion): 9+ hrs

• Color modes: White Hot / Black Hot
• Battery Type: Internal Lithium-Ion Battery
• Operating Temperature: -20°F to +120°F / -28°C to 48°C
• Human Detection Range: 1700

• Human Recognition Range: 700

• Human Identification Range: 400
• Waterproof rating / IP rating: Weather resistant
• Dimensions (body only): 195x75x66 mm

• Weight: 1.2 lb/560 g
• Warranty: 3 years

INCLUDED ACCESSORIES

LENS TISSUE:

SOFT CARRYING CASE:

USB-C CABLE:
