Description:

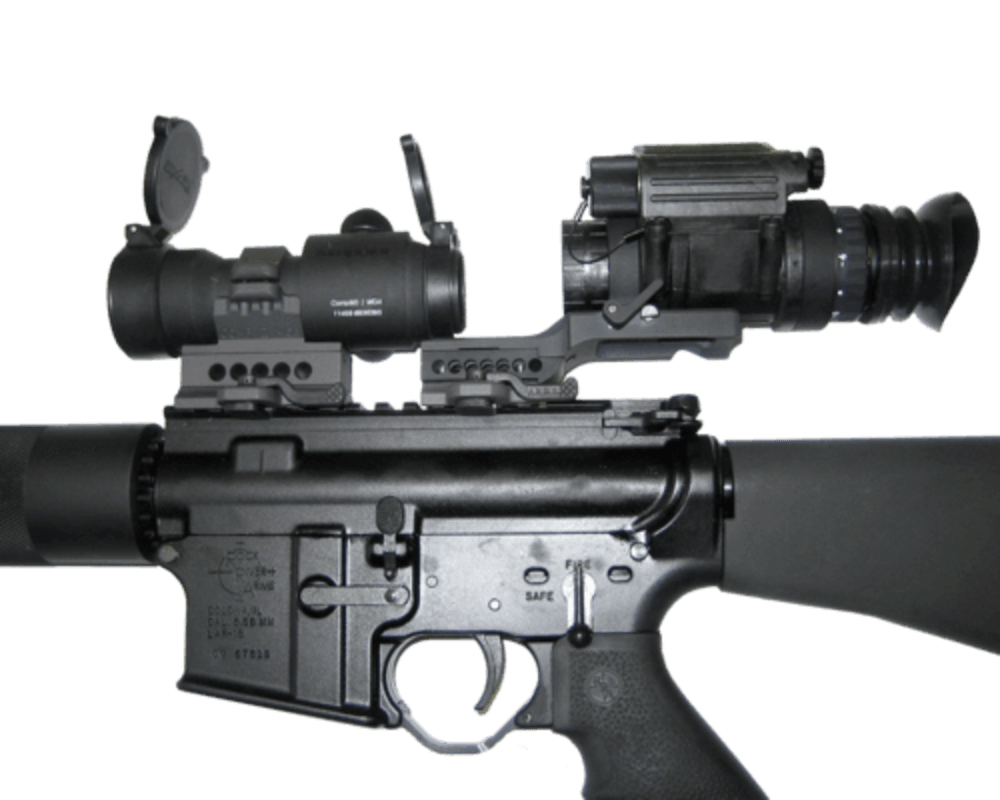

The PVS-14 Gen 4 night vision monocular is the standard-issue U.S. military night vision optic and used by special ops throughout the world. These units are of the highest quality in optics, design and functionality. Its versatility makes it the premier choice for Law Enforcement and Military Professionals. PVS-14’s can be mounted on a helmet for hands-free use, behind weapon optics, or simply as a handheld device. The PVS-14 provides night vision aid to one of the operator’s eyes, leaving the other to retain its natural night vision. This is important when operating in changing light conditions in the field. Allowing the user to go back and forth between aided and unaided vision. Military and Law Enforcement operators need the ability to instantly switch between dynamic light conditions as the situation develops. The PVS-14 Gen 4 can be assembled with various levels of Image Intensifier tubes. ATN being a premier manufacturer gets access to the best High-Performance tubes from the leading US Image Intensifier Manufacturers on the Market, ie: L3 and Elbit. Our professionally-trained and experienced technicians assemble the PVS-14 according to Mil-Spec Standards, using factory-new parts and current production image intensifier tubes. Additional features include IR on and low battery indicators, manual brightness control and auto-shut off function that shuts down the device within seconds when accidentally exposed to bright light, and an integrated IR illuminator for use in extremely low light conditions. When you are looking for the pinnacle of night vision units use what the US Military does, the PVS14.

TECHNICAL SPECIFICATIONS:

ATN PVS14-3:

• Generation: USA Gen 3, Auto-Gated/Thin-Filmed
• Magnification: 1 X
• Resolution: 64-72 lp/mm
• FOV 40 °
• Lens System: f/1.2, 27 mm
• Proshield Lens Coating: Yes
• Range of Focus: 0.25 yard/m to infinity
• Diopter Adjustment: -5 to +2
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Infrared Illuminator: Built-in
• IR Indicator: Yes
• Low Battery Indicator: Yes
• Power Supply: 1 x 1.5V (AA type battery)
• Battery Life 50 hours
• Environmental Rating: Water resistant
• Operating Temperature -60°F to 120°F/-51°C to 49°C
• Storage Temperature: -60°F to 185°F/-51°C to 85°C
• Dimensions: 4.5" x 2" x 2.25"/114 mm x 51 mm x 57 mm Weight 0.78 lbs / 0.35 kg
• Manual Gain Control: Yes
• Automatic Shut-off System: Yes MIL-STD-810
• Compiles Available for Export: No

ATN PVS14-3HPT-A:

• Generation: USA Gen 3, High-Performance, Auto-Gated/Thin-Filmed
• Magnification: 1 X
• Resolution: 64-72 lp/mm, A-Grade
• FOV: 40 °
• Lens System: f/1.2, 27 mm
• Proshield Lens Coating: Yes
• Range of Focus: 0.25 yard/m to infinity
• Diopter Adjustment: -5 to +2
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Infrared Illuminator: Built-in
• IR Indicator: Yes
• Low Battery Indicator: Yes
• Power Supply: 1 x 1.5V (AA type battery)
• Battery Life: 50 hours
• Environmental Rating: Water resistant
• Operating Temperature: -60°F to 120°F/-51°C to 49°C
• Storage Temperature: -60°F to 185°F/-51°C to 85°C
• Dimensions: 4.5" x 2" x 2.25"/114 mm x 51 mm x 57 mm
• Weight: 0.78 lbs / 0.35 kg
• Manual Gain Control: Yes
• Automatic Shut-off System: Yes
• MIL-STD-810: Compiles
• Available for Export: No

ATN PVS14-3 WPT:

• Generation: USA Gen 3 High-Performance, Auto-Gated/Thin-Filmed
• Magnification: 1 X
• Resolution: 64-72 lp/mm, A-Grade
• FOV: 40 °
• Lens System: f/1.2, 27 mm
• Proshield Lens Coating: Yes
• Range of Focus: 0.25 yard/m to infinity
• Diopter Adjustment: -5 to +2
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Infrared Illuminator: Built-in
• IR Indicator: Yes
• Low Battery Indicator: Yes
• Power Supply: 1 x 1.5V (AA type battery) Battery Life 50 hours
• Environmental Rating: Water resistant
• Operating Temperature: -60°F to 120°F/-51°C to 49°C
• Storage Temperature: -60°F to 185°F/-51°C to 85°C
• Dimensions: 4.5" x 2" x 2.25"/114 mm x 51 mm x 57 mm
• Weight: 0.78 lbs / 0.35 kg
• Manual Gain Control: Yes
• Automatic Shut-off System: Yes
• MIL-STD-810: Compiles
• Available for Export: No

ATN PVS14-3WHPT:

• Generation: USA Gen 3, White Phospher, High-Performance, Auto-Gated/Thin-Filmed
• Magnification: 1 X
• Resolution: 64-72 lp/mm, A-Grade
• FOV: 40 °
• Lens System: f/1.2, 27 mm
• Proshield Lens Coating: Yes
• Range of Focus: 0.25 yard/m to infinity
• Diopter Adjustment: -5 to +2
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Infrared Illuminator: Built-in
• IR Indicator: Yes
• Low Battery Indicator: Yes
• Power Supply: 1 x 1.5V (AA type battery)
• Battery Life: 50 hours
• Environmental Rating: Water resistant
• Operating Temperature: -60°F to 120°F/-51°C to 49°C
• Storage Temperature: -60°F to 185°F/-51°C to 85°C
• Dimensions: 4.5" x 2" x 2.25"/114 mm x 51 mm x 57 mm
• Weight: 0.78 lbs / 0.35 kg
• Manual Gain Control: Yes
• Automatic Shut-off System: Yes
• MIL-STD-810: Compiles
• Available for Export: No

ATN PVS14/6015-WPT:

• Generation: USA G4, Auto-Gated/filmless
• Magnification: 1 X
• Resolution: 64 - 72 lp/mm
• FOV: 40 °
• Lens System: f/1.2, 27 mm
• Proshield Lens Coating: Yes
• Range of Focus: 0.25 yard/m to infinity
• Diopter Adjustment: -5
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Infrared Illuminator: Built-in
• IR Indicator: Yes
• Low Battery Indicator: Yes
• Power Supply: 1 x 1.5V (AA type battery)
• Battery Life: 50 hours
• Environmental Rating: Water resistant
• Operating Temperature: -60°F to 120°F/-51°C to 49°C
• Storage Temperature: -60°F to 185°F/-51°C to 85°C
• Dimensions: 4.5" x 2" x 2.25"/114 mm x 51 mm x 57 mm
• Weight: 0.78 lbs / 0.35 kg
• Manual Gain Control: No
• Automatic Shut-off System: Yes
• MIL-STD-810: Compiles
• Available for Export: No

Package Included:

Warranty Card

Instruction Manual

Lens Tissue

Soft Carrying Case

1 One AA Type Battery

Sacrificial Filter

Neck Cord

Head Mount Assembly 1
