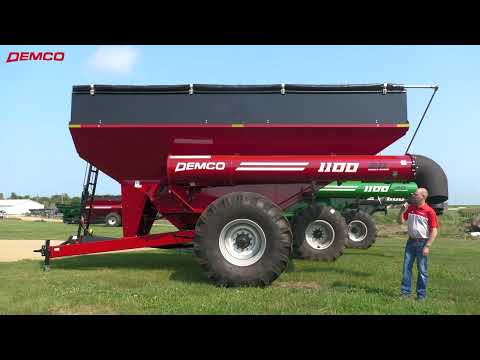

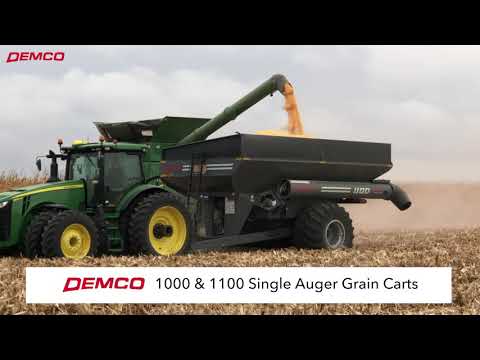

DEMCO 1000 & 1100 Single Auger Grain Cart For Tractor
DEMCO 1000 & 1100 Single Auger Grain Cart For Tractor
Regular price
$1.00 USD
Regular price
Sale price
$1.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DEMCO 1000 & 1100 Grain Carts For Tractor
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
DESCRIPTION
FEATURES
- 1 ¾ - 1000 RPM PTO
- Protect auger driver and tractor PTO with the automatic reset “cut-out” clutch with overrunning clutch
- Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
- High visibility - reflective decals
- LED Tail, flasher/turn signal lights and auger spotlight for nighttime operation
- Tube and truss design - adjustable axle
- Welded box construction with silicone sealed seams resists rust and corrosion
- Heavy duty spindles and hubs
Auger
- 20” diameter balanced auger with 3/8” flighting and Posi-Drive connection
- UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
- Forward reach auger for optimum operator visibility
- 2 stage unload auger folding cylinder
SPECIFICATION
| Grain Cart Specifications |
1000 | 1100 |
|---|---|---|
| Level Full Capacity | 1000 Bushels |
1100 Bushels |
| Heaped Full Capacity | 1100 Bushels | 1200 Bushels |
| Balanced Auger Size |
20" | 20" |
| Unloading Time (bu/min.) |
530 | 530 |
| Spindle Size |
D=4 1/2" S=5 1/2" |
D=4 1/2" S=5 1/2" |
| Tractor HP Required |
175+ | 175+ |
| Hub Size |
10 bolt - 13.19" |
10 bolt - 13.19" |
| Tread Width (stand.) |
w/ 900 tires: 13'5"
w/ 1050 tires: 15' |
w/ 900 tires: 13'5" |
| Tongue Weight (empty) |
1180 lbs | 1210 lbs |
| Tongue Weight (loaded) |
4500 lbs (estimated) | 4725 lbs |
| Total Weight: Wheels/Tires and Tarp |
12,920 lbs (estimated) | 13,110 lbs |
| Total Weight: Wheels/Tracks and Tarp | 19,200 lbs (estimated) | 19,300 lbs |
| Rear Ground Clearance | 16" | 16" |
| Model | 1000 | 1100 |
|---|---|---|
|
A Auger extends to side |
8'11" | 8'11" |
| B Box width (transport) | w/ 900s 13'10", w 1050s 15' | w/ 900s 13'10", w 1050s 15' |
| C Height, low side | 11'3" | 11'8" |
| D Ground clearance | 16" | 16" |
| E Auger extends to front | 5'8" | 5'8" |
| F Box length | 21'8" | 21'8" |
| G Box height (high side) | 12'3" | 12'8" |
| H Total length | 26'8" | 26'8" |
| I Axle to tongue length | 16'1" | 16'1" |
| J Drawbar/tongue height | - | - |
| K Auger clearance height | - | - |
-These machines have many options, please choose yours following the steps at the bottom of the options list!
- Roll top tarp
- Ergonomic pendant control
- Scale kits
- Hydraulic Drive Kit - High Speed/Torque
- Camso Track System: 1000 SA - 70 Series, 1100 SA - 70 or 100 Series
- Soucy Hub Mount Track System
HYDRAULICS NOTES:
- A standard grain cart requires three hydraulic remotes.
- Optional Pendant Control manages slide gate, folding auger and adjustable spout. Requires one hydraulic remote.
- 70 GPM max oil flow is required for high speed high torque hydraulic unloading drive.
