DJI

DJI Matrice 3TD for Dock 2 w/ DJI Care Enterprise

DJI Matrice 3TD for Dock 2 w/ DJI Care Enterprise

$1.00 USD
$1.00 USD
Sale Sold out
Shipping calculated at checkout.
Warranty

DJI Matrice 3TD for Dock 2 w/ DJI Care Enterprise

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

DESCRIPTION

The all-new DJI Matrice 3TD is specifically designed for DJI Dock 2. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.

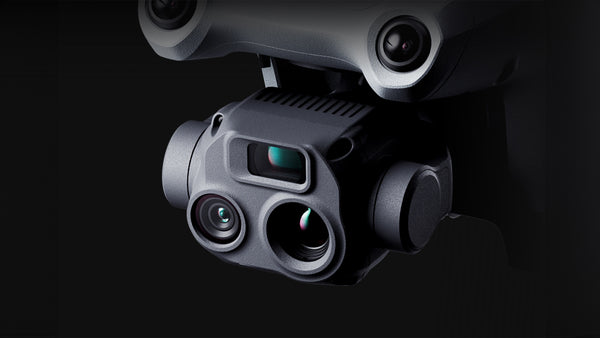

DJI Matrice 3TD Thermal drone sensor close up shot

High-Performance Aircraft

 Wide Angle Camera Tele Camera Thermal Camera
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels		 1/2-inch CMOS
‌162mm Format Equivalent
12MP Effective Pixels		 40mm Format Equivalent
Normal Mode: 640×512@30fps
UHR Infrared Image Mode: 1280×1024@30fps (With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.)
28x Digital Zoom

Superior, Comprehensive Performance

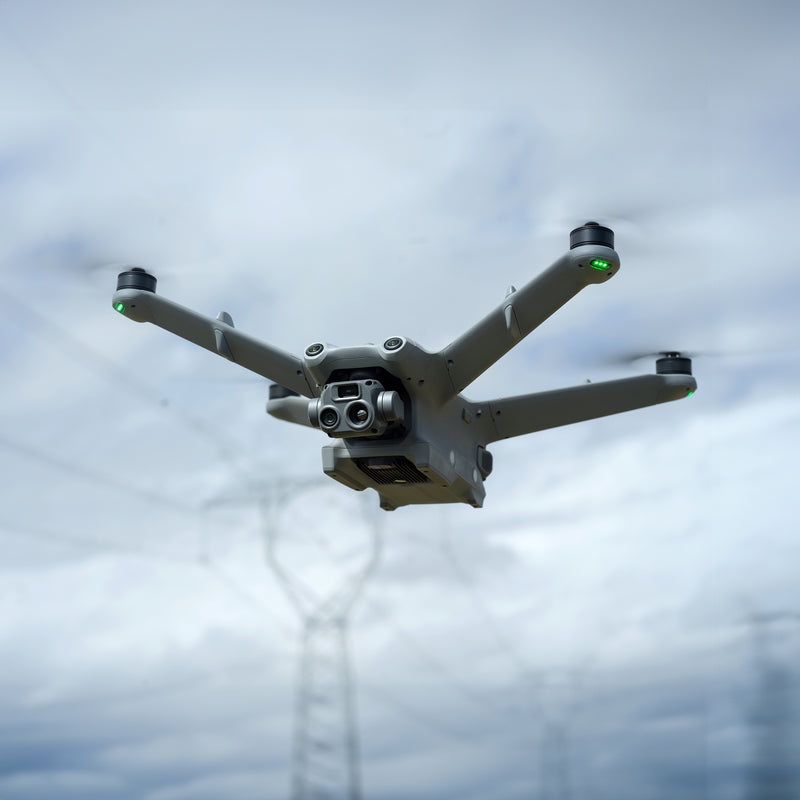

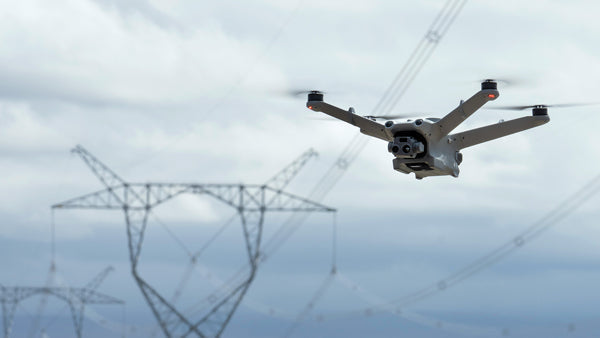

DJI Matrice 3TD thermal drone for DJI Dock 2 flying near power lines for an aerial inspection

Thanks to its powerful operation capabilities, DJI Matrice 3TD meets the requirements of high-standard operations.

 IP54

Dustproof and Waterproof

 50 Mins

Max Flight Time

 6-Directional

Obstacle Sensing System

 10 km

Max Effective Operating Radius

 400

Battery Cycles

 Integrated RTK Module

±3cm Positioning Accuracy

FEATURES

  • SKU: DJI-M3TD-B2

    The all-new DJI Matrice 3TD is specifically designed for DJI Dock 2. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and a thermal camera, can depict both visible light and thermal images, making it highly suitable for security and inspection operations.

    Please Note: This aircraft cannot operate as a standalone unit without the DJI Dock 2.

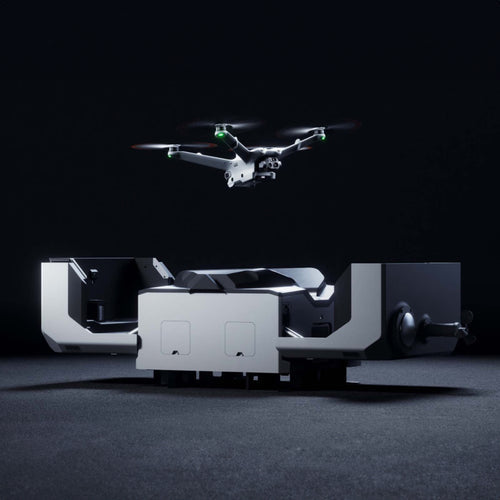

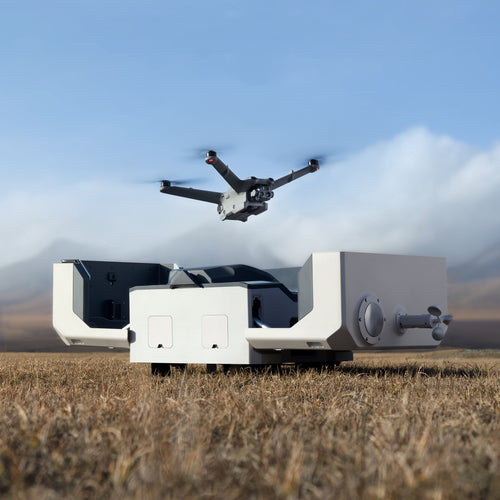

    DJI Matrice 3TD thermal drone - Designed specifically for DJI Dock 2
    Designed specifically for DJI Dock 2

    DJI Matrice 3TD thermal drone - 640x512 Thermal Camera
    640x512 Thermal Camera

    DJI Matrice 3TD thermal drone - 50-min Flight Time
    50-min Max Flight Time

    DJI Matrice 3TD thermal drone - IP54 Ingress Protection
    IP54 Ingress Protection



    DJI Matrice 3TD thermal drone - 400 Battery cycles
    400 Battery Cycles

    DJI Dock 2 - 10km Max Effective Operating Radius
    10km Max Effective Operating Radius

    DJI Dock 2 - Integrated RTK Module
    Integrated RTK Module

    DJI Matrice 3D - 6-Directoinal Obstacle Sensing
    6-Directional Obstacle Sensing

    SPECIFICATION

    Aircraft

    Weight 3.1 lbs. (1410g)
    Maximum take-off weight
    		 3.54 lbs.
    Dimensions 13.2"x15.66"x6" (335x398x153mm)
    Working Temperature 20°C--45 °C
    IP Rating IP54
    Max Flight Time 50 min
    Max Ascent Speed 13.4 mph (normal mode)
    17.8 mph (sport mode)
    Max Descent Speed 13.4 mph (normal mode)
    13.4 mph (sport mode)
    Max Flight Speed
    • Normal mode: obstacle avoidance turned on: forward flight 33.5 mph, backward flight 26.8 mph side flight 22.3 mph.
    • Sports mode: forward flight 47 mph, backward flight 40.2 mph, side flight 35.7 mph.
    Max Horizontal Flight Speed
    		 21 m/s
    Max Hover Time 40 min
    Max Wind Resistance Wind resistance during operation: 26.8 mph
    Wind resistance during takeoff and landing: 17.9 mph.
    Max Take-off Altitude 1.55 mi.
    Max Operational Range 6.21 mi.

    Wide-Angle Camera

    Sensor
    		 1/1.32 inch CMOS
    Equivalent Focal Length 24 mm; 48MP

    Telephoto Camera

    Sensor
    		 1/2-inch CMOS
    Equivalent Focal Length 161 mm; 12MP
    Zoom 56x hybrid zoom

    Thermal Camera

    Sensor
    		 Uncooled VOx Microbolometer
    Equivalent Focal Length 40 mm
    Thermal Resolution Normal mode: 640 x 512@30fps
    Super-resolution mode: 1280 x 1024@30fps
    Zoom 28x digital zoom
