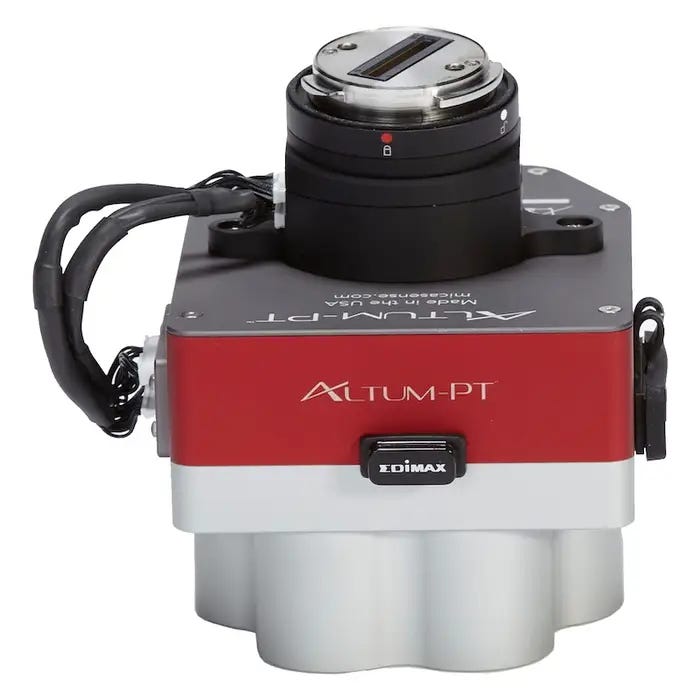

MicaSense Altum PT with DJI Skyport for Matrice 300/350
MicaSense Altum PT with DJI Skyport for Matrice 300/350
Share
MicaSense Altum PT with DJI Skyport for Matrice 300/350
DESCRIPTION
The MicaSense Altum-PT represents the pinnacle of innovation in the field of advanced remote sensing and agricultural research, offering a comprehensive 3-in-1 solution. Designed to seamlessly integrate with DJI SkyPort compatible drones, this sensor kit is the ideal tool for professionals seeking to leverage ultra-high-resolution imaging, thermal analytics, and multispectral data to drive decision-making in agriculture and environmental management.
Advanced Imaging Capabilities
At the heart of the Altum-PT lies an ultra-high-resolution panchromatic imager, combined with a state-of-the-art thermal imager that delivers twice the ground resolution compared to its predecessor. This enhancement, along with five discrete spectral bands, empowers users with unparalleled detail and precision for plant-level applications, including early-stage stand counting and intricate vegetation research.
Precision and Efficiency
Equipped with a global shutter, the Altum-PT captures distortion-free images, ensuring the highest quality data. The sensor’s open APIs and a new storage device support rapid capture rates of up to 2 images per second, streamlining the data collection process. Additionally, the integration with DJI SkyPort facilitates a smooth connection with compatible drones, notably the Matrice 300, although it is not validated for the DJI M210 RTK drone.
Comprehensive Sensor Kit
The kit includes the Altum-PT sensor, SkyPort adapter, and DLS 2 with embedded GPS for advanced light and sun angle measurements, enhancing radiometric accuracy. It also comes with a Calibrated Reflectance Panel (CRP 2), USB WiFi dongle, lens cover, integration cables, mounting hardware, CFexpress card and reader, a hard carrying case, and a quick start guide, offering a complete solution for professionals.
Enhanced Data Analysis
The Altum-PT’s synchronized capture of multispectral, thermal, and panchromatic data allows for pixel-aligned outputs at incredibly high resolutions. This facilitates advanced analysis for irrigation scheduling, fruit yield estimations, disease detection, water stress prediction, and plant phenotyping, among other applications.
FEATURES
- Increased Storage: The inclusion of a CFexpress card provides over two captures per second and swift data management.
- Ultra-High Spatial Resolution: Features a 1.2 cm pan-sharpened ground resolution, enhancing the clarity and detail of multispectral data.
- Upgraded Thermal Sensor: Incorporates a 320 x 256 FLIR Boson thermal sensor, offering superior thermal map clarity.
The MicaSense Altum-PT with DJI Skyport is more than just a sensor; it's a gateway to unparalleled insights and efficiencies in the field of precision agriculture and environmental monitoring, offering professionals the tools they need to make informed, data-driven decisions.
SPECIFICATION
Specification | Details |
---|---|
External Power | 7.0 V - 25.2 V |
Power Input | 5.5/7.0/10W (standby, average, peak) |
Sensor Resolution | 2064 x 1544 (3.2MP per MS band) 4112 x 3008 (12MP per PAN band) 320 x 256 thermal infrared |
Spectral Bands | Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57) |
RGB Color Output | 12.4 MP (global shutter, aligned with all bands) |
Thermal | FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated |
Multispec GSD (per multispec band) | 5.28cm per pixel at 120m |
Thermal GSD | 33.5cm per pixel at 120m |
Panchro & Pansharpened GSD | 2.49cm per pixel at 120m |
Capture Rate | 2 capture per second raw DNG |
Interfaces | 3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CFexpress for storage |
Field of View | 50 Degree HFOV x 38 Degree VFOV (multispectral) 46 Degree HFOV x 35 Degree VFOV (panchromatic) 48o x 39o (thermal) |
Storage | CFexpress Card |
Dimensions | 4.3 x 3.1 x 2.7" (11.0 x 8.0 x 6.9cm) |
Weight | Altum-PT + DLS2: 16.2 oz (460g) |
IN THE BOX
- 1x Micasense Altum-P multispectral & thermal camera sensor
- 1x DLS 2 light sensor
- 1x CRP 2 calibrated reflectance panel
- 1x SkyPort adapter for DJI Matrice 300
- 1x Hard carry case
