TTA M6E-X（Version 2) 10 Litter AGRICULTURAL DRONE SPRAYER

TTA M6E-X（Version 2) 10 Litter AGRICULTURAL DRONE SPRAYER

$10,500.00 USD
$10,500.00 USD
Sale Sold out
Shipping calculated at checkout.
Choose Your Option

TTA M6E-X（Version 2) 10 Litter AGRICULTURAL DRONE SPRAYER

10 L drone with high efficiency and rapid field deployment. Ideal for crops with sensitive growing and fruit development periods, small vegetable farms, and spot treatment. This drone is affordable, portable, and easy to fly.

FULLY AUTOMATIC

Easy | Accurate | Repeatable

When battery or liquid is low, the drone returns automatically and will resume exactly where it left off once replenished

  • Use the included Ground Station App to drop waypoints on the corners of your spray area (do this on the included Google Maps, or by flying the drone to the points)
  • Mark any obstacles or areas to avoid

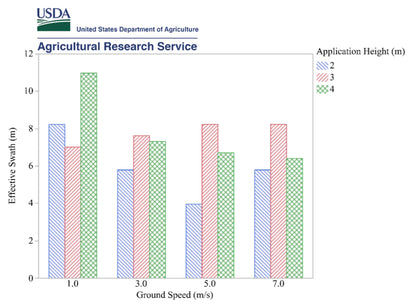

  • Input your desired Swath and Altitude settings (see USDA Research for optimal performance)
  • The software will design the best spray route; this can be rotated for wind or modified
  • Power up the drone, click a few buttons on the app and the drone will conduct the mission!
A-B MODE
Fast | Flexible | Simple
This is the fastest method for spraying and works best for square / rectangle shaped areas. As with Fully Automatic, when battery or liquid is low, the drone returns automatically and will resume exactly where it left off once replenished.
  • Fly the drone to the corner of the field where you’d like to start your mission
  • Toggle the A-B switch to the “A” position; the app will confirm that point A has been recorded
  • Fly the drone to the opposite end of the field (the path between these two points will be the line that the drone repeats)
  • Toggle the A-B switch to the “B” position; the app will confirm that point B has been recorded
  • Push the RC stick to the left or the right; the drone will slide over to the direction you instructed and it will fly back towards the “A” side of the field and will repeat until you stop it.
The distance between rows (swath), speed and height are based on the parameter you set in the app. If needed, you can shorten or extend either end of the field during the mission.
    MANUAL MODE
    As you might suspect, this is the most basic form of operating the spraying drone. In this mode, you fly the drone with the Remote Controller (RC) and can use either an automatic (speed dependent) pump or manual pump mode. The terrain sensor allows you to fly on hillsides with ease. We recommend you use the GPS position hold feature so that the drone holds a hover and doesn’t drift in the wind.
    AUTOMATIC SPRAYING SYSTEM
    Accurate | Precise | Effortless
    This awesome feature allows you to focus on flying instead of fumbling with pump speed and extra calculations. Just select the desired flow rate / pump speed and the system does the work for you! The pump speed will adjust to account for flight speed and will turn off as appropriate to avoid over-spraying. When the system detects you are out of chemical, the pump will shut off and the drone will return to its home position automatically! And yes, it leaves a mark where it left off so it can automatically resume.

    An enhanced safety feature turns off the pump if there is an emergency.

      Technical Data

      • Model No: M6E-X (version 2)
      • Diagonal wheelbase: 1290mm
      • Folded height: 601mm
      • Tank Volume: 10L
      • Work Efficiency: 0.8-1.0hectare/flight(5-10mins) 32~40 hectares/ 8 hours

      Flying

      • Full payload Flying Time: 10-12min
      • Max Flying Time: 25-30min
      • Flying Speed: 0-15m/s
      • Working Speed: 4-6m/s
      • Flying Height: 3500m
      • Anti-wind: <12m/s

      Spraying

      • Spray droplet diameter: 80-200μm
      • Quantity of Nozzles: 4pcs
      • Recommend Spray Speed: 4.8-6m/s
      • Spray Width: 4-5M
      • Spray Height: 2-4M above crop

      FPV Camera

      • Video definition: 720P
      • Transmit distance: 1km
      • Time delay: Real time
      • Display screen: Integrated with GCS (No need extra screen)
