Introducing the TTA G300 Farm / Field Spraying (and seeding) Drone! There are spraying drones, and then there is TTA
24 Acres per Hour* | Capacity: 7.9 Gal | Swath: 13 - 29 ft | Max Flow: 2.11 GPM | Droplet Size 170 - 265 microns (depending on the actual operating environment, spray flow, and other factors)
-

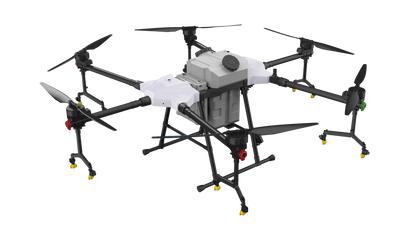

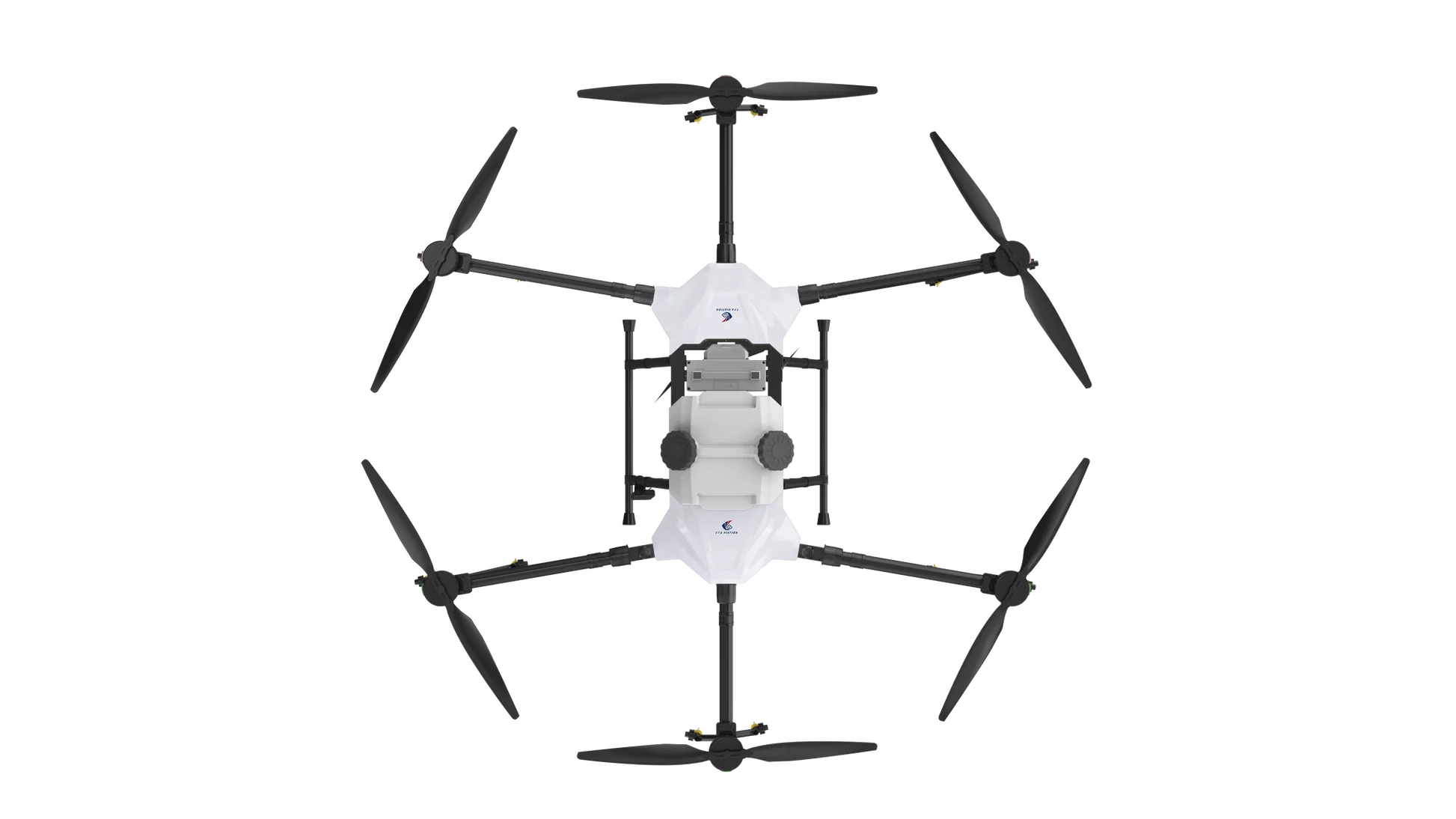

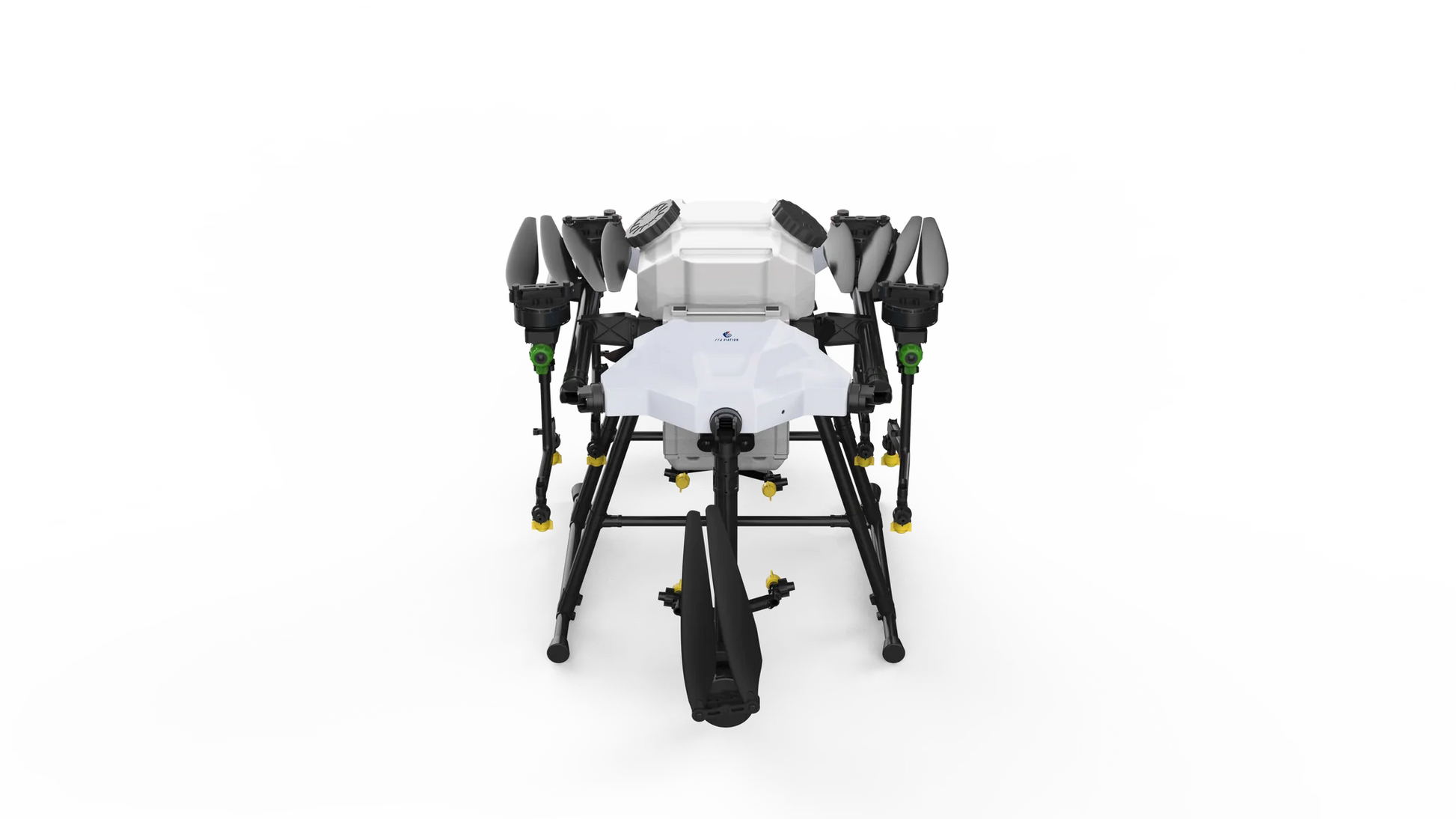

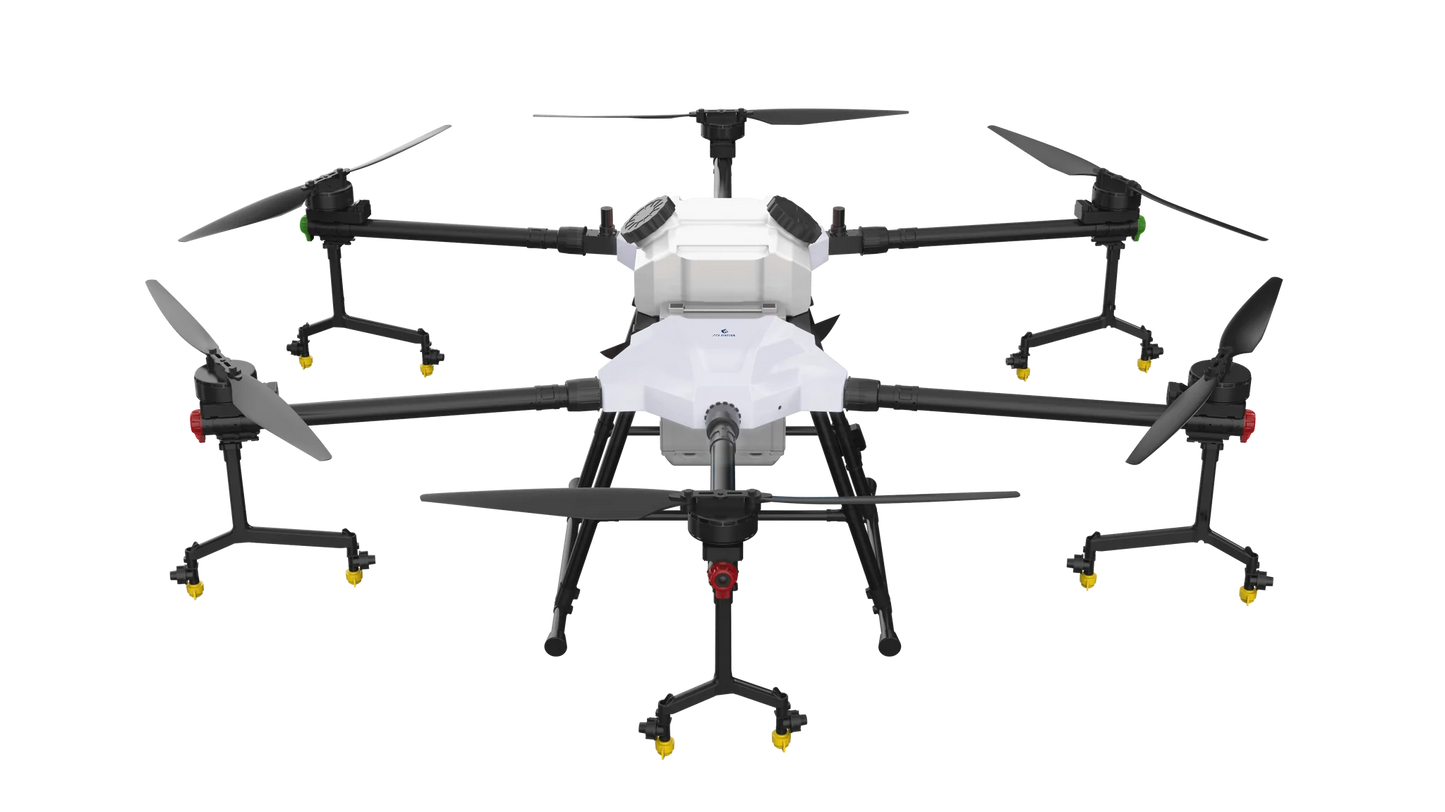

G300 7.9 GAL (30L) SPRAYING DRONE
-
AUTOMATIC SPRAY MODE - Find your crop field and set waypoint from the GCS Google Map, the route will automatically appear. The start point, the final point and the working direction can all be set.
-
ACCURATE RTK POSITIONING SYSTEM - Covers the whole field accurately, also to avoid damage and pollution to neighboring fields
-
24 ACRES PER HOUR
-
SPRAYING SYSTEM - Double water pumps generate bigger pressure, max 4L/min adjustable flow rate. Bigger inlet for you to fill in the chemical faster with no leak
Specifications
TECHNICAL PARAMETERS |
|
Diagonal Distance |
1950mm |
Dimensions |
2900×2900×780mm (with unfolded arms and unfolded propellers ) |
2050×1610×780mm (with unfolded arms and folded propellers) |
|
1050×620×780mm (with folded arms) |
|
Spray System - Tank |
|
Quantity |
1pc |
Tank Volume |
30L |
Spray System- Pump |
|
Quantity |
2pcs |
Operating Flow Rate |
5L/min per pump |
Operating Voltage |
51.8-60.0V |
Spray System- Pressure Nozzles |
|
Quantity |
12pcs |
Max Flow Rate |
8L/min |
Droplet Size |
SX110015VS : 170 - 265 μm |
Max Effective Spray Width |
4M-9M (1.5-3.5M above crop) |
Flying Parameters |
|
Empty Weight(without batteries) |
27.8kg |
Standard Takeoff Weight |
38.3 kg |
Max Effective Takeoff Weight |
68.3 kg (horizontal) |
Hover Accuracy(GNSS) |
With J-RTK Enabled:Horizontal ±10 cm, Vertical ±10 cm; With J-RTK Disabled:Horizontal ±0.6m,Vertical ±0.3 m (with radar function enabled:±0.1 m) |
RTK / GNSS Frequency Bands |
RTK: GPS L1/L2, GLONASS F1/F2,BeiDou B1/B2, Galileo E1/E5 |
Battery Capacity |
14S (28000mAh 51.8V) |
Max Power Consumption |
12000 W |
Flight Time |
20.10 min (@28000 mAh&takeoff weight of 38.3kg); 8.30 min (@28000 mAh&takeoff weight of 68.3kg); |
Max Pitch angle |
15° |
Max Operating Flight Speed |
7 m/s |
Max Flight Speed |
10m/s |
Max Tolerable Wind Speed |
8 m/s |
Max Flight Altitude |
2000 m |
Recommended Operating Ambient Temperature |
0°C to 40°C |
Front and Rear Dual Camera |
|
View Angle (FOV) |
FOV120° |
Resolution |
1280×960 30fps |
Front and Rear Dual Searchlights |
|
Power Consumption |
<8W |
Luminous Flux |
1W/120-140 lm |
Shine Angle |
120° |
IP Ratings |
IP67 |
Battery |
|
Model |
TATTU28A |
Capacity |
28000mAh-53.2V |
Weight |
9.3KG |
Discharge Rate |
3C |
IP Ratings |
IP56 |
Power System - Motor |
|
Dimensions |
96×26mm |
KV Value |
100 rpm/V |
Max Pull |
15.5kg/rotor |
Max Power |
2400 w/rotor |
Weight |
835 g |
Power System - Propeller |
|
Diameter and Pitch |
36×12inch |
Material |
Carbon-Plastic |
Weight |
324 g |
Power System - ESC |
|
Normal Operating Current (continuous) |
60A |
Max Operating Voltage |
58.8 V (14S LiPo) |
Max Operating Current(continuous) |
120A |
Remote Control |
|
Model |
H12 |
Max Valid Distance |
15KM (without blockage and interference) |
AG Drone Operating Range |
3.5KM (flight height>3m) |
Signal Output |
16 channels S.BUS; 5 channels PWM; |
Video Transmitter Resolution |
1080P |
Screen |
5.5inch High-brightness Touch LCD Screen |
Configuration |
2G RAM,16GB Internal Storage |
Weight |
530g |
Battery |
10000mAh 3.7V Lithium-ion Battery |
Endurance |
13 hours |
Charger |
|
Model |
U6Q |
Input Voltage |
110V-220V |
Output Power |
2400W |
Charge Current Range |
15A-50A |
Support Battery Model |
Lithium Battery |
Specifications
Model | M6E-G200 |
Tank Volume | 16L |
Work Efficiency | 2.7-4Acre/10min |
Flying | |
Full payload Flying Time | 10-13min |
Empty payload Flying Time | ≥20min |
Flying Speed | 0-10m/s |
Flying Height | 3500m |
Landing approach | Vertical take-off and landing |
Anti-wind | <12m/s |
Positioning | GPS&RTK |
Spraying | |
Spray droplet diameter | 80-200μm |
Quantity of Nozzles | 4pcs |
Recommend Spray Speed | 4-6m/s |
Spray Width | 4-6M |
Spray Height | 2-4M above crop |
Spraying Area |
32-48 hectares per day |
