XAG R150 Autonomous Tractor (Hauler) Ground Vehicle for Agriculture

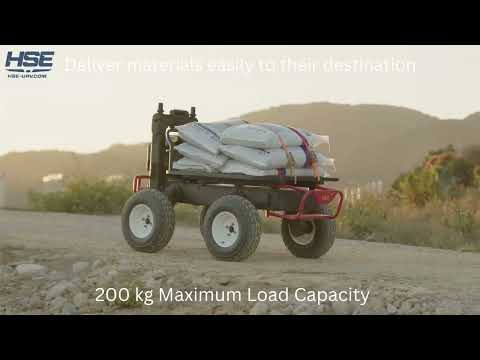

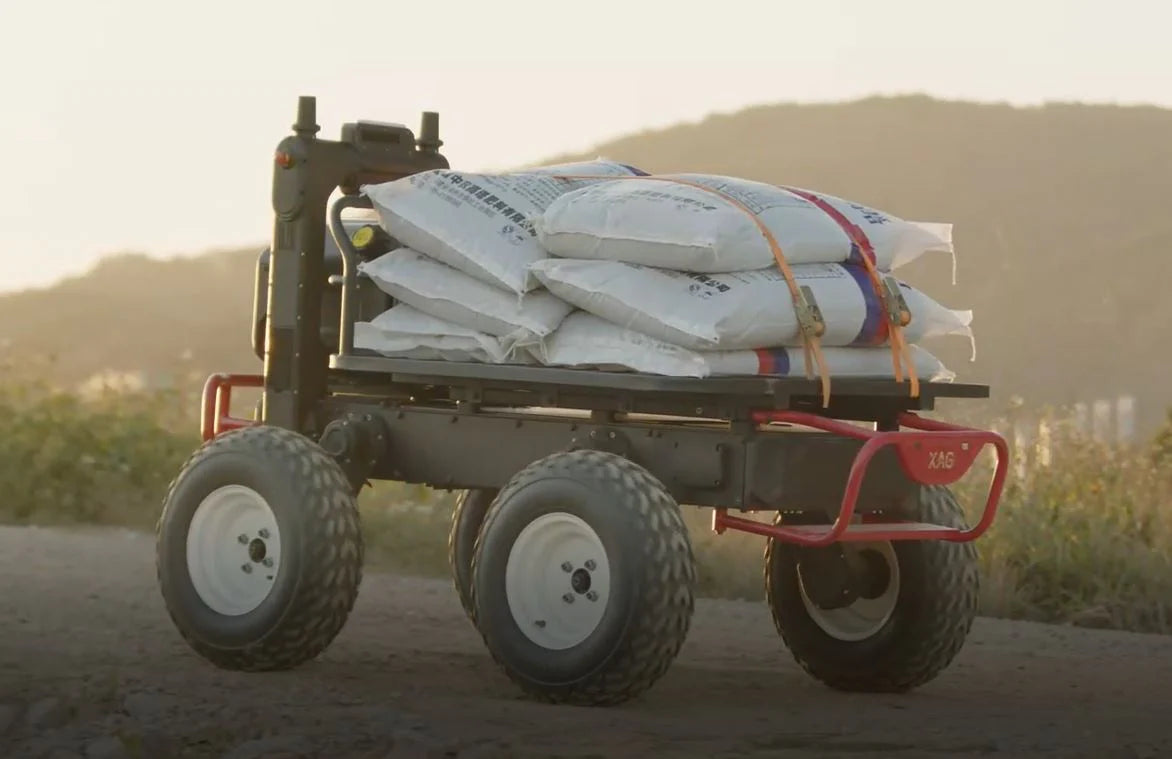

The multi-use R150 autonomous tractor HAULS materials and saves you time!
A variety of intelligent round-trip routes can be set to easily delivery materials to their destinations, saving time and effort. Thanks to the new XAG R150 Autonomous Hauling Tractor
| BASIC PARAMATERS | |
| Control System | SuperX 4 Pro |
| Overall Dimension | 1695 × 1205 × 1205 mm |
| Net Weight | 188 kg |
| Load Capacity | 200 kg (excluding payload system) |
| Max Speed | 1.2 m/s |
| Max Climbing Angle | 15° |
| Min. Turning Diameter | 1 m |
| Tire | 16" TL rubber tire |
| TRANSPORT RACK | |
| Maximum Weight Load Capacity | 200 kg |

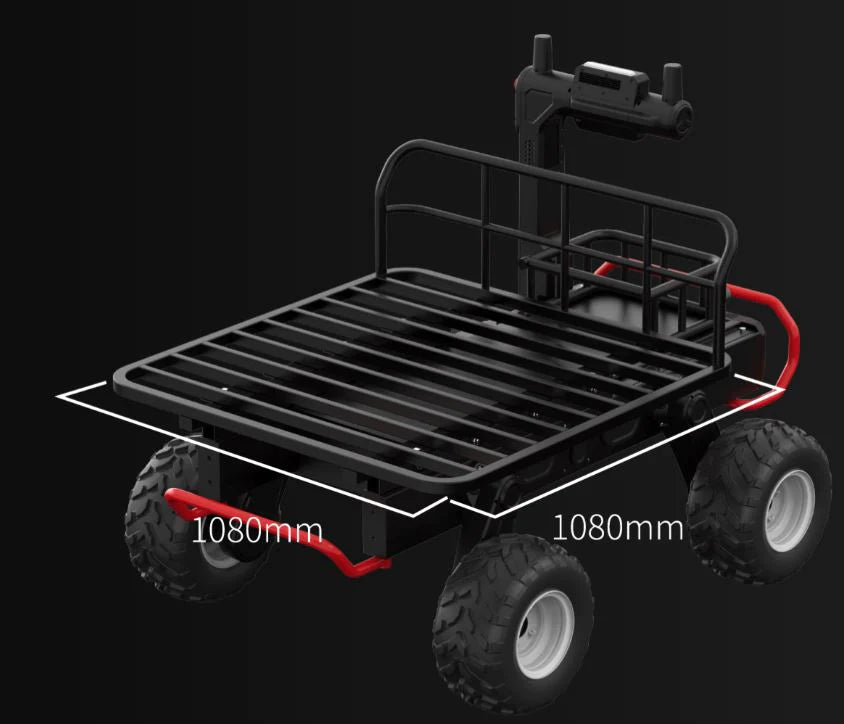

| Dimensions | 1080 x 1080 mm |
| POWERTRAIN | |
| Motor Type | Permanent Magnet Synchronous Motor (PMSM) |
| Rated Voltage | 48 V |
| Rated Power | 1500 W |
| Rated Speed | 1450 RPM |
| Rated Torque | 7 N·m |
| Cooling Method | Natural Cooling |
| Insulation Class | Class E |
| POWER SYSTEM / B13960S SMART BATTERY | |
| Battery Type | Lithium polymer battery |
| Battery Quantity | 2 |
| Rated Capacity | 20000 mAh (962 Wh) |
| Rated Output Voltage | 48.1 V |
| Rated Output Current | 120 A |
| COMMUNICATION & CONTROL SYSTEM / XAG AGRICULTURAL REMOTE CONTROLLER 3 | |
| Effective Isotropic Radiated Power (EIRP) | 2.4 GHz , SRRC: ≤ 20 dBm |
| Operating Frequency | SRRC: 2.4000-2.4835 GHz |
| Charging Voltage / Current | 5 V/2 A, 9 V/1.5 A, 12 V/1.5 A |
| Ambient Temperature for Charging | 0~45℃ |
| RTK Frequency Band | GPS: L1C/A, L2C; GLONASS: G1, G2; BDS-2: B1I, B2I, B3I; |
| BDS-3: B1I, B3I; Galileo: E1, E5bI; QZSS: L1C/A, L2C | |
