Product Description

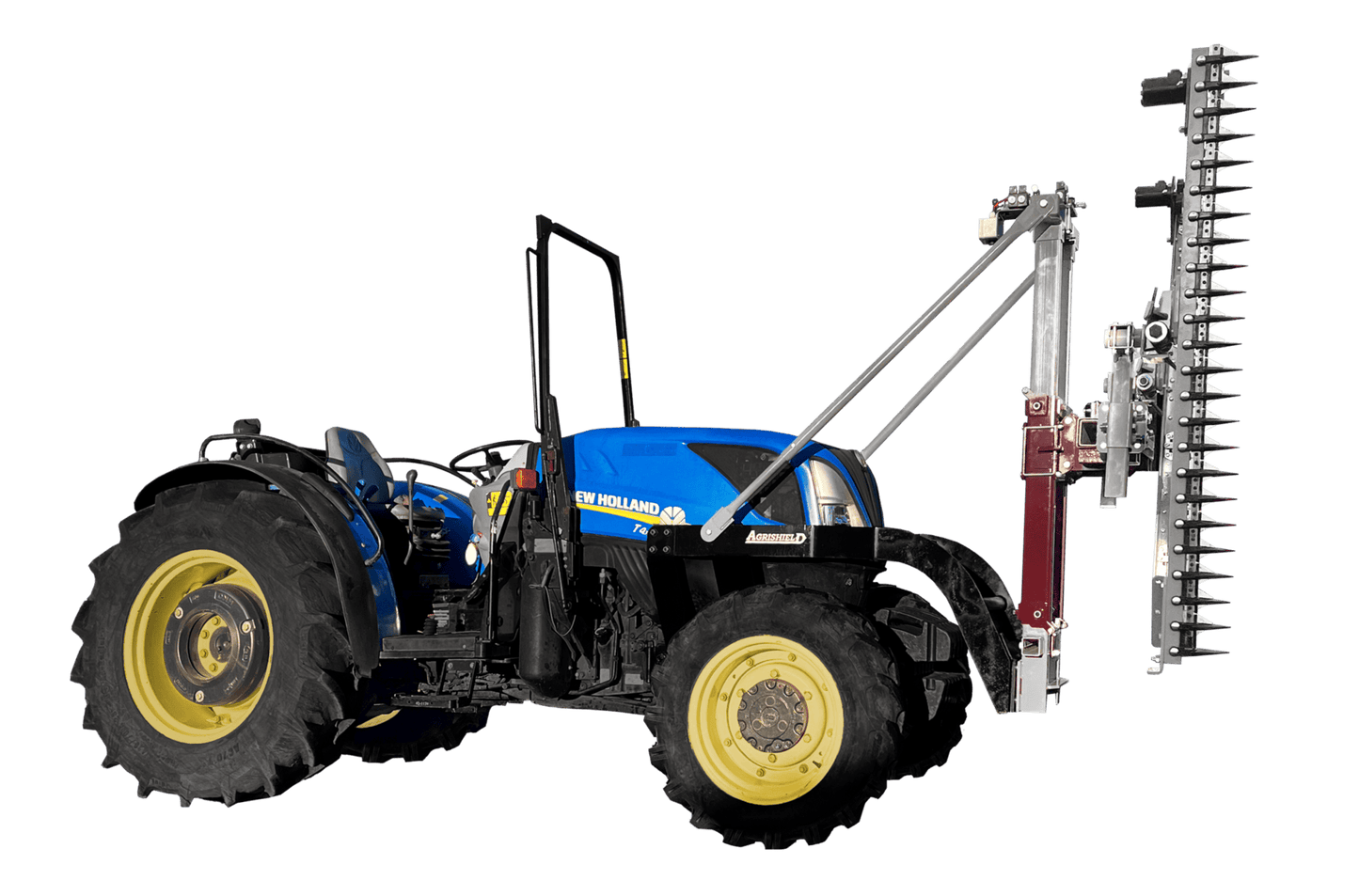

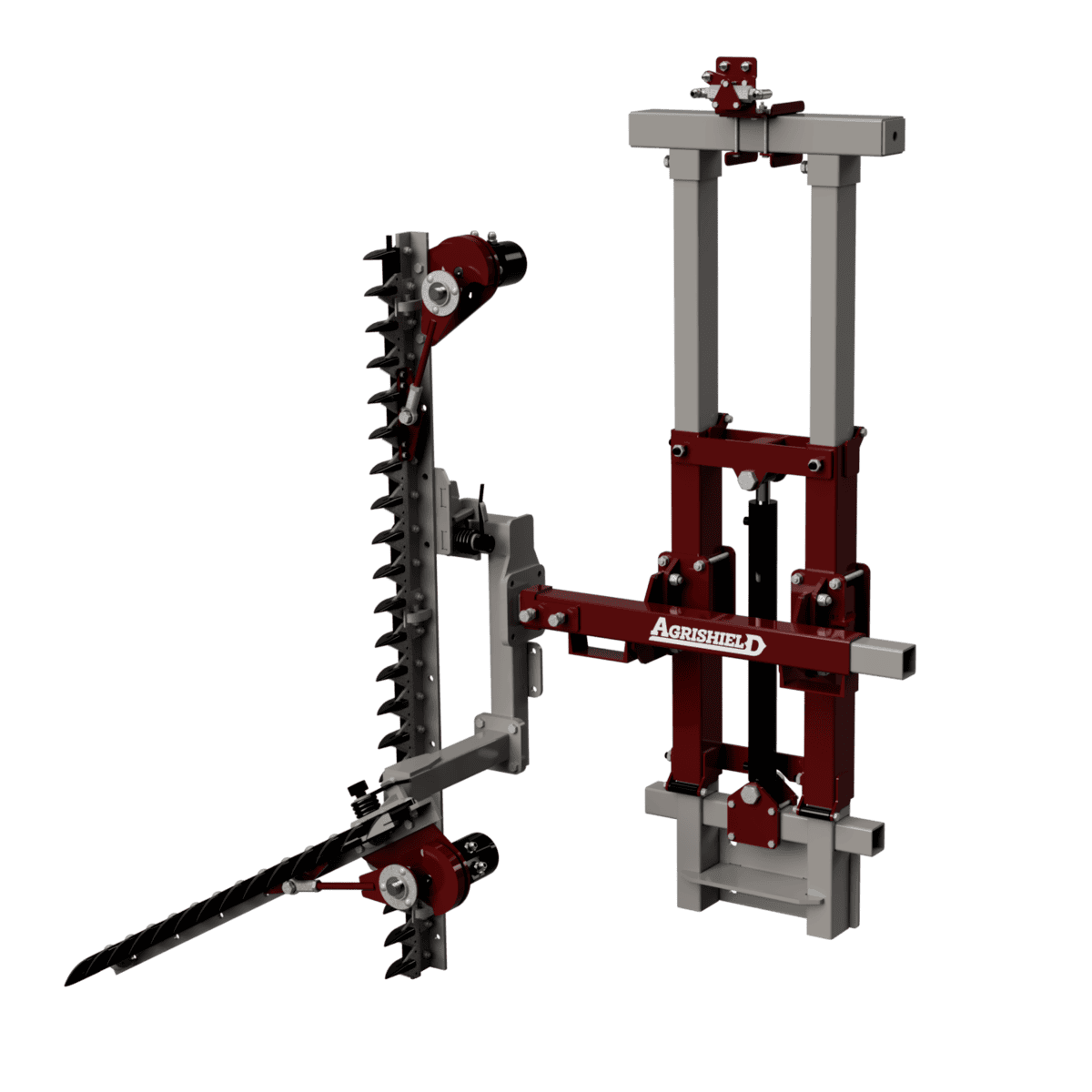

Agrishield Vine Trimmer | Double Bar - Half Row 3200 Series | Recommended Flow 5-8 GPM | For Tractors
DESCRIPTION
The Agrishield Vine Trimmer 3200 Series is a high-performance vineyard management tool designed for precise trimming and pruning. It features double sickle cutter options, allowing for efficient hedge trimming. With hydraulic and manual adjustments, it provides customizable cutting angles and heights, making it ideal for vineyard maintenance.
Key Features
- Skirt Element: Adjustable lower element for extended height or angled skirt cuts.
- Hydraulic Lift: 20” vertical lift for precise trimming adjustments.
- Manual Side Shift: 24” lateral movement for flexible positioning.
- Frame Width: Available in Narrow or Standard configurations.
- Vertical Carriage: Sliding take-ups for height customization.
- Tractor Hydraulics: Requires 2 remote ports, recommended flow 5-8 gpm.
- Mounting System: Front mounting kit with custom tractor bracket.
- Control Requirements: Operated via 2 tractor remote levers.
Detailed Specifications
| Feature | Specification |
|---|---|
| Available Configurations |
3201: Half-Row Hedge w/ Top 3202: Half-Row Hedge w/ Skirt |
| Hydraulic Lift | 20” Vertical Lift & Motor Loop |
| Manual Adjustments | 24” Side Shift |
| Vertical Carriage | Sliding Take-Ups for height customization |
| Tractor Hydraulics | Remote Ports Required: 2 Sets, Recommended Flow: 5-8 gpm |
| Mounting System | Front Mounting Kit with Custom Tractor Bracket |
| Frame Width | Narrow or Standard |
| Required Controls | 2 Tractor Remote Levers |
| Cutting Capacity | Up to 7/8” (Double Sickle) |
| Ground Speed | 5+ mph |
| Hydraulic Flow | 5-8 gpm |
