Product Description
Baumaligh Tree Saw | Model DXD752 | Blade Diameter 52" | Machine Size 10 To 22 Tons | For Excavators
DESCRIPTION
Take control of overgrowth with precision and power using the Baumalight DXD752, the ultimate tree saw attachment for excavators. Designed for operators who demand productivity and durability, the DXD752 delivers unmatched cutting performance with its 52" steel blade, 360° hydraulic rotation, and high-efficiency bent axis piston motor.
Whether you're managing right-of-way clearing, taming brush on remote pastureland, or trimming limbs along fence rows, the DXD752 puts commercial-grade land clearing capabilities at your fingertips. Compatible with 10–22 ton excavators and engineered to handle hydraulic flows of 25–60 GPM, this rugged attachment slices through trees up to 20 inches in diameter with surgical precision.
Built with AR400 steel, replaceable Beaver-style teeth, and a slew drive for full 360° control, the DXD752 doesn’t just cut it conquers. Backed by thoughtful design features like removable service panels, an integrated root rake, and enhanced operator visibility, this is more than a tree saw it’s a professional-grade land clearing solution.
Key Features
- 52-Inch Industrial Blade: Slices through trees up to 20" with a heavy-duty, 1" thick steel blade.
- 360° Slew Drive Rotation: Access limbs and trunks from any angle complete freedom of movement.
- High Hydraulic Flow Capability: Engineered for machines running between 25–60 GPM, ensuring high torque cutting.
- Compatible with 10–22 Ton Excavators: Broad compatibility makes it ideal for mid to heavy-duty excavation machines.
- Replaceable Beaver Teeth: Features 18 straight-edged, alloy-steel teeth for clean cuts and easy maintenance.
- Bent Axis Piston Motor: Maximizes cutting power and hydraulic efficiency designed for long-term reliability.
- Root Rake with Replaceable Teeth: Clear and manage debris or push logs post-cut with ease.
- Operator-Centric Visibility: Open frame design keeps the cutting line clearly in view for safer, more accurate work.
- Blade Shielding System: Directs debris safely away from the cab and operator while cutting.
- Heavy-Duty Overhung Load Adapter: With tapered roller bearings, it supports the blade under intense cutting pressure.
- Powder-Coated Finish: Rust-resistant and built to withstand extreme weather and job site conditions.
- Bolt-On Excavator Mount: Easily swap between carriers future-proof your investment.
- Service-Friendly Access Panels: Removable covers allow for quick maintenance and internal inspections.
- Case Drain with Vent to Atmosphere: Protects hydraulic seals by relieving excess pressure critical for motor longevity.
- Includes 6 Extra Teeth: Comes with a bonus set of replacement Beaver teeth stored in-frame for quick changes on site.
Detailed Specifications
| Feature | Specification |
|---|---|
| Brand | Baumalight |
| Model | DXD752 |
| Attachment Type | Tree Saw Attachment for Excavators |
| Compatibility | Excavators (10–22 Tons) |
| Hydraulic Flow | 25–60 GPM |
| Hydraulic Pressure | Up to 5,000 PSI |
| Blade Diameter | 52 Inches |
| Blade Material | 3/4" Thick Hardened Steel (AR400) |
| Max Cutting Diameter | 20 Inches |
| Tooth Style | Beaver Teeth (Replaceable) |
| Number of Teeth | 18 Total (4 Edges per Tooth) |
| Motor Type | Bent Axis Piston Motor (108cc) |
| Rotation Capability | 360° Slew Drive Rotation |
| Case Drain Requirement | Yes – with Vent to Atmosphere |
| Adaptor | Bolt-On Excavator Adaptor (Baumalight A03) |
| Integrated Features | Root Rake, Blade Shield, Extra Teeth Storage |
| Unit Shipping Weight | 2,380 lbs |
| Finish | Powder-Coated for Durability |

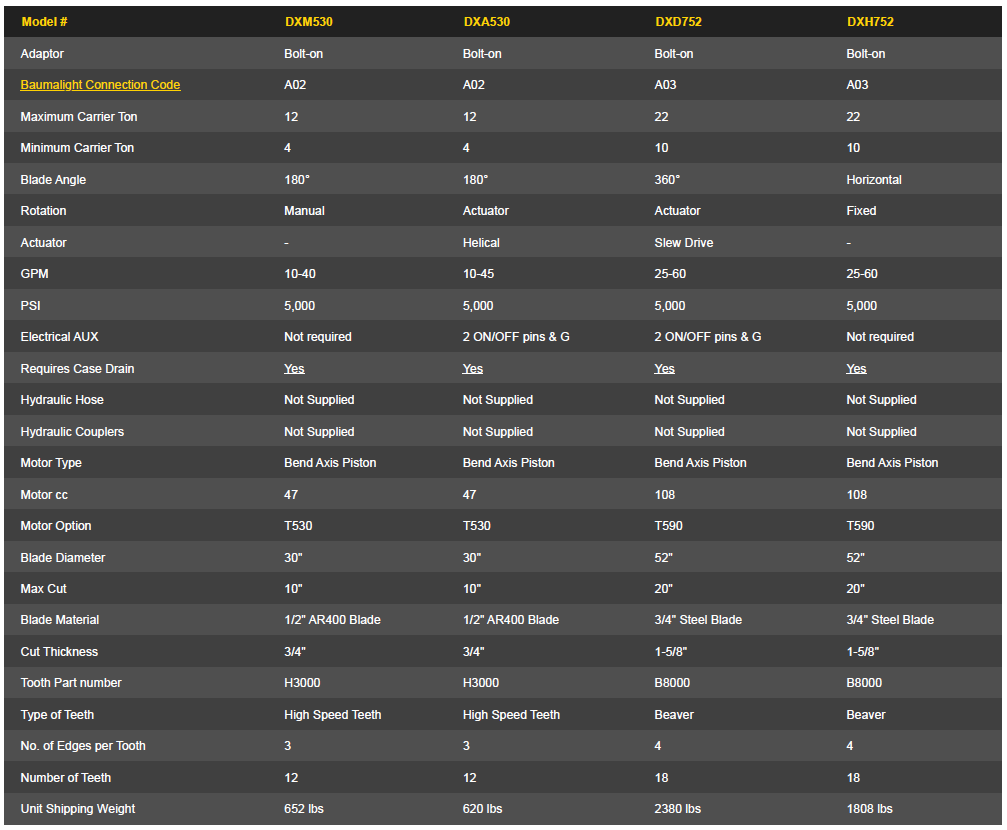

Comparison Chart
| Feature | DXM530 | DXA530 |
|---|---|---|
| Adaptor | Bolt-on | Bolt-on |
| Baumalight Connection Code | A02 | A02 |
| Maximum Carrier Ton | 12 | 12 |
| Minimum Carrier Ton | 4 | 4 |
| Blade Angle | 180° | 180° |
| Rotation | Manual | Actuator |
| Actuator | – | Helical |
| Hydraulic Flow (GPM) | 10–40 | 10–45 |
| Hydraulic Pressure (PSI) | 5,000 | 5,000 |
| Electrical AUX | Not required | 2 ON/OFF pins & G |
| Requires Case Drain | Yes | Yes |
| Hydraulic Hose | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Motor Type | Bent Axis Piston | Bent Axis Piston |
| Motor CC | 47 | 47 |
| Motor Option | T530 | T530 |
| Blade Diameter | 30" | 30" |
| Max Cut Diameter | 10" | 10" |
| Blade Material | 1/2" AR400 Blade | 1/2" AR400 Blade |
| Cut Thickness | 3/4" | 3/4" |
| Tooth Part Number | H3000 | H3000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth |
| Edges per Tooth | 3 | 3 |
| Number of Teeth | 12 | 12 |
| Unit Shipping Weight | 625 lbs | 650 lbs |
| Feature | DXD752 | DXH752 |
|---|---|---|
| Adaptor | Bolt-on | Bolt-on |
| Baumalight Connection Code | A03 | A03 |
| Maximum Carrier Ton | 22 | 22 |
| Minimum Carrier Ton | 10 | 10 |
| Blade Angle | 360° | Horizontal |
| Rotation | Actuator | Fixed |
| Actuator | Slew Drive | – |
| Hydraulic Flow (GPM) | 25–60 | 25–60 |
| Hydraulic Pressure (PSI) | 5,000 | 5,000 |
| Electrical AUX | 2 ON/OFF pins & G | Not required |
| Requires Case Drain | Yes | Yes |
| Hydraulic Hose | Not Supplied | Not Supplied |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Motor Type | Bent Axis Piston | Bent Axis Piston |
| Motor CC | 108 | 108 |
| Motor Option | T590 | T590 |
| Blade Diameter | 52" | 52" |
| Max Cut Diameter | 20" | 20" |
| Blade Material | 3/4" Steel Blade | 3/4" Steel Blade |
| Cut Thickness | 1-5/8" | 1-5/8" |
| Tooth Part Number | B8000 | B8000 |
| Type of Teeth | Beaver | Beaver |
| Edges per Tooth | 4 | 4 |
| Number of Teeth | 18 | 18 |
| Unit Shipping Weight | 2,380 lbs | 1,808 lbs |
