Product Description

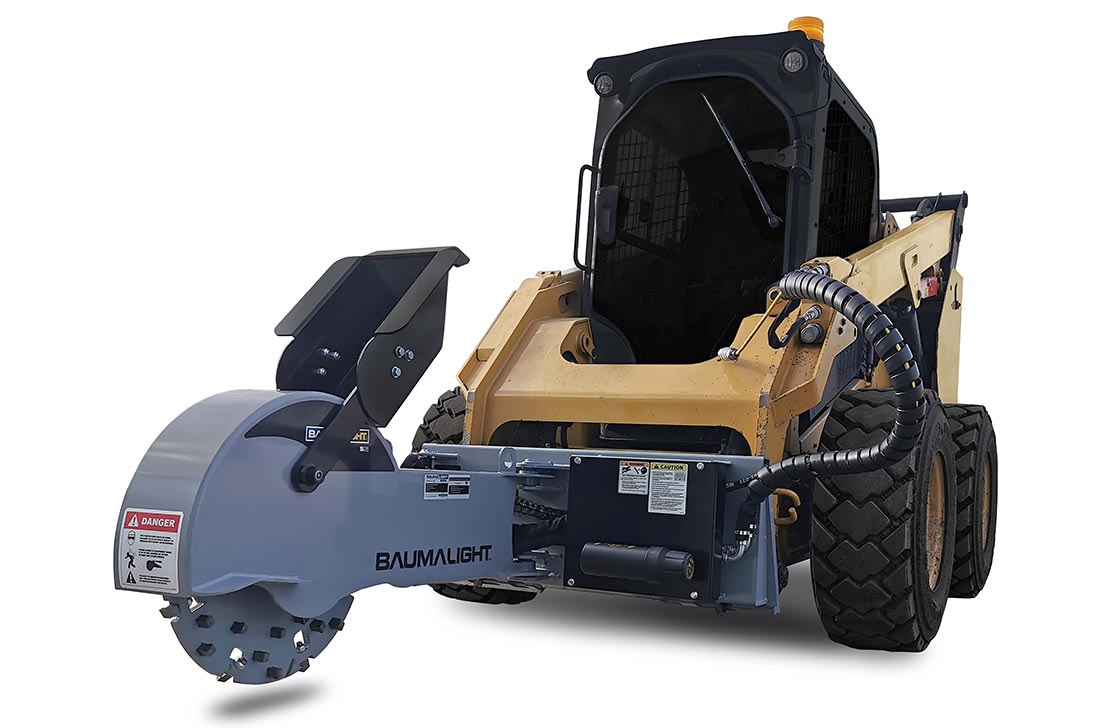

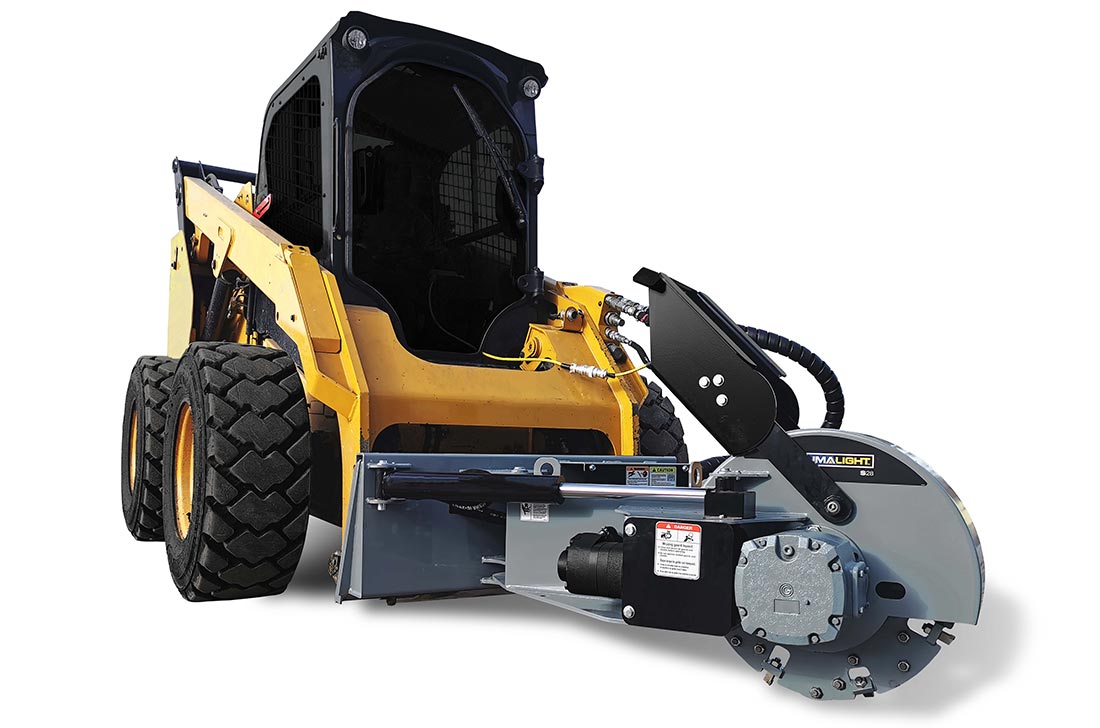

Baumalight Stump Grinder | Model S40 | Rotor Size 24" | Hydraulic Flow Range 15 To 60 GPM | For Skid Steers
DESCRIPTION
Upgrade your stump removal game with the Baumalight Stump Grinder Models S28 and S40 precision-engineered attachments built for power, durability, and unmatched performance on skid steers. Whether you’re a landscaping professional, construction contractor, or rental operator, these high-flow stump grinders deliver the muscle and control you need to tackle stubborn stumps with ease.
Designed specifically for skid steers with hydraulic flow between 22 and 47 GPM, these grinders combine rugged construction with advanced hydraulic technology. The massive 24-inch rotor, fitted with durable carbide-tipped teeth, ensures quick, clean cuts, grinding stumps up to 15 inches below ground level. The floating deflector and large blast shield keep debris controlled, protecting your surroundings and speeding up cleanup.
With easy tooth replacement and a robust gearbox that amplifies torque, the S28 and S40 models provide consistent power and reliability making your stump grinding faster, safer, and more efficient. Whether working on golf courses, commercial lots, or rental fleets, these stump grinders are the trusted choice for professionals who demand the best.
Key Features
- Powerful Hydraulic Performance: Compatible with skid steers delivering 22-47 GPM hydraulic flow for optimum torque and cutting power.
- Massive 24" Rotor: Thick 1.25” steel rotor provides strength and durability for heavy-duty stump grinding.
- Carbide-Tipped Teeth: Long-lasting teeth extend 1.25" for superior cutting efficiency and chip clearing.
- Floating Deflector: Directs debris safely away from the operator, enhancing safety and site cleanliness.
- Deep Cutting Capacity: Cuts up to 15" below ground for thorough stump removal and root grinding.
- Swing Radius Control: 63-degree swing arc for precise positioning around tight or landscaped areas.
- Bolt-On Tooth Design: Quick and simple tooth replacement minimizes downtime and maintenance costs.
- High-Torque Gearbox: Increases cutting head torque, ensuring smooth grinding even on the toughest stumps.
- Heavy-Duty Construction: Built to withstand rugged construction and landscaping demands.

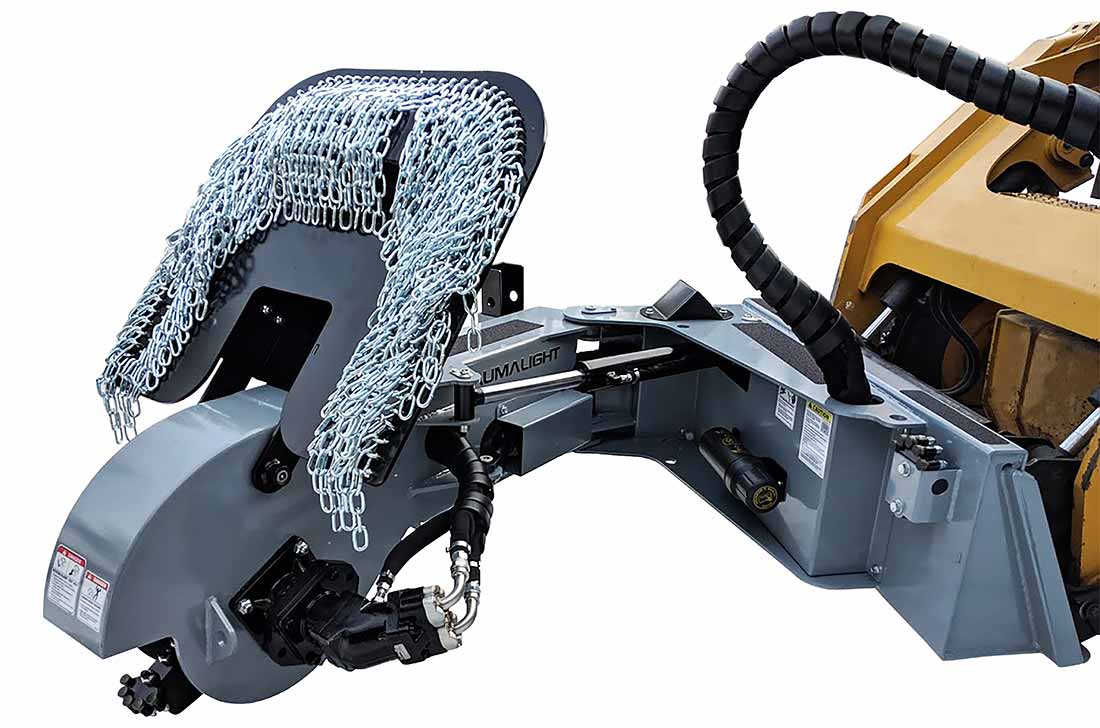

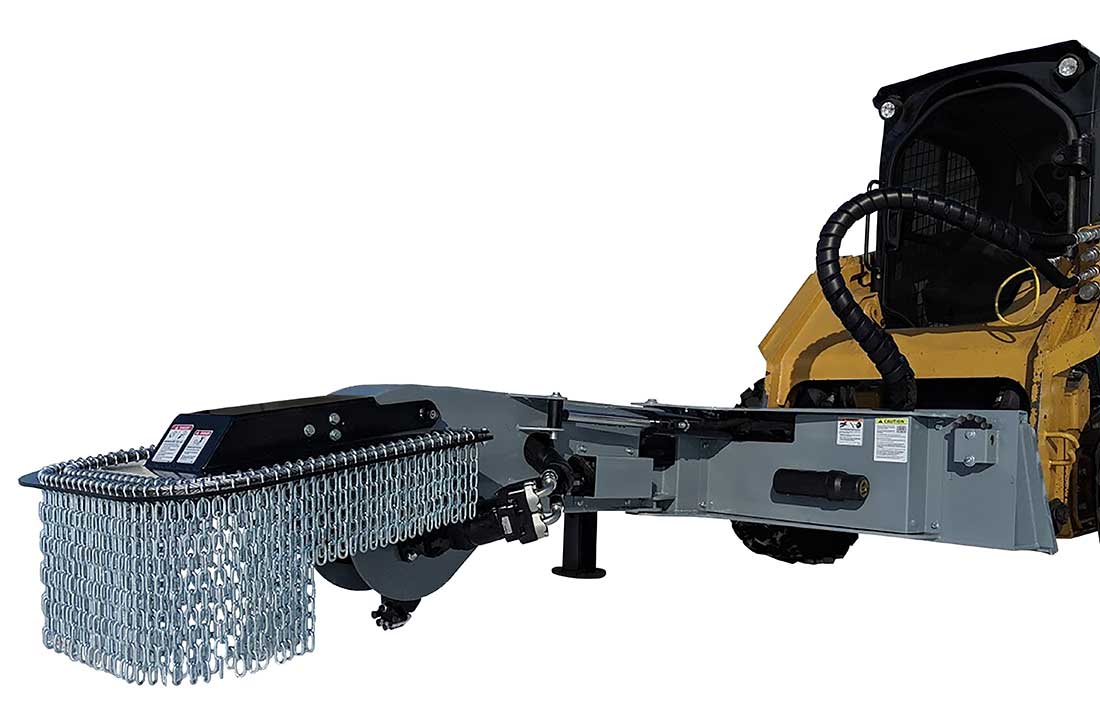

- Blast Shield with Chain Curtains: Contains chips and debris, improving job site safety and reducing cleanup time.
- Optimized for High Flow Skid Steers: Perfect for skid steers with hydraulic flow from 22 GPM up to 47 GPM.
- Smooth Operation: Balanced rotor minimizes vibration, prolonging machine life and operator comfort.
- Versatile Application: Ideal for golf courses, construction sites, rental fleets, and large landscaping projects.
- Enhanced Productivity: Fast cutting speed and efficient chip clearing reduce grind time significantly.
- Easy Maintenance: Common replacement parts are readily available locally to keep you working longer with minimal downtime.
Host Machine
| Name | Photo (if available) |
|---|---|
| ASV RT 135 HIGH FLOW |  |
| ASV RT120 HIGH FLOW |  |
| ASV RT75 HIGH FLOW |  |
| BOBCAT T770 HIGH FLOW |  |
| BOBCAT T870 HIGH FLOW |  |
| CASE TR270 HIGH FLOW |  |
| CASE TR310 HIGH FLOW |  |
| CASE TR340 ENHANCED HIGH FLOW |  |
| CASE TV370 HIGH FLOW |  |
| CASE TV450 ENHANCED HIGH FLOW |  |
| CAT 255 XPS HIGH FLOW |  |
| CAT 265 XPS HIGH FLOW |  |
| CAT 275 HIGH FLOW |  |
| CAT 275 XE HIGH FLOW |  |
| CAT 275 XE XPS HIGH FLOW |  |
| CAT 275 XPS HIGH FLOW |  |
| CATERPILLAR 289 HIGH FLOW |  |
| CATERPILLAR 299 D3 XE |  |
| CATERPILLAR 299 HIGH FLOW |  |
| JOHN DEERE 331G HIGH FLOW |  |
| JOHN DEERE 333G HIGH FLOW |  |
| KUBOTA SVL90 HIGH FLOW |  |
| KUBOTA SVL95 HIGH FLOW |  |
| KUBOTA SVL97 HIGH FLOW |  |
| KUBOTA SVL90 HIGH FLOW | |
| MUSTANG 2150RT HIGH FLOW |  |
| MUSTANG 2550RT HIGH FLOW |  |
| MUSTANG 3200VT HIGH FLOW |  |
| NEW HOLLAND C332 HIGH FLOW |  |
| NEW HOLLAND C334 HIGH FLOW |  |
| NEW HOLLAND C345 HIGH FLOW |  |
| NEW HOLLAND C362 HIGH FLOW |  |
| TAKEUCHI TL10 HIGH FLOW |  |
| TAKEUCHI TL8 HIGH FLOW |  |
| TAKEUCHI TL12 HIGH FLOW |  |
| WACKER NUESON ST35 HIGH FLOW |  |
| WACKER NUESON ST40 HIGH FLOW |  |
| WACKER NUESON ST45 HIGH FLOW |  |
| WACKER NUESON ST50 HIGH FLOW |  |
Detailed Specifications
| Specification | Model S28 | Model S40 |
|---|---|---|
| Hydraulic Flow Range | 22 - 32 GPM | 30 - 47 GPM |
| Rotor Diameter | 24 inches | 24 inches |
| Cutting Depth (Below Ground) | Up to 15 inches | Up to 15 inches |
| Swing Radius | 63 degrees | 63 degrees |
| Teeth Count | 34 Planer Carbide Teeth | 20 High-Speed Carbide Teeth |
| Teeth Extension Length | 1.25 inches | 1.25 inches |
| Weight | Approx. 995 lbs | Approx. 1200 lbs |
| Dimensions (L x W x H) | 42" x 40" x 36" | 42" x 40" x 36" |
| Recommended Machine | Skid Steers 22-32 GPM | Skid Steers 30-47 GPM |
| Gearbox | High Torque Gearbox | Bent Axis Piston Motor |
| Blast Shield | Dual Row Chain Curtains | Dual Row Chain Curtains |
| Hydraulic Couplers | Not Included | Not Included |
| Material | 3/4" & 1.25" Steel Rotor | 1.25" Thick Steel Rotor |
| Use Case | Heavy-Duty Stump Grinding | Commercial Stump Grinding |

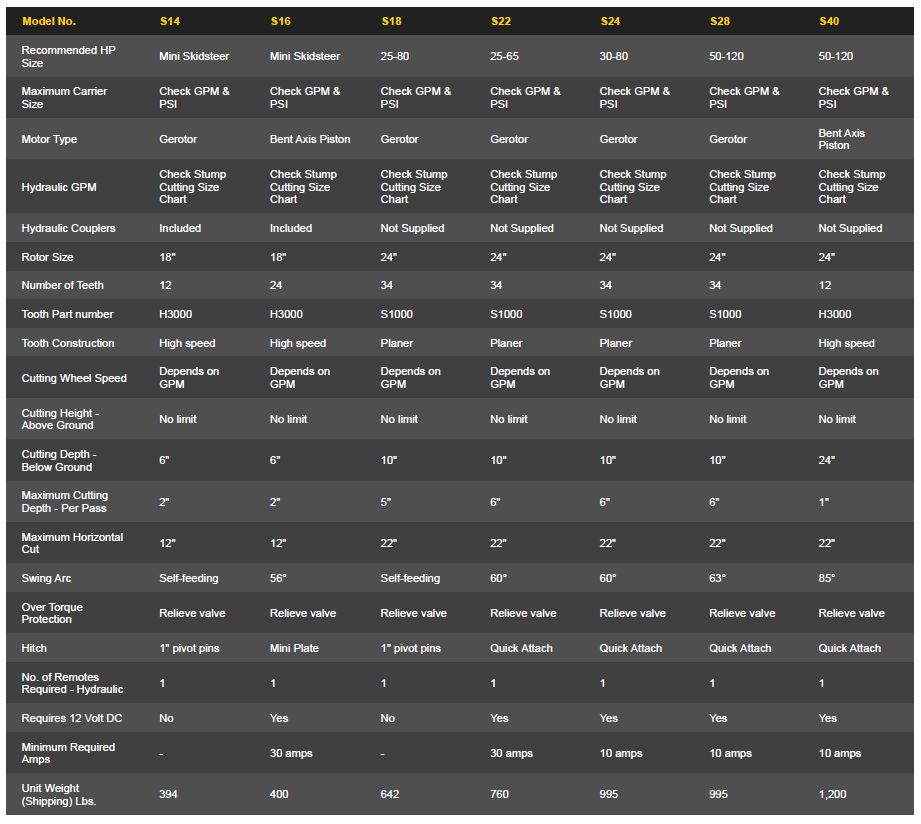

Comparison Chart
| Specification | S14 | S16 |
|---|---|---|
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston |

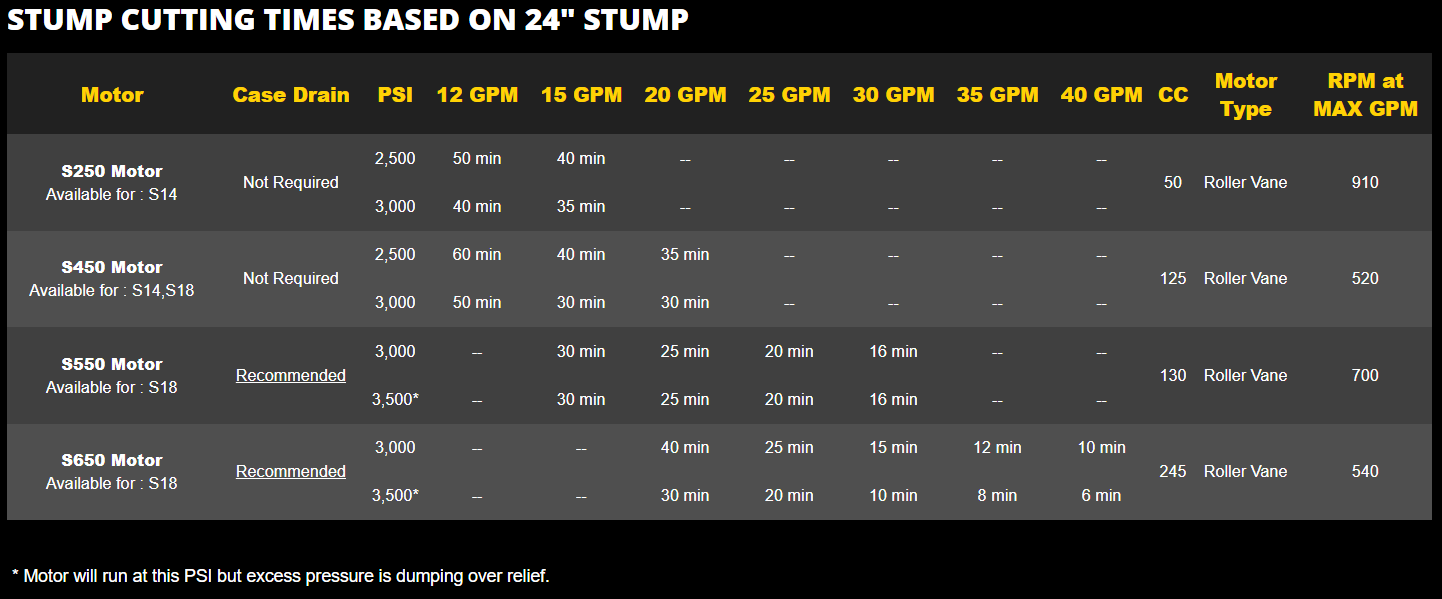

| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Hydraulic Couplers | Included | Included |
| Rotor Size | 18" | 18" |
| Number of Teeth | 12 | 24 |
| Tooth Part number | H3000 | H3000 |
| Tooth Construction | High speed | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 6" |
| Maximum Cutting Depth - Per Pass | 2" | 2" |
| Maximum Horizontal Cut | 12" | 12" |
| Swing Arc | Self-feeding | 56° |
| Over Torque Protection | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | Mini Plate |
| No. of Remotes Required - Hydraulic | 1 | 1 |
| Requires 12 Volt DC | No | Yes |
| Minimum Required Amps | - | 30 amps |
| Specification | S18 | S22 |
|---|---|---|
| Recommended HP Size | 25-80 | 25-65 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Gerotor |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Rotor Size | 24" | 24" |
| Number of Teeth | 34 | 34 |
| Tooth Part number | S1000 | S1000 |
| Tooth Construction | Planer | Planer |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit |
| Cutting Depth - Below Ground | 10" | 10" |
| Maximum Cutting Depth - Per Pass | 5" | 6" |
| Maximum Horizontal Cut | 22" | 22" |
| Swing Arc | Self-feeding | 60° |
| Over Torque Protection | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 |
| Requires 12 Volt DC | No | Yes |
| Minimum Required Amps | - | 30 amps |
| Specification | S24 | S28 |
|---|---|---|
| Recommended HP Size | 30-80 | 50-120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Gerotor |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Rotor Size | 24" | 24" |
| Number of Teeth | 34 | 34 |
| Tooth Part number | S1000 | S1000 |
| Tooth Construction | Planer | Planer |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit |
| Cutting Depth - Below Ground | 10" | 10" |
| Maximum Cutting Depth - Per Pass | 6" | 6" |
| Maximum Horizontal Cut | 22" | 22" |
| Swing Arc | 60° | 63° |
| Over Torque Protection | Relieve valve | Relieve valve |
| Hitch | Quick Attach | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 |
| Requires 12 Volt DC | Yes | Yes |
| Minimum Required Amps | 10 amps | 10 amps |
| Specification | S40 |
|---|---|
| Recommended HP Size | 50-120 |
| Maximum Carrier Size | Check GPM & PSI |
| Motor Type | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Size Chart |
| Hydraulic Couplers | Not Supplied |
| Rotor Size | 24" |
| Number of Teeth | 12 |
| Tooth Part number | H3000 |
| Tooth Construction | High speed |
| Cutting Wheel Speed | Depends on GPM |
| Cutting Height - Above Ground | No limit |
| Cutting Depth - Below Ground | 24" |
| Maximum Cutting Depth - Per Pass | 2" |
| Maximum Horizontal Cut | 22" |
| Swing Arc | 85° |
| Over Torque Protection | Relieve valve |
| Hitch | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 |
| Requires 12 Volt DC | Yes |
| Minimum Required Amps | 10 amps |
