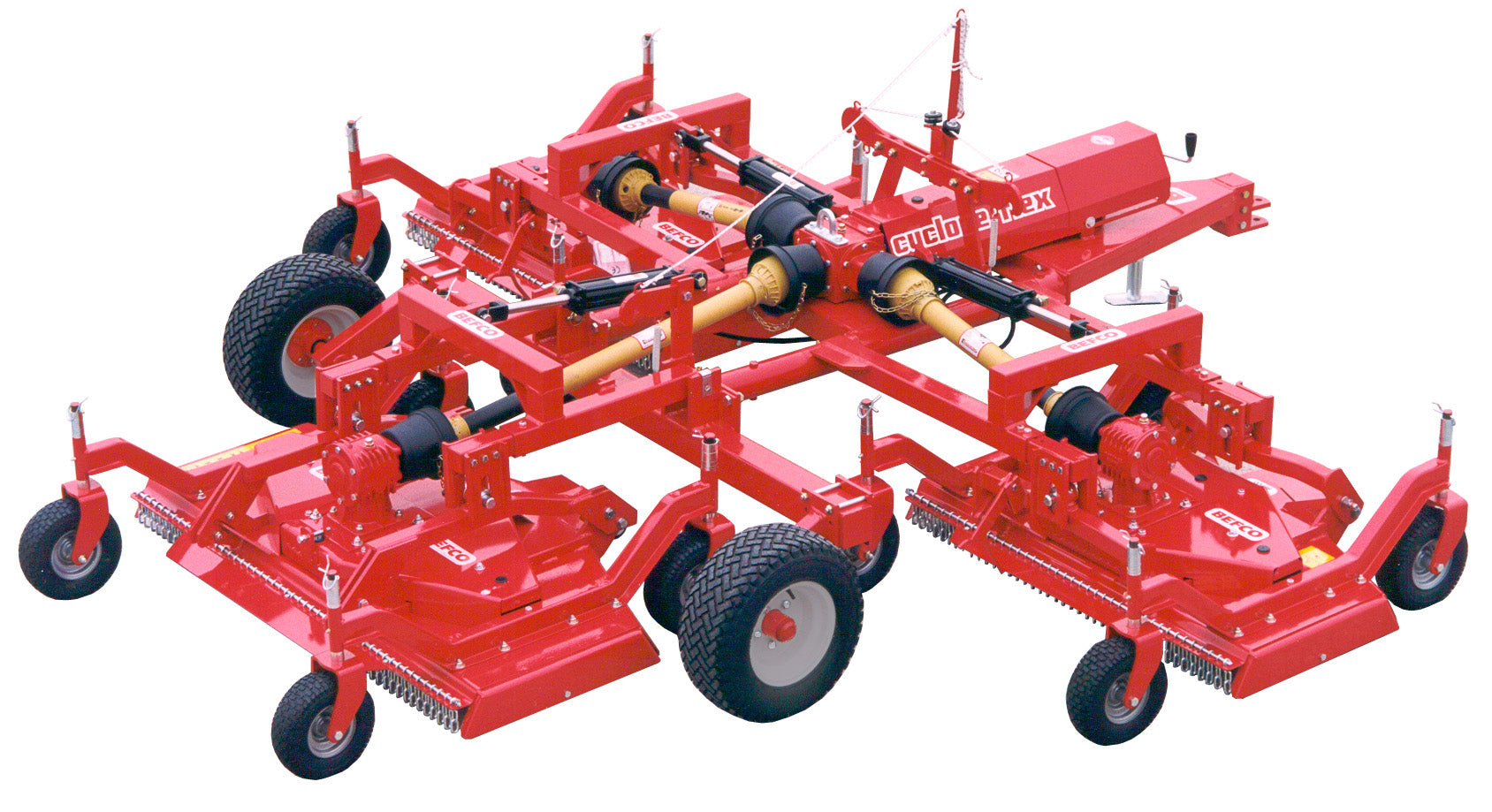

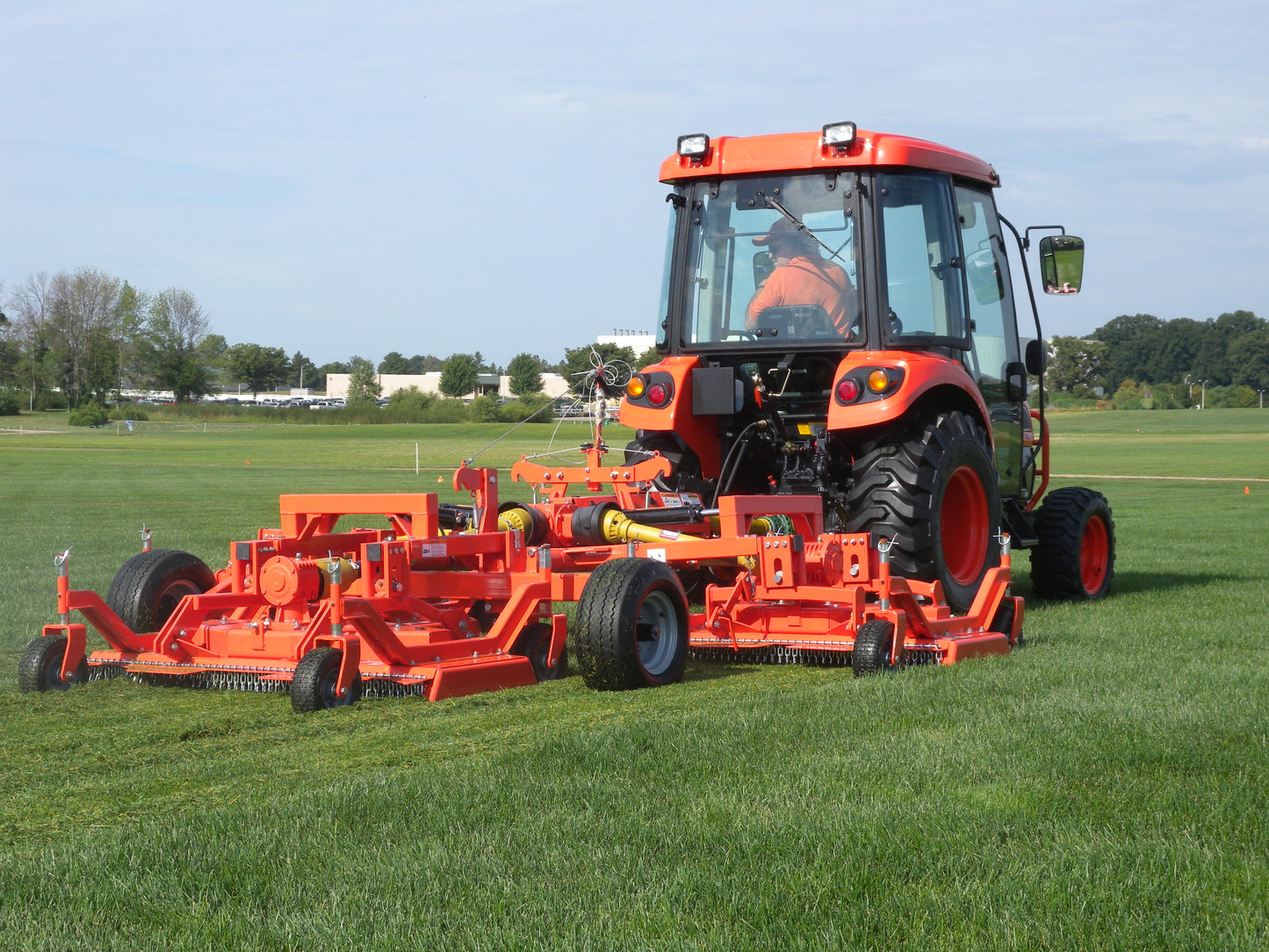

Befco | Pull-Type Gang Grooming Mower | Model Cyclone Flex Series| Width 12′ To 17′ | Horsepower 25 To 80 HP | For Tractors
Befco | Pull-Type Gang Grooming Mower | Model Cyclone Flex Series| Width 12′ To 17′ | Horsepower 25 To 80 HP | For Tractors
Regular price
$27,436.00
Regular price
Sale price
$27,436.00
Unit price
per
Couldn't load pickup availability
Machine Compatibility
Couldn't load pickup availability
Product Description
Befco | Pull-Type Gang Grooming Mower | Model Cyclone Flex Series| Width 12′ To 17′ | Horsepower 25 To 80 HP | For Tractors
Description
The Cyclone Flex series gang grooming mowers are expertly designed for efficient large-scale mowing with superior precision. Engineered to meet the demands of tractors with 25-80 HP, these pull-type mowers feature robust construction and advanced performance features that excel in various terrains. Whether you're mowing fields, parks, or expansive lawns, the Cyclone Flex delivers consistent and efficient results across its 12', 15', and 17' models.
Key Features
- Gang Grooming Mowers: Suitable for a wide range of applications.
- Tractor Compatibility: 25-80 HP (19-60 KW).
- Pull-Type Mower: High flotation transport tires (20.5"x8"x10").
- Cutting Heights: Adjustable from 1″ to 5″.
- Hydraulic Folding Wing System: Single action for easy transport and storage.
- Telescoping Wings: Adjustable cutting width for varying mower overlap.
- Heavy Duty Transport Frame: Ensures durability.
- Balanced Steel Pulleys: Heavy duty, one piece for smooth operation.
- Constant Velocity Driveline: With slip clutch (1 3/8″ ASAE cat. 6).
- Reinforced Wheel Arm: Stamped steel, attached by eight bolts for consistent cutting height.
- Front Antiscalping Rollers: Three standard for protection.
- Safety Chain Shield: Standard for added safety.
- Reinforced Mower Decks: 8 gauge for enhanced durability.
- Remote Safety Locks: For local transport and deck kick out attachments.
- Independent Free Floating Mowing Decks: For perfect cuts on uneven terrain.
- Double Pivot Floating Linkage: Unique design for flexibility.
- Rubber Tires with Bearings: Twelve tires (four per deck) for level cuts.
- Two Heavy Duty Reinforced Belts per Deck: SPBX for reliable performance.
- Single Unit Gearboxes: With cooling fins.
- Spiral Gears: Ensure strength and quietness.
- Stamped Steel Wheel Yokes: Robust and stable construction.
- Single Unit Driveline: With shear pin safety.
Performance
- Rotor RPM: 1,750 (for all models)
- Blade Tip Speed: Up to 16,929 ft/min for efficient cutting.
- Cutting Height: Adjustable from 1" to 5", ensuring versatility across different terrains and conditions.
-
Average Acre Coverage:
- 12' Model: 8 acres/hr at 6 mph
- 15' Model: 10 acres/hr at 6 mph
- 17' Model: 12 acres/hr at 6 mph
Detailed Specifications
FLXH Models
312-FLXH
| Feature | Value |
|---|---|
| Model | 312-FLXH |
| HP | 25-80 |
| Working Width | 12' |
| Transport Width | 91" |
| Transport Height | 74" |
| Weight (lbs) | 2,742 |
| # of Blades | 9 |
| Cutting Height | 1"-5" |
| # Belts | 6 SPBX |
| Avg. ac./hr. | 8 at 6 mph |
| Unit Make-Up | 2-4' mowers, 1-5' mower |
| Driveline | ASAE cat. 6 cv slip clutch |
315-FLXH
| Feature | Value |
|---|---|
| Model | 315-FLXH |
| HP | 30-80 |
| Working Width | 15' |
| Transport Width | 97" |
| Transport Height | 92" |
| Weight (lbs) | 2,874 |
| # of Blades | 9 |
| Cutting Height | 1"-5" |
| # Belts | 6 SPBX |
| Avg. ac./hr. | 10 at 6 mph |
| Unit Make-Up | 2-5' mowers, 1-6' mower |
| Driveline | ASAE cat. 6 cv slip clutch |
317-FLXH
| Feature | Value |
|---|---|
| Model | 317-FLXH |
| HP | 35-80 |
| Working Width | 17' |
| Transport Width | 100" |
| Transport Height | 103" |
| Weight (lbs) | 2,995 |
| # of Blades | 9 |
| Cutting Height | 1"-5" |
| # Belts | 6 SPBX |
| Avg. ac./hr. | 12 at 6 mph |
| Unit Make-Up | 3-6' mowers |
| Driveline | ASAE cat. 6 cv slip clutch |
FLXA Models
312-FLXA
| Feature | Value |
|---|---|
| Model | 312-FLXA |
| HP | 25-80 |
| Working Width | 12' |
| Transport Width | 91" |
| Transport Height | 74" |
| Weight (lbs) | 2,694 |
| # of Blades | 9 |
| Cutting Height | 1"-5" |
| # Belts | 6 SPBX |
| Avg. ac./hr. | 8 at 6 mph |
| Unit Make-Up | 2-4' mowers, 1-5' mower |
| Driveline | ASAE cat. 6 cv slip clutch |
315-FLXA
| Feature | Value |
|---|---|
| Model | 315-FLXA |
| HP | 30-80 |
| Working Width | 15' |
| Transport Width | 97" |
| Transport Height | 92" |
| Weight (lbs) | 2,826 |
| # of Blades | 9 |
| Cutting Height | 1"-5" |
| # Belts | 6 SPBX |
| Avg. ac./hr. | 10 at 6 mph |
| Unit Make-Up | 2-5' mowers, 1-6' mower |
| Driveline | ASAE cat. 6 cv slip clutch |
317-FLXA
| Feature | Value |
|---|---|
| Model | 317-FLXA |
| HP | 35-80 |
| Working Width | 17' |
| Transport Width | 100" |
| Transport Height | 103" |
| Weight (lbs) | 2,947 |
| # of Blades | 9 |
| Cutting Height | 1"-5" |
| # Belts | 6 SPBX |
| Avg. ac./hr. | 12 at 6 mph |
| Unit Make-Up | 3-6' mowers |
| Driveline | ASAE cat. 6 cv slip clutch |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

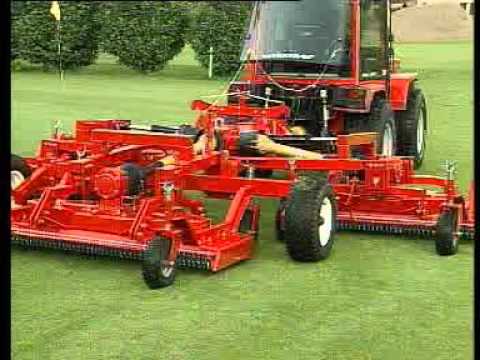

Videos
