Product Description

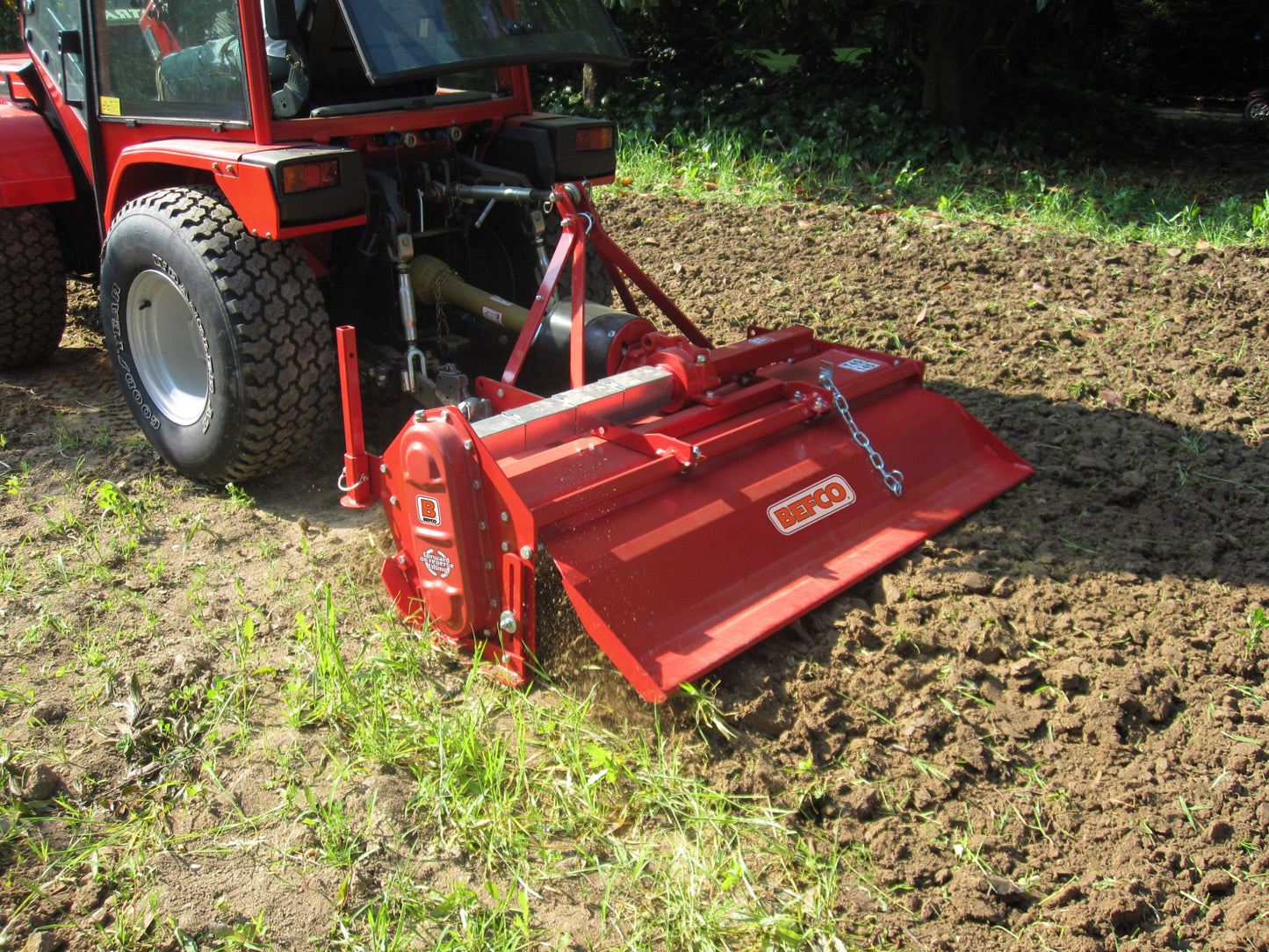

Befco Till-Rite Side-Shift 3-Point Rotary Tiller | Model T40 Series |42" Working Width| 20-40HP For Tractor
DESCRIPTION
The Till-Rite T40 Series Rotary Tillers are engineered for efficient, precise, and reliable soil preparation. With their manual side-shift capability and durable construction, they offer farmers unmatched control and flexibility. Whether you’re preparing fields or managing smaller plots, the T40 Series ensures smooth and thorough tillage, making it ideal for farmers, landscapers, and custom operators.
Equipped with a robust 540 RPM gearbox, adjustable side skids, and a heavy-duty shielded PTO shaft, these rotary tillers maximize tilling performance while minimizing operator effort. The lateral chain drive in oil bath transmission ensures smooth operation and reduced wear over time. Models are available with ASAE cat. 3 shear bolt or slip clutch drivelines to suit your specific needs.
The high carbon steel blades, arranged in flanges, allow for deep tilling, while the adjustable side skids let you control the working depth. For enhanced versatility, the exchangeable sprockets offer two working speeds, enabling faster or slower tillage depending on soil condition.
Key Features
- Tractor Compatibility: 20-40 HP (15-30 KW)
- RPM: 540 rpm - Cat. 1
- Gearbox: Highly engineered and rugged for reliable performance
- Side-Shift System: Smooth manual side-shift for precise tilling
- Adjustable Side Skids: For easy control of working depth
- PTO Shaft: Heavy duty shielded with shear bolt coupling (1 3/8″ ASAE cat. 3)
- Exchangeable Sprockets: Allow for two working speeds
- Parking Stand: For convenient storage
- 3 Point Linkage: Cat. 1
- Transmission: Lateral ASA #80 chain drive in oil bath
- Blades: Four high carbon solid steel blades per flange for deeper tilling
- Rotor Shaft: Round shaft for maximizing working width
- Chain Case Protection: Wear-resistant for longevity
- Maximum Working Depth: 7 1/4″
Detailed Specifications
Models with Shear Bolt
T40-142
| Feature | Value |
|---|---|
| Model | T40-142 |
| HP | 20-40 |
| Working Width | 42" |
| Overall Width | 47" |
| Weight (lbs) | 363 |
| Side-Shift | 10" |
| # Flanges | 5 |
| # Blades | 20 |
| Max. Working Depth | 7 1/4" |
| Driveline | Shear Bolt |
T40-150
| Feature | Value |
|---|---|
| Model | T40-150 |
| HP | 25-40 |
| Working Width | 50" |
| Overall Width | 55" |
| Weight (lbs) | 407 |
| Side-Shift | 14" |
| # Flanges | 6 |
| # Blades | 24 |
| Max. Working Depth | 7 1/4" |
| Driveline | Shear Bolt |
T40-158
| Feature | Value |
|---|---|
| Model | T40-158 |
| HP | 30-40 |
| Working Width | 58" |
| Overall Width | 63" |
| Weight (lbs) | 451 |
| Side-Shift | 18" |
| # Flanges | 7 |
| # Blades | 28 |
| Max. Working Depth | 7 1/4" |
| Driveline | Shear Bolt |
T40-166
| Feature | Value |
|---|---|
| Model | T40-166 |
| HP | 32-40 |
| Working Width | 66" |
| Overall Width | 72" |
| Weight (lbs) | 518 |
| Side-Shift | 22" |
| # Flanges | 8 |
| # Blades | 32 |
| Max. Working Depth | 7 1/4" |
| Driveline | Shear Bolt |
Models with Slip Clutch
T40-242
| Feature | Value |
|---|---|
| Model | T40-242 |
| HP | 20-40 |
| Working Width | 42" |
| Overall Width | 47" |
| Weight (lbs) | 373 |
| Side-Shift | 10" |
| # Flanges | 5 |
| # Blades | 20 |
| Max. Working Depth | 7 1/4" |
| Driveline | Slip Clutch |
T40-250
| Feature | Value |
|---|---|
| Model | T40-250 |
| HP | 25-40 |
| Working Width | 50" |
| Overall Width | 55" |
| Weight (lbs) | 417 |
| Side-Shift | 14" |
| # Flanges | 6 |
| # Blades | 24 |
| Max. Working Depth | 7 1/4" |
| Driveline | Slip Clutch |

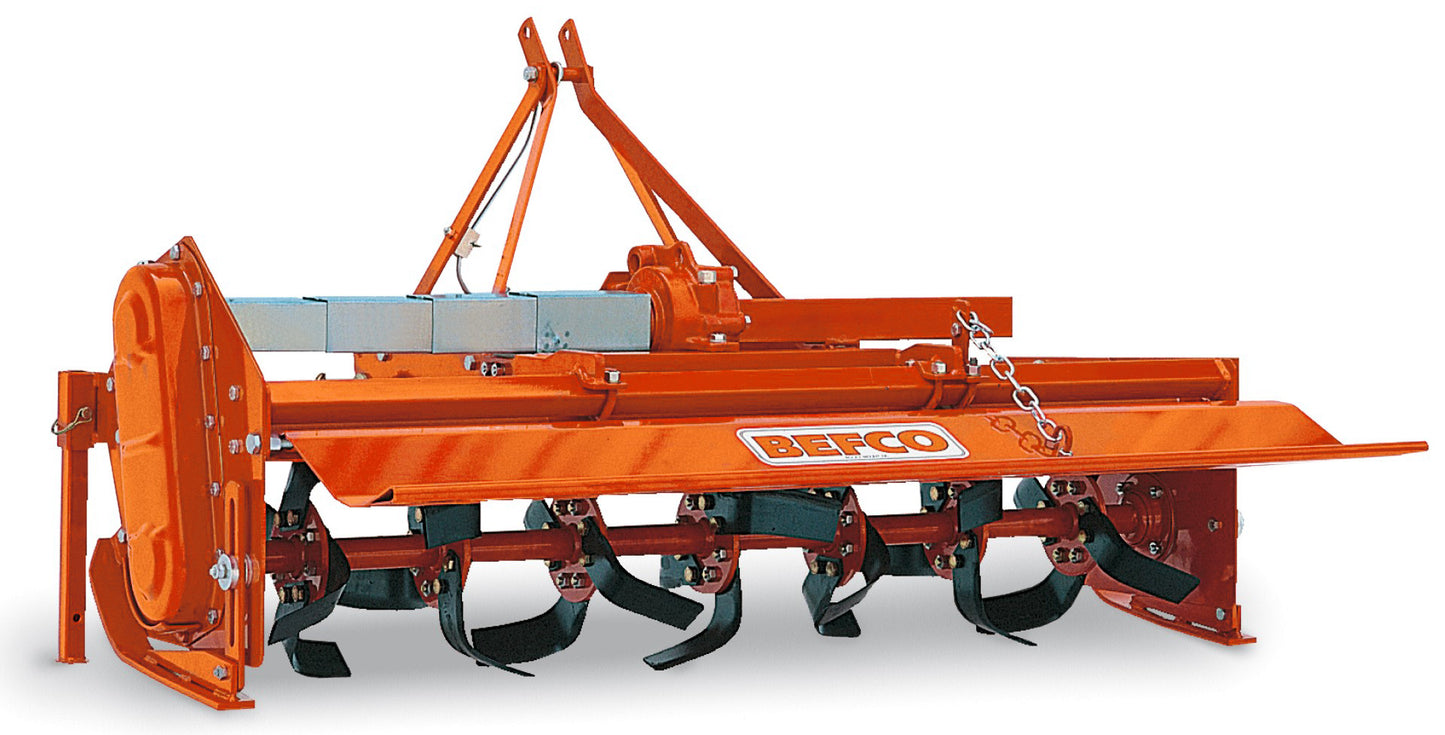

T40-258
| Feature | Value |
|---|---|
| Model | T40-258 |
| HP | 30-40 |
| Working Width | 58" |
| Overall Width | 63" |
| Weight (lbs) | 461 |
| Side-Shift | 18" |
| # Flanges | 7 |
| # Blades | 28 |
| Max. Working Depth | 7 1/4" |
| Driveline | Slip Clutch |
T40-266
| Feature | Value |
|---|---|
| Model | T40-266 |
| HP | 32-40 |
| Working Width | 66" |
| Overall Width | 72" |
| Weight (lbs) | 530 |
| Side-Shift | 22" |
| # Flanges | 8 |
| # Blades | 32 |
| Max. Working Depth | 7 1/4" |
| Driveline | Slip Clutch |
