Product Description
Demco | Triple Axle Drop Deck Trailers | Model DD53-3 | Length 48' Feet Triple Axle | Tare Weight 12,840 Lbs | Horsepower 400 To 500 HP | For Tractors
DESCRIPTION

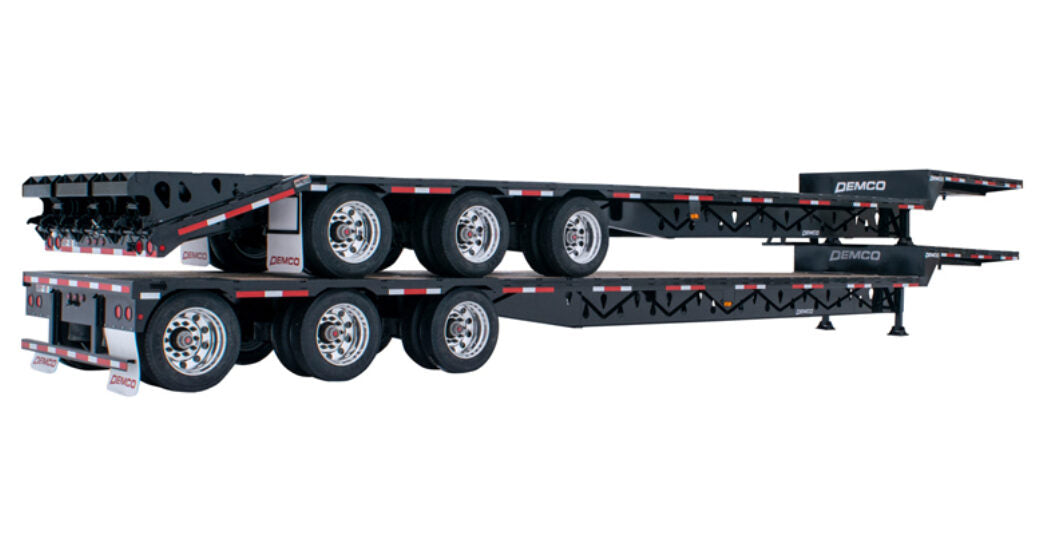

Demco’s Triple Axle Drop Deck Trailer is engineered for optimal load stability, enhanced by a durable steel structure and a reliable air ride suspension system. With a 48-foot length and a tare weight of 12,840 lbs, this trailer handles heavy loads with ease and stability, perfect for agricultural and industrial applications. Equipped with a kingpin setting of 24 inches and a Holland Atlas 55 series landing gear, this trailer combines maneuverability and robustness in one powerful solution.
Designed to meet rigorous standards, each Demco trailer features a sealed wiring system, rubber-mounted LED lights, and color-coded air lines, ensuring dependable performance on long hauls. Its advanced anti-corrosion paint and 1-1/8” x 7” Apitong flooring enhance durability, while the versatile drop deck design offers ease of loading and unloading heavy equipment. From construction to agriculture, the Demco Triple Axle Trailer is built to handle demanding tasks with precision.
Key Features
- Built with 100,000 psi yield steel web and 3/8" x 5" flange for unmatched structural integrity under extreme loads.
- 53-foot length and 102" overall width provide ample space for transporting oversized equipment and bulk materials.
- Triple 22.5K Arvin Meritor axles with Wabco ABS brakes ensure safe, responsive stopping power even at full 100,000 lbs GVWR.
- Standard air ride suspension across all three axles cushions cargo and reduces wear on both trailer and load during long hauls.
- Compatible with semi tractors rated between 400 To 500 horsepower, making it ideal for heavy-duty agricultural, industrial, and commercial use.
- 1-1/8” x 7” Apitong hardwood flooring offers superior durability and grip for securing heavy machinery and palletized goods.
- 11' upper deck and 40-3/4" lower deck height with a 19.5" transition drop allow easy loading of tall or irregularly shaped cargo.
- Sealed Truck-Lite™ wiring system with rubber-mounted LED lights and 7-way receptacle ensures reliable visibility and electrical performance.
- Stake pockets and pipe spooling every 9" provide versatile tie-down points for securing a wide range of load types.
- Winch track on the driver’s side enables fast, secure strapping of cargo, improving efficiency and safety during transport.
- Holland Atlas 55 Series landing gear with 2-speed operation offers stable support and easy adjustment during loading and unloading.
- DOT-approved conspicuity tape and midship turn signals enhance road safety and visibility in all conditions.
- Steel hand-sanded and phosphate-washed before painting for maximum adhesion and corrosion resistance.
- Designed for compatibility with optional accessories like sliding winches, aluminum toolboxes, and removable front bulkheads.
- Ideal for agricultural producers, fleet operators, and construction crews needing a reliable, high-capacity trailer for demanding transport jobs.
Detailed Specifications
| Specification | Detail |
|---|---|
| Model Numbers | DD48-3, DD53-3, DD48-5-3 |
| Tare Weight (lbs) | 12,840 (DD48-3), 13,720 (DD53-3), 15,130 (DD48-5-3) |
| Length | 48' (DD48-3), 53' (DD53-3), 48' + 5' Beaver Tail (DD48-5-3) |
| Width | 102" (Standard) |
| GVWR (Gross Vehicle Weight Rating) | 100,000 lbs |
| Axles | 22.5K Arvin Meritor Triple Axles with Wabco ABS Brakes (single axle) |
| Axle Configuration | 3 Axles (Triple Axle configuration) |
| Suspension | Air Ride Suspension (Standard) |
| Tire Specifications | 255/70R 22.5 LRH Radial Tires (Domestic Dunlap SP160 or Imported) |
| Hub Configuration | 10-bolt hub piloted steel rims |
| Kingpin Setting | Standard 24" (optional 18" setting) |
| Landing Gear | Holland Atlas 55 series with 2-speed landing gear |
| Brake Size | 16.5" x 7" |
| Upper Deck Length | 11' |
| Lower Deck Height | 40-3/4" |
| Transition Drop from Upper to Lower Deck | 19.5" |
| Side Rails | 6" x 8.2# structural C channel |
| Cross Members | 4" x 3.2# 80,000 yield Jr. I-beam on 16" centers |
| Web Material | 1/4" high-grade 100,000 yield steel |
| Flange Material | 3/8" x 5" high-grade 100,000 yield steel |
| Flooring Material | 1-1/8” x 7” Apitong hardwood flooring |
| Rub Rail | 2” x 3/8” flat steel |
| Lighting System | Rubber-mounted LED lighting system with sealed wiring |
| Air Lines | Color-coded air lines (for ease of identification) |
| Mud Flaps | Anti-sail mud flaps |
| Stake Pockets & Pipe Spooling | Stake pockets and pipe spooling at 9” intervals |
| Winch Track | Driver-side winch track |
| DOT Approved Features | D.O.T. approved conspicuity tape |
| Optional Features | Air Ride 3 Axle Manual Dump Valve |
| Air Ride 3 Axle Electric Dump Valve | |
| Air Ride Scale | |
| ABS Installed on 2nd Axle | |
| Polished Aluminum Rims | |
| Sliding Winches | |
| Aluminum Toolbox | |
| Front Bulkhead (Removable) | |
| Custom Paint Colors (Red, Grey, White, Blue) | |
| Front and Rear Fenders | Included |
| Ground Clearance (Frame) | 16.5" (from the center of the frame) |
| Maximum Length | 53' (with Beaver Tail option) |
| Weight (Air Ride) | 15,130 lbs (for DD48-5-3) |
| Standard Equipment | Rubber mounted LED lights |
| Sealed wiring system w/ 7-way receptacle | |
| Midship turn signals | |
| Stake pockets and pipe spooling at 9" intervals | |
| Apitong hardwood flooring | |
| Air ride suspension for smooth towing | |
| Anti-sail mud flaps | |
| Compliance | Meets D.O.T. regulations for road safety and visibility |
