Product Description

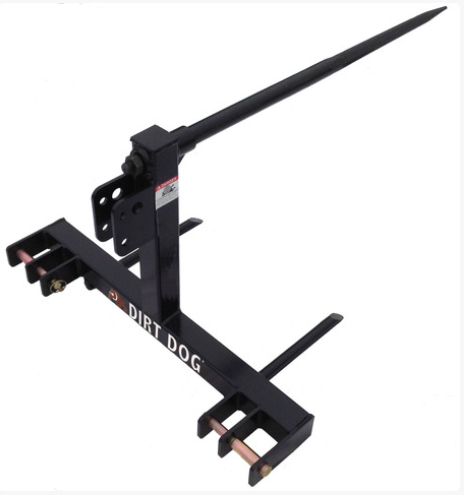

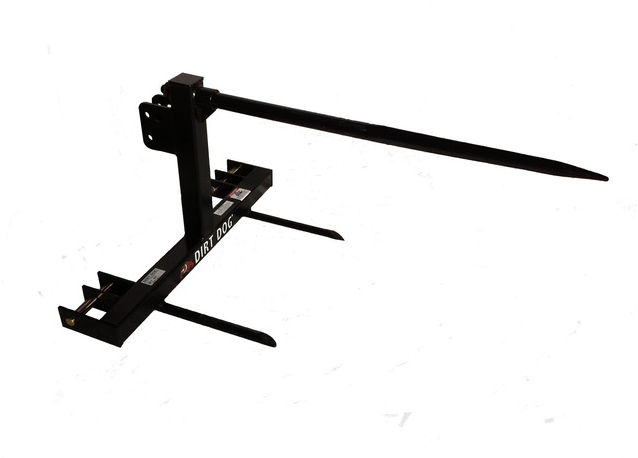

Dirt Dog 3-PT Bale Spear Cat. 1 & 2 | Overall Width 39" | 25-45 HP For Tractor
DESCRIPTION
Move and stack hay bales with ease using the Dirt Dog 3-PT Bale Spear Cat. 1 & 2, an economical solution for handling round bales up to 3,500 lbs. This unit is ideal for 25-45 HP tractors, featuring a main tapered spear that’s 42” long and two welded balance spears for added stability. The bale spear allows efficient hay handling without the need for a loader, though efficiency is further enhanced when used with a front loader.
Built with a 3” x 3” square tube frame and reinforced spear bushings, this bale spear is designed for long-lasting performance. Its black powder-coated finish offers superior protection against wear and corrosion, ensuring durability in various working conditions. Compatible with both Standard and Quick Hitches, this unit offers flexibility and convenience.
Key Features
- Universal Hitch Fit – Compatible with both Category 1 & 2 3‑point hitches, including Quick Hitch systems, for broad tractor compatibility.
- Optimized for Mid‑Range Tractors – Works best with tractors in the 25–45 horsepower range, giving balanced strength and maneuverability.
- Heavy‑Duty Frame – Constructed from robust 3" × 3" square‑tube steel for long‑term durability under heavy farm use.
- Main Spear Power – 42 ½" usable length forged spear with 1.78" diameter, built to penetrate and lift dense round bales.
- Stabilizer Spears – Two shorter welded side spears keep bales from twisting or rolling during transport.
- Impressive Load Rating – Handles up to 3,500 lbs @ 23 ½" load center, easily covering typical large bale weights.
- Compact Width – 39" overall width allows for easier maneuvering in tight barn spaces or narrow gates.
- Corrosion‑Resistant Finish – Black powder‑coat paint protects against rust and weather damage.
Detailed Specifications
| Specification | Details |
|---|---|
| Overall Height | 25 3/8" |
| Overall Width | 39" |
| Overall Depth | 51" |
| Spear Size | 1.78" |
| Usable Spear Length | 42 1/2" |
| Weight | 97 lbs |
| Max Spear Capacity | 3,500 lbs @ 23 1/2" |
| Attachment Method | Category 1 & 2-3 Point Lift |
| Paint Options | Black |
| Horsepower | 25-45 HP |
