Ditch Doctor Excavator Ditch Trencher | DD22HD | 35-45 GPM | Weights 2260 lbs | For Excavator

Ditch Doctor Excavator Ditch Trencher | DD22HD | 35-45 GPM | Weights 2260 lbs | For Excavator

$46,410.00
$46,410.00
Sale Sold out
Customizable
Fast
24/7 Support
  • High-Speed Ditching – Performs ditching up to 3x faster than conventional methods, reducing fuel and labor costs.
  • Versatile Scroll Case Options – Includes both wet (5 teeth) and dry (6 teeth) scroll cases for different soil and water conditions.
  • Eco-Friendly Design – Creates natural buffer zones to reduce soil erosion and improve water flow management.
  • Durable & Low Maintenance – Heavy-duty, self-cleaning design with easily replaceable components and a 1-year warranty.
  • Quick-Connect System – Equipped with quick hydraulic connections and a custom quick-attach plate for fast setup and easy operation.
View full details

Product Description

Ditch Doctor Excavator Ditch Trencher |  DD22HD | 35-45 GPM | Weights 2260 lbs | For Excavator

DESCRIPTION

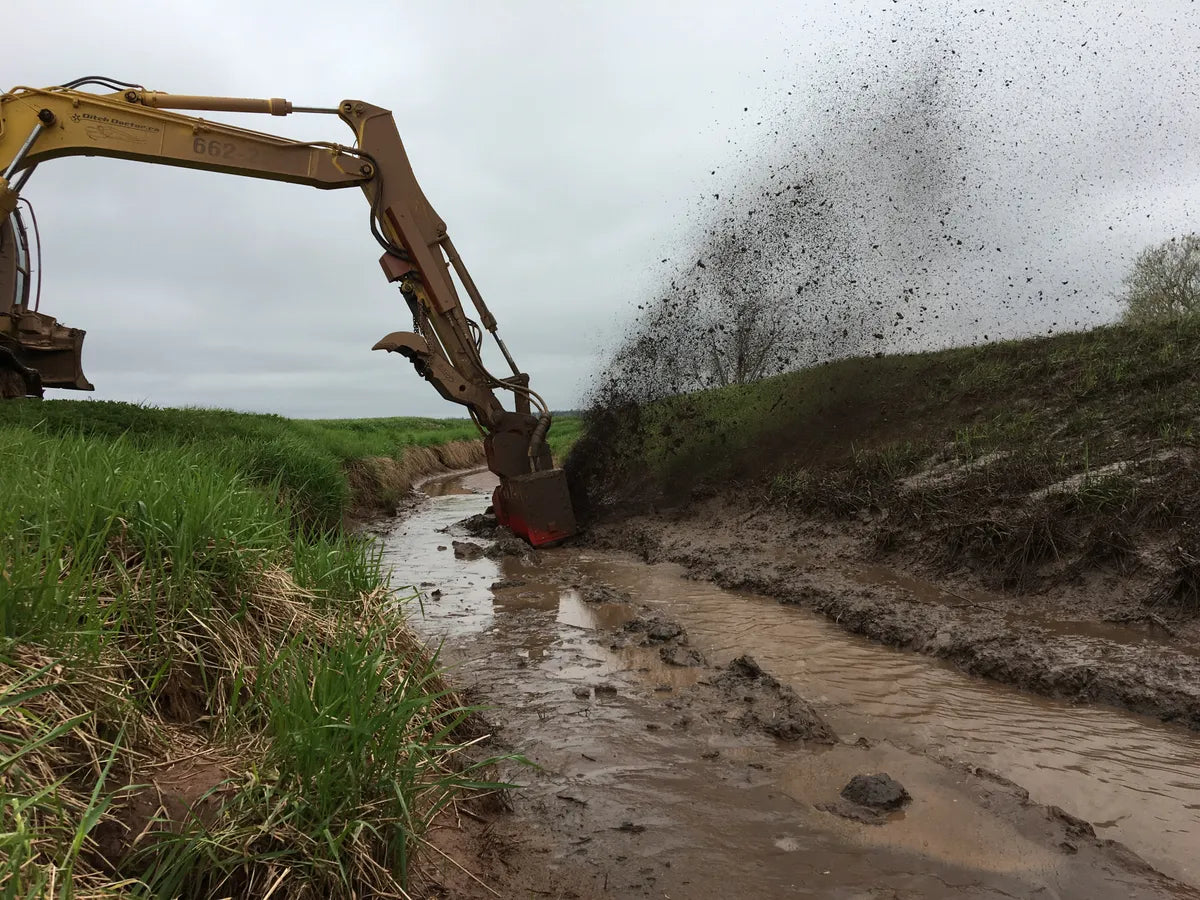

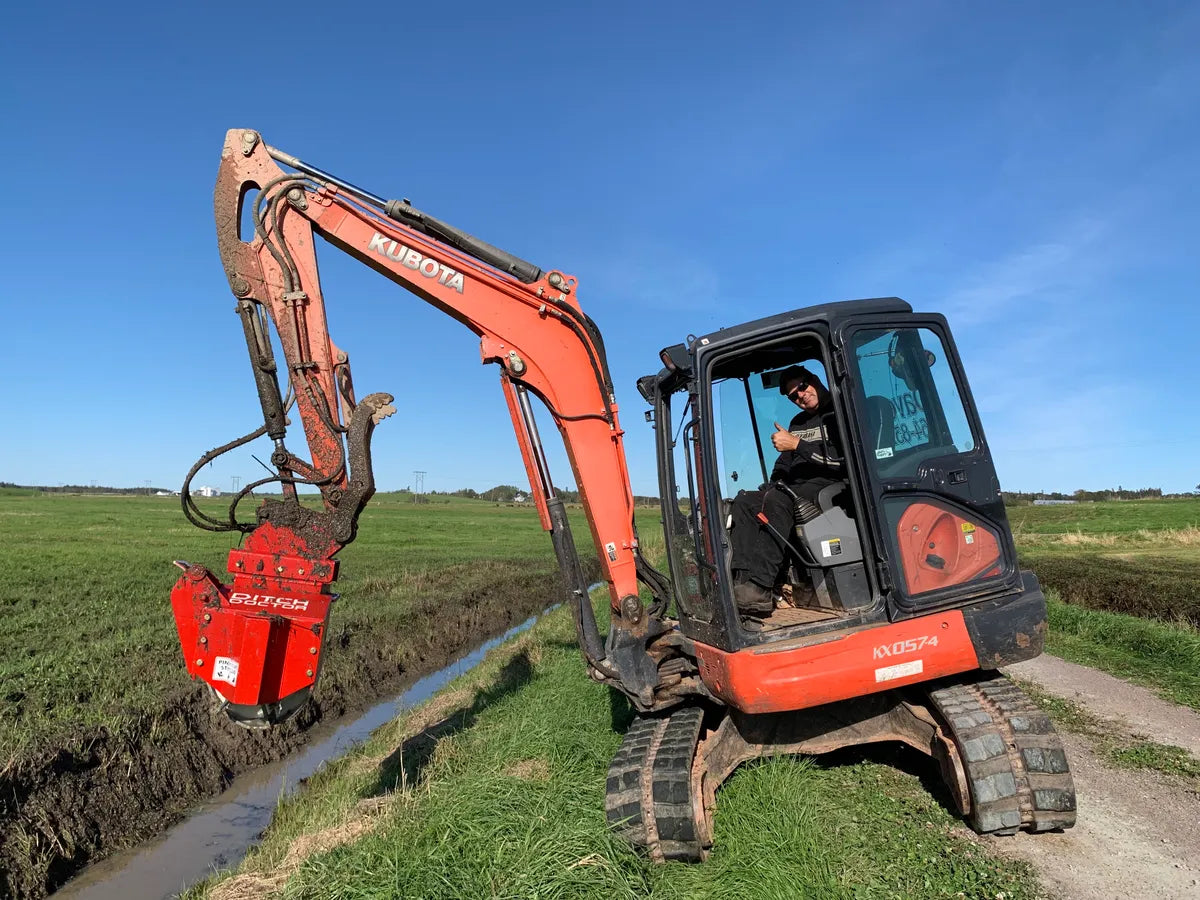

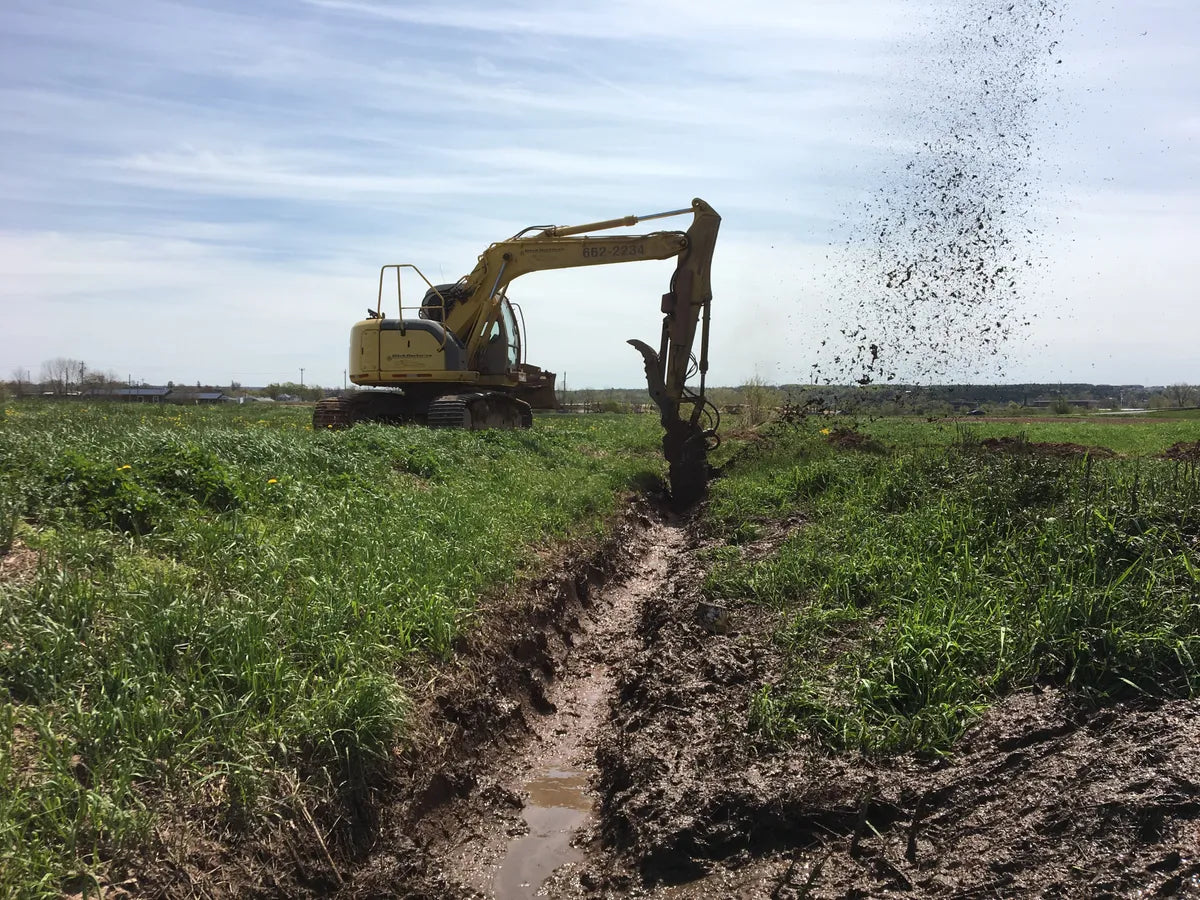

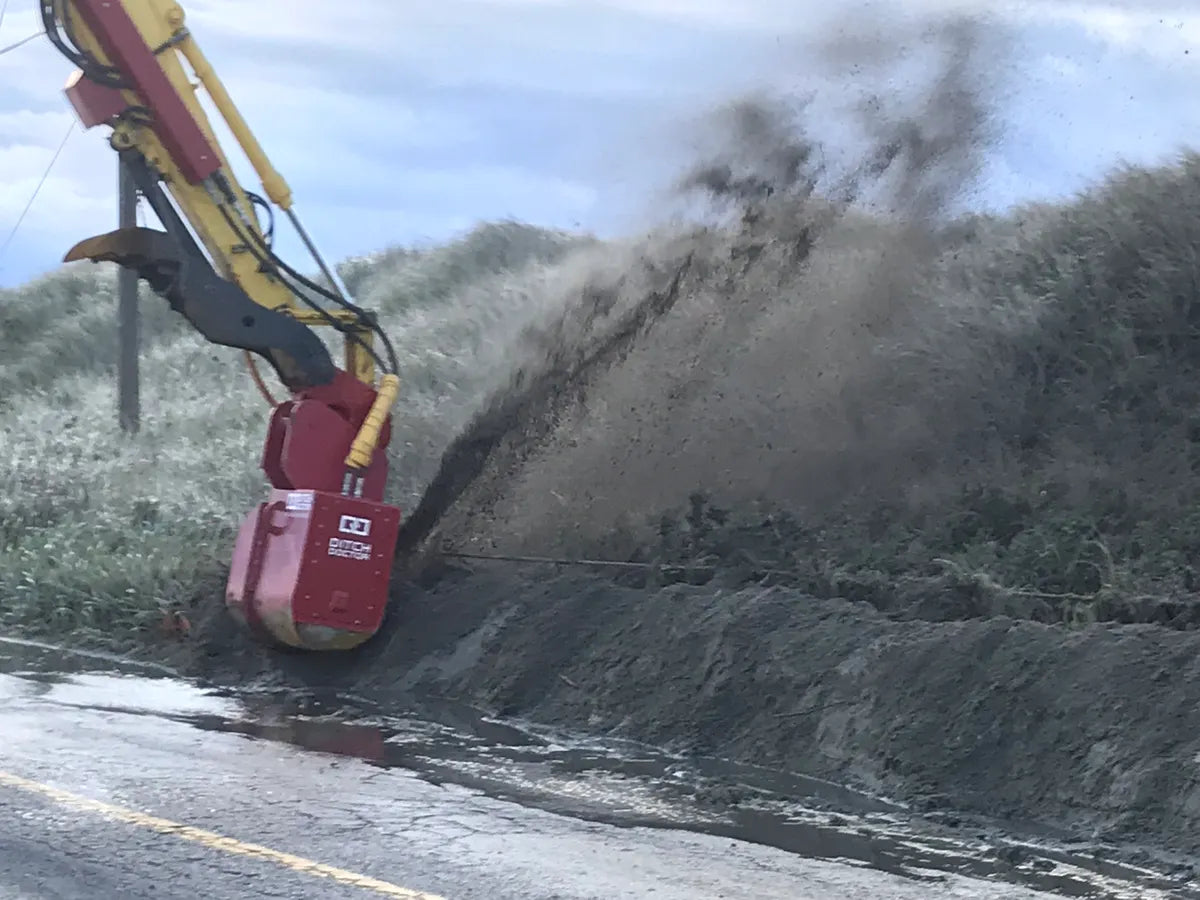

The Ditch Doctor® Excavator Attachment is available in two sizes with either a wet scroll case or dry scroll case. The Ditch Doctor® DD15 is for excavator sizes of between 4-12 tons (8818-26000 lb) with a hydraulic flow rate of between 12-45 GPM (46-170 LPM). Ditch Doctor® DD22 is for excavator sizes of between 13-25 tons (29000-55000 lb) with a hydraulic flow rate of between 24-75 GPM (91-284 LPM). Capable of creating a one stage or Two-Stage ditch in various soil conditions and in up to 3 feet (90cm) of water it is a unique and versatile attachment. The variable speed control allows for the even, self levelling distribution of spoil. The Ditch Doctor® method of ditching is a faster and more cost effective alternative to the conventional bucket and excavator, and kinder to the environment.

The Ditch Doctor® DD22 excavator attachment is the larger of the two for use on an excavator size of between 13 -25 tons with a hydraulic flow rate of between 24-75 GPM and weights 2260 lbs.

Key Features

  • Efficient Design – Performs ditching at 3x the speed of conventional methods, with less fuel and labor costs.
  • Eco-Friendly Performance – Creates a natural buffer zone to minimize soil erosion and enhance water flow.
  • Flexible Attachment – Wet scroll case with 5 teeth and dry scroll case with 6 teeth for versatile application.
  • Quick-Connect System – Hydraulic lines and a custom quick attachment plate for fast setup and easy maintenance.
  • Heavy-Duty Construction – Durable, self-cleaning, and easy to maintain with replaceable components and a 1-year warranty.

Detailed Specifications

Specification Details
Part # DD22HD
Manufacturer Ditch Doctor
Category Excavator Attachments
SubCategory Ditch Trencher for Full-Size Excavators
Industry Construction, Environmental
Machine Size 26,000-55,000 lbs (13-25 tons)
Hydraulic Flow Rate 35-45 GPM
Weight 2,260 lbs
Excavator Range 26,000-55,000 lbs
Scroll Case Options Wet (5 teeth) or Dry (6 teeth)
Power Transmission Variable displacement motors
Hydraulic Connections Quick connect hydraulic lines
Maintenance Efficiency Self-cleaning design
Special Features Adjustable spool-speed, interchangeable scroll case, custom quick attachment plate


In Package

  • Wet scroll case with 5 teeth
  • Dry scroll case with 6 teeth
  • Interchangeable scroll case
  • Quick connect hydraulic lines
  • Custom quick attachment plate
  • Round contoured bottom
  • Variable displacement motors
  • Easily replaced worn components
  • Easy to maintain and self cleaning
  • 1 year warranty
  • Speed control for Adjusting the spool-speed hanger bracket not included
