Durabilt Rotor Pull Type Tedder With U-Joints-Hyd. Fold and Tilt | Width 17' & 19' | 50-60HP | For Tractor
Durabilt Rotor Pull Type Tedder With U-Joints-Hyd. Fold and Tilt | Width 17' & 19' | 50-60HP | For Tractor
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Durabilt Rotor Pull Type Tedder With U-Joints-Hyd. Fold and Tilt | Width 17' & 19' | 50-60HP | For Tractor
DESCRIPTION

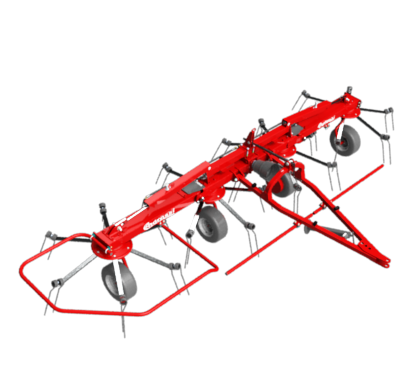

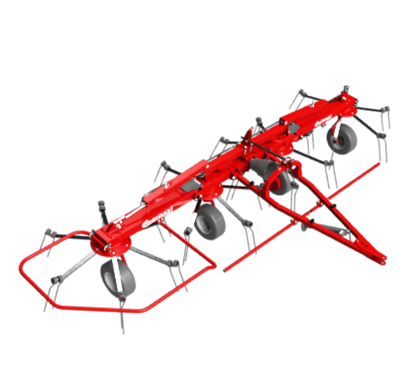

The Durabilt G4VL-5200 and G4VEL-5800 Rotor Tedders are built to deliver exceptional forage aeration and drying performance. Designed with a durable 4-rotor structure, each rotor features six tine arms, optimizing material spread and reducing dry-down time in hay production.
The G4VL-5200 is ideal for compact tractors with as little as 20 horsepower, offering a 17-foot working width and stable travel on 15.60 × 6 tires. The larger G4VEL-5800 increases coverage to 19 feet, requires 30 horsepower, and includes wider 16 × 6.5 × 8 tires for added floatation. Both models fold to a compact 9-foot transport width using hydraulic wing-folding systems and feature rugged U-joint driven PTO shafts for dependable rotary power. These tedders streamline crop conditioning with precision and durability—perfect for professional haymakers and serious acreage owners.
Key Features
- Four-Rotor Design: Each rotor features six tine arms for consistent crop turning.
- Hydraulic Folding Wings: Simplifies switching between working and transport modes.
- PTO Compatibility: 540 RPM driveline matches standard tractor PTO speed.
- U-Joint Shaft Drive: Enhances torque transmission and service reliability.
- Tractor HP Requirements: G4VL-5200: Minimum 20 HP, G4VEL-5800: Minimum 30 HP.
- Transport Width: Both models fold down to 9 ft for easy towing and gate clearance
- Tire Specifications: G4VL-5200: 15.60 × 6, G4VEL-5800: 16 × 6.5 × 8
- Weight: G4VL-5200: Approx. 1,074 lbs, G4VEL-5800: Approx. 1,153 lbs
-
Application Use: Forage drying, hay preparation, swath fluffing, and windrow conditioning.
Detailed Specifications
| Attribute | G4VL-5200 | G4VEL-5800 |
|---|---|---|
| Part Number | G4VL-5200 | G4VEL-5800 |
| Manufacturer | Durabilt Industries, Inc | Durabilt Industries, Inc |
| Working Width | 17 ft | 19 ft |
| Rotor Count | 4 | 4 |
| Tine Arms per Rotor | 6 | 6 |
| Tire Size | 15.60 × 6 | 16 × 6.5 × 8 |
| Fold Type | Hydraulic Wings | Hydraulic Fold & Tilt |
| Transport Width | 9 ft | 9 ft |
| Minimum Tractor HP | 20 HP | 30 HP |
| PTO Speed | 540 RPM | 540 RPM |
| Drive System | U-Joints | U-Joints |
| Weight | 1,074 lbs | 1,153 lbs |
