Product Description

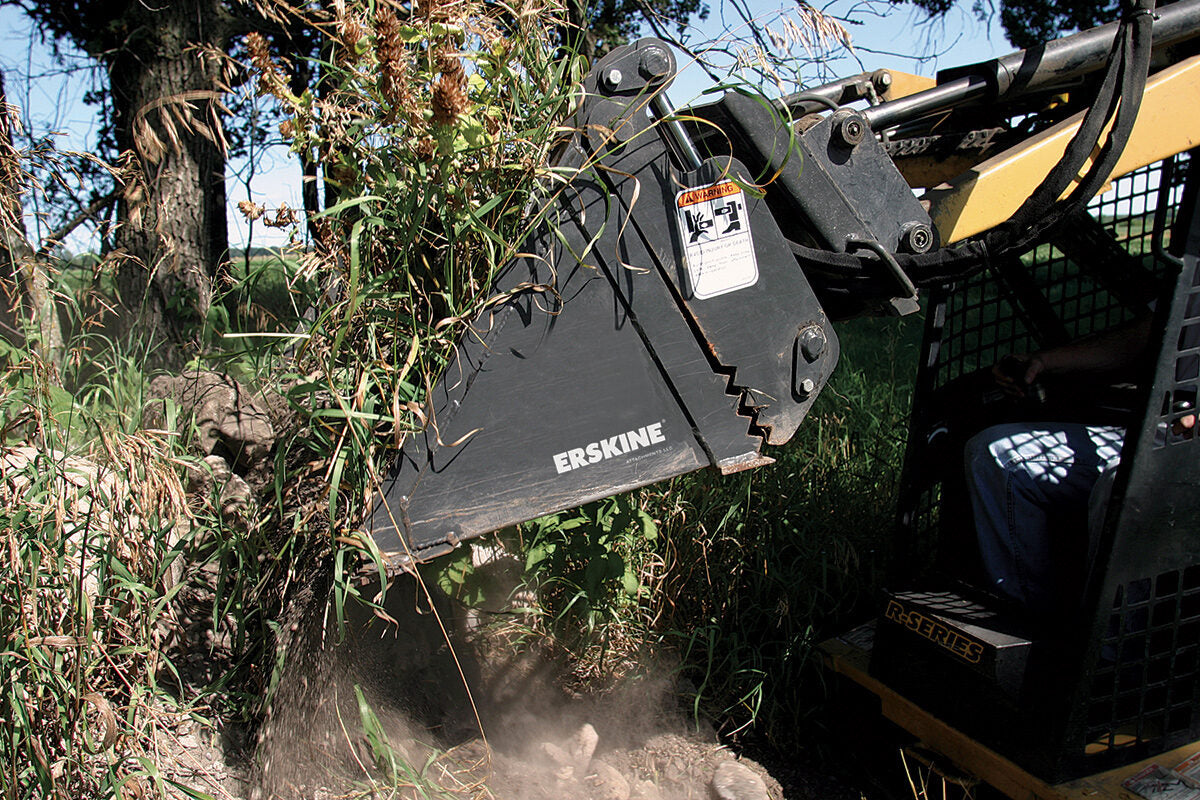

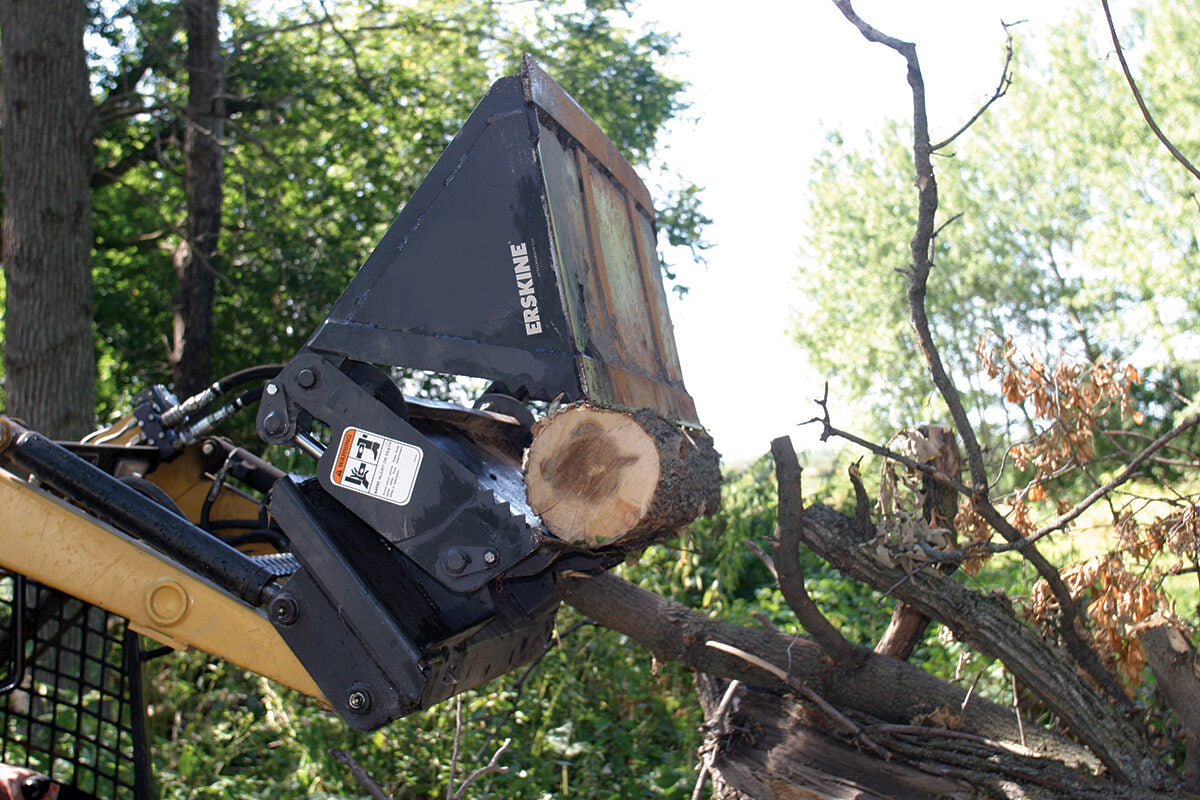

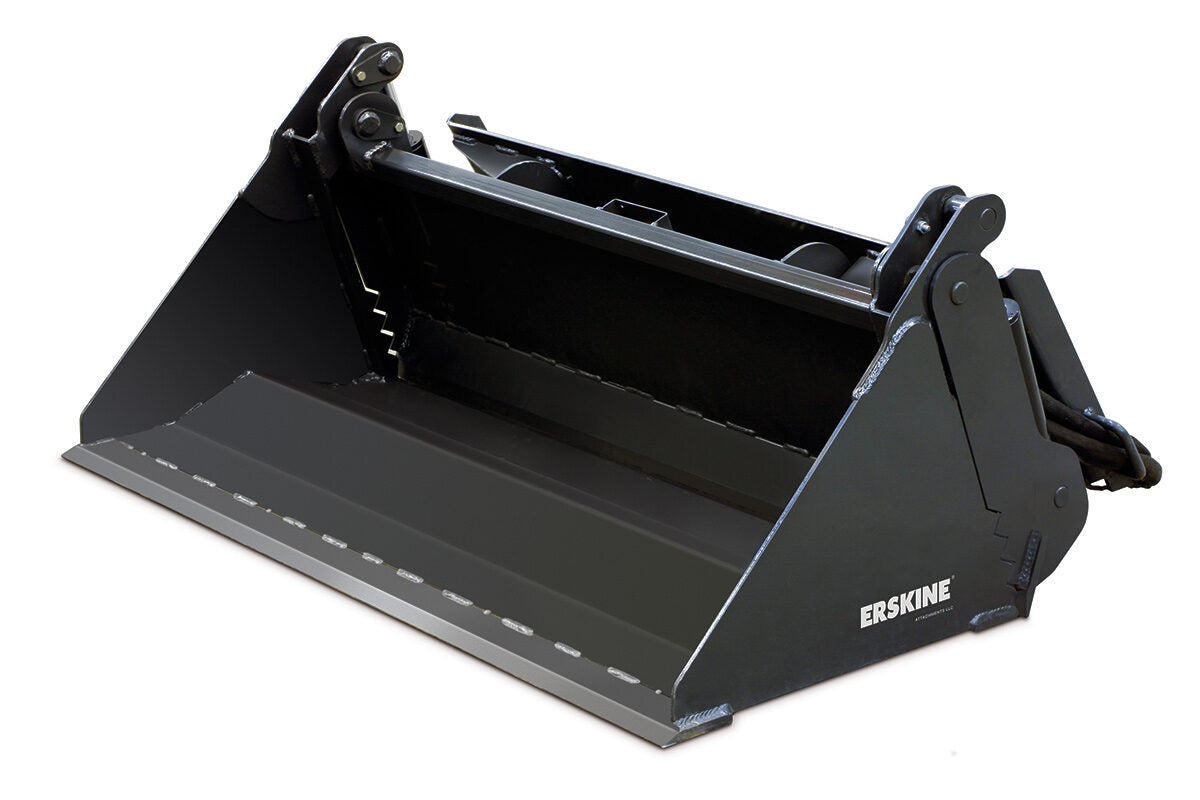

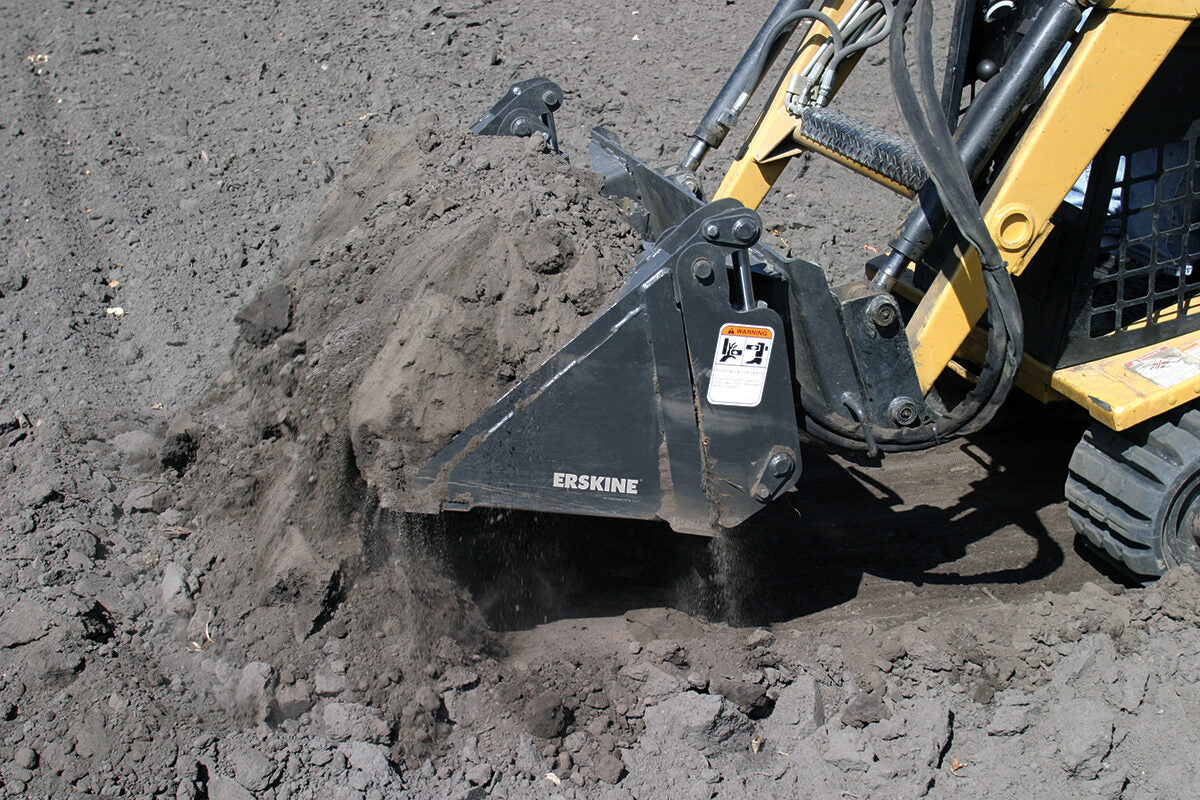

Erskine Mini 4-in-1 Combination Bucket | Width 49.5" | 10–20 GPM | For Mini Skid Steers & Compact Loaders
DESCRIPTION
The Erskine Mini 4-in-1 Combination Bucket delivers unmatched versatility for compact equipment operators. Designed for digging, grading, grappling, loading, and dumping, this heavy-duty attachment transforms your mini skid steer into a multi-purpose powerhouse. Built with Grade 50 steel construction, reinforced clamshell design, and dual 3,000 psi hydraulic cylinders, it ensures superior strength and durability in demanding applications. Serrated grapple edges provide a secure grip on irregular materials, while optional bolt-on cutting edges and teeth bars extend functionality and service life. Whether tackling construction, demolition, landscaping, or municipal cleanup, this bucket maximizes productivity and efficiency on every jobsite.
Key Features
- Multi-function capability Performs digging, grading, grappling, loading, and dumping with one attachment for maximum versatility.
- Dual hydraulic cylinders Equipped with two 3,000 psi cylinders for consistent clamping and lifting power.
- Grade 50 steel construction Provides nearly 40% greater strength than standard steel for long-lasting durability.
- Reinforced bucket and clamshell Built to withstand heavy-duty workloads and extend service life.
- Serrated grapple edges Interlocking serrated design grips brush, debris, and demolition waste securely.
- Optional bolt-on cutting edge Protects wear surfaces and extends bucket longevity.
- Optional bolt-on teeth bar Enhances digging performance in tough soil and rocky conditions.
- Compact skid steer compatibility Designed for mini skid steers and loaders with 10–20 GPM hydraulic flow.
- Universal mounting system Fits a wide range of compact equipment for easy installation.
- Efficient site cleanup Ideal for scraping, brush removal, and municipal maintenance tasks.
- Heavy-duty side stiffeners Reinforced design prevents flexing and ensures structural integrity.
- Optimized grapple opening 18.5” opening allows secure handling of bulky materials.
- Compact yet powerful 49.5” width and 330 lb weight balance maneuverability with strength.
- Optional factory-installed couplers Streamlines hydraulic connections for quick setup.
- Enhanced productivity Reduces the need for multiple attachments, saving time and labor costs.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | 4-in-1 Combination Bucket Mini |
| Part Number | 900522 |
| Overall Width | 49.5” |
| Overall Height | 20.5” |
| Overall Length | 34” |
| Grapple Opening | 18.5” |
| Cutting Edges (Qty) | 1/2” × 4” (3) |
| Weight | 330 lb |
| Struck Capacity | 4.75 ft³ |
| Steel Thickness (Bucket) | 0.25” |
| Hydraulic Flow | 10–20 GPM |
| Hydraulic Cylinders | 2” × 4” (2) |
| Mounting Kit Configurations | ASV/Terex (RC/PT30) |
| Optional Attachments | Bolt-on Cutting Edge, Bolt-on Teeth Bar, Factory Installed Couplers |
| Construction Material | Grade 50 Steel |
| Side Reinforcement | Heavy-duty stiffeners |
