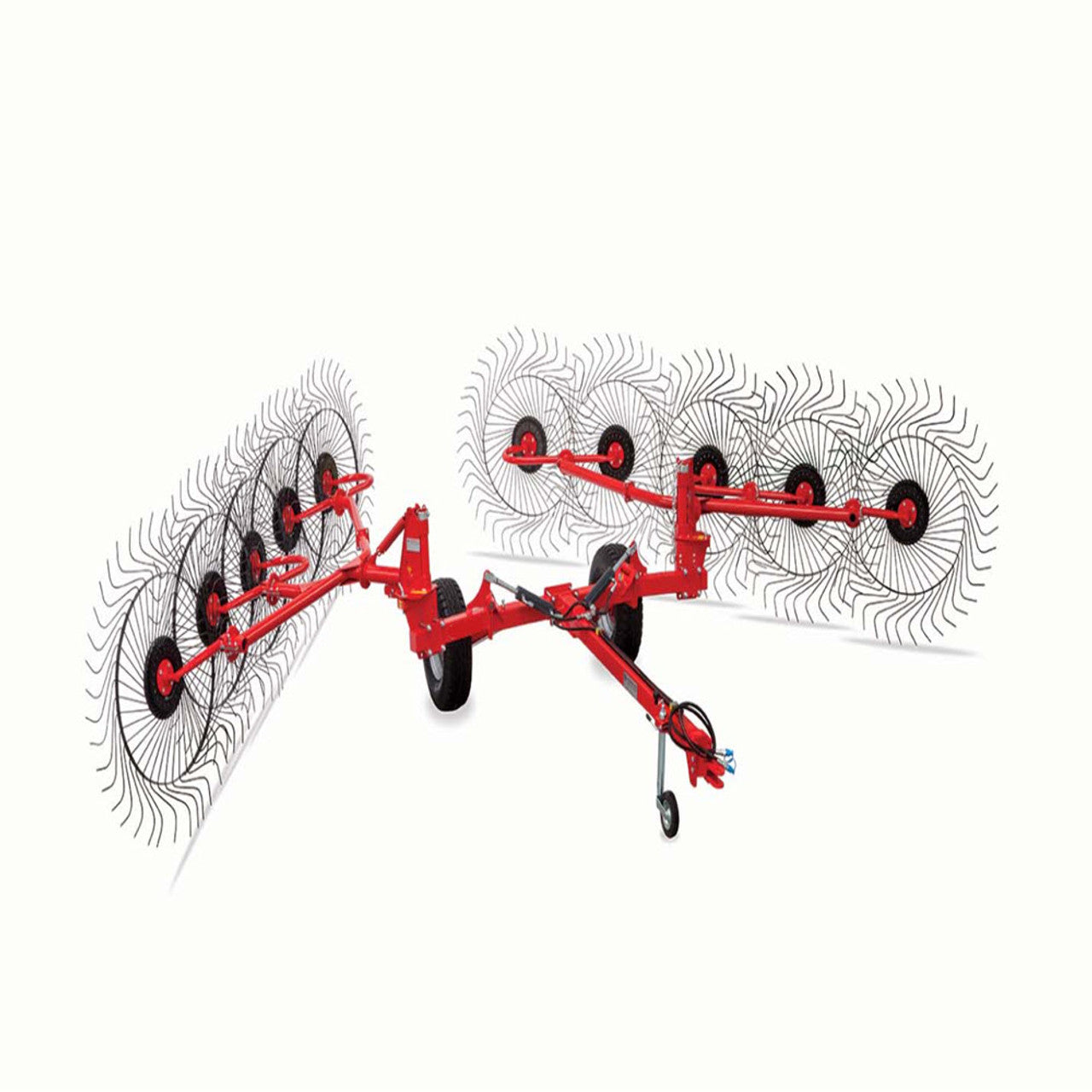

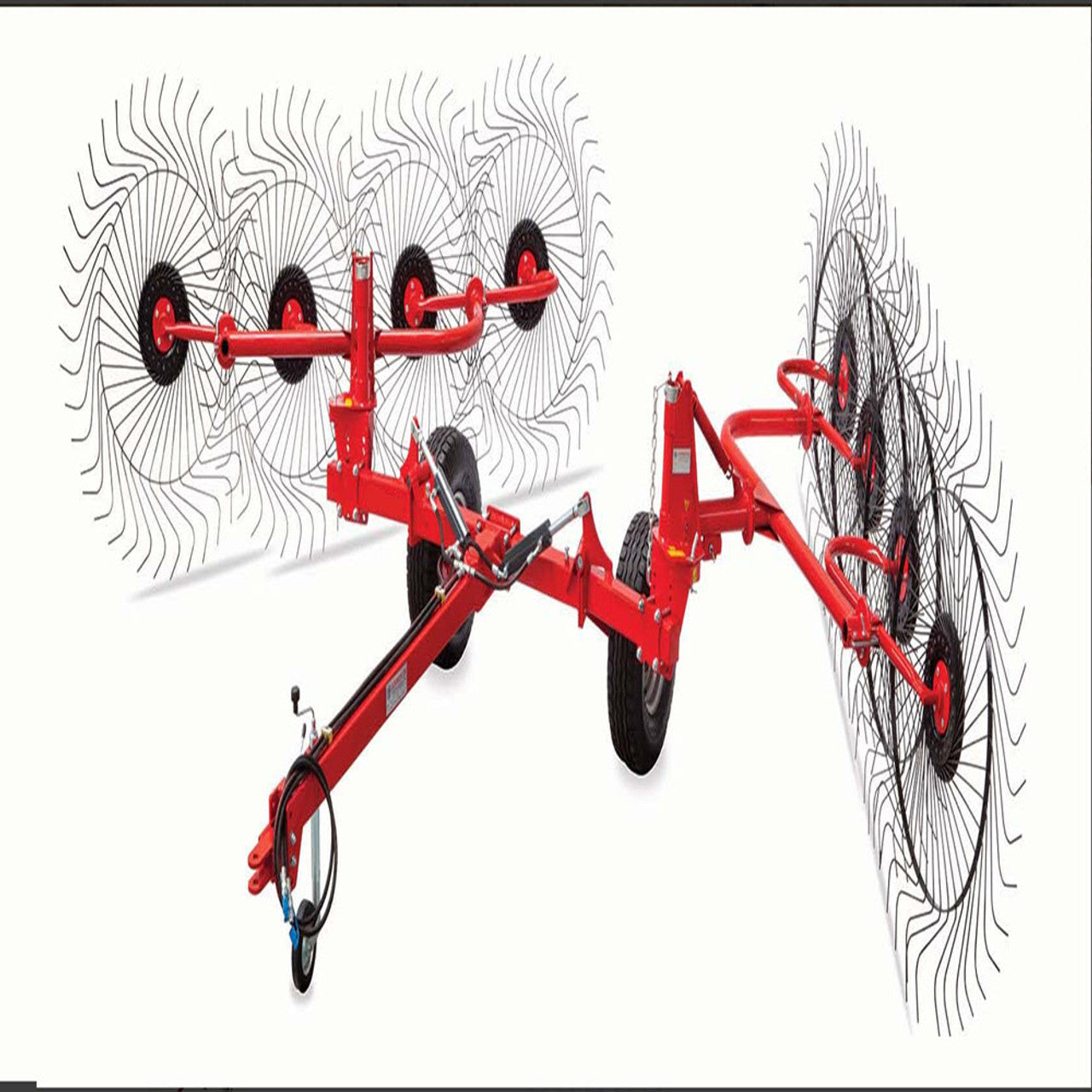

Farm-Maxx Pull-Type Wheel Hay Rakes | FGCR Series | Number Of Wheels 8-10 | 25+ HP | For Tractors
Farm-Maxx Pull-Type Wheel Hay Rakes | FGCR Series | Number Of Wheels 8-10 | 25+ HP | For Tractors
Regular price
$4,906.25
Regular price
Sale price
$4,906.25
Unit price
per
Couldn't load pickup availability
Machine Compatibility
Couldn't load pickup availability
Product Description
Farm-Maxx Pull-Type Wheel Hay Rakes | FGCR Series | Number Of Wheels 8-10 | 25+ HP | For Tractors
DESCRIPTION
The Farm-Maxx FGCR Series Carted Wheel Hay Rakes, models FGCR-08 (8-wheel) and FGCR-10 (10-wheel), are indispensable tools for efficient and high-quality hay raking. With their durable construction and advanced features, these hay rakes ensure optimal windrow formation while maintaining ease of use. Designed for versatility, they accommodate a range of field sizes and tractor capacities, making them suitable for both mid-sized and large agricultural operations. The carted design, combined with hydraulic folding capabilities, simplifies transport and operation, ensuring excellent results every time.
Key Features
- Heavy Duty Square Tube Frame: Provides robust support and durability for extended use.
- New 205/70-15 Tires: Ensures smooth transport and stability during operation.
- Heavy Walled Round Tube Frames with Reinforcement Gussets: Designed for extra strength and longevity.
- Cast Steel Hubs with Tapered Roller Bearings: Offers reliable performance and minimizes wear and tear.
- .27" Thick Spring Steel Teeth: Durable and effective in raking hay with precision.
- Heavy Duty Individual Hydraulic Cylinders: Improves operational efficiency and control.
- Optional Hydraulic Kicker Wheel: Available for enhanced windrow shaping and flexibility.
Detailed Specifications
| Feature | FGCR-08 (8-Wheel) | FGCR-10 (10-Wheel) |
|---|---|---|
| Number of Wheels | 8 | 10 |
| Frame Type | Heavy Duty Square Tube Frame | Heavy Duty Square Tube Frame |
| Tire Specification | New 205/70-15 Tires | New 205/70-15 Tires |
| Reinforcement | Heavy Walled Round Tube Frames with Reinforcement Gussets | Heavy Walled Round Tube Frames with Reinforcement Gussets |
| Hubs | Cast Steel Hubs with Tapered Roller Bearings | Cast Steel Hubs with Tapered Roller Bearings |
| Spring Steel Teeth Thickness | 0.27 inches | 0.27 inches |
| Hydraulic Cylinders | Heavy Duty Individual Hydraulic Cylinders | Heavy Duty Individual Hydraulic Cylinders |
| Optional Feature | Hydraulic Kicker Wheel | Hydraulic Kicker Wheel |
| Working Width | 16 1/2 to 18 feet | 17 to 23 feet |
| Transport Width | 10 feet | 10 feet |
| Length | 22 feet | 25 feet |
| Weight | 1279 lbs | 1411 lbs |
| Maximum Towing Speed | Not Specified | 30 mph |
| Recommended Tractor Horsepower | 25+ HP | 25+ HP |
