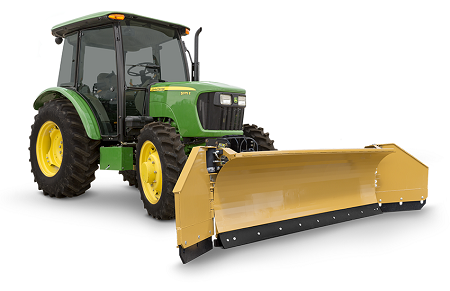

HLA Attachments 3500 Series 6' / 11' to 10' / 15' Snow Pusher (Edge Flex) Less Frame / Mount For Tractor

Product Description

HLA Attachments 3500 Series 6' / 11' to 10' / 15' Snow Pusher (Edge Flex) Less Frame / Mount For Tractor

DESCRIPTION

The HLA Attachments 3500 Series Snow Pusher with Edge Flex technology is built for tough winter tasks. Engineered to clear expansive areas, this snow pusher offers a clearing width of up to 15 feet, making it ideal for commercial, agricultural, and large residential use. Its innovative design includes individually controlled hydraulic rotary actuators, which allow the wing end plates to pivot independently up to 180 degrees, adapting to diverse snow-clearing scenarios. The pusher also features a reversible cutting edge with spring trip protection, adjustable skid shoes, and lateral blade float, ensuring effective snow management on uneven surfaces. Designed to withstand heavy use, it supports a maximum operating weight of 10,000 lbs, offering rugged dependability and long-lasting performance.

Key Features

• Hydraulic Rotary Actuators: Pivot wing end plates up to 180 degrees for adaptable and efficient snow clearing.
• 15 ft. Clearing Width: Designed for extensive snow removal, suitable for large spaces.
• Lateral Blade Float: Ensures better contact with uneven surfaces, enhancing snow removal efficiency.
• Spring Trip Protection: Protects the cutting edge from damage, ensuring reliable use season after season.

• Adjustable Skid Shoes: Standard feature for customizable ground clearance based on snow depth and terrain.

10 ft. / 15 ft. 3500 Series Snow Pusher (Edge Flex) LESS FRAME/MNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 15 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1570#
Maximum Operating Weight 10,000 lbs

9 ft. / 14 ft. 3500 Series Snow Pusher (Edge Flex) LESS FRAME/MNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 14 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1500#
Maximum Operating Weight 10,000 lbs

8 ft. / 13 ft. 3500 Series Snow Pusher (Edge Flex) LESS FRAME/MNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 13 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1440#
Maximum Operating Weight 10,000 lbs

7 ft. / 12 ft. 3500 Series Snow Pusher (Edge Flex) LESS FRAME/MNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 12 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1380#
Maximum Operating Weight 10,000 lbs

10 ft. / 15 ft. 3500 Series Snow Pusher w/Wings LESS FRAME/MOUNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 15 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1535#
Maximum Operating Weight 10,000 lbs

6 ft. / 11 ft. 3500 Series Snow Pusher (Edge Flex) LESS FRAME/MNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 11 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1310#
Maximum Operating Weight 10,000 lbs

9 ft. / 14 ft. 3500 Series Snow Pusher w/Wings LESS FRAME/MOUNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 14 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1465#
Maximum Operating Weight 10,000 lbs

8 ft. / 13 ft. 3500 Series Snow Pusher w/Wings LESS FRAME/MOUNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 13 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1405#
Maximum Operating Weight 10,000 lbs

7 ft. / 12 ft. 3500 Series Snow Pusher w/Wings LESS FRAME/MOUNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 12 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1345#
Maximum Operating Weight 10,000 lbs

6 ft. / 11 ft. 3500 Series Snow Pusher w/Wings LESS FRAME/MOUNT

Individually controlled Hydraulic Rotary Actuators pivot the wing end plates up to 180 degrees.
Maximum clearing width 11 ft. Moldboard Height is 30". Wings are 30" deep / wide.
Blade floats laterally and is equipped with cross over relief valve protection.
Reversible cutting edge with spring trip protection.
Adjustable skid shoes are standard.
2 Year Commercial Warranty
Weight approx. 1275#
Maximum Operating Weight 10,000 lbs
