Ignite Attachments Direct-Drive Auger | Model 75DDH | Overall Width 45" | Hydraulic Flow 8 – 20 GPM | For Skid Steers

Ignite Attachments Direct-Drive Auger | Model 75DDH | Overall Width 45" | Hydraulic Flow 8 – 20 GPM | For Skid Steers

$2,499.00
$2,499.00
Sale Sold out
Customizable
Fast
24/7 Support
  • High-Torque Hydraulic Auger (1,118 lb-ft @ 3,000 psi) Tears through compacted soil, glacial till, and frozen ground without stalling.
  • 8 – 20 GPM Flow Range Compatible with most skid steers and CTLs no special high-flow package required.
  • Self-Balancing Knuckle Joint Automatically plumbs the bit for laser-straight holes, even on slopes or rough terrain.

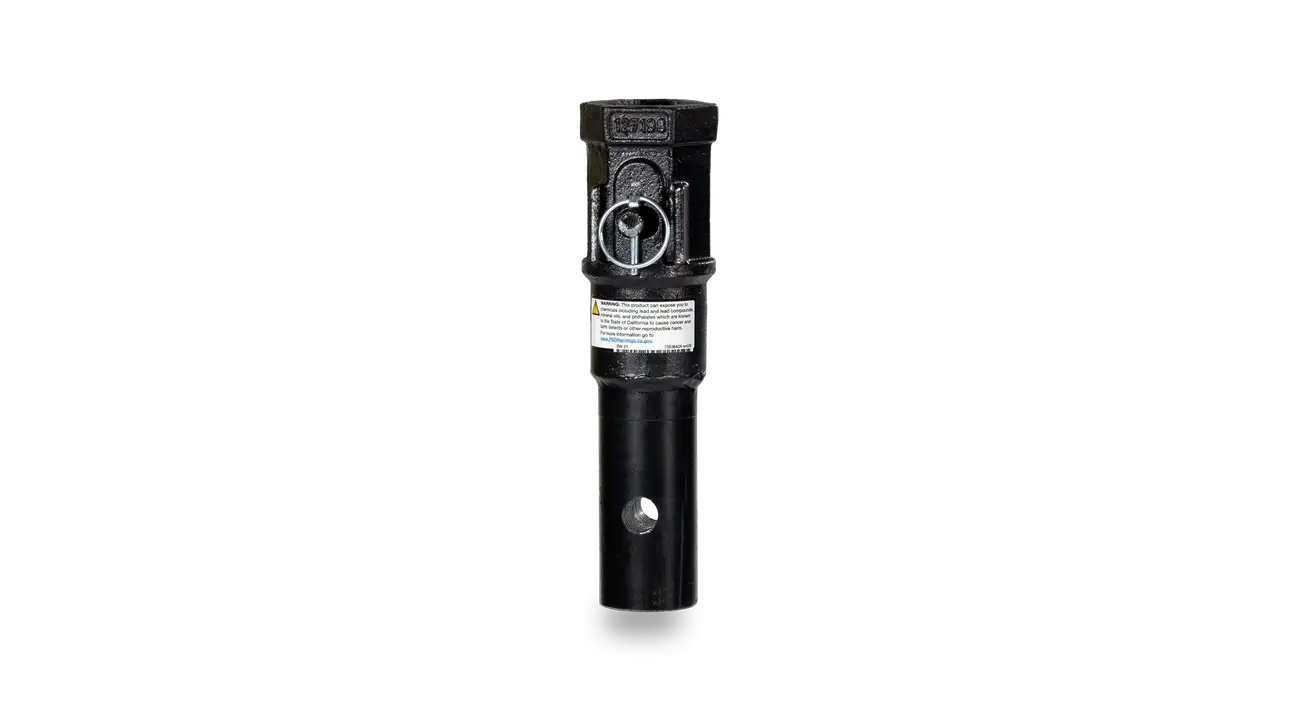

  • 2-Inch Hex Drive Shaft Industry-standard interface fits Ignite and other 2" hex auger bits; optional adapter accepts 2-9/16" round bits.
View full details

Product Description

Ignite Attachments Direct-Drive Auger | Model 75DDH | Overall Width 45" | Hydraulic Flow 8 – 20 GPM | For Skid Steers


DESCRIPTION

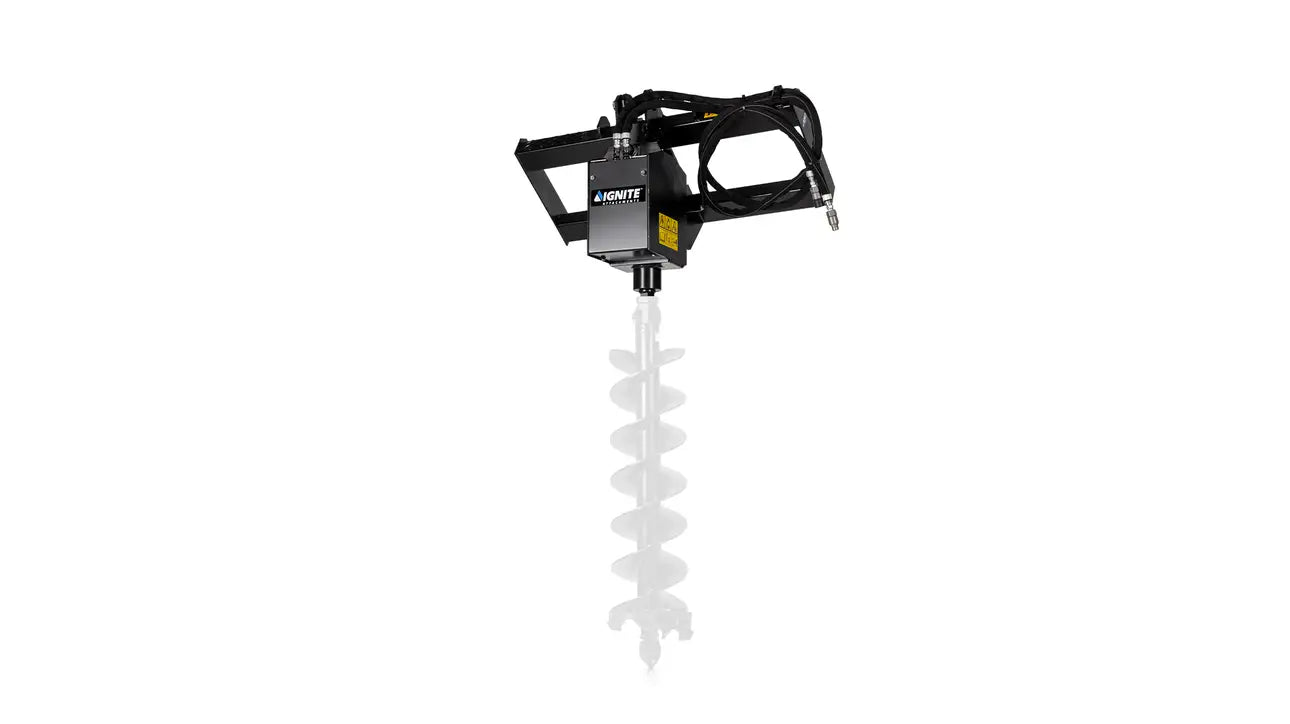

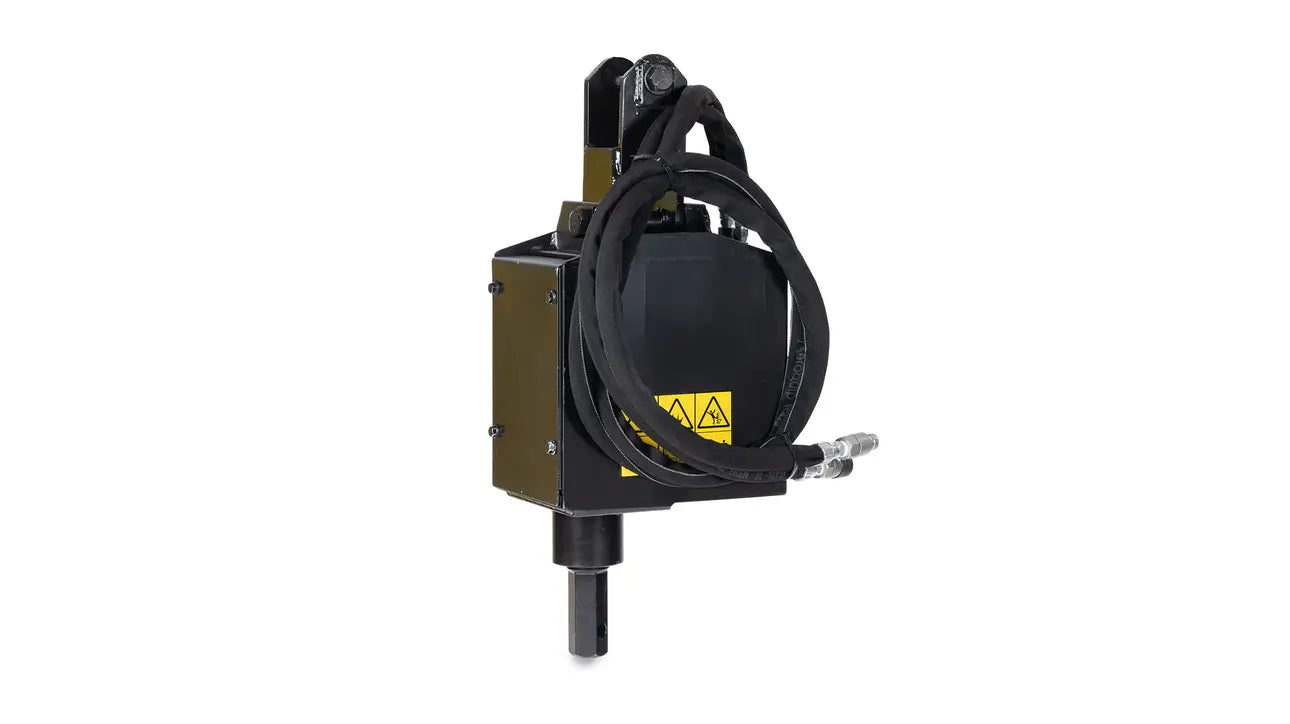

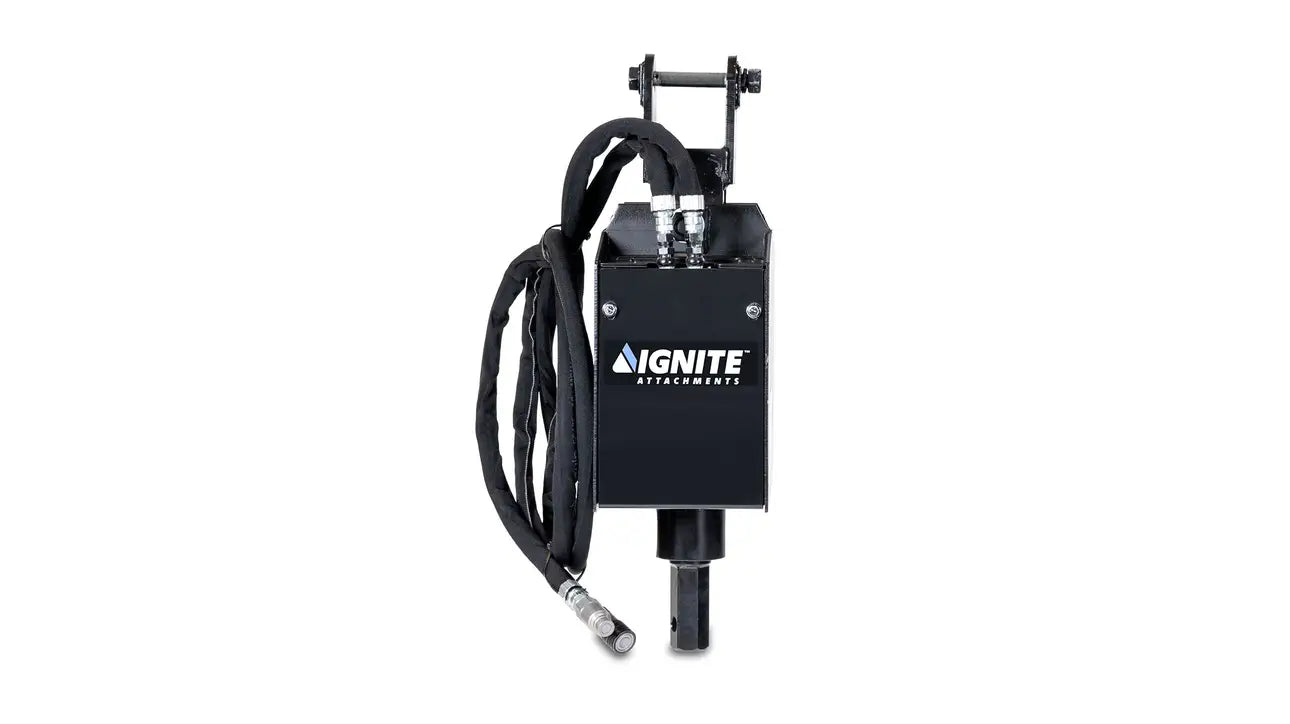

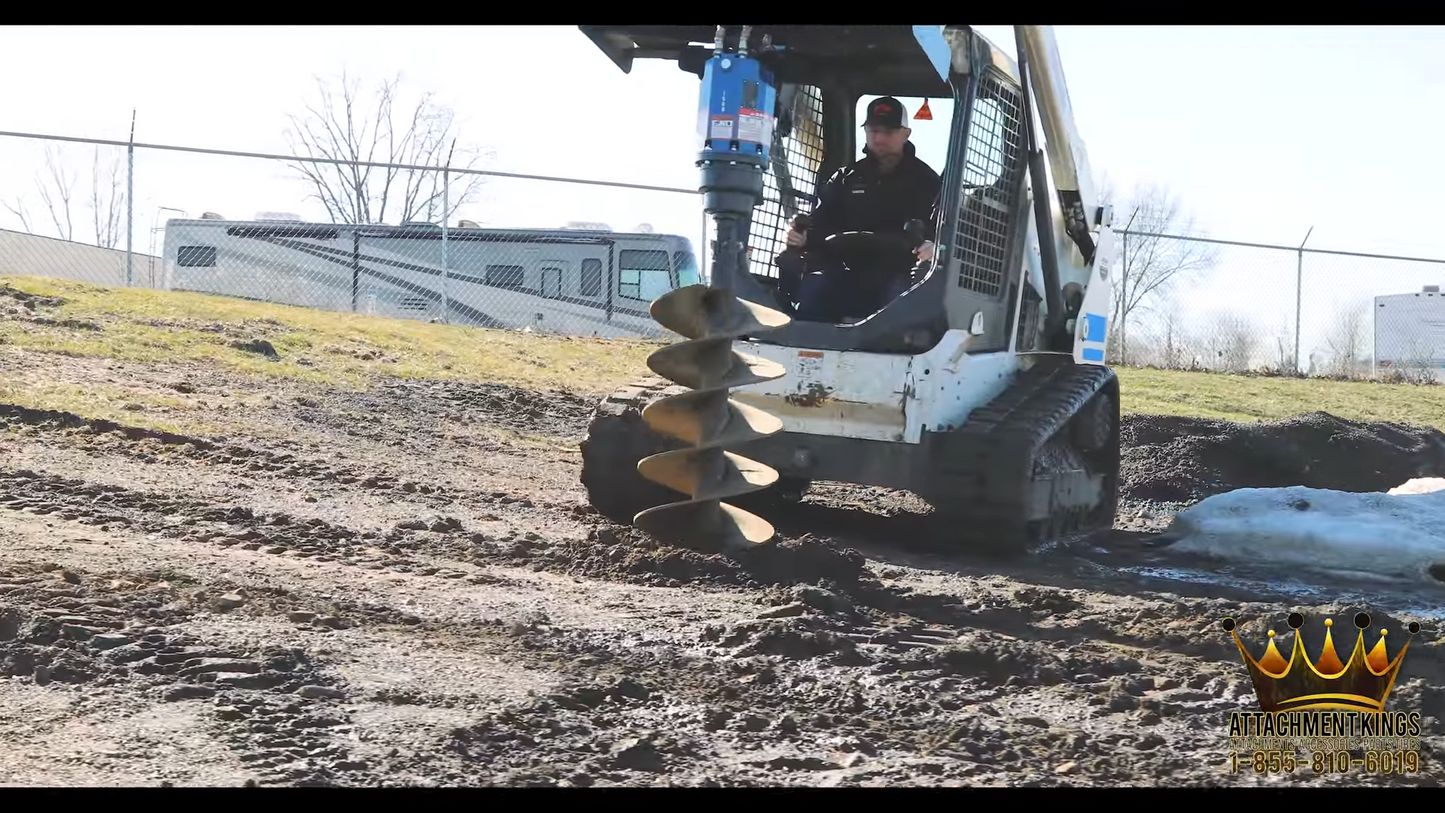

Turn your skid steer or compact track loader into a high-torque hydraulic post-hole digger with the Ignite 75DDH Direct-Drive Hex Auger. Purpose-built for fence installers, utility crews, landscapers, and deck builders, this American-made drive unit delivers rock-solid performance in clay, frost, and even light rock. A self-balancing knuckle keeps the bit perfectly vertical on uneven ground, so every hole is straight and true no rework, no wasted time.

Snap it onto any universal quick-attach plate, connect two flat-face couplers, and you’re ready to power bits from 6 to 24 inches (or go even deeper with optional 24" and 36" extensions). Fewer moving parts mean less maintenance, while robot-welded Grade-50 steel guarantees job-site durability season after season.

Key Features

  • High-Torque Hydraulic Auger (1,118 lb-ft @ 3,000 psi) Tears through compacted soil, glacial till, and frozen ground without stalling.
  • 8 – 20 GPM Flow Range Compatible with most skid steers and CTLs no special high-flow package required.
  • Self-Balancing Knuckle Joint Automatically plumbs the bit for laser-straight holes, even on slopes or rough terrain.
  • 2-Inch Hex Drive Shaft Industry-standard interface fits Ignite and other 2" hex auger bits; optional adapter accepts 2-9/16" round bits.

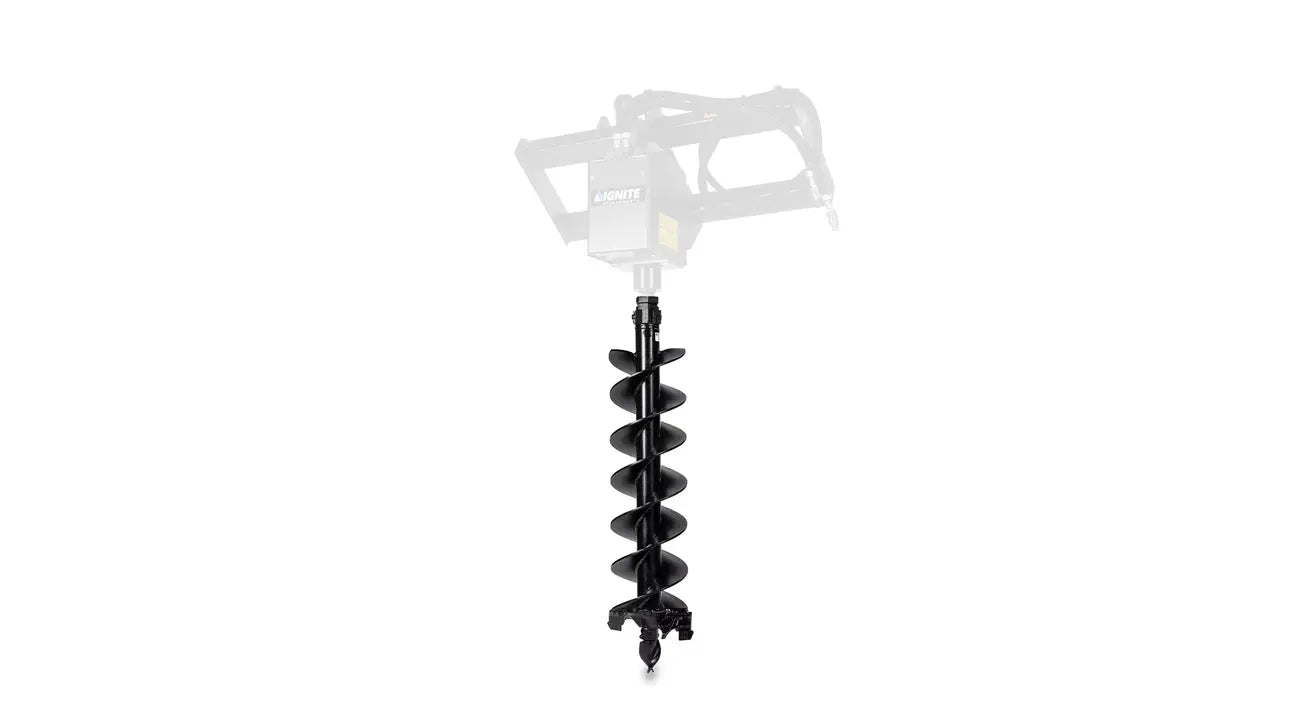

  • Dig to 86 Inches Deep Standard bit reaches 50"; add a 36" extension for deep footings, light-pole bases, and tree transplants.

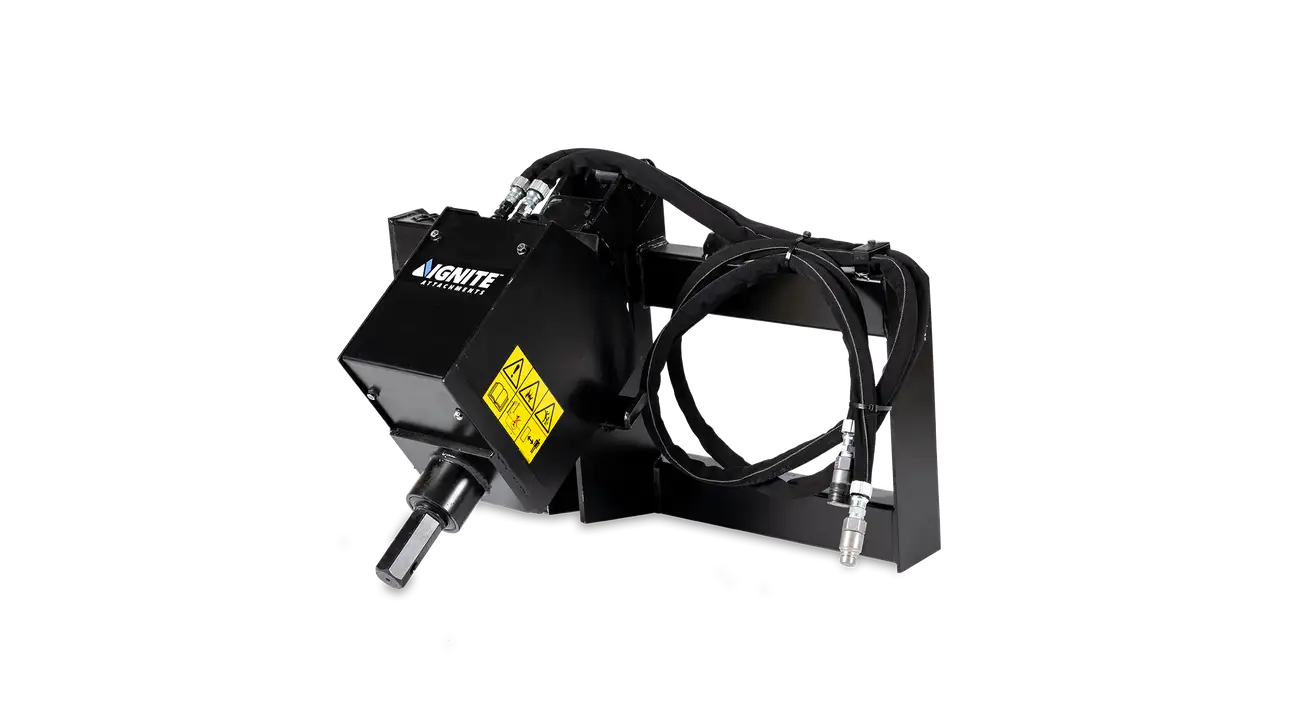

  • Universal Quick-Attach Mount Installs in seconds on virtually any brand of skid steer or compact loader.
  • Made in the USA, Robot-Welded Precision manufacturing ensures consistent strength and long service life.

Detailed Specifications

Specification Details
Attachment Interface Universal skid-steer quick attach
Hydraulic Flow Range 8 – 20 GPM
Operating Pressure 2,000 – 3,500 psi
Output Torque @ 3,000 psi 1,118 lb-ft
Output Speed @ 20 GPM 161 rpm
Drive Shaft 2-in hex
Maximum Bit Diameter 24 in (standard); larger bits possible in light soils
Standard Dig Depth 50 in (w/ 50-in bit)

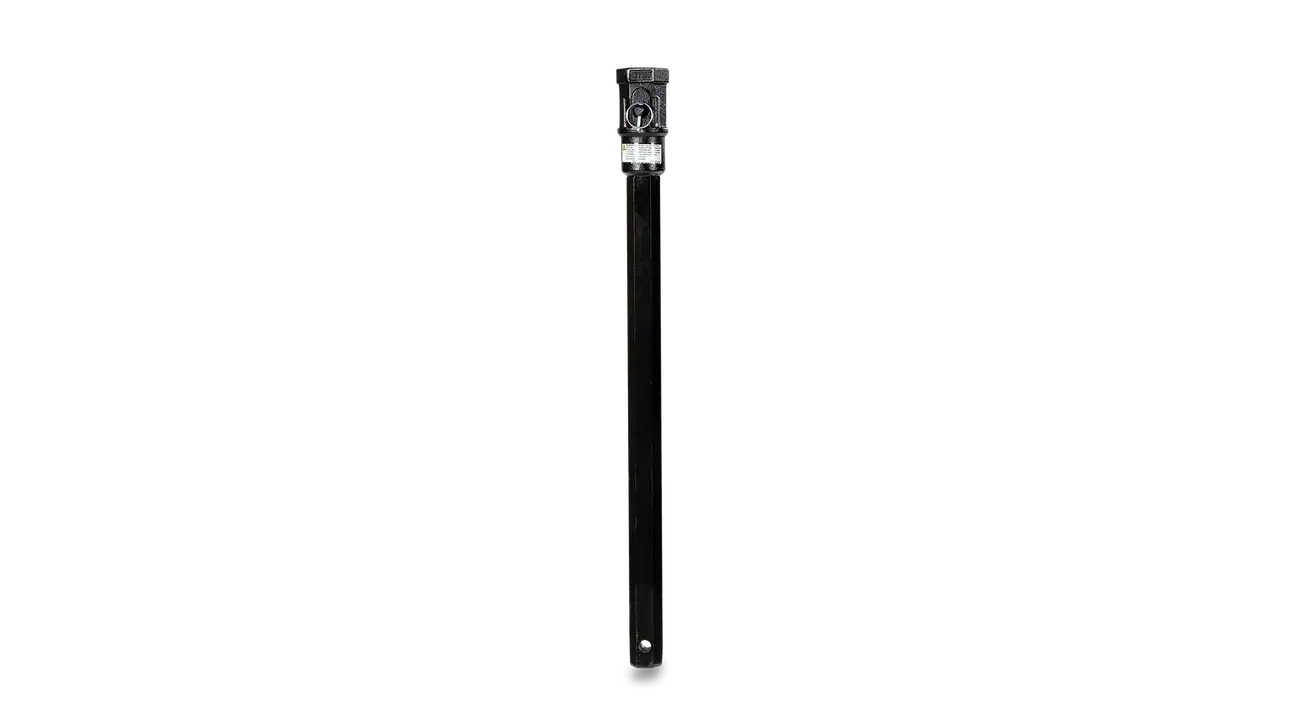

Extended Dig Depth 86 in (with optional 36-in extension)
Overall Width 45 in (mount frame)
Drive Unit Dimensions (W × H) 9.38 in × 33.5 in
Weight (with mount) 315 lb
Quick-Coupler Type ½-in flat-face couplers

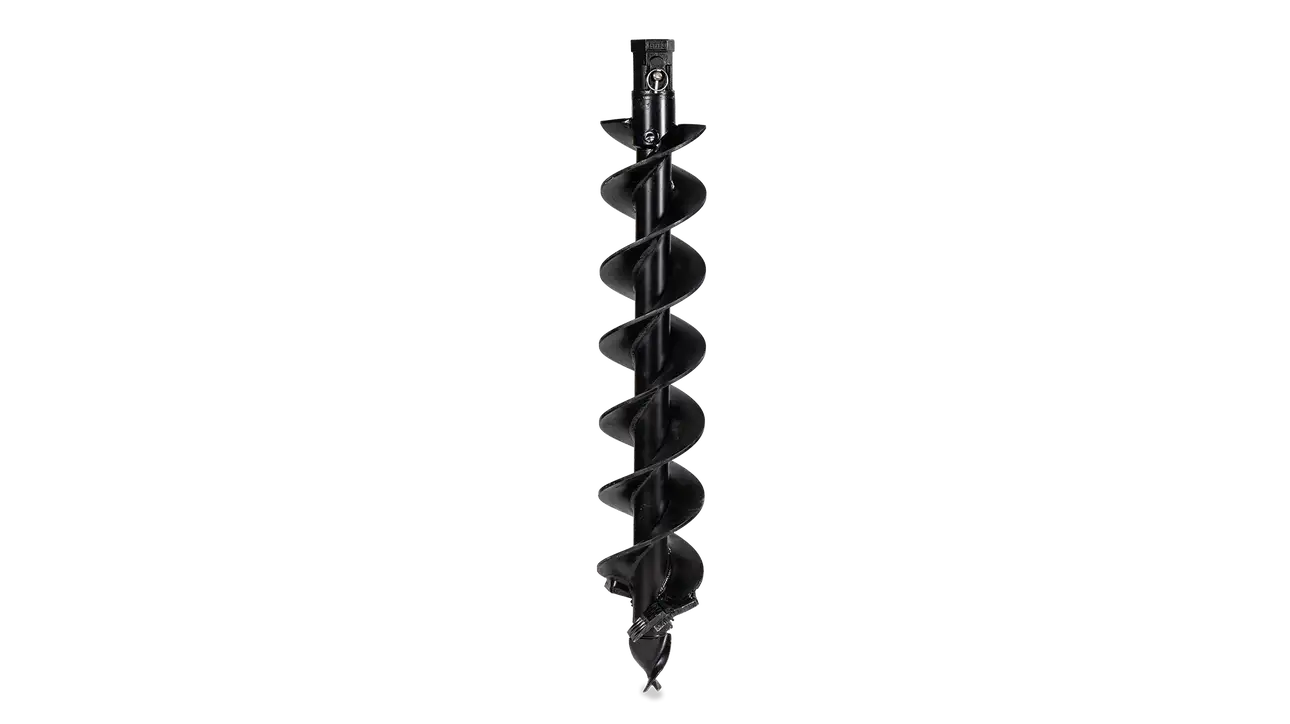

Compatible Options 24" & 36" hex extensions, 2" hex-to-round adapter, 6"–24" standard & heavy-duty bits
