Product Description
KIOTI | Hydrostatic Cab Tractor | DK5320SE | 62.8" Width | 50.3 HP | For Agricultural and Landscaping Tasks
DESCRIPTION

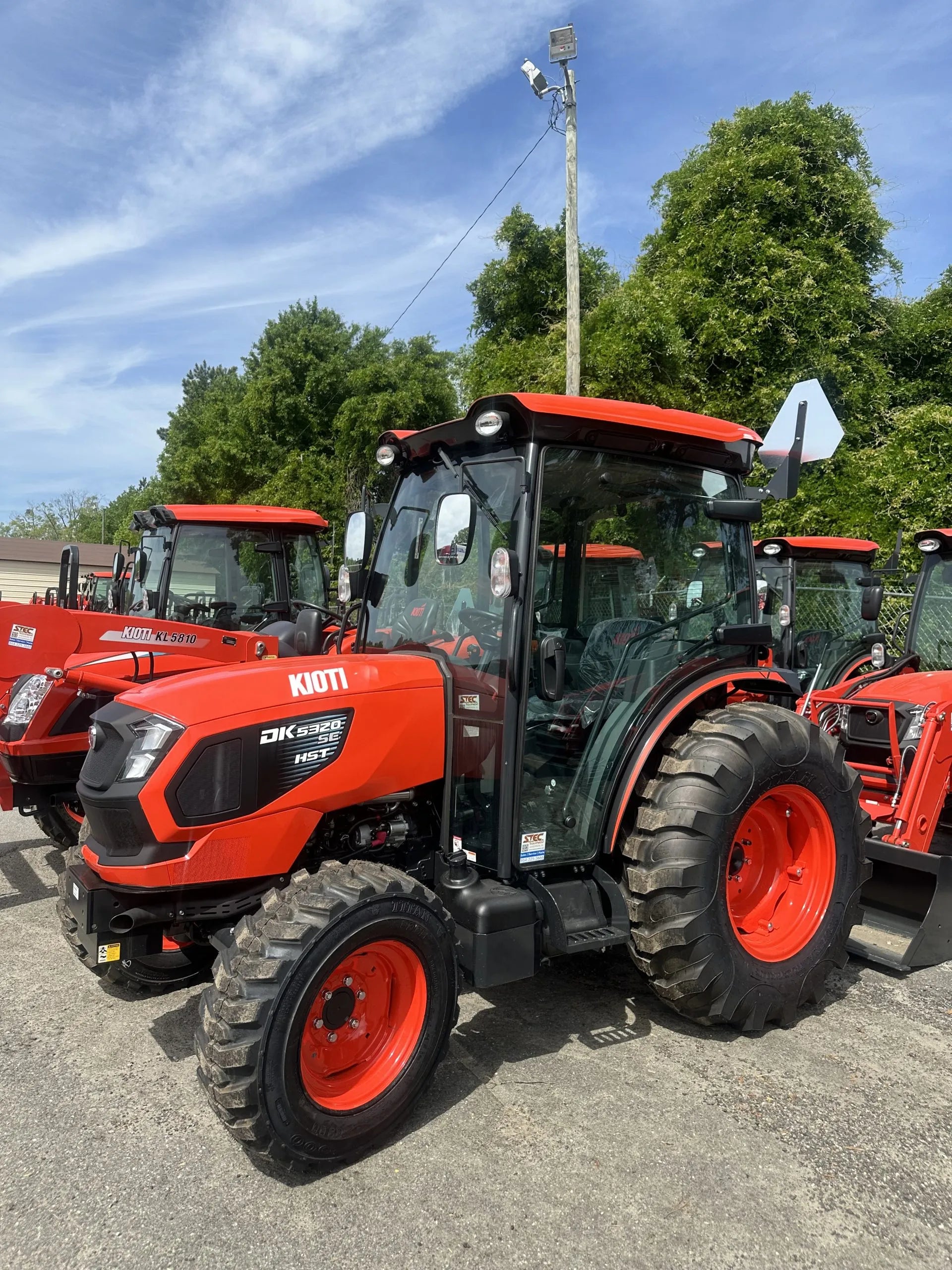

The Kioti DK5320SE Hydrostatic Cab Tractor combines exceptional power, advanced technology, and operator comfort to deliver unparalleled efficiency for agricultural and utility tasks. Powered by a reliable 50.3-horsepower diesel engine and hydrostatic transmission, this tractor ensures smooth operation with infinite speed ranges in both forward and reverse, adapting effortlessly to your workload. Whether handling heavy lifting, plowing, or towing, the DK5320SE is designed to excel in demanding environments.
This model boasts an ergonomic, climate-controlled cab with hydrostatic power steering, ensuring a comfortable and productive experience, even during extended shifts. Its independent PTO system, offering up to 33.4 horsepower, provides robust power for running tools and implements, enabling versatility across applications. The gear-driven hydraulic pump delivers 16.5 GPM and a lift capacity of 2,716 lbs., ensuring efficiency in hydraulic-driven tasks like material handling and land preparation.
Built for durability and ease of use, the DK5320SE features wet multi-disc brakes for reliable stopping power and a Category 1 three-point hitch for seamless attachment compatibility. Compact yet powerful, the tractor’s excellent ground clearance and turning radius allow for superior maneuverability in various terrains, making it an essential tool for any farm or jobsite.
Key Features
- Powerful Diesel Engine: The 50.3-horsepower KIOTI engine offers consistent performance and efficiency for heavy-duty tasks.
- Hydrostatic Transmission: Features infinite forward and reverse speed ranges across three selectable modes for precise control.
- Independent PTO System: Generates 33.4 PTO horsepower with rear and optional mid-speed settings, ideal for powering implements like mowers or balers.
- Durable Hydraulics: Gear-driven pump delivers 16.5 GPM with a maximum lift capacity of 2,716 lbs. for versatile hydraulic-driven applications.

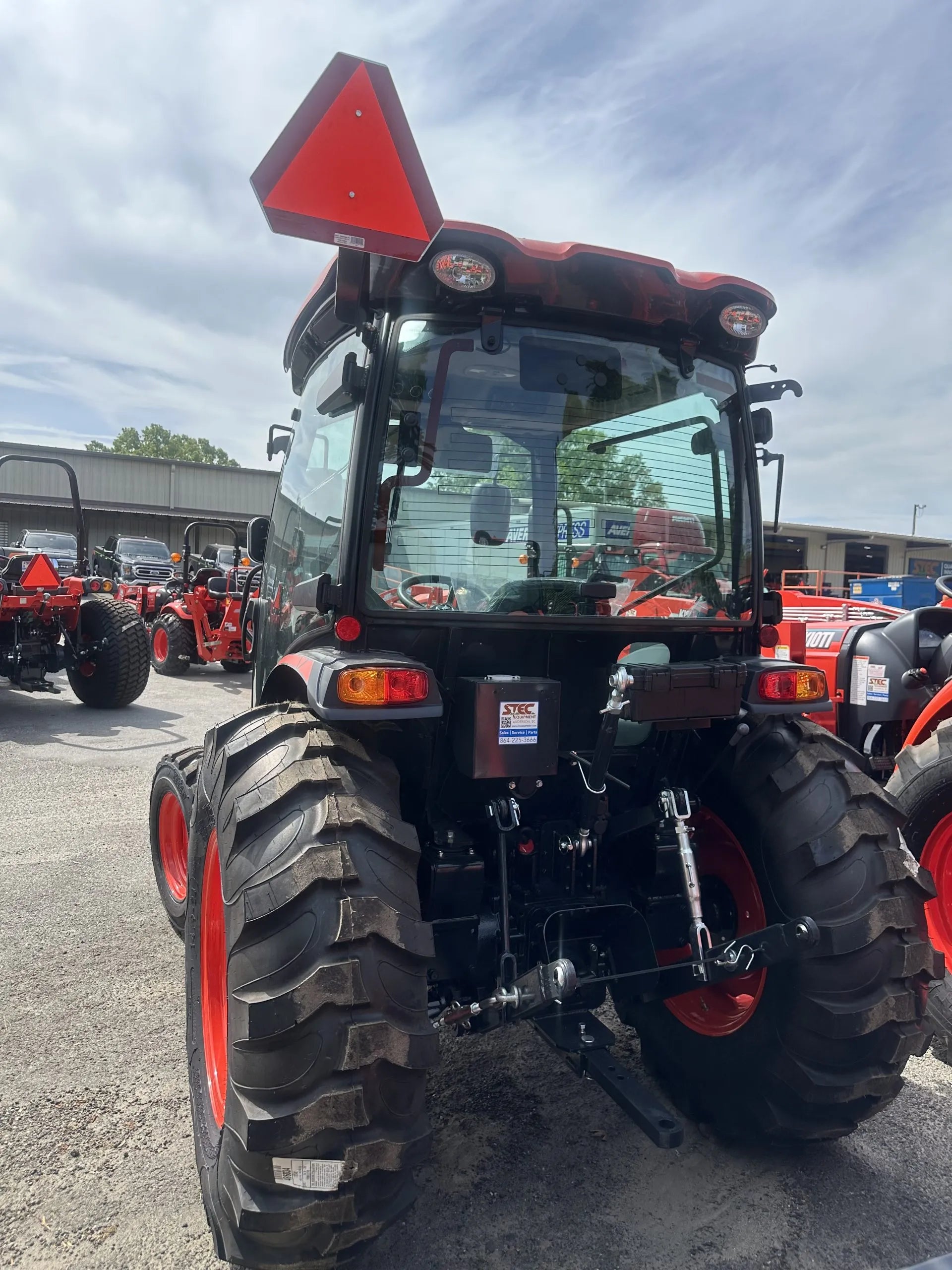

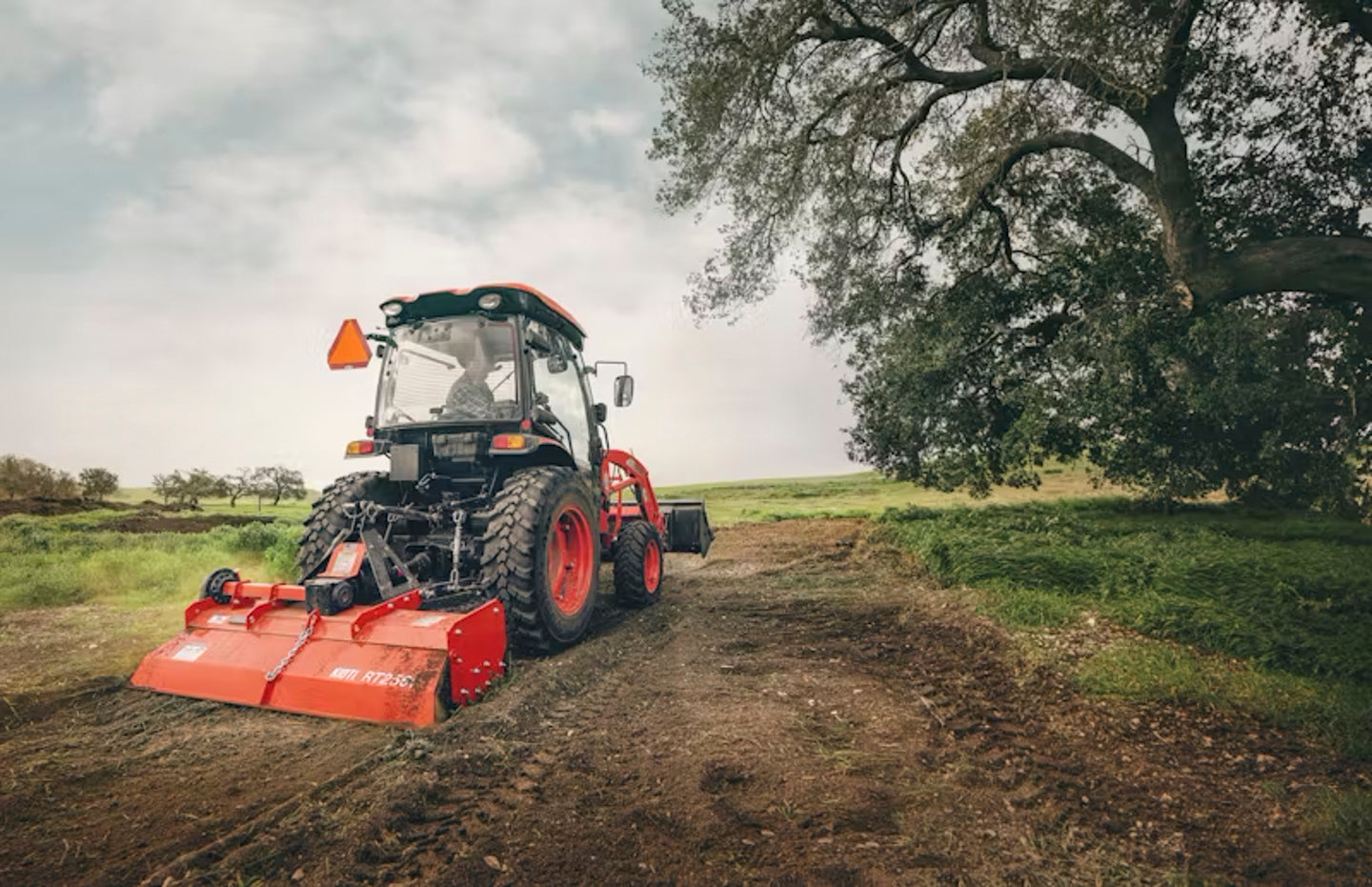

- Three-Point Hitch: Category 1 hitch with position control offers compatibility with various implements, ensuring flexibility across tasks.

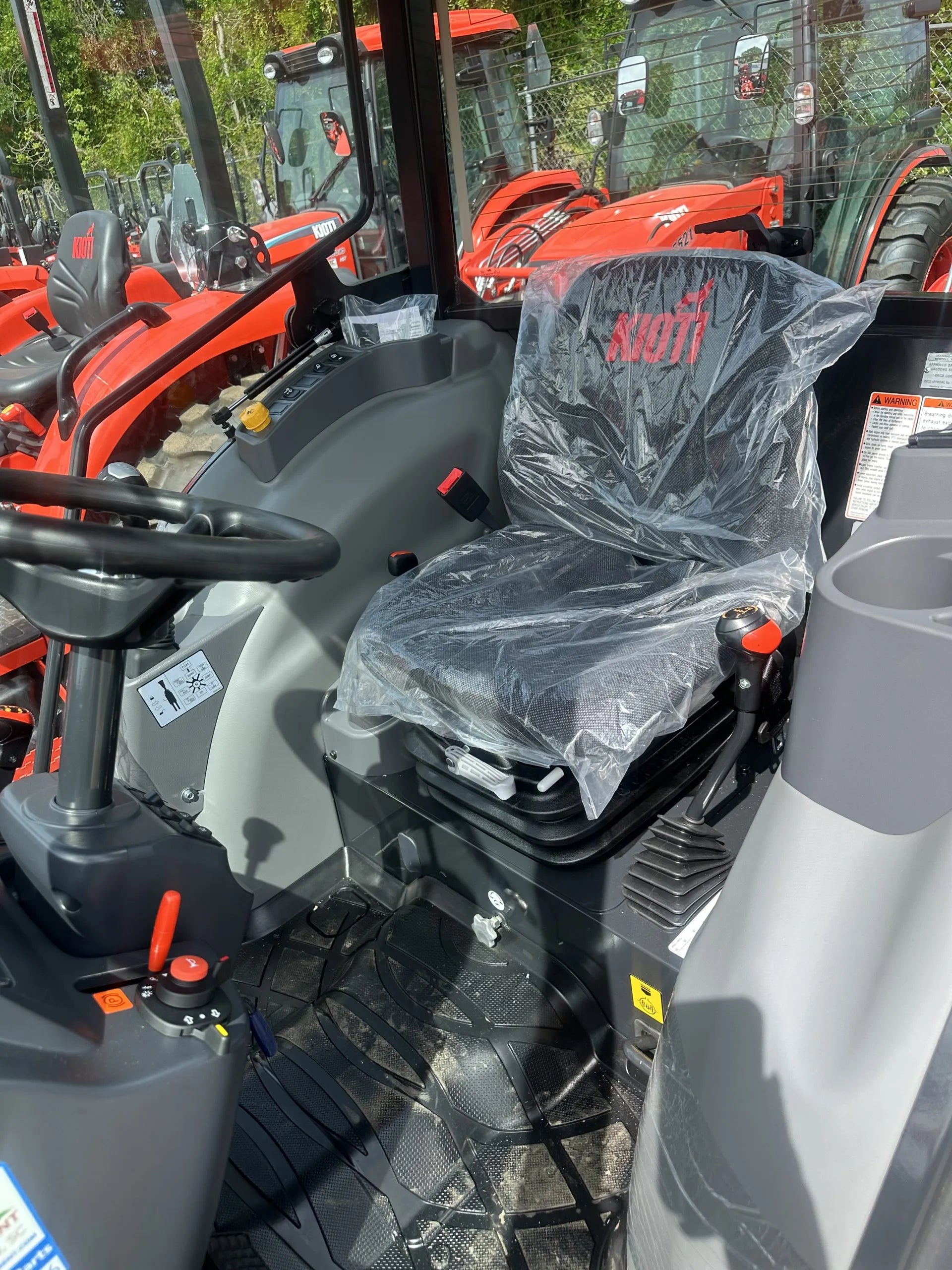

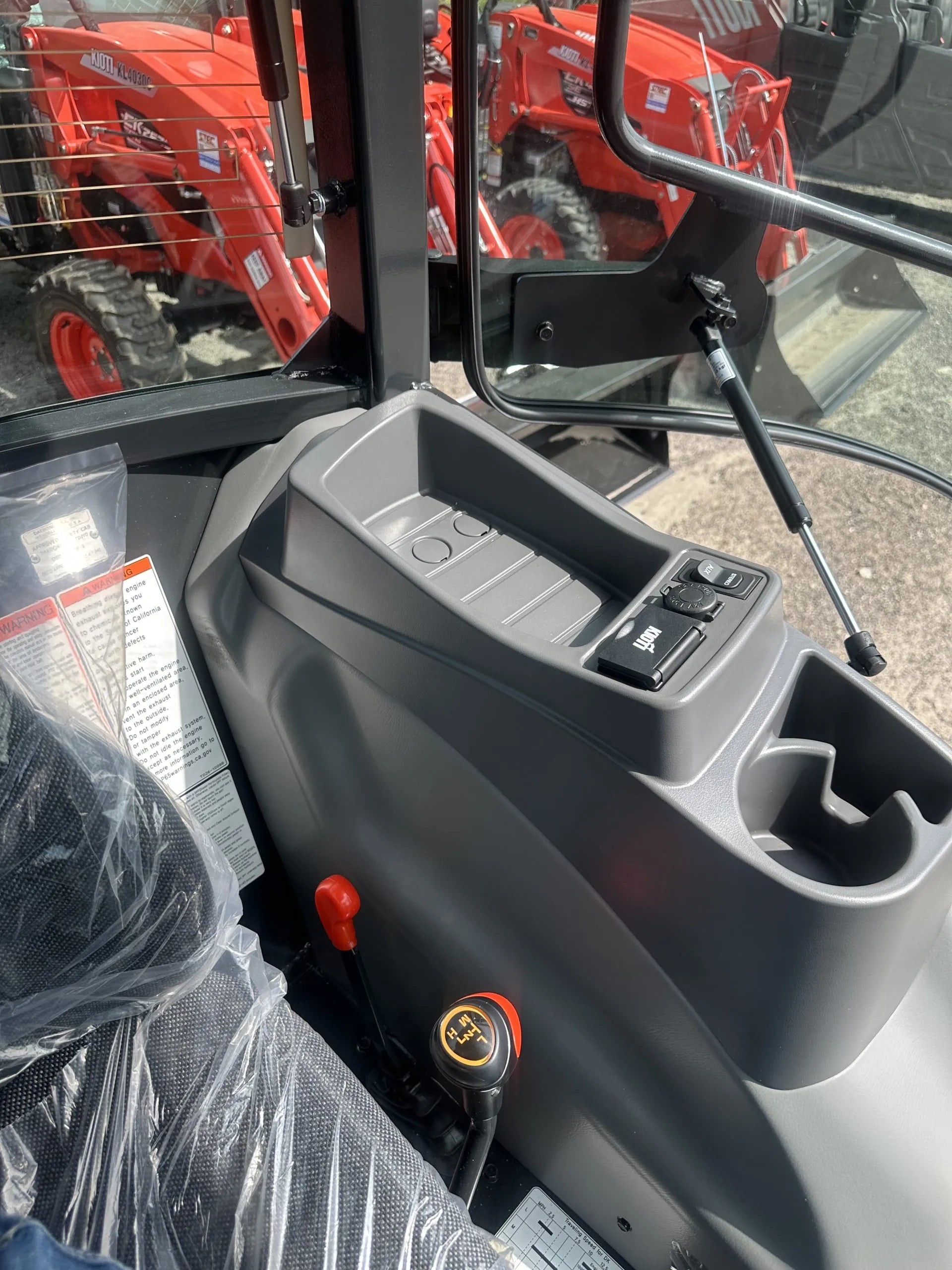

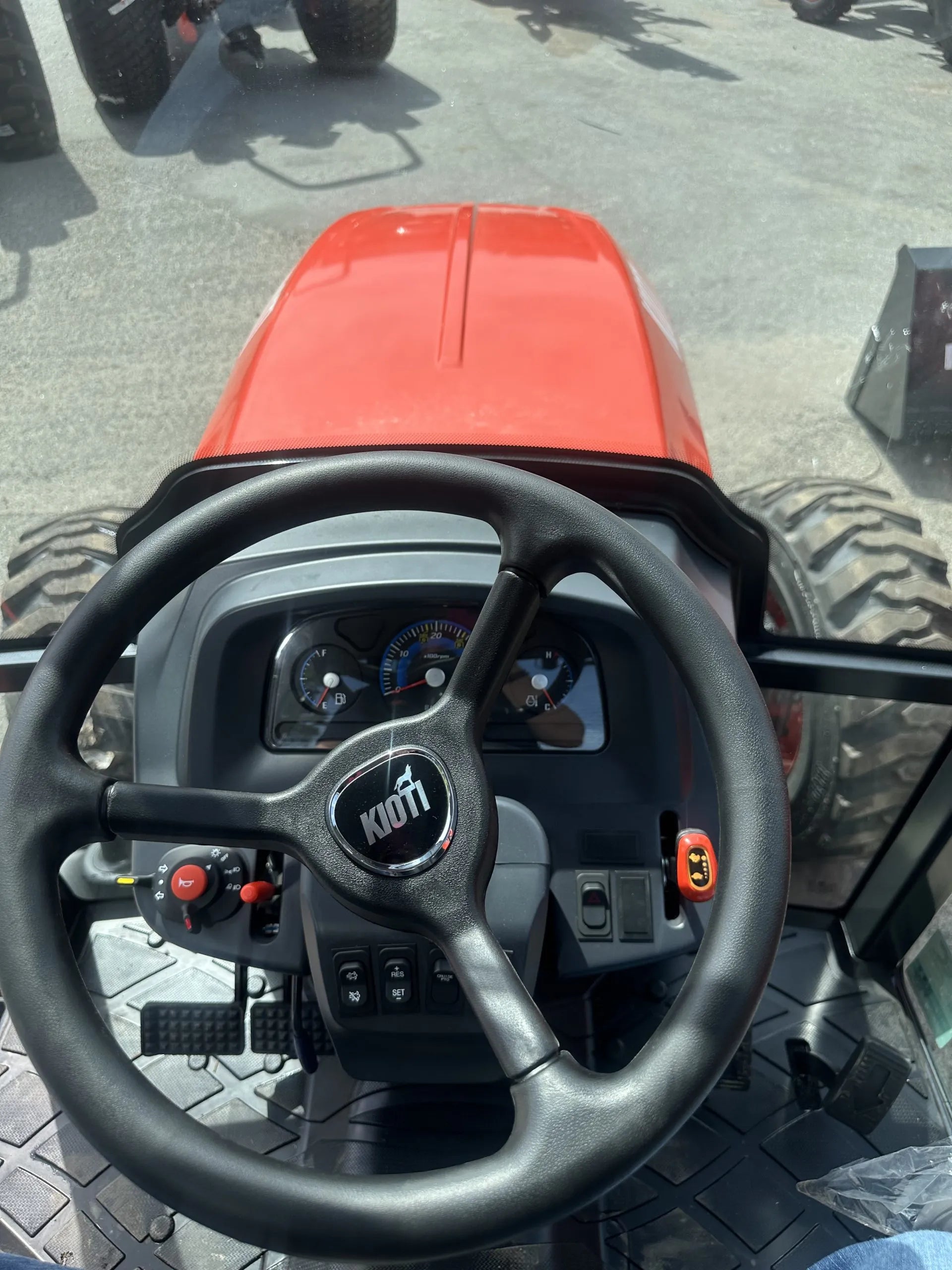

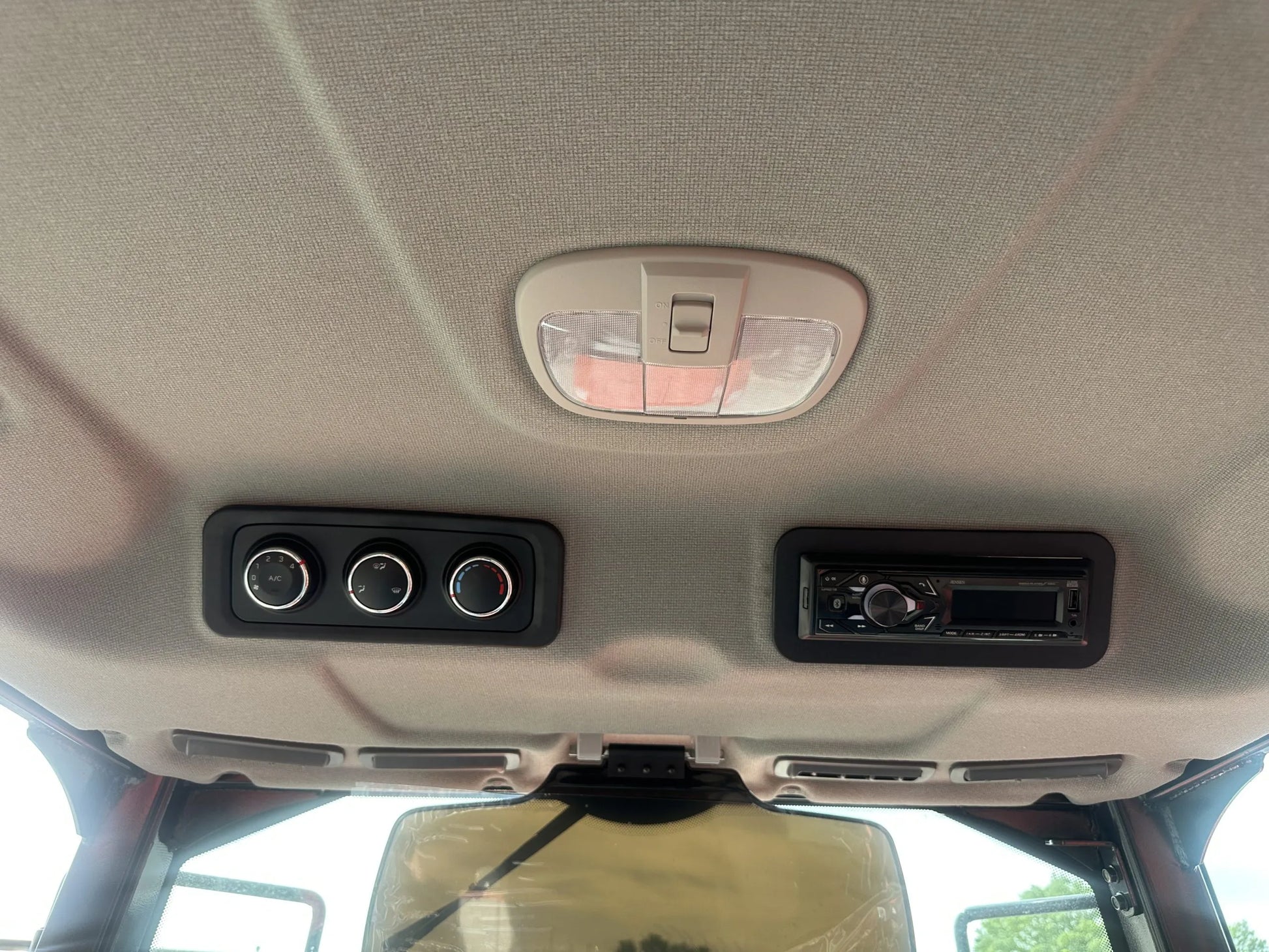

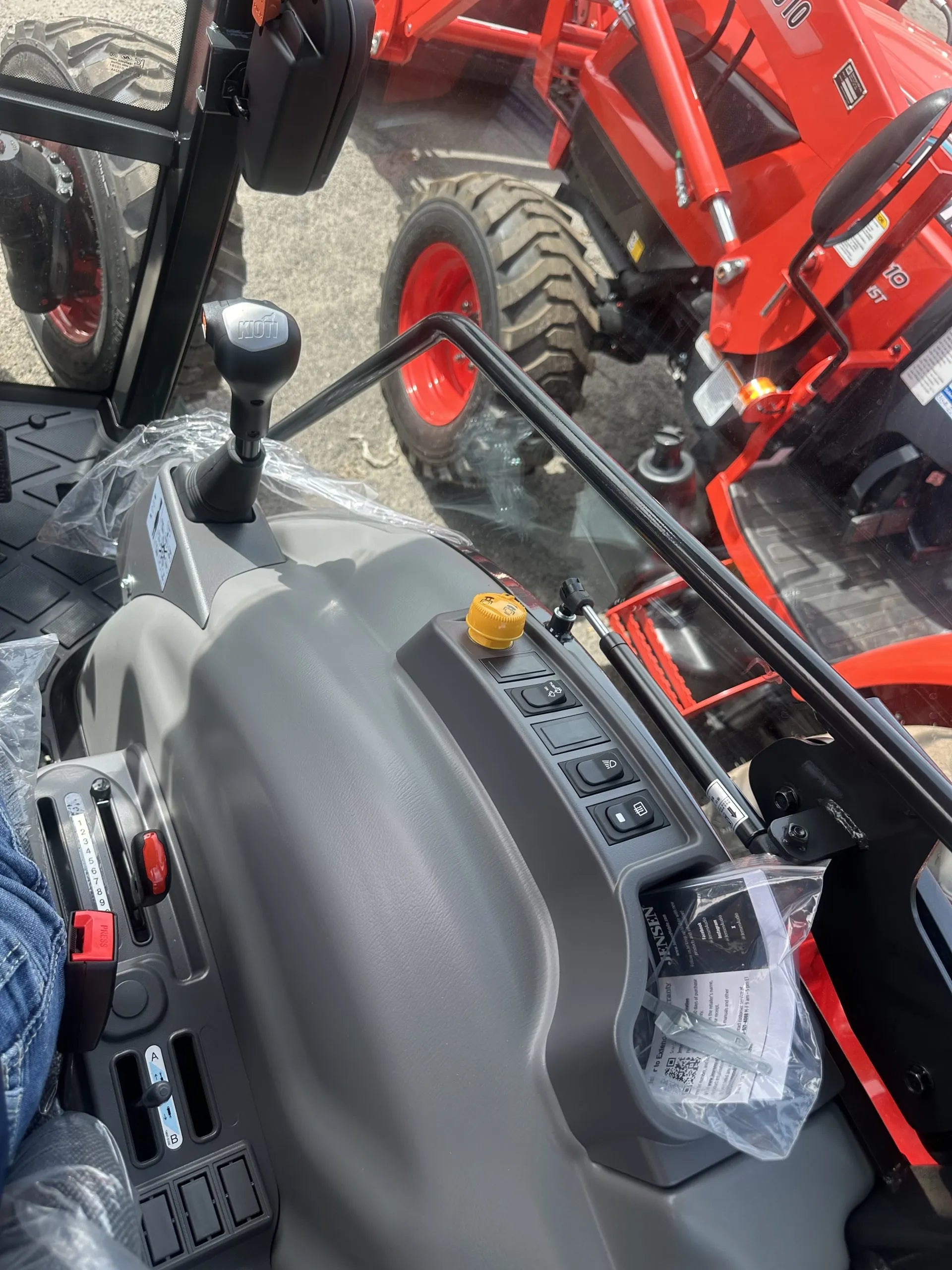

- Operator Comfort: Climate-controlled cab, ergonomic controls, and hydrostatic power steering for an enjoyable operating experience.
- Safety and Durability: Wet multi-disc brakes and reliable build quality ensure durability and smooth operation in tough conditions.
- Compact Design: Features ground clearance of 14.5 inches and a streamlined 63-inch width for superior maneuverability in tight spaces.

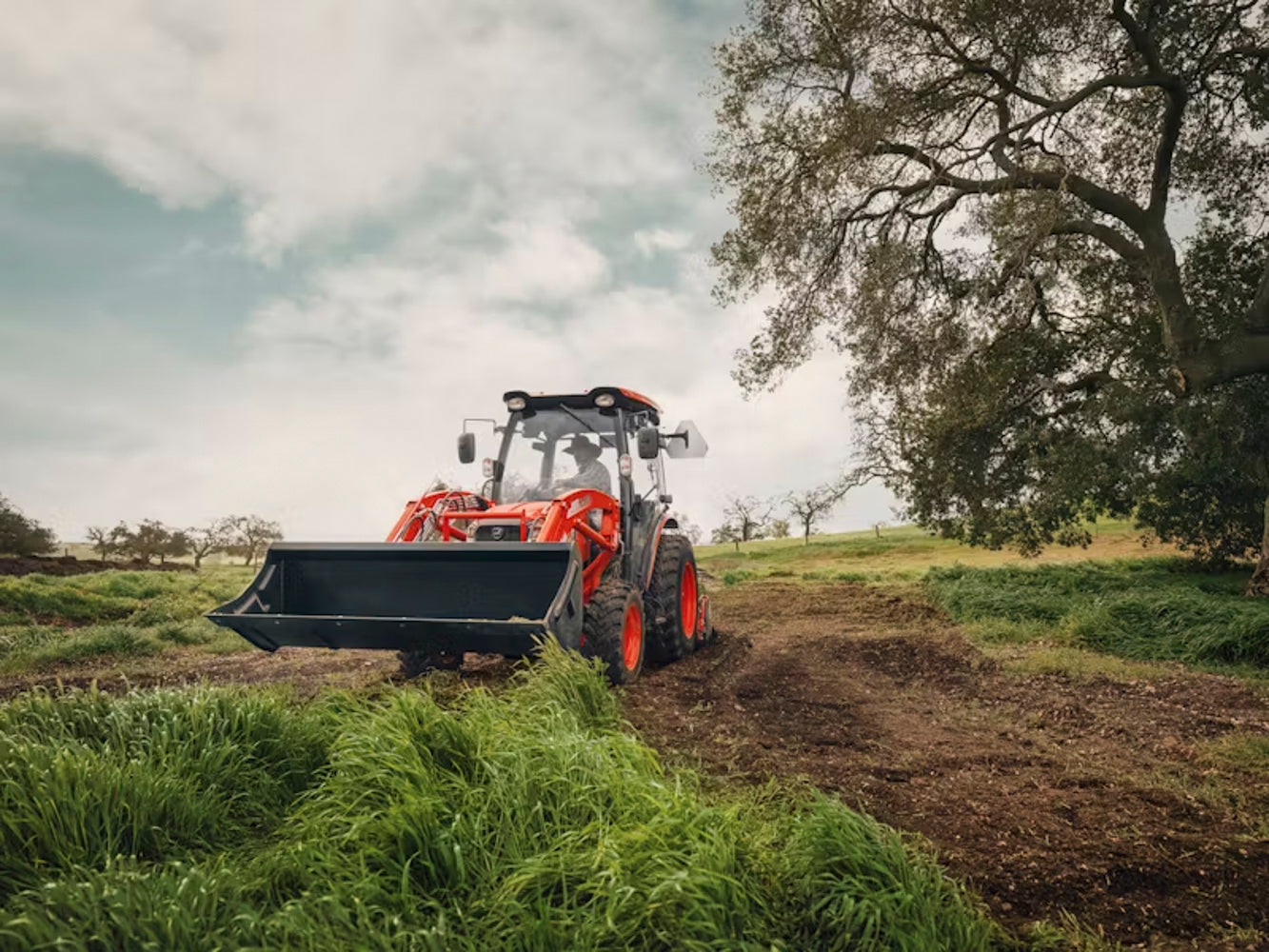

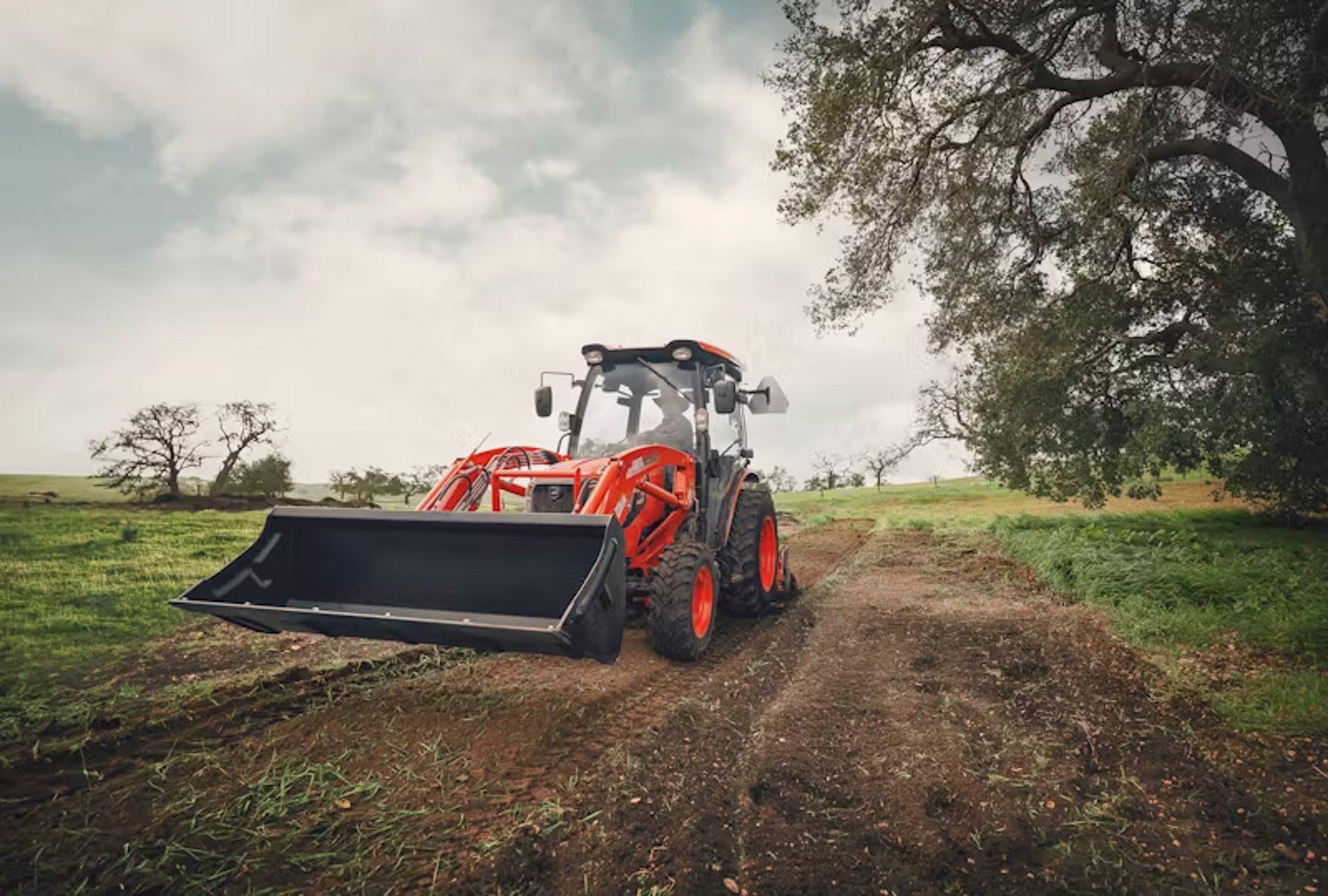

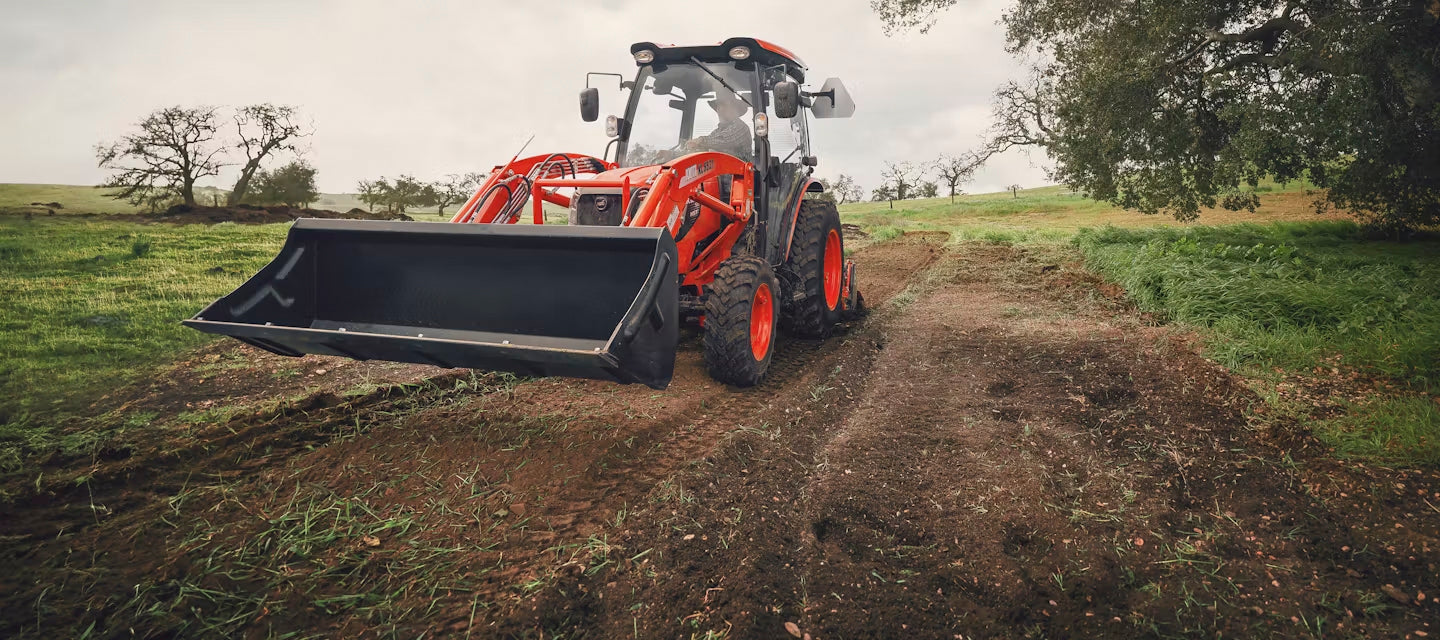

- Optional Front-End Loader: Expands functionality for material handling, lifting, and digging tasks.
Detailed Specifications
| Category | Details |
|---|---|
| Engine Model | 3HT-TH4C |
| Manufacturer | KIOTI |
| Engine Power | 50.30 hp (37.50 kW) |
| Displacement | 111.40 cu. in. (1,826 cc) |
| Fuel Type | Diesel |
| Aspiration | Intercooled |
| Fuel Capacity | 12.70 gal (48 L) |
| Transmission | Hydrostatic (HST) |
| Travel Speeds | 3 Ranges, Infinite Speeds (Forward/Reverse) |
| Max Forward Speed | 18.50 mph (29.70 km/h) |
| Max Reverse Speed | 12.90 mph (20.80 km/h) |
| PTO Type | Independent |
| PTO Power | 33.40 hp (24.90 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm |
| Brakes | Wet Multi Disc |
| Steering | Hydrostatic Power Steering |
| Hydraulic Pump | Gear |
| Hydraulic Flow | 16.50 gpm (62.40 lpm) |
| 3-Point Hitch Type | Category 1 |
| Rear Lift Capacity | 2,716 lb (1,232 kg) |
| Dimensions (LxWxH) | 125.50 in x 62.80 in x 93.00 in |
| Wheelbase | 71.30 in (1,810 mm) |
| Ground Clearance | 14.50 in (368 mm) |
| Turning Radius | 102.80 in (2.61 m) |
| Weight | 4,025 lb (1,826 kg) |
