KIOTI | Hydrostatic Cab Tractor with Loader | CK4020SE | 54.5" Width | 39.6 HP | For Compact Agricultural and Landscaping Tasks
KIOTI | Hydrostatic Cab Tractor with Loader | CK4020SE | 54.5" Width | 39.6 HP | For Compact Agricultural and Landscaping Tasks
Regular price
$41,931.00
Regular price
Sale price
$41,931.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
KIOTI | Hydrostatic Cab Tractor with Loader | CK4020SE | 54.5" Width | 39.6 HP | For Compact Agricultural and Landscaping Tasks
DESCRIPTION

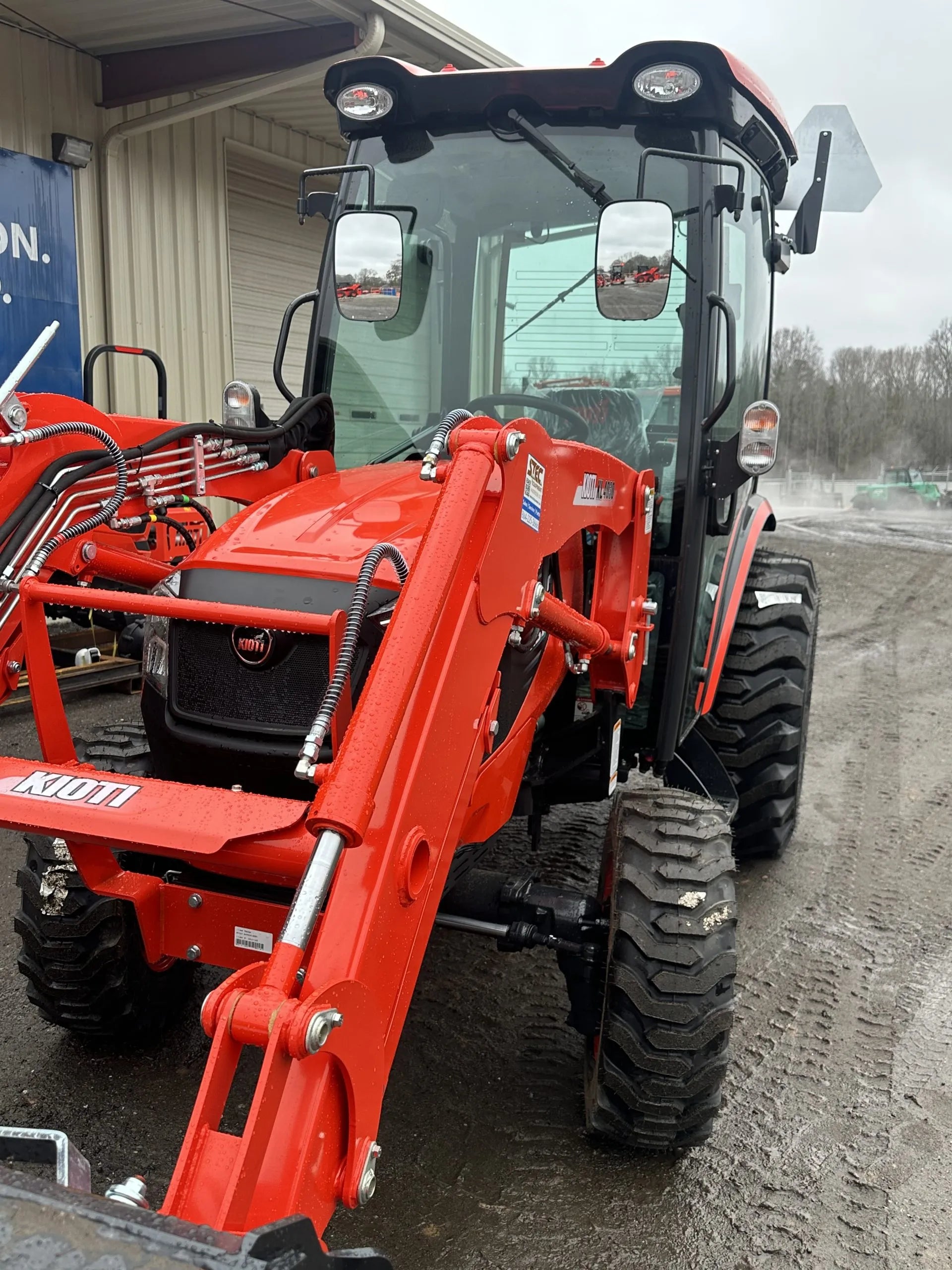

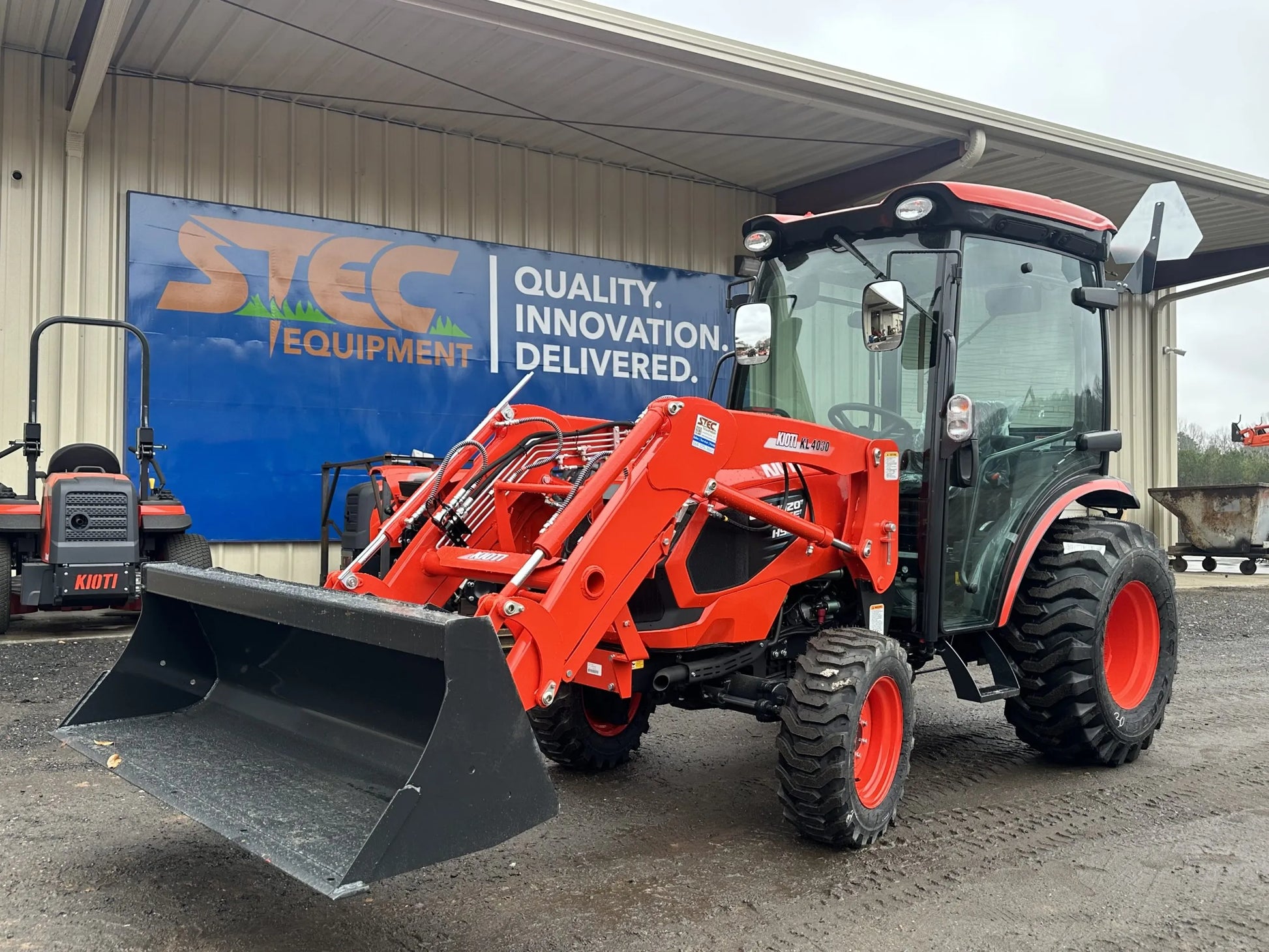

The Kioti CK4020SE Hydrostatic Cab Tractor with Loader is a top-tier compact tractor offering unmatched performance, comfort, and durability. With a powerful diesel engine, advanced hydrostatic transmission, and an independent PTO system, this tractor is designed to tackle a wide range of demanding tasks efficiently. Its enclosed cab ensures operator comfort and protection, making it ideal for all-weather use, while its loader compatibility adds versatility to your farming, landscaping, or construction projects.
This feature-rich machine blends power and practicality, delivering reliable results across various applications. It boasts a robust hydraulic system and precise controls for enhanced efficiency. Whether you're tilling soil, hauling equipment, or performing heavy-duty lifting, the CK4020SE ensures superior productivity with ease and comfort.
Key Features
- High-Performance Engine: Diesel-powered 39.60 hp (29.50 kW) engine ensures exceptional strength and reliability.

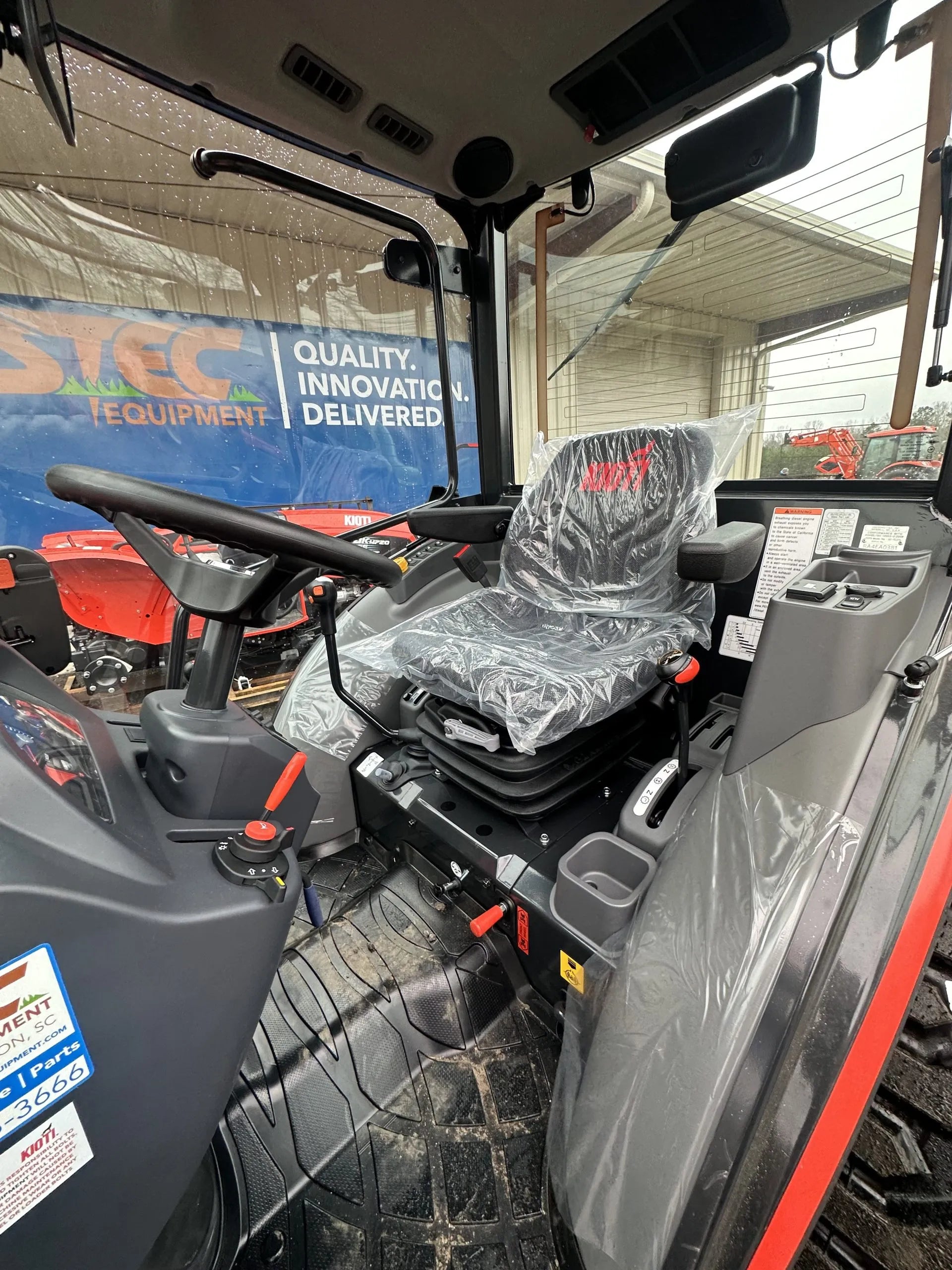

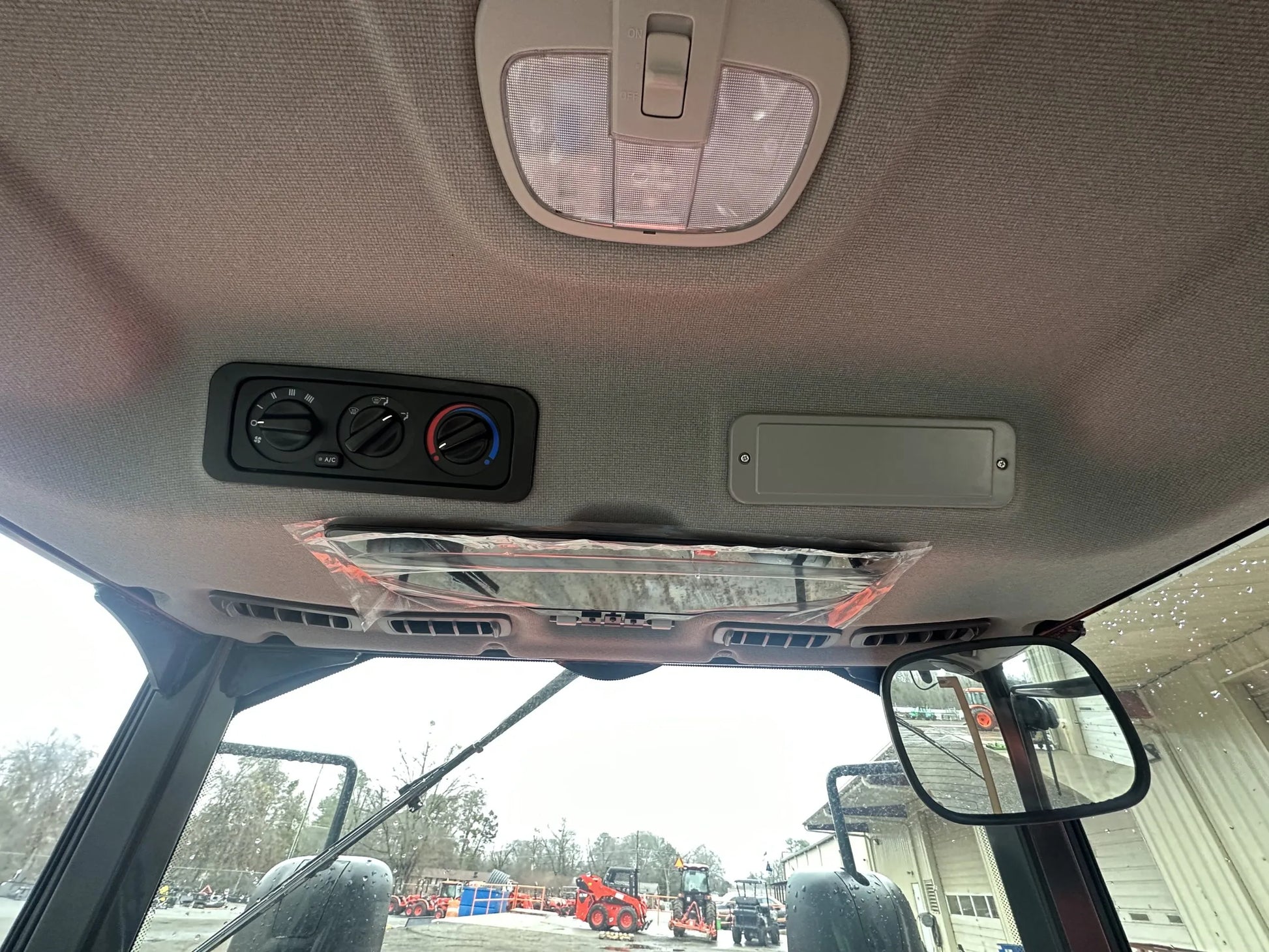

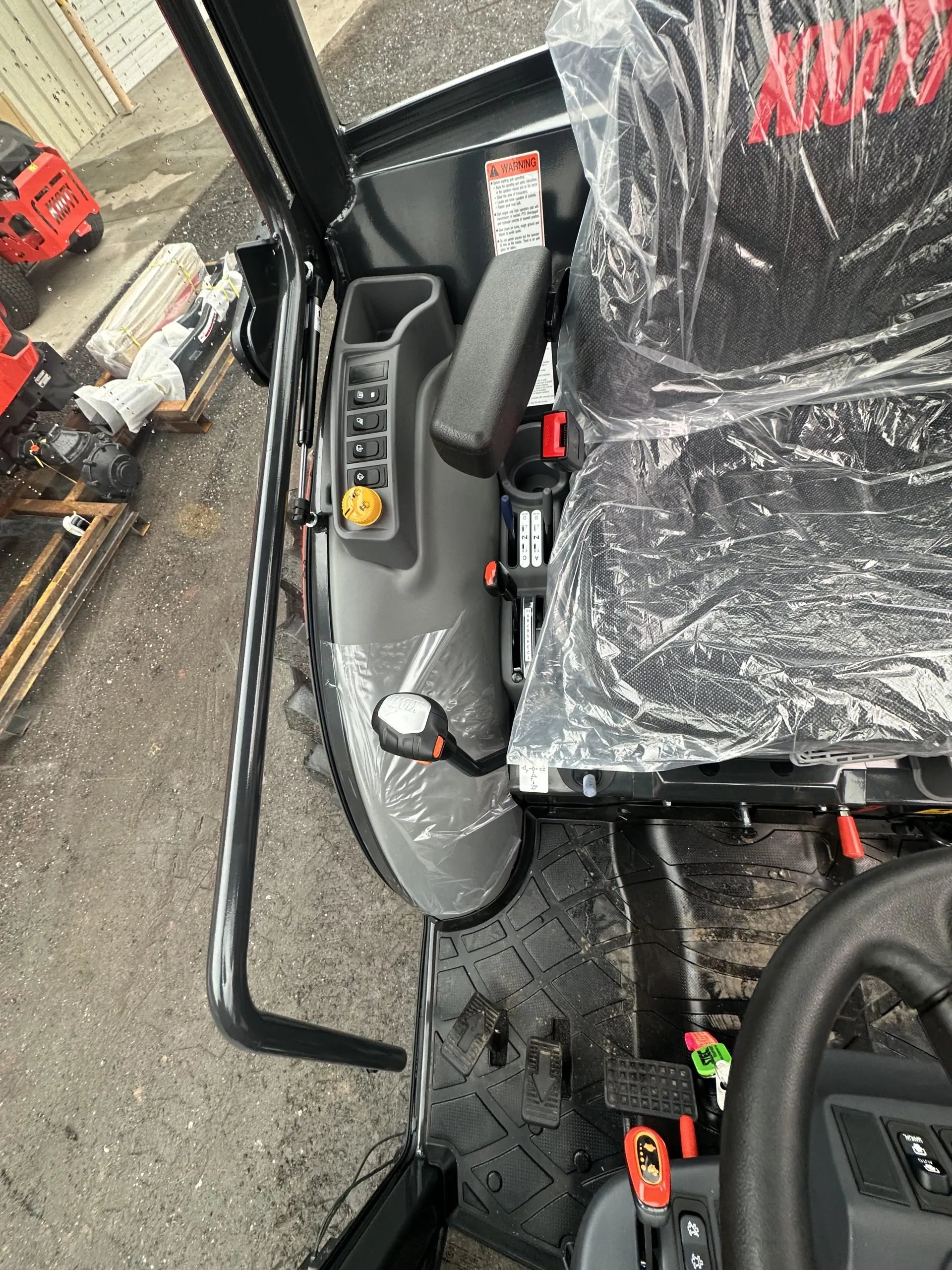

- Cab Comfort: Enclosed cab for operator comfort and protection in all conditions.
- Hydrostatic Transmission: Infinite control over speeds with hydrostatic forward and reverse travel settings.
- PTO Versatility: Independent PTO with rear and optional mid-speed capability to meet various implement needs.
- Hydraulic Precision: Gear pump with a capacity of 11.70 gpm (44.40 lpm) for smooth and reliable performance.

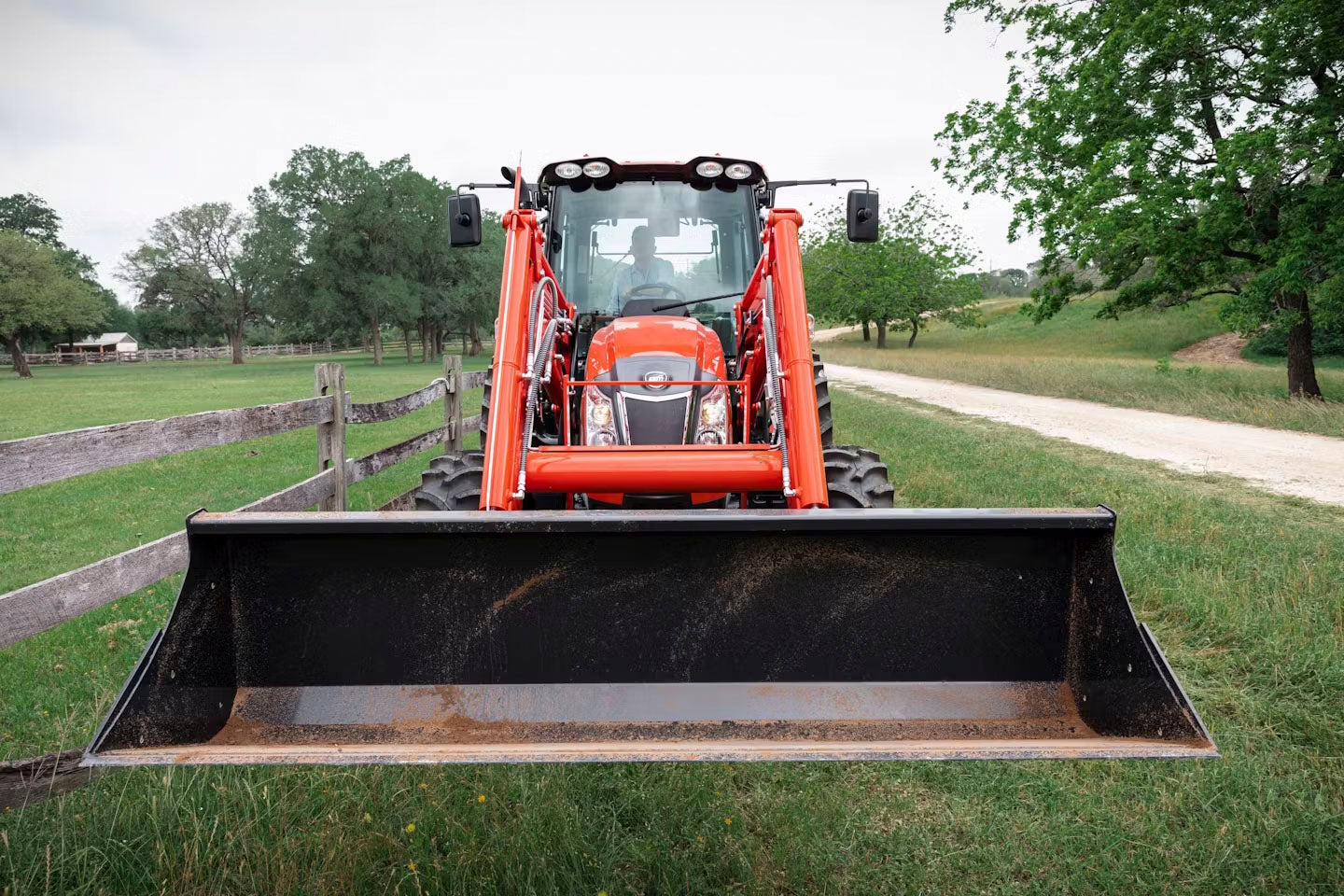

- Impressive Lift Capacity: Front loader and three-point hitch capabilities, lifting up to 1,631 lb (740 kg).
- Compact Dimensions: Streamlined design with a turning radius of just 8.96 ft (2.73 m) for better maneuverability.
- Enhanced Braking System: Wet disc brakes for dependable stopping power under challenging conditions.
Detailed Specifications
| Category | Details |
|---|---|
| Engine Model | 3H-TM4A |
| Engine Manufacturer | KIOTI |
| Power | 39.60 hp (29.50 kW) |
| Displacement | 111.40 cu. in. (1,826 cc) |
| Fuel Type | Diesel |
| Aspiration | Intercooler |
| Fuel Capacity | 9 gal (34 L) |
| Transmission | Hydrostatic (3 Forward / 3 Reverse Ranges) |
| PTO Type | Independent |
| PTO Power | 30.90 hp (23 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
| Brakes | Wet Disc Type |
| Clutch | None |
| Steering | Hydrostatic Power Steering |
| Hydraulic Pump Type | Gear |
| Hydraulic Pump Capacity | 11.70 gpm (44.40 lpm) |

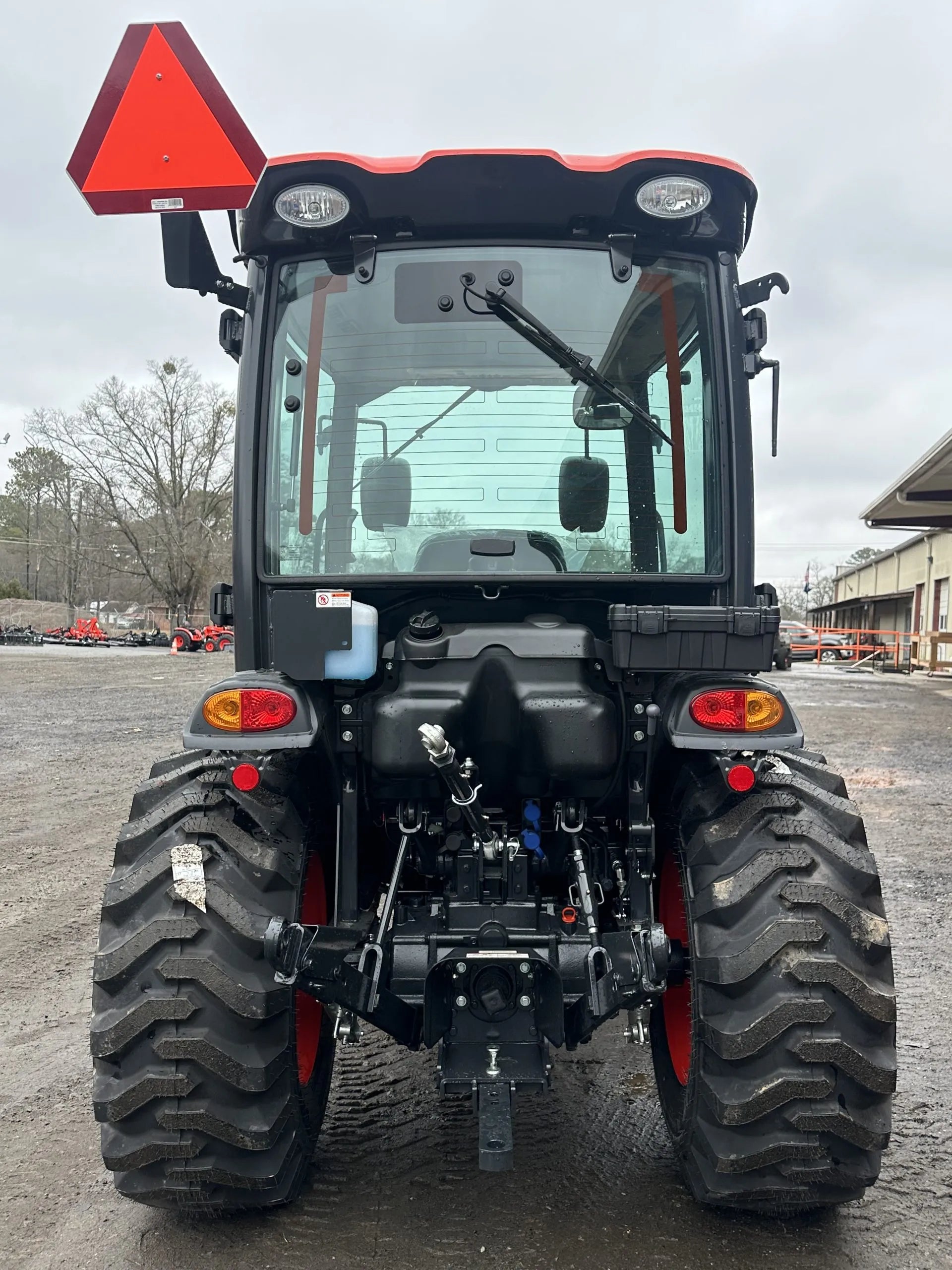

| 3-Point Hitch Type | Category 1 |
| 3-Point Hitch Control | Position Control |
| Rear Lift Capacity | 1,500 lb (680 kg) |
| Front Loader Lift Capacity | 1,631 lb (740 kg) |
| Width | 54.50 in (1,385 mm) |
| Wheelbase | 65.70 in (1,670 mm) |
| Ground Clearance | 13.40 in (340 mm) |
| Front Tread | 48.20 in (1,225 mm) |
| Rear Tread | 47.60 in (1,210 mm) |
| Turning Radius | 8.96 ft (2.73 m) |
| Weight | 3,397 lb (1,325 kg) |
| Length with Hitch | 120.90 in (3,070 mm) |
| Height | 92.52 in (2,350 mm) |
