Product Description
KIOTI | Manual Tractor with Loader | DK5020 | 62.8" Width | 50.3 HP | For Agricultural and Landscaping Tasks
DESCRIPTION

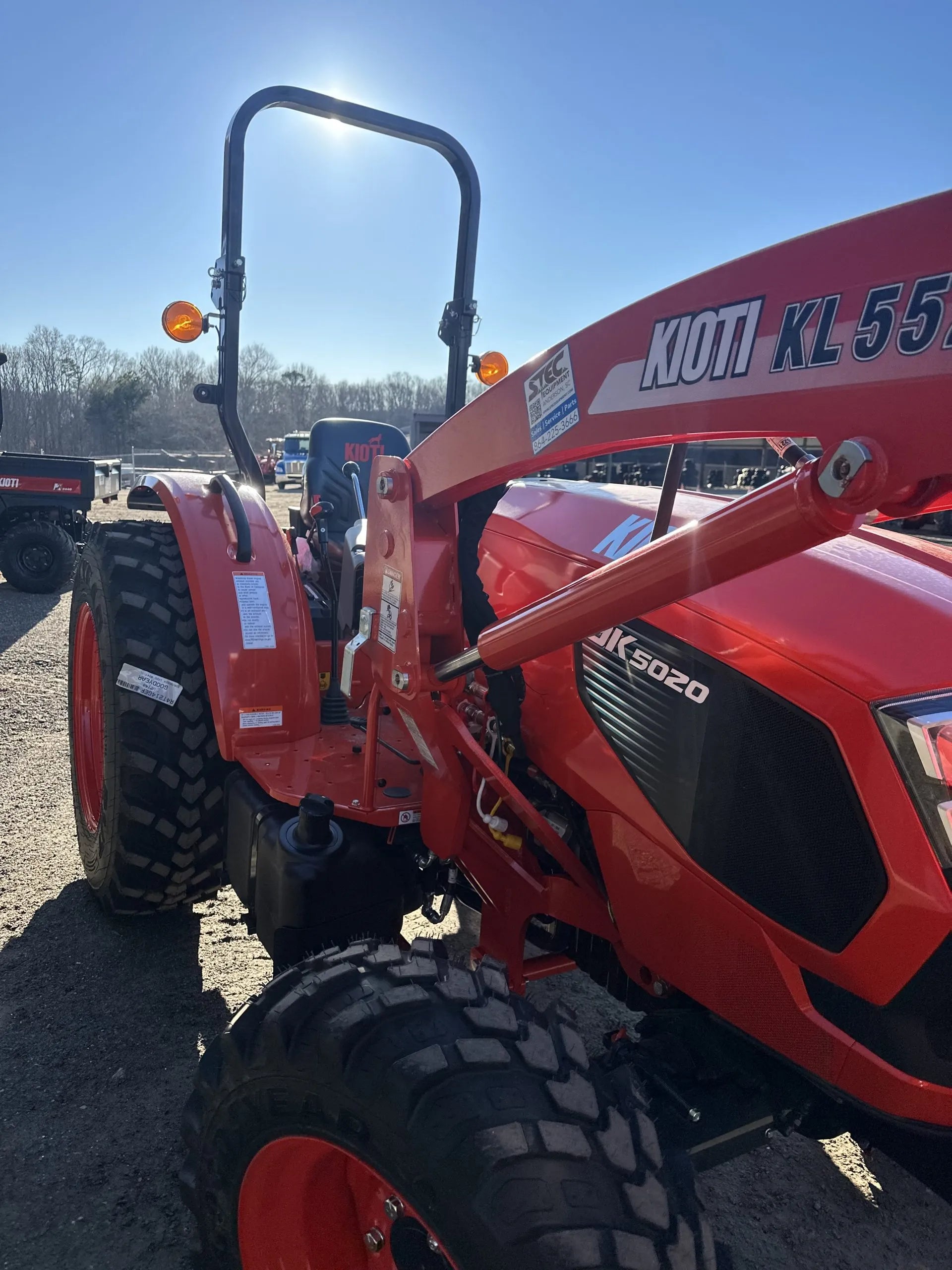

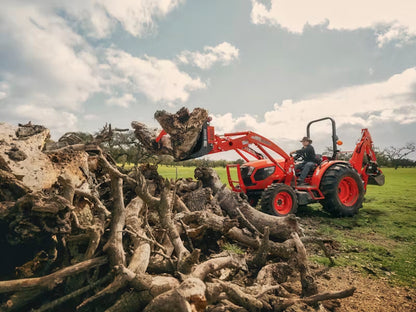

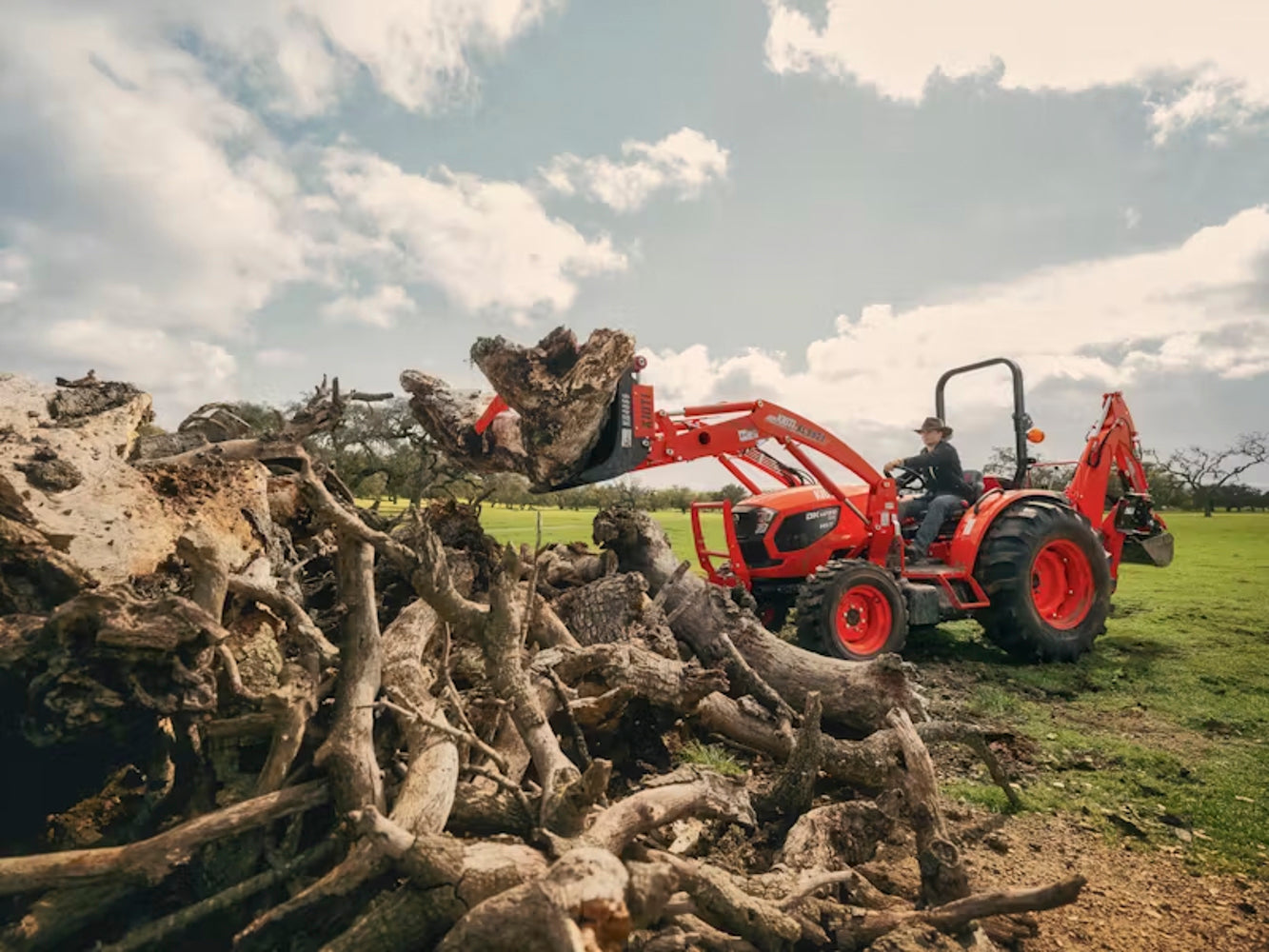

The Kioti DK5020 Manual Tractor with Loader is a powerful and reliable machine designed to meet the demands of agricultural, landscaping, and utility operations. Equipped with a robust 50.3-horsepower diesel engine, this open station tractor ensures efficient performance, whether it’s tackling heavy-duty hauling, material handling, or land preparation. Its manual Synchro Shuttle transmission with 4 forward and 2 reverse speeds allows for smooth and precise operation, adapting easily to various tasks and terrains.
Designed with simplicity and productivity in mind, this tractor includes an independent PTO system delivering 41.5 PTO horsepower, making it perfect for operating implements such as mowers, balers, and tillers. The gear-driven hydraulic pump offers a flow rate of 16.5 GPM, with a three-point hitch capable of lifting up to 2,716 lbs., providing seamless compatibility with heavy-duty attachments.
The DK5020 features an open station design with hydrostatic power steering for exceptional maneuverability and ease of use, even during extended work hours. Its sturdy construction, wet multi-disc brakes, and ground clearance of 14.5 inches ensure durability and reliable operation in rugged environments. Optional loader attachments enhance its functionality, making it an indispensable tool for material lifting and excavation tasks.
Key Features
- Powerful Diesel Engine: A 50.3-horsepower KIOTI engine delivers exceptional reliability and fuel efficiency for demanding workloads.

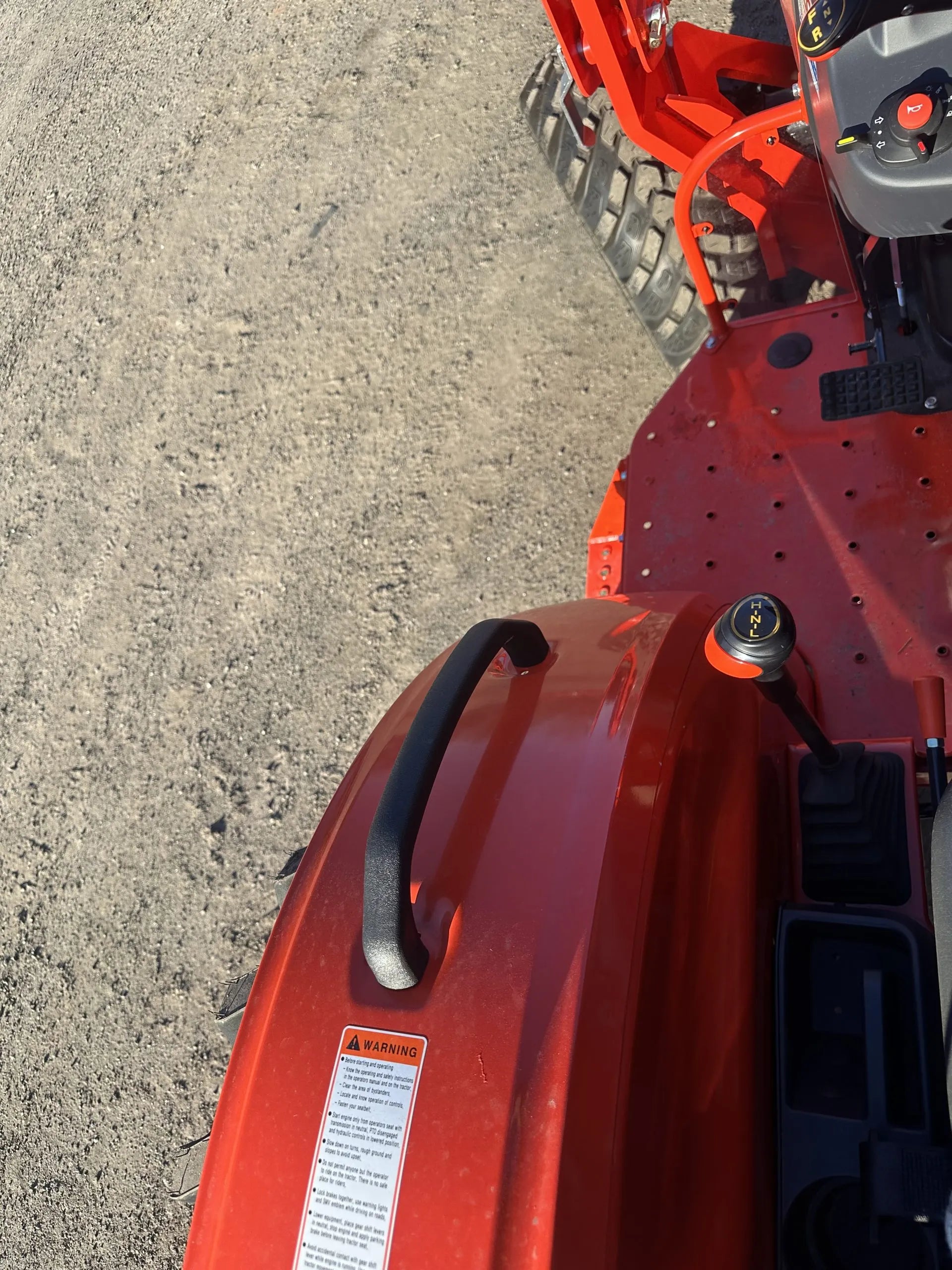

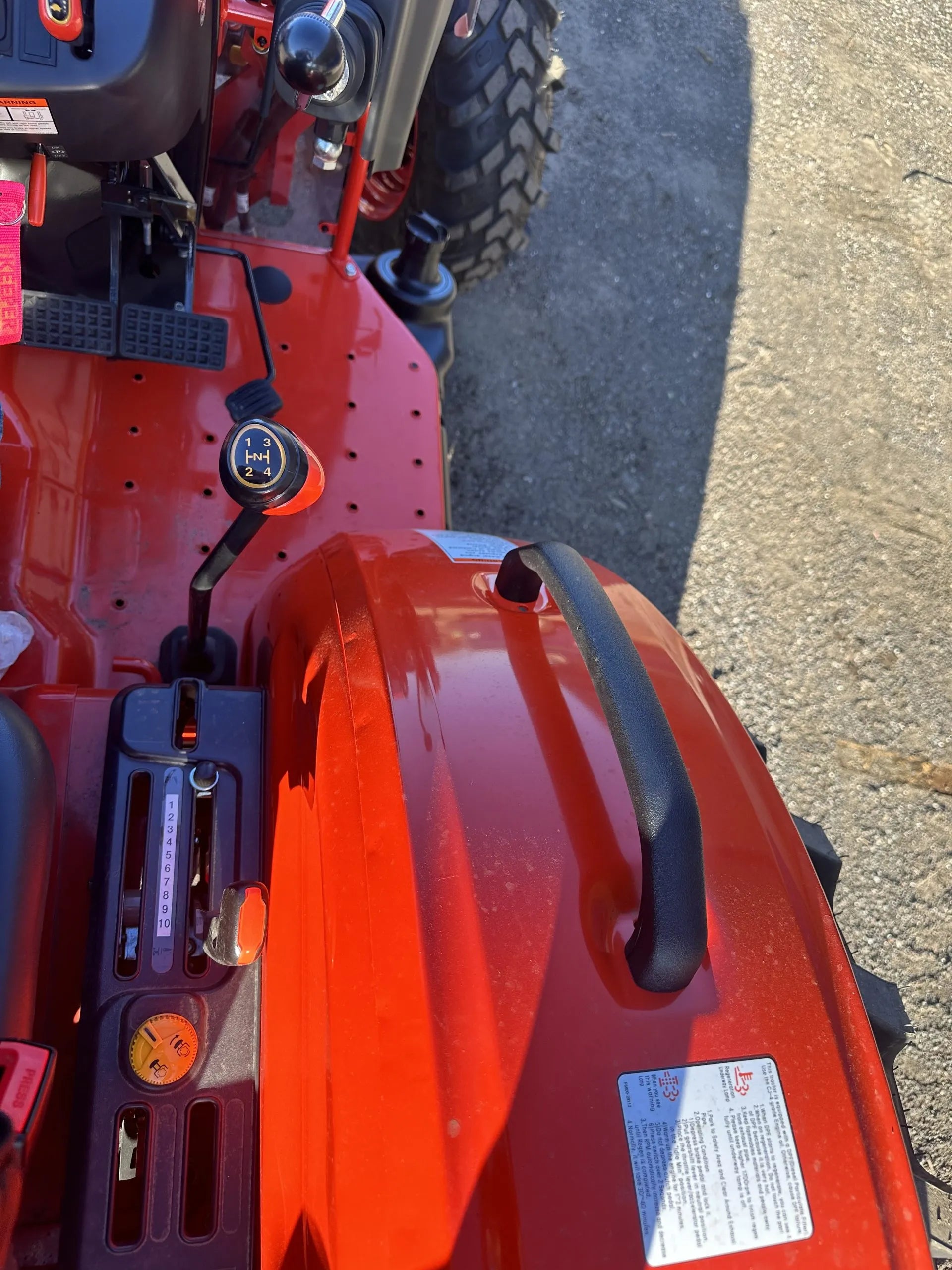

- Manual Synchro Shuttle Transmission: Includes 4 forward and 2 reverse speed ranges for smooth and versatile operation across different tasks.
- Independent PTO System: Produces 41.5 PTO horsepower, ideal for running various implements such as balers, mowers, and tillers.
- Hydraulic Pump Efficiency: Gear-driven pump provides 16.5 GPM of flow capacity, ensuring efficient use of hydraulic-driven tools.

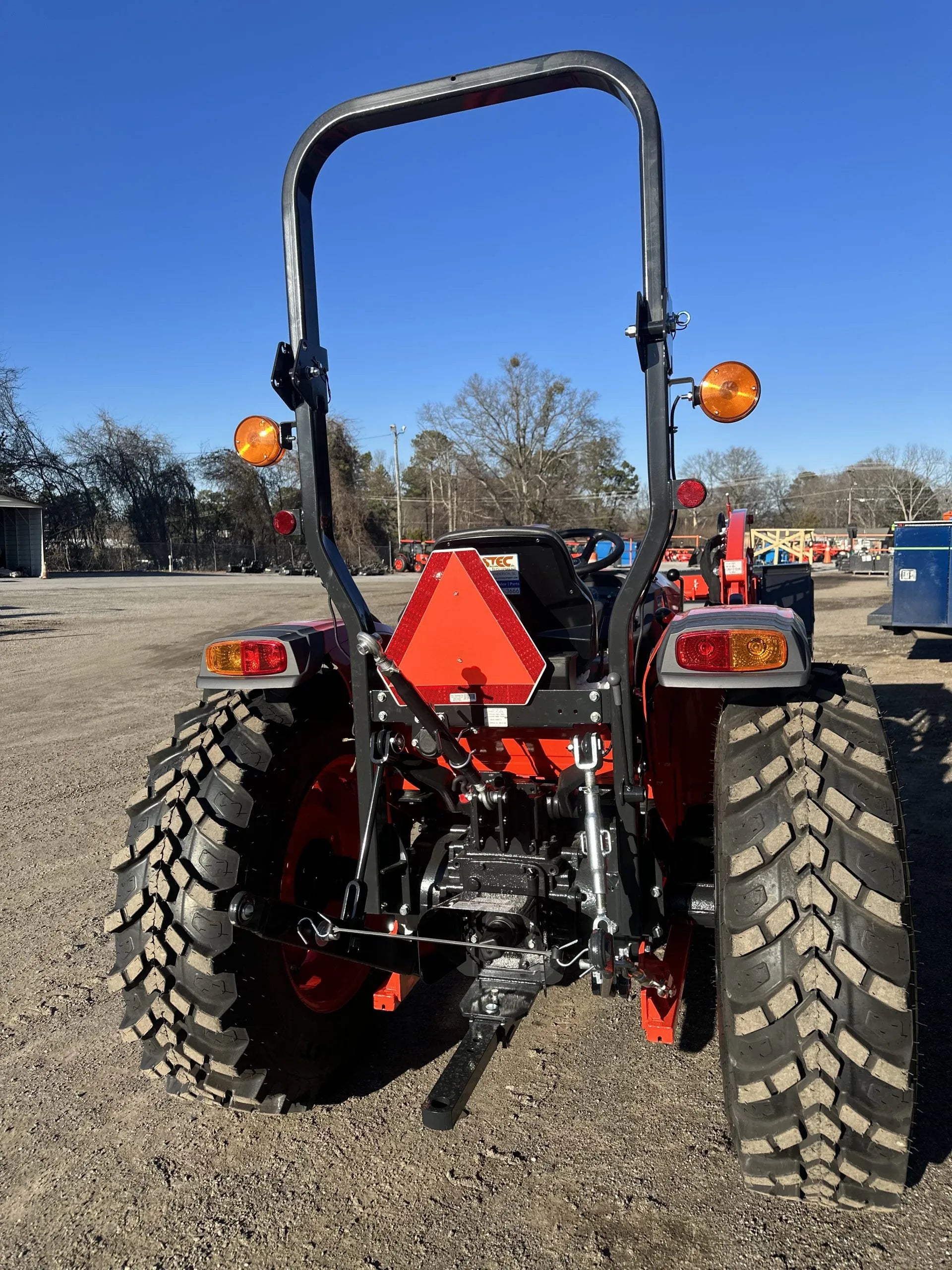

- Three-Point Hitch: Category 1 hitch with position control and a lift capacity of 2,716 lbs., supporting a variety of heavy attachments.
- Durable Construction: Features wet multi-disc brakes and a dry single-stage clutch for consistent and reliable performance.

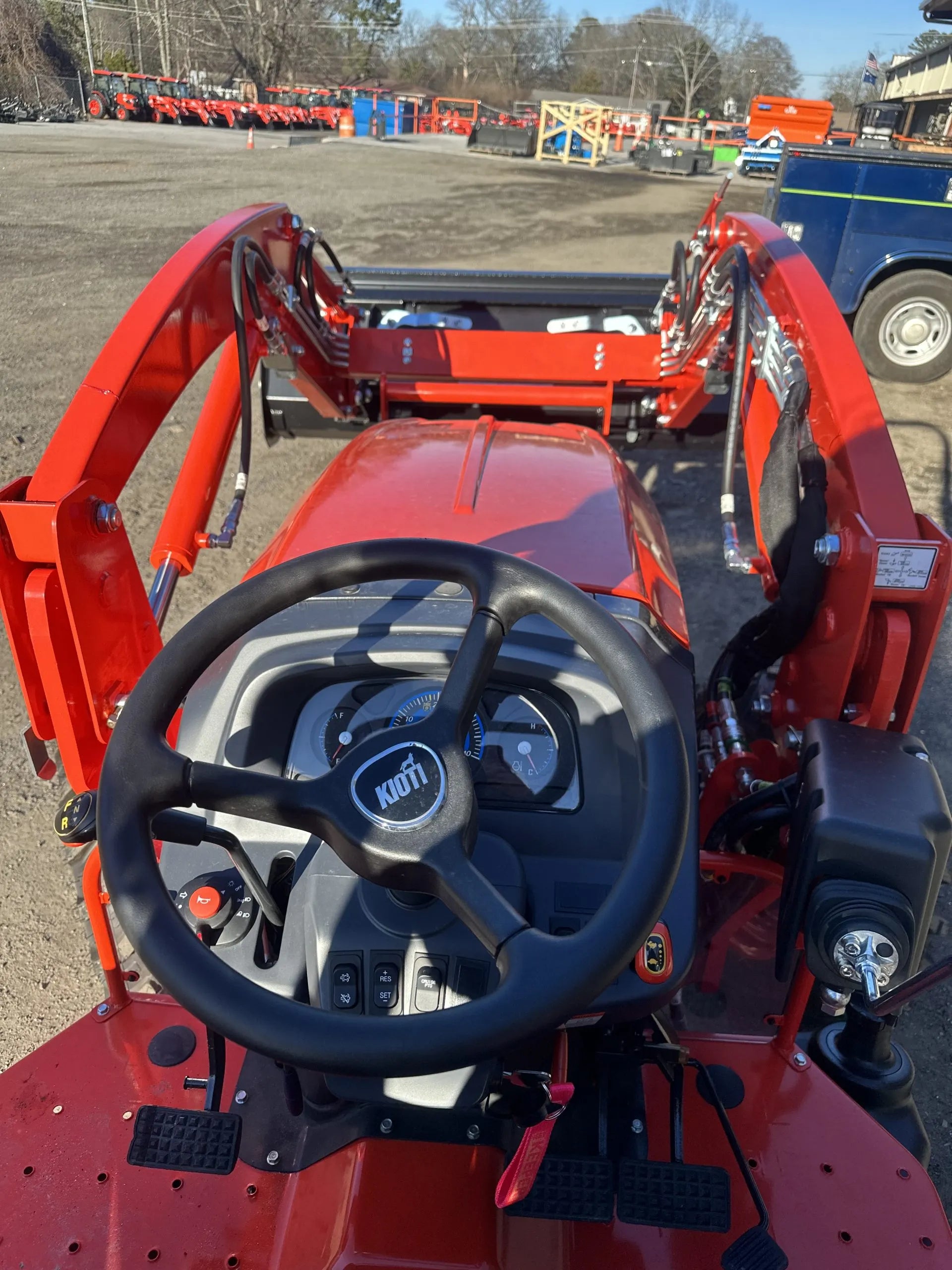

- Operator-Friendly Design: Open station setup with hydrostatic power steering and intuitive controls for enhanced maneuverability and ease of operation.
- High Ground Clearance: Offers 14.5 inches of clearance, ensuring smooth navigation over uneven terrains.

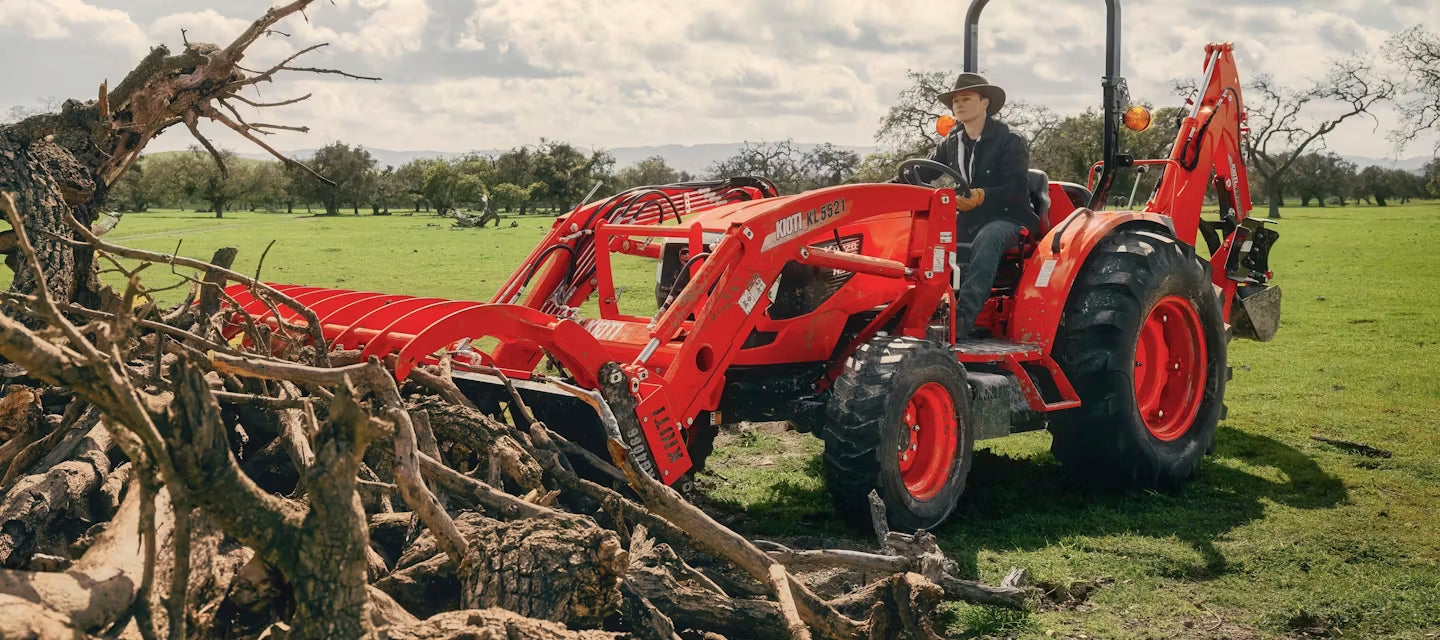

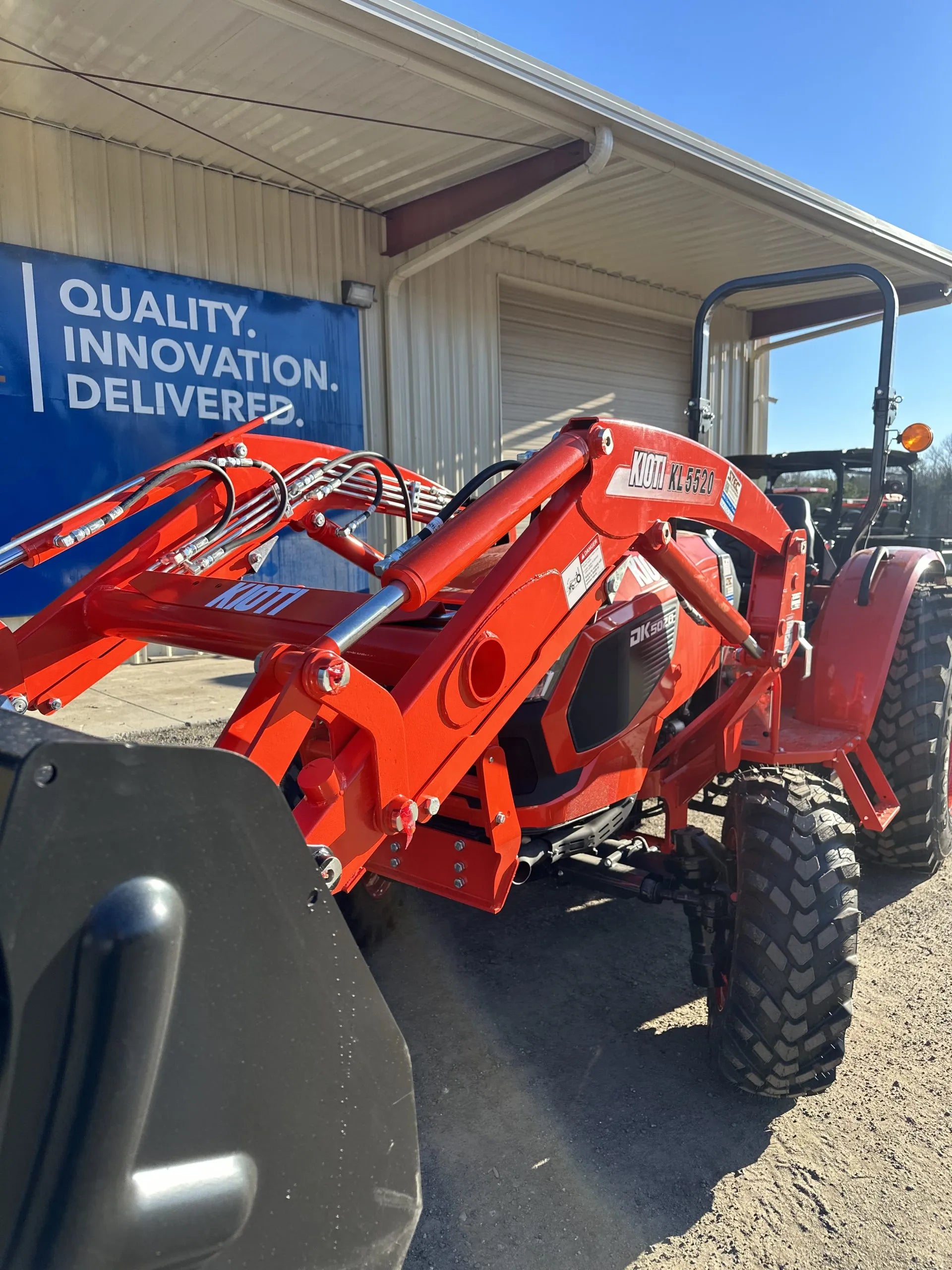

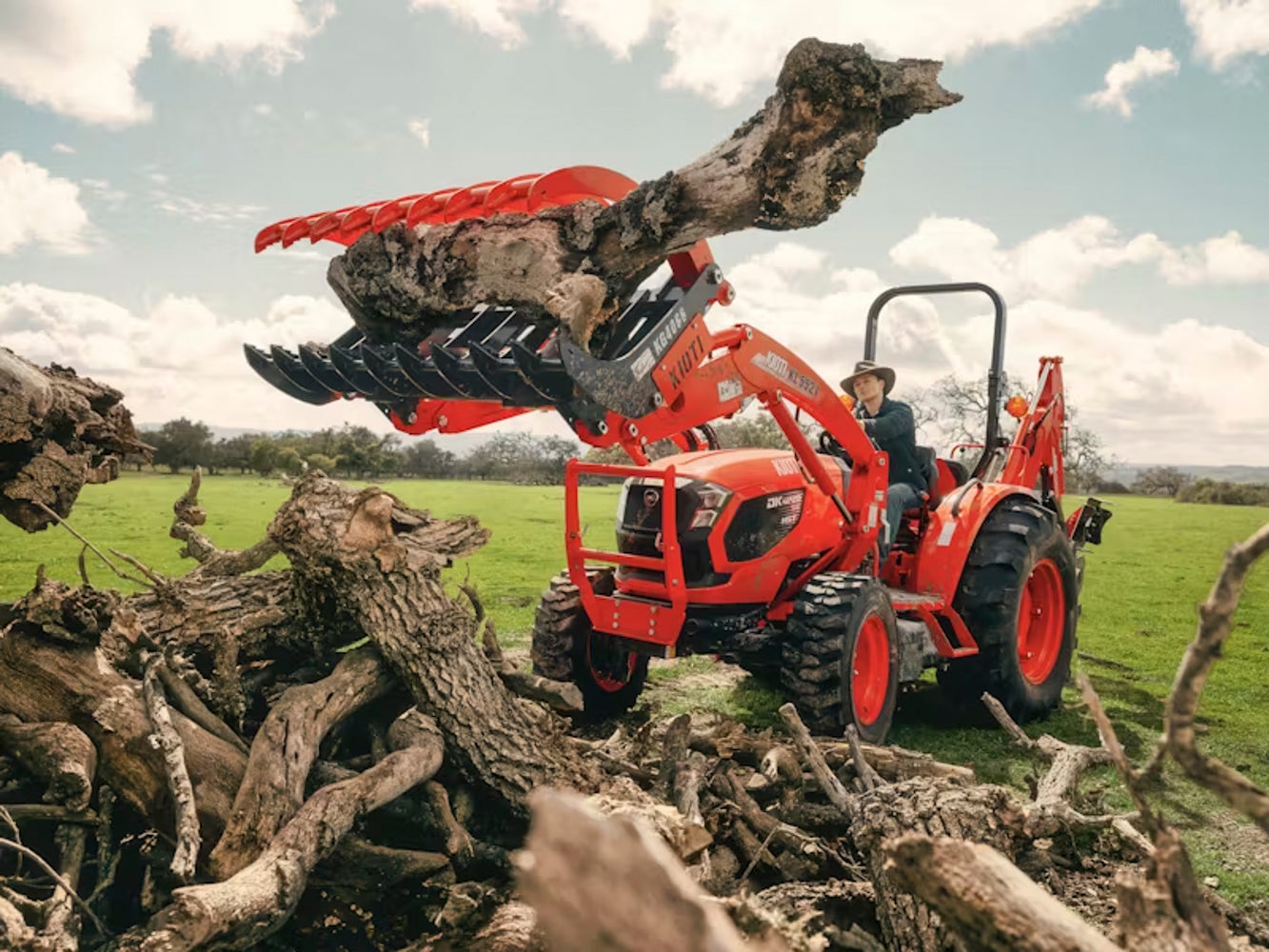

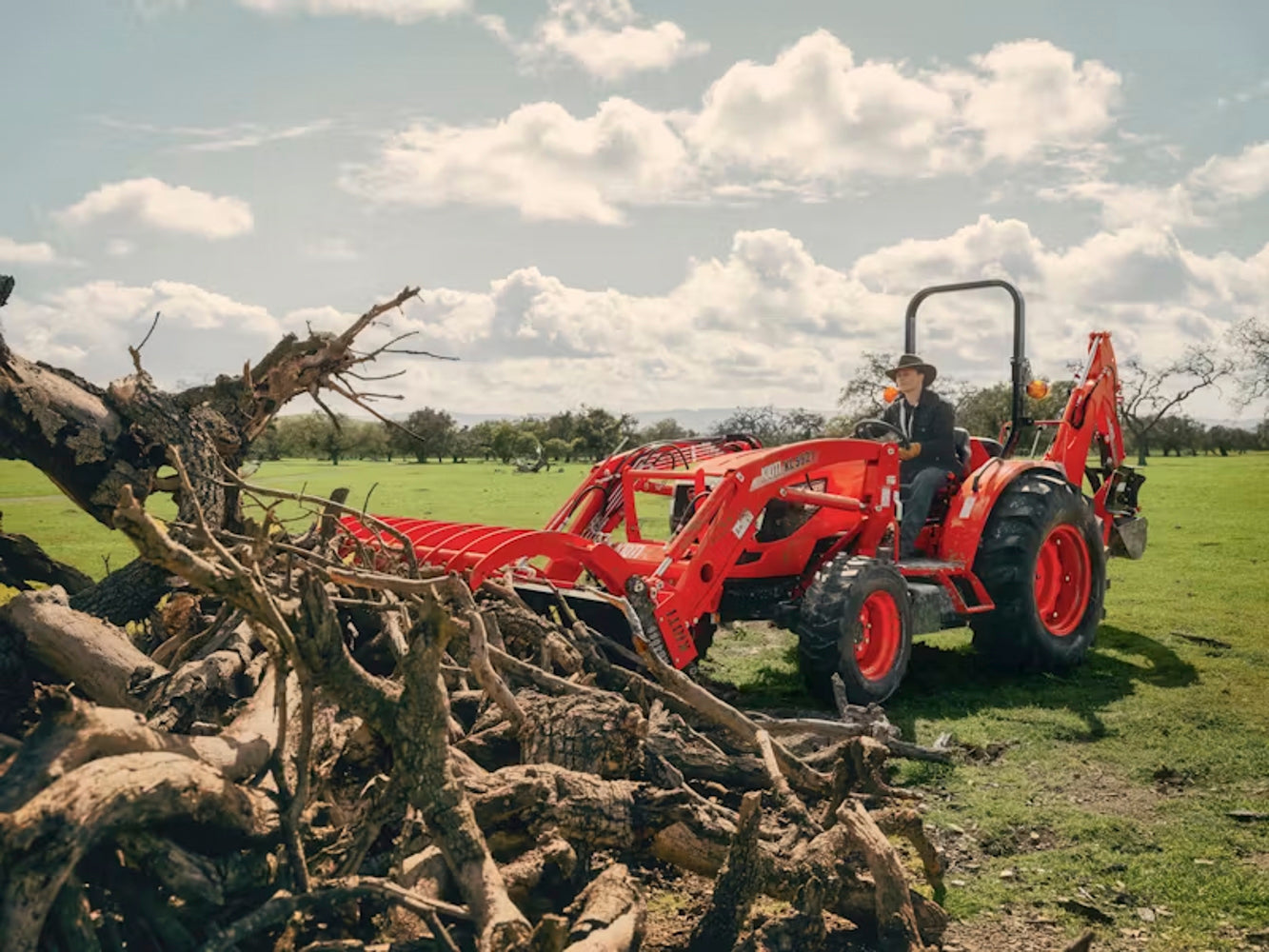

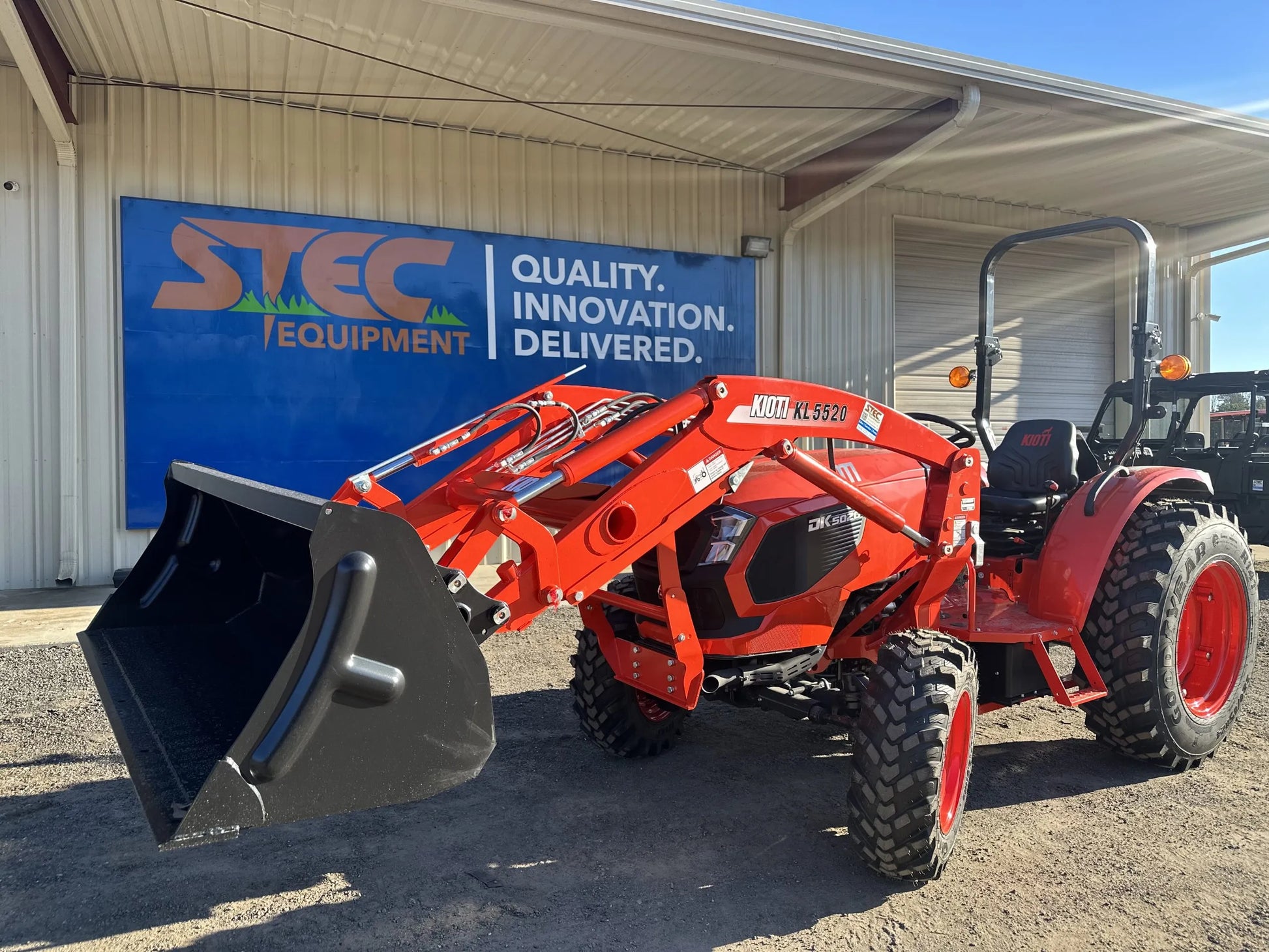

- Optional Loader Attachment: Expands the tractor’s capabilities for lifting, hauling, and material handling.
Detailed Specifications
| Specification | Details |
|---|---|
| Engine Power | 50.3 hp (37.5 kW) |
| Engine Displacement | 111.40 cu. in. (1,826 cc) |
| RPM | 2,600 rpm |
| Fuel Capacity | 11.9 gal (45 L) |
| Transmission | Manual Synchro Shuttle |
| Travel Speeds (Max Forward) | 26.9 mph (43.3 km/h) |
| Travel Speeds (Max Reverse) | 26.2 mph (42.2 km/h) |
| PTO Power | 41.5 hp (31 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm |
| Pump Capacity | 16.5 gpm (62.4 lpm) |
| Hitch Category | Category 1 |
| Lift Capacity | 2,716 lbs. (1,232 kg) |
| Dimensions (Length) | 124.3 in (3,157 mm) |
| Width | 62.8 in (1,596 mm) |
| Weight | 3,373 lbs. (1,530 kg) |
| Ground Clearance | 14.5 in (368 mm) |
| Turning Radius | 8.56 ft (2.6 m) |
| Height | 96.8 in (2,458 mm) |
