Product Description

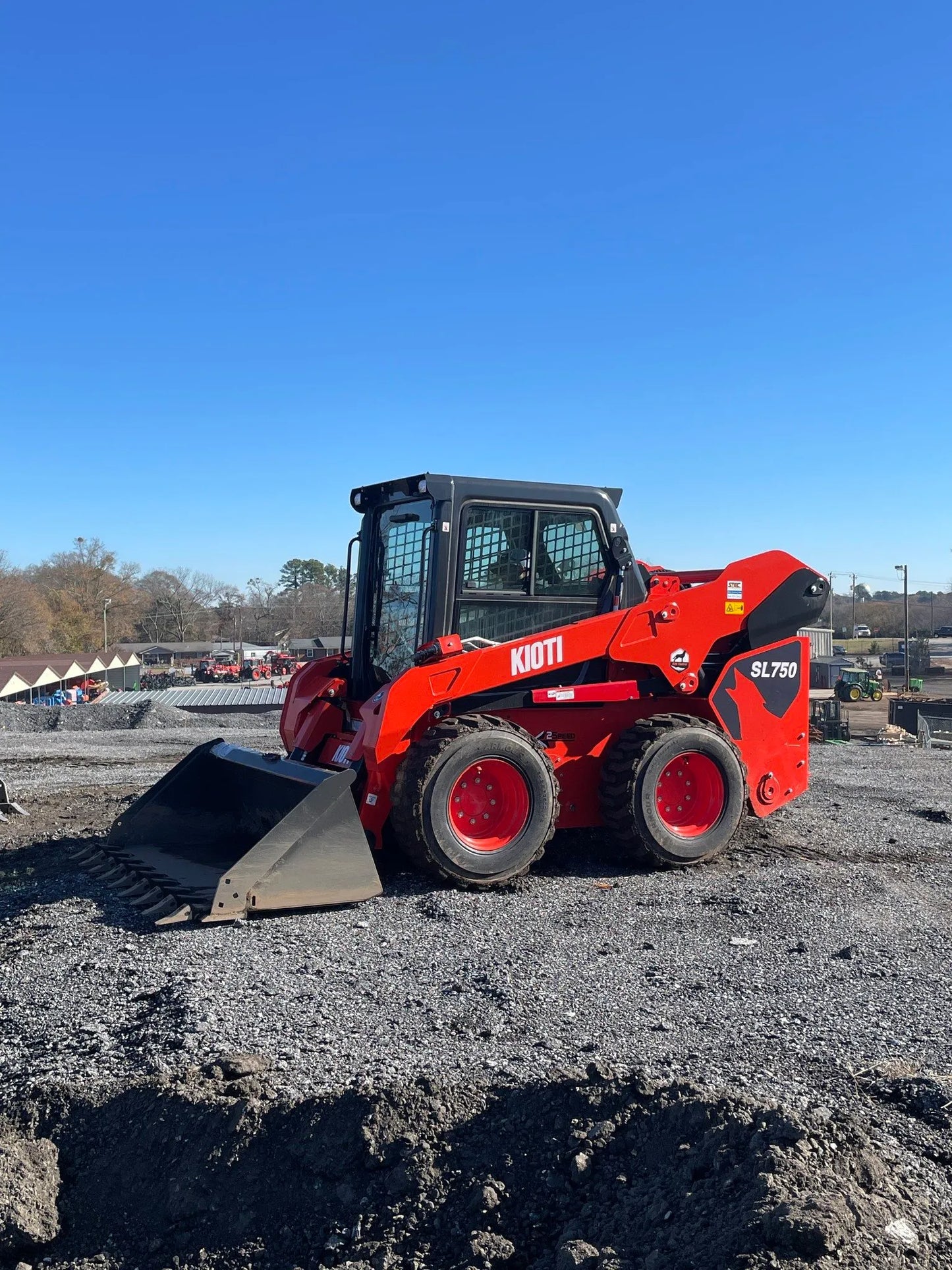

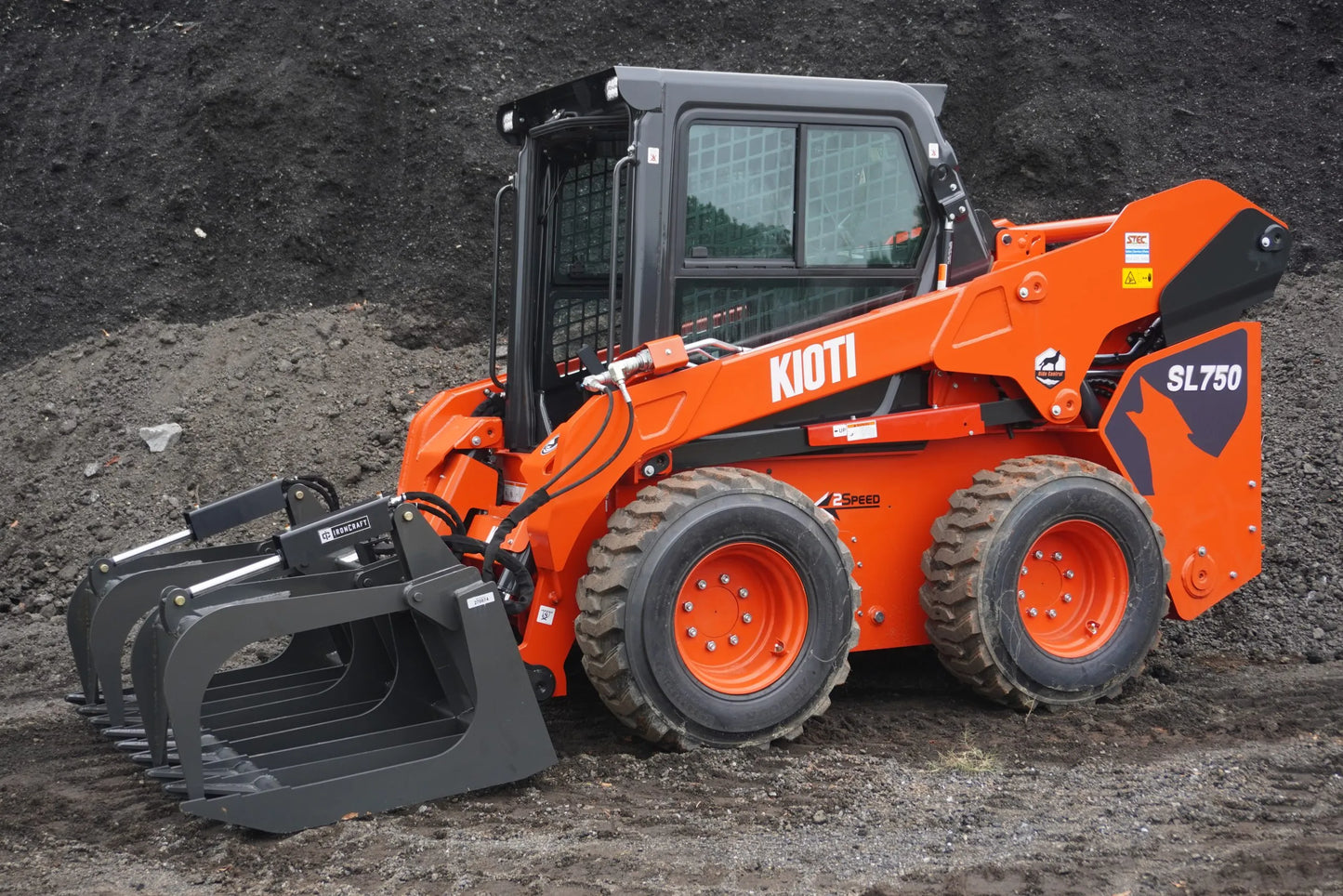

KIOTI Skid Steer Loader | Model SL-750 Canopy | Width 71.7" | Length 116.5" | Height with Cab 81.2" | Hydraulic Flow 21.9 GPM | For Heavy-Duty Tasks
DESCRIPTION
The KIOTI SL750 Canopy Skid Steer Loader is built for durability, strength, and precision, designed to lift, push, and power through rigorous tasks. With a 74 HP KIOTI diesel engine, ISO pilot hydraulic controls, and Flow+ Auxiliary Hydraulics, it ensures powerful and responsive operation. The SL750 prioritizes operator comfort, featuring a wide, ergonomic cab with an optional HVAC system, a sliding overhead door for easy entry and exit, and a standard rearview camera for enhanced safety.
Key Features
- Proven 74 HP KIOTI Diesel Engine: Ensures consistent power delivery and optimal reliability in demanding tasks.
- Vertical Lift Arm Path: Allows for higher lift capacity and better stability during loading operations.
- Pilot Hydraulic Joystick Controls: Smooth, precise, and intuitive fingertip control for effortless operation.
- Standard Two-Speed Travel: Enables operators to switch between low-speed precision and high-speed transport efficiently.
- Standard Rearview Camera: Integrated digital display provides on-demand visibility, improving operator awareness.
- Wide, Comfortable Cab: High-back suspension seat and spacious interior reduce fatigue during long work shifts.
- Flow+ Auxiliary Hydraulics: Boosts performance for light to medium-duty tasks, offering a cost-effective alternative to high-flow systems.
- Standard LED Work Lights: Provides enhanced visibility in low-light conditions, improving worksite safety.
-
Sliding Overhead Door: Locks in an open position for convenience and quick access.
Detailed Specifications
| Feature | SL750 Canopy Skid Steer |
|---|---|
| Engine Power | 74 HP (55.2 kW) Diesel |
| Lift Arm Path | Vertical |
| Lift Control | ISO Pilot |
| Fuel Tank Capacity | 10 gal (38 L) |
| Hydraulic Pressure (Standard) | 3,335 PSI (230 bar) |
| Hydraulic Flow (Flow+) | 21.9 GPM (82.9 LPM) |
| Hydraulic Power (Standard) | 41.8 HP (31.1 kW) |
| Tipping Load | 5,380 lb (2,440 kg) |
| Rated Operating Capacity (50% of Tip Load) | 2,690 lb (1,220 kg) |
| Rated Operating Capacity (35% of Tip Load) | 1,883 lb (854 kg) |
| Breakout Force - Tilt (Bucket) | 5,512 lb (2,500 kg) |
| Breakout Force - Lift | 5,016 lb (2,275 kg) |
| Traction Force | 6,347 lb (2,879 kg) |
| Travel Speed (Min - Max) | 7.15 - 12.05 mph (11.50 - 19.40 km/h) |
| Wheelbase Length | 47.2 in (1,200 mm) |
| Length with Bucket | 144.7 in (3,675 mm) |
| Height with Cab | 81.2 in (2,063 mm) |
| Hinge Pin Height at Max Lift | 126.6 in (3,215 mm) |
| Reach at Max Lift & Dump | 37.4 in (949 mm) |
| Operating Weight (With Operator) | 8,362 lb (3,793 kg) |
| Operating Weight (Without Operator) | 8,197 lb (3,718 kg) |
