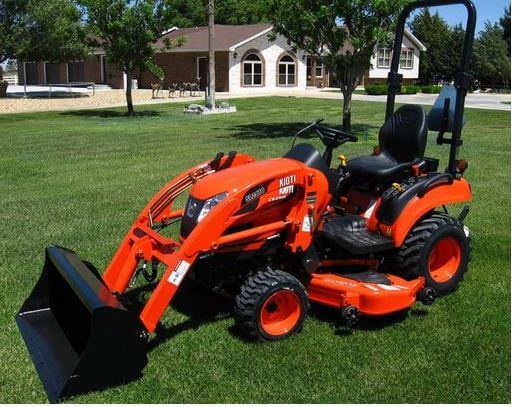

Kioti CS2220 Sub-Compact Tractor With Loader & Mid-Mount Mower | 21HP Gross Power | Hydrostatic Transmission, Ergonomic Controls
Kioti CS2220 Sub-Compact Tractor With Loader & Mid-Mount Mower | 21HP Gross Power | Hydrostatic Transmission, Ergonomic Controls
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Kioti CS2220 Sub-Compact Tractor With Loader & Mid-Mount Mower | 21HP Gross Power | Hydrostatic Transmission, Ergonomic Controls
Description
he Kioti CS2220 Hydrostatic Sub-Compact Tractor delivers impressive power and versatility, perfect for various applications. Equipped with a fuel-efficient 3-cylinder diesel engine, this compact tractor ensures smooth and robust performance. Its ergonomic operator station and intuitive twin-pedal hydrostatic transmission make operation comfortable and user-friendly, allowing for seamless speed control and direction shifts without a clutch.
Designed for demanding tasks, the CS2220 boasts both rear and mid PTOs, facilitating easy connection with diverse attachments. The standard four-wheel drive and differential lock ensure enhanced traction and maneuverability on different terrains. With its foldable ROPS, streamlined hood design, and brightly illuminated dashboard, this tractor combines practicality and functionality for both commercial and residential use.
Key Features
- Diesel Engine: 21HP, 3-cylinder diesel for efficient power
- Hydrostatic Transmission: Infinite two-range control for smooth shifts
- Differential Lock: Enhanced traction on varied terrains
- Mid and Rear PTOs: Supports multiple attachments seamlessly
- Foldable ROPS: Convenient fold-down roll bar for low-clearance areas
- Twin HST Pedals: Easy forward and reverse control for operator ease
- Illuminated Dashboard: Digital gauges with low fuel warning lamp
- Ergonomic Controls: Operator station with tilt steering for comfort
- Single-Lever 4WD: Effortless four-wheel drive engagement
- Position Control: Precise control over 3-point hitch attachments
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | |
| Model | 3C100LWH-U3 |
| Gross Power | 21 HP (15.6 kW) |
| Rated Speed | 3,200 RPM |
| Cylinders | 3 |
| Fuel Type | Diesel |
| Displacement | 61.5 cu. in. (1,007 cc) |
| Fuel Capacity | 6.7 gal. (25.5 L) |
| Transmission | |
| Type | Hydrostatic |
| Gear Range | Infinite, 2-Range |
| Max Speed (Forward) | 9.57 mph (15.4 km/h) |
| PTO | |
| Type | Independent |
| Power | 16.3 HP (12.2 kW) |
| Rear PTO Speed | 540 RPM |
| Mid PTO Speed | 2,200 RPM |
| Brakes | Wet Multi Disc |
| Dimensions | |
| Length with 3-Point | 99.3 in. (2,523 mm) |
| Width | 45.9 in. (1,168 mm) |
| Height | 88 in. (2,226 mm) |
| Wheelbase | 55.1 in. (1,400 mm) |
| Ground Clearance | 6.4 in. (162 mm) |
| Hydraulics | |
| Total Pump Flow | 6.97 GPM (26.4 L/min) |
| 3-Point Hitch | |
| Category | Category 1 |
| Lift Capacity | 700 lbs. (318 kg) |
| Weight | |
| Weight with ROPS | 1,554 lbs. (705 kg) |
In Package
- Kioti CS2220 Tractor with Loader
- Mid-Mount Mower Attachment
- Operator Manual and Safety Guide
Available Options
- Front-end loader with joystick control
- Rear mower or tiller attachments
- Snowblower and blade attachments for winter applications
