Product Description
Kioti HX1151 Power Shuttle Cab Tractor | 115 HP Diesel Engine | High Lift Capacity, Premium Comfort Cab
Description

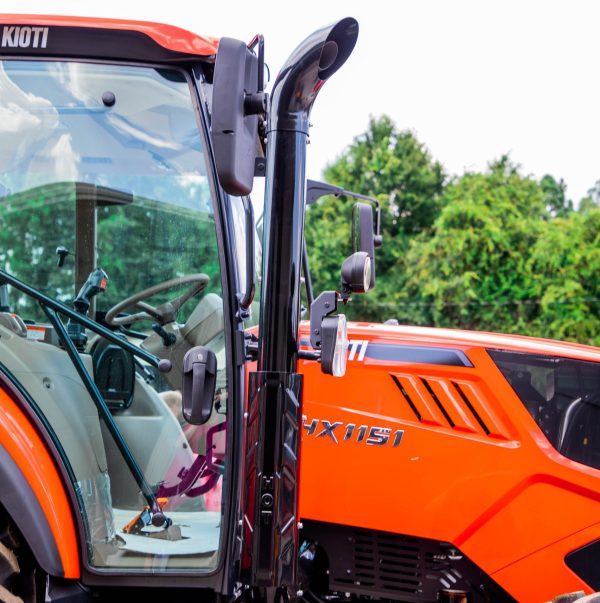

The Kioti HX1151 Power Shuttle Cab Tractor is Kioti’s most powerful utility tractor, designed to meet the needs of farmers, ranchers, and land managers tackling demanding tasks. Powered by a robust 115.4 HP diesel engine with an additional 9% power boost feature, this tractor is built to handle heavy PTO applications, fieldwork, and transportation with ease. The spacious cab offers enhanced comfort and visibility, featuring premium amenities like a heated, air suspension seat, A/C, and tilt-and-telescoping steering, making long days more manageable.
The HX1151's hydraulic shuttle transmission provides seamless forward-reverse shifting, ideal for tasks like loader work. With its advanced 32x32 power shuttle transmission, high lift capacity, and versatile Category II three-point hitch, this tractor ensures efficiency in various tasks. From rugged terrains to precise operations, the HX1151 is engineered for reliable and powerful performance.
Key Features
- High Power Engine: 115.4 HP with a 9% power boost
- Premium Cab: Deluxe A/C, heat, and ventilating roof panel
- Power Shuttle Transmission: 32x32 speeds for smooth shifting
- Air Suspension Seat: Heated, adjustable for operator comfort
- Hydraulic Shuttle: Effortless forward-reverse shifting
- High PTO Power: 83.9 HP PTO for demanding attachments
- Robust Front Axle: With limited-slip differential
- Heavy Lift Capacity: 8,002 lbs on Category II hitch
- Wide Fuel Tank: 47.55-gallon capacity for extended operations
- Superior Hydraulics: 31.96 GPM max flow rate
Detailed Specifications
| Category | Specification |
|---|---|
| Engine Model | 4J243TA-TP5B |
| Engine Power | 115.4 HP (93.5 KW) |
| Rated Speed | 2,200 rpm |
| Cylinders | 4 |
| Fuel Type | Diesel |
| Displacement | 233.9 cu. in. (3,833 cc) |
| Fuel Tank Capacity | 47.55 gal. (180 L) |
| Transmission | Synchronized Power Shuttle with Hi-Lo Shift |
| Travel Speeds (F/R) | 24 Forward / 24 Reverse |
| Min/Max Travel Speed | 1.15 mph to 23.84 mph (1.85-38.36 km/h) |
| PTO Power | 83.9 HP (62.6 KW) |
| PTO Speeds | 540/1,000 rpm |
| Brakes | Wet Disc |
| Clutch | Wet Multi-Disc Clutch |
| Dimensions (L x W x H) | 170.78 x 88.58 x 111.93 in |
| Wheelbase | 93.3 in |
| Ground Clearance | 18.94 in |
| Front/Rear Tread | 65.35 / 70.47 in |
| Hydraulic Pump Type | Gear, 31.96 GPM (121 L/min) |
| 3-Point Hitch Category | Category II |
| Lift Capacity (24" Aft) | 8,002 lbs (3,630 kg) |
| Control Type | Electronic Control |
| Weight | 10,230 lbs (4,640.25 kg) |
In Package
- Kioti HX1151 Power Shuttle Cab Tractor
- Owner’s Manual and Quick Start Guide
Available Options
- Cab Model: Deluxe with A/C and heat
- Transmission: Power Shuttle with Hi-Lo shift
