Product Description
Loflin Fabrication | 4-In-1 Combo Bucket W/ Bolt-On Edge | Width 60" To 96" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
The Loflin Fabrication 4-N-1 Combo Bucket, a versatile and highly efficient attachment designed to transform your skid steer into a multi-functional powerhouse. This innovative bucket combines four essential functions digging, loading, grading, and clamping into one robust design, making it an indispensable tool for contractors, landscapers, and farmers alike.
Crafted with durability in mind, the 4-N-1 Combo Bucket features 1/2” thick steel side plates and a 1/4” thick reinforced steel floor plate, ensuring it can withstand the toughest job site conditions. The 3/4” thick x 6” wide front cutting edge and 5/8” thick x 6” wide rear cutting edge are heat-treated and reversible, providing exceptional performance and longevity.
Equipped with two 2 1/2” x 8” hydraulic cylinders, this bucket offers a 38” opening width for efficient material handling. The oversized, greaseable pins ensure smooth operation and easy maintenance, while the reinforced quick attach system allows for quick and secure connections to your skid steer.
The 4-N-1 Combo Bucket is available in a range of sizes, including 60”, 66”, 72”, 78”, 84”, 90”, and 96”, with custom sizes also available to meet your specific needs. You can choose between versions with or without teeth, and it can be equipped with an optional front bolt-on edge for added versatility.
Designed for job site readiness, the bucket comes equipped with Parker brand hoses, fittings, and couplers, ensuring you have everything you need to get to work right away. The treaded step provides easy access for operators, enhancing safety and convenience during operation.
Key Features
- Multi-Function Design Dig, doze, grade, and load with a single attachment, eliminating the need for multiple tools.
- Heavy-Duty Hydraulic System Powered by two 2½″ x 8″ hydraulic cylinders, providing powerful force for material handling.
- Reinforced Steel Construction Built with ½″ thick steel side plates, ensuring maximum durability for heavy loads.
- Precision Cutting Edges Front cutting edge: ¾″ thick x 6″ wide; rear dozing edge: 5/8″ thick x 6″ wide heat-treated reversible bolt-on edge, ensuring long-lasting wear resistance.
- Hydraulic Flow 15 To 25 GPM
- Oversized Greasable Pins High-strength pivot points, ensuring smooth articulation and extended component life.
- Optimized Load Control 38″ opening width, enhancing grip and efficiency for material handling.
- Optional Customizations Available with or without teeth, with or without a toothbar, and with an optional bolt-on front edge.
- High-Strength Reinforced Floor ¼″ thick reinforced steel, ensuring stability and impact resistance.
- Premium Hydraulic Components Comes equipped with Parker brand hoses, fittings, and couplers, ensuring job-site-ready reliability.
- Multiple Width Options Available in 60″, 66″, 72″, 78″, 84″, 90″, and 96″, accommodating diverse worksite needs.
- Reinforced Quick Attach System Allows secure connection to skid steers, improving maneuverability and efficiency.
- Treaded Step for Operator Safety Provides stable footing, ensuring safe entry and exit from the skid steer.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | 4-N-1 Combo Bucket w/ Bolt-On Edge |
| Type | Multi-Purpose Skid Steer Attachment |
| Working Width Options | 60″, 66″, 72″, 78″, 84″, 90″, 96″ (and custom sizes) |
| Hydraulic Flow | 15 To 25 GPM |
| Hydraulic Cylinders | Two 2½” X 8″ |
| Opening Width | 38″ |
| Side Plate Thickness | ½” thick steel |
| Floor Plate Thickness | ¼” thick reinforced steel |
| Front Cutting Edge | ¾” thick X 6″ wide |
| Rear Cutting Edge | ⅝” thick X 6″ wide heat-treated, bolt-on reversible double edge |
| Hydraulic Flow | 15 To 25 GPM |
| Pin Design | Oversized, greaseable pins |
| Reinforced Quick Attach | Yes |
| Hydraulic Components | Parker brand hoses, fittings, and couplers (Jobsite ready) |
| Operator Step | Treaded step |
| Optional Features | Available with or without teeth; optional front bolt-on edge (not available with toothbar) |
| Compatibility | Universal Skid Steer Compatibility |
| Key Benefit | Unmatched versatility combining 4 functions into one attachment with superior durability and ease of use. |

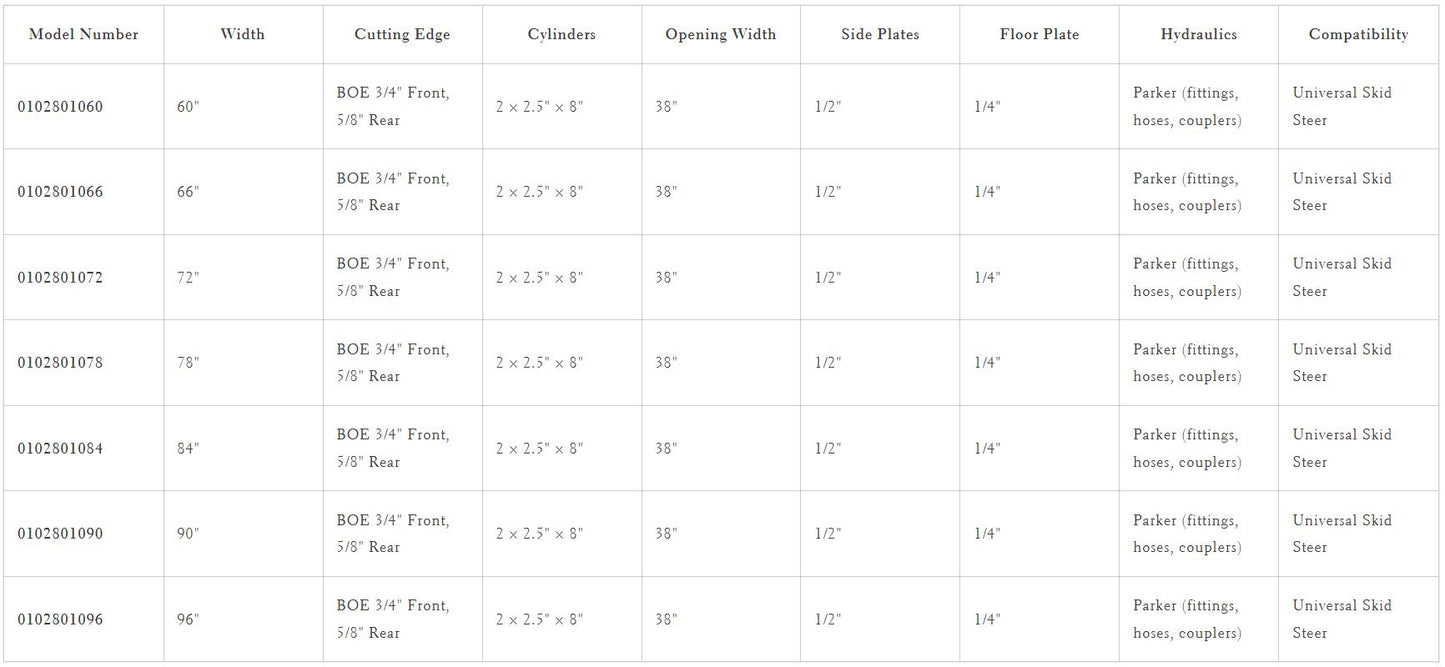

| Specs | 010280-1060 | 010280-1066 |
|---|---|---|
| Width | 60" | 66" |
| Cutting Edge | BOE 3/4" Front, 5/8" Rear | BOE 3/4" Front, 5/8" Rear |
| Cylinders | 2 × 2.5" × 8" | 2 × 2.5" × 8" |
| Opening Width | 38" | 38" |
| Side Plates | 1/2" | 1/2" |
| Floor Plate | 1/4" | 1/4" |
| Hydraulics | Parker (fittings, hoses, couplers) | Parker (fittings, hoses, couplers) |
| Compatibility | Universal Skid Steer | Universal Skid Steer |
| Specs | 010280-1072 | 010280-1078 |
|---|---|---|
| Width | 72" | 78" |
| Cutting Edge | BOE 3/4" Front, 5/8" Rear | BOE 3/4" Front, 5/8" Rear |
| Cylinders | 2 × 2.5" × 8" | 2 × 2.5" × 8" |
| Opening Width | 38" | 38" |
| Side Plates | 1/2" | 1/2" |
| Floor Plate | 1/4" | 1/4" |
| Hydraulics | Parker (fittings, hoses, couplers) | Parker (fittings, hoses, couplers) |
| Compatibility | Universal Skid Steer | Universal Skid Steer |
| Specs | 010280-1084 | 010280-1090 | 010280-1096 |
|---|---|---|---|
| Width | 84" | 90" | 96" |
| Cutting Edge | BOE 3/4" Front, 5/8" Rear | BOE 3/4" Front, 5/8" Rear | BOE 3/4" Front, 5/8" Rear |
| Cylinders | 2 × 2.5" × 8" | 2 × 2.5" × 8" | 2 × 2.5" × 8" |
| Opening Width | 38" | 38" | 38" |
| Side Plates | 1/2" | 1/2" | 1/2" |
| Floor Plate | 1/4" | 1/4" | 1/4" |
| Hydraulics | Parker (fittings, hoses, couplers) | Parker (fittings, hoses, couplers) | Parker (fittings, hoses, couplers) |
| Compatibility | Universal Skid Steer | Universal Skid Steer | Universal Skid Steer |
