Loflin Fabrication

Loflin Fabrication | Compact Tractor Root Grapple | 54″ To 72" Width | 2" x 8" AG Cylinders | Horsepower 25 To 50 HP | For Tractors

Loflin Fabrication | Compact Tractor Root Grapple | 54″ To 72" Width | 2" x 8" AG Cylinders | Horsepower 25 To 50 HP | For Tractors

Regular price $2,343.00
Regular price Sale price $2,343.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Working Width 54″ To 72" inches
  • Horsepower 25 To 50 HP For Tractors
  • Powerful 2" x 8" AG Hydraulic Cylinders: Delivers strong, consistent clamping force for heavy-duty lifting and holding.
  • Parker Hydraulic Components: Equipped with Parker brand hoses, fittings, and couplers ready for any jobsite, right out of the box.
  • Greaseable Pivot Points: For long-lasting operation and easy maintenance.
  • Powder-Coated Finish: Offers superior rust resistance and a professional, clean look.
View full details

Product Description

Loflin Fabrication | Compact Tractor Root Grapple | 54″ To 72" Width | 2" x 8" AG Cylinders | Horsepower 25 To 50 HP | For Tractors


DESCRIPTION

The Loflin Fabrication Compact Tractor Root Grapple, a powerful and efficient attachment designed specifically for compact tractors operating between 25 to 50 horsepower. This American-made grapple empowers landscapers, contractors, and property owners to tackle challenging root removal and land clearing tasks with unmatched efficiency and control.

Constructed with robust 3/8" thick steel tines, the Compact Tractor Root Grapple ensures exceptional strength to withstand the demands of grasping and extracting even the most stubborn roots. The independent grapple tines allow for superior control and adaptability, making it ideal for handling uneven loads or root configurations.

Equipped with 2” x 8” AG cylinders, this grapple bucket is ready for immediate use, complete with Parker brand hoses, fittings, and couplers. The quick attach system ensures easy installation and removal, saving you time and simplifying your workflow.

Key Features

  • Built for 25–50 HP Machines: Specifically engineered to work efficiently with compact tractors, offering high power without overloading your machine.
  • Durable 3/8” Thick Steel Tines: Withstands the most demanding root, brush, and debris tasks without bending or breaking.
  • Independent Dual Grapple Tines: Allows precise grabbing of uneven and oddly shaped loads, offering maximum control.
  • Powerful 2" x 8" AG Hydraulic Cylinders: Delivers strong, consistent clamping force for heavy-duty lifting and holding.
  • Parker Hydraulic Components: Equipped with Parker brand hoses, fittings, and couplers ready for any jobsite, right out of the box.
  • Greaseable Pivot Points: For long-lasting operation and easy maintenance.
  • Powder-Coated Finish: Offers superior rust resistance and a professional, clean look.
  • Quick Attach Compatible: Seamlessly integrates with most compact tractors, saving you time and effort.
  • 28″ Jaw Opening Width: Wide enough for serious material handling while staying nimble in tighter spaces.
  • Tine Spacing of 8.5″ – 9″: Perfect balance between sifting soil and securely grabbing larger debris.

Detailed Specifications

Specification Details
Brand Loflin Fabrication
Model Name Compact Tractor Root Grapple
Type Root Grapple (Double Tine)
Working Width Options 54″, 60″, 66″, 72″
HP Compatibility Recommended for 40 HP and below machines
Hydraulic Cylinders Two 2″ x 8″ AG cylinders
Grapple Tine Thickness Dual 3/8” thick
Bottom Tine Thickness 3/8” thick steel
Tine Spacing 8½” to 9″
Opening Width 28″
Horsepower 25 To 50 HP
Pivot Points Greasable
Hydraulic Components Parker brand hoses, fittings, and couplers
Finish Powder coated
Mount Compatibility Universal Quick Attach
Approx. Weights (by width) 54″: 405 lbs, 60″: 430 lbs, 66″: 454 lbs, 72″: 490 lbs
Key Benefit Efficiently tackles roots, brush, and debris for compact tractors, allowing dirt to sift through.

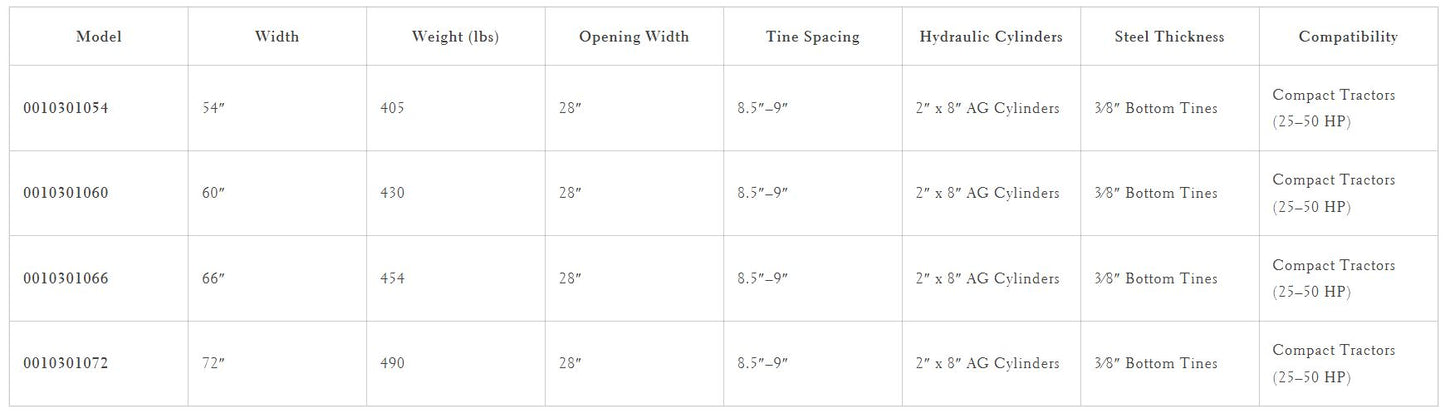

Comparison Chart

Specification 0010301054 0010301060
Width 54″ 60″
Weight (lbs) 405 430
Opening Width 28″ 28″
Tine Spacing 8.5″–9″ 8.5″–9″
Hydraulic Cylinders 2″ x 8″ AG Cylinders 2″ x 8″ AG Cylinders
Steel Thickness 3⁄8″ Bottom Tines 3⁄8″ Bottom Tines
Compatibility Compact Tractors (25–50 HP) Compact Tractors (25–50 HP)



Specification 0010301054 0010301060
Width 54″ 60″
Weight (lbs) 405 430
Opening Width 28″ 28″
Tine Spacing 8.5″–9″ 8.5″–9″
Hydraulic Cylinders 2″ x 8″ AG Cylinders 2″ x 8″ AG Cylinders
Steel Thickness 3⁄8″ Bottom Tines 3⁄8″ Bottom Tines
Compatibility Compact Tractors (25–50 HP) Compact Tractors (25–50 HP)
