Product Description

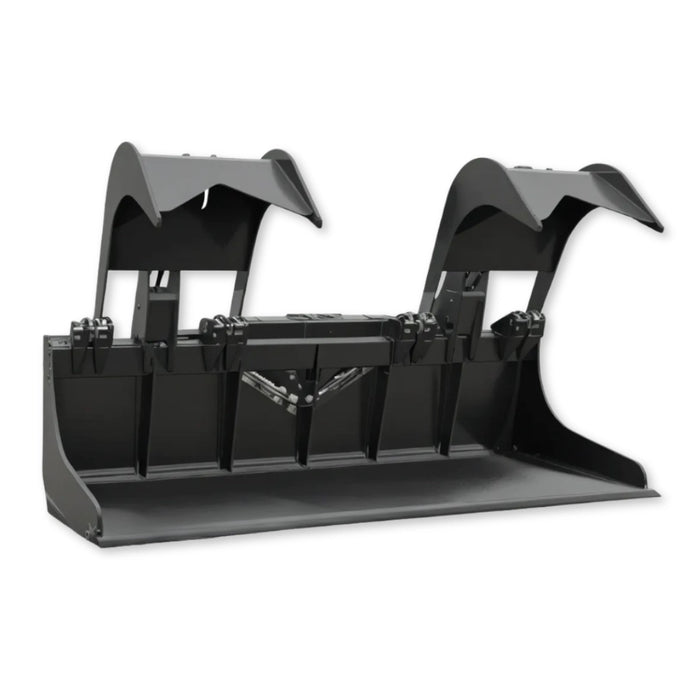

Loflin Fabrication | Standard Duty Grapple Bucket with Bolt-On Edge | 60–84" Widths | For Skid Steers
DESCRIPTION

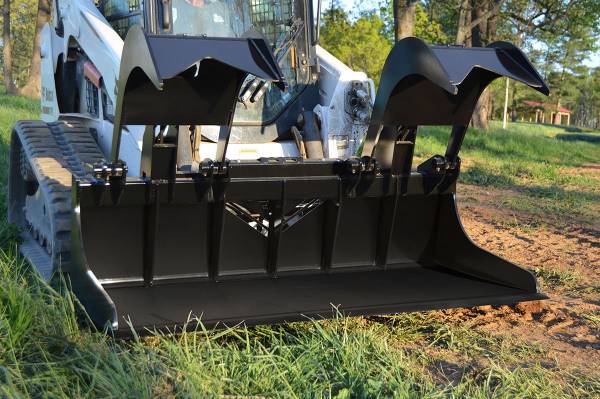

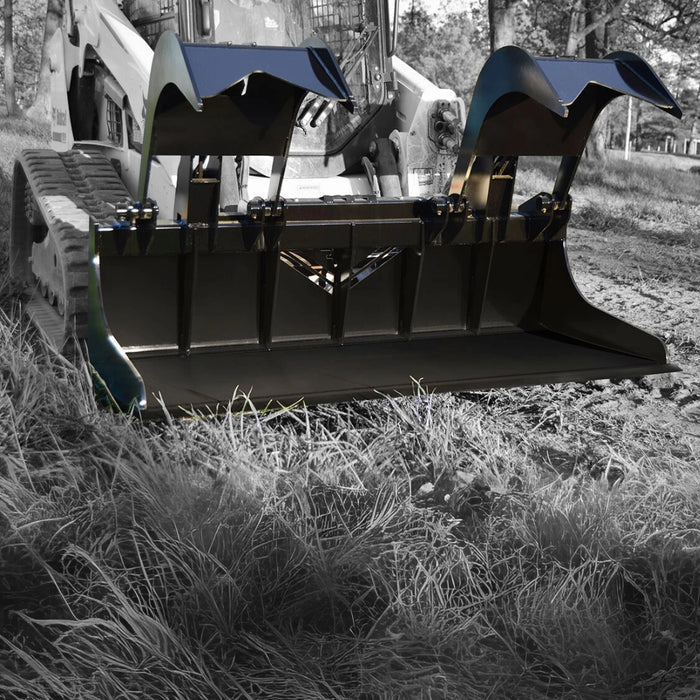

The Loflin Fabrication Standard Duty Grapple Bucket with Bolt-On Edge, a powerful and versatile attachment designed for skid steers operating between 50 to 75 horsepower. This grapple bucket is engineered to maximize your job efficiency, providing an impressive 9,500 lbs of grappling force to handle uneven loads with ease. Whether you're clearing debris, moving logs, or tackling tough landscaping tasks, this bucket is built to deliver reliable performance in a variety of applications.
Crafted entirely in the USA, the Standard Duty Grapple Bucket features independent grapple tines that allow for precise handling of materials, making it ideal for both light and medium-duty tasks. The bolt-on edge enhances durability and provides additional versatility for various applications.
Equipped with 2” x 10” hydraulic cylinders, this grapple bucket is job-site ready, complete with Parker brand hoses, fittings, and couplers. The quick attach system ensures easy installation, while the greasable pivot points provide smooth operation and maintenance.
Key Features
- Independent Grapple Tines Dual grapple arms allow operators to secure uneven loads with precision, enhancing control and efficiency.
- Powerful Hydraulic System Equipped with two 2″ x 10″ cylinders, delivering 9,500 lbs of grappling force for heavy-duty lifting.
- Heavy-Duty Bolt-On Cutting Edge ¾″ thick x 6″ wide cutting edge, ensuring extended wear resistance and superior material containment.
- Powder-Coated Finish for Long-Term Durability Prevents rust and corrosion, extending attachment lifespan.
- Oversized, Greasable Pivot Pins 1¼″ thick reinforced pins, providing smooth articulation and extended durability.

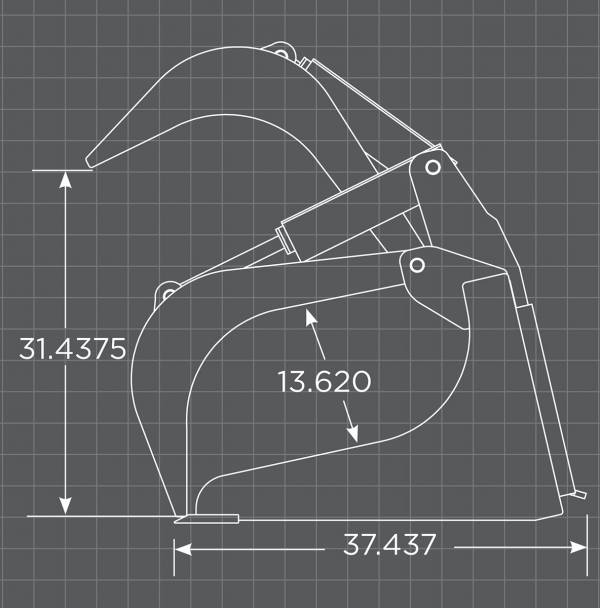

- Optimized Load Control 31 7⁄16″ opening width, accommodating large debris handling and lifting operations.
- Heavy-Duty Reinforced Steel Bottom Built with ¼″ thick reinforced steel, maximizing impact resistance for tough workloads.
- Optional Bolt-On Edge Available Enhances cutting strength and precision, ensuring customized performance.
- Multiple Width Options Available in 60″, 66″, 72″, 78″, and 84″, catering to various job site requirements.
- Horsepower Compatibility Recommended for machines ranging from 50 to 75 HP, optimizing power and efficiency.
- Fully Protected Hydraulic System Hoses and cylinders are shielded for reliable long-term operation.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | Standard Duty Grapple Bucket w/ Bolt-On Edge |
| Type | Multi-Purpose Grapple Bucket |
| Working Width Options | 60″, 66″, 72″, 78″, 84″ (and custom sizes) |
| HP Compatibility | Recommended for 75 horsepower or less machines |
| Grappling Force | 9,500 lbs |
| Hydraulic Cylinders | Two 2″ x 10″ |
| Grapple Tine Operation | Independent |
| Cutting Edge | ¾” X 6″ with bolt-on reversible double edge |
| Bottom & Back Thickness | ¼” thick reinforced steel |
| Pin Size | Oversized, greasable 1¼” |
| Opening Width | 31 7/16″ |
| Hydraulic Components | Parker brand hoses, fittings, and couplers |
| Hose Protection | Fully protected hoses |
| Cylinder Protection | Covered hydraulic cylinders |
| Reinforced Quick Attach | Yes |
| Operator Step | Treaded step |
| Optional Features | Available with punched edge (if preferred over BOE) |
| Approx. Weights (by width) | 60″: 859 lbs, 66″: 897 lbs, 72″: 947 lbs, 78″: 993 lbs, 84″: 1030 lbs |
| Compatibility | Universal Skid Steer Compatibility |
| Key Benefit | Dependable performance and strong grappling force with enhanced cutting edge protection for light to medium-duty material handling. |

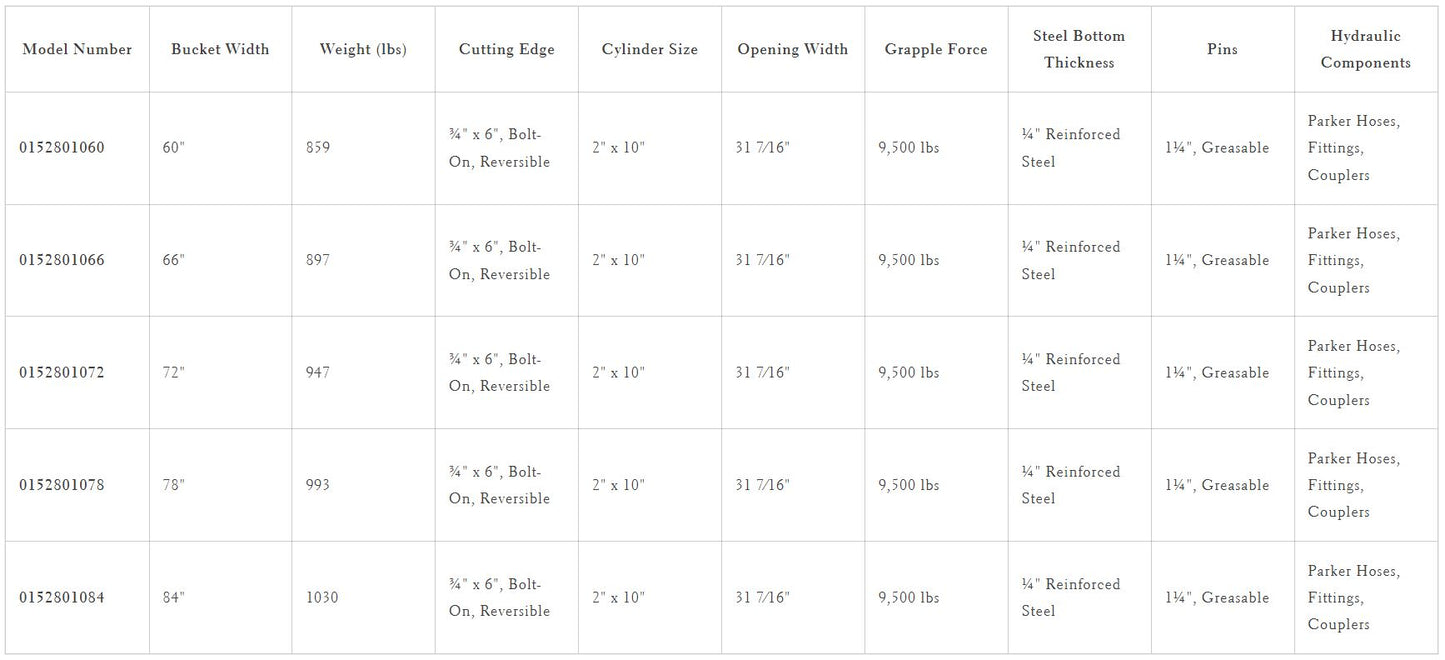

Comparison Charts
| Specs |
015280- 1060 |
015280- 1066 |
|---|---|---|
| Bucket Width | 60" | 66" |
| Weight (lbs) | 859 | 897 |
| Cutting Edge | ¾" x 6", Bolt-On, Reversible | Same |
| Cylinder Size | 2" x 10" | 2" x 10" |
| Opening Width | 31 7⁄16" | 31 7⁄16" |
| Grapple Force | 9,500 lbs | 9,500 lbs |
| Steel Bottom Thickness | ¼" Reinforced Steel | Same |
| Pins | 1¼", Greasable | Same |
| Hydraulic Components | Parker Hoses, Fittings, Couplers | Same |
| Specs |
015280- 1072 |
015280- 1078 |
015280- 1084 |
|---|---|---|---|
| Bucket Width | 72" | 78" | 84" |
| Weight (lbs) | 947 | 993 | 1030 |
| Cutting Edge | ¾" x 6", Bolt-On, Reversible | Same | Same |
| Cylinder Size | 2" x 10" | 2" x 10" | 2" x 10" |
| Opening Width | 31 7⁄16" | 31 7⁄16" | 31 7⁄16" |
| Grapple Force | 9,500 lbs | 9,500 lbs | 9,500 lbs |
|
Steel Bottom Thickness |
¼" Reinforced Steel | Same | Same |
| Pins | 1¼", Greasable | Same | Same |
|
Hydraulic Components |
Parker Hoses, Fittings, Couplers | Same | Same |
