Product Description
Ranco | Tandem Belly Dump Switchgate Trailer | 2025 Model | 40' Length | 23 CY Capacity | 102" Width | For Bulk Material & Sand Hauling
Ripping It is Partnered with Western Truck to provide the best pricing and service for Ranco.
DESCRIPTION
The Ranco Tandem Belly Dump Switchgate Trailer is a high-performance bulk hauling solution, built for maximum efficiency, durability, and superior load handling. Engineered with a reinforced steel frame, advanced gate system, and precision suspension, this trailer ensures seamless transport operations for aggregates, sand, and industrial materials.
With a 40-foot overall length and a 23 cubic yard capacity, the Ranco Tandem Belly Dump Trailer is optimized for high-volume hauling, making it ideal for demanding applications in construction, mining, and bulk material transport. The pinsetter equalizer-type gate system, featuring quick pin gate mounting, allows for precise unloading, while the front and rear 12VDC electric vibrators ensure smooth material flow.
Designed with power requirements (kW/HP optimized) for seamless pneumatic integration, this trailer includes reinforced steel construction, advanced braking systems, and DOT-approved lighting, ensuring maximum safety and efficiency. Whether handling bulk freight or specialized materials, the Ranco Tandem Belly Dump Switchgate Trailer delivers industry-leading reliability.
Key Features
- Heavy-Duty Steel Frame for Maximum Durability: High-strength steel construction with 80,000 PSI and 100,000 PSI yield strength.
- Optimized Power Requirements: Designed for efficient pneumatic operation (kW/HP optimized) ensuring seamless unloading cycles.
- Pinsetter Equalizer-Type Gate System for Precision Unloading: Quick pin gate mounting for simplified changeover.
- Premium Wheels & High-Traction Tires for Long-Haul Reliability: Heavy-duty steel wheels paired with high-performance 11R x 24.5 radial tires for maximum stability and traction.
- DOT-Approved Safety & Visibility Enhancements: Sealed LED lighting system, reflective conspicuity tape, and reinforced safety monitoring features.
- Integrated Suspension & Load Securement Enhancements: Mechanical single-point tandem axle suspension with 3-leaf high arch springs for enhanced maneuverability.
Detailed Specifications
| Specification | Detail |
|---|---|
| Trailer Type | Tandem Belly Dump – Switchgate |
| Condition | New |
| Overall Length | 40 feet |
| Overall Width | 102 inches (outside to outside) |
| Capacity | 23 cubic yards |
| Hopper Opening (Top) | 102” x 188” |
| Hopper Opening (Bottom) | 64” x 64” |
| Construction Material | High-strength steel (80k & 100k PSI yield) |
| Hopper Material | AR250 10 gauge with optimized angle of repose |

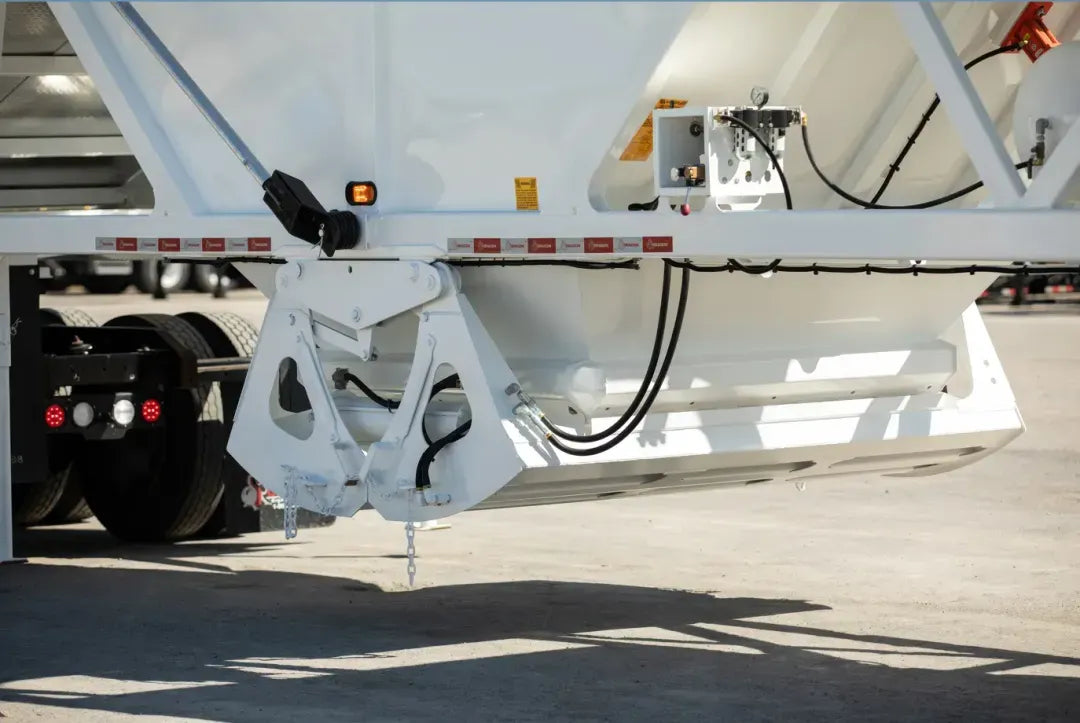

| Gate Type | Pinsetter equalizer w/ quick pin mounting |
| Gate Cylinders | 8” air-operated, double-acting cylinders with chrome rods and tubes |

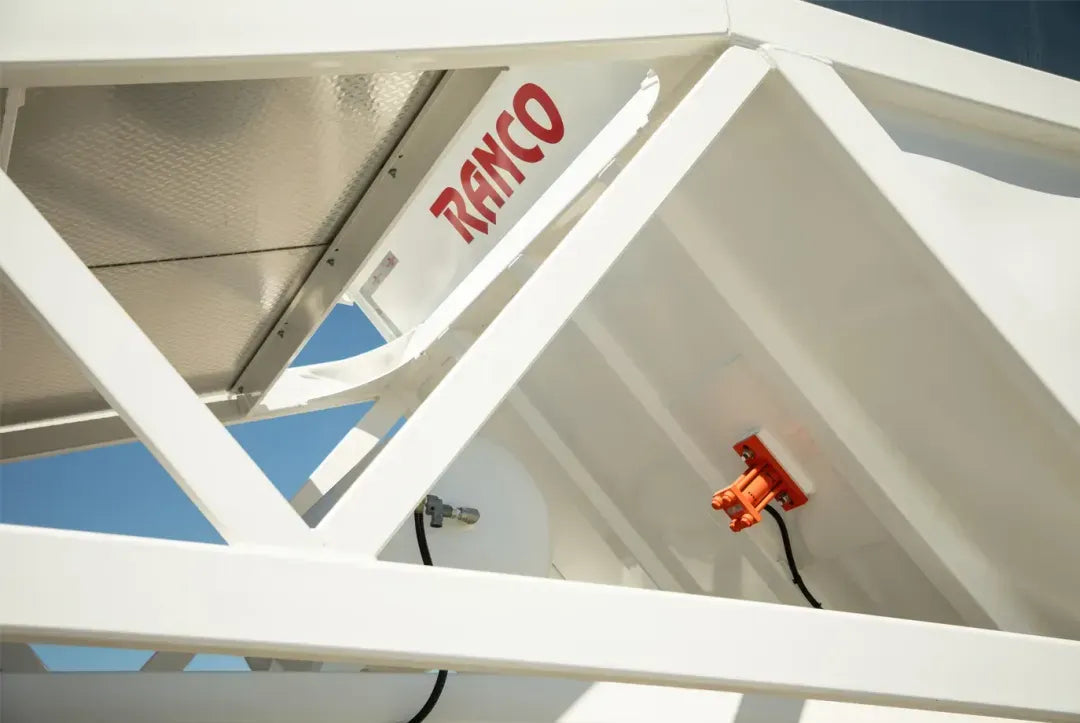

| Vibrators | 12VDC front and rear with reinforced plates |
| Air System | Pre-plumbed, 60-gal Federal certified reservoir, 12V solenoid (cab control) |
| Fifth Wheel | Rubber bushed side oscillating with grease fittings |
| Suspension | Mechanical single-point, 3-leaf high arch springs |
| Axles | Dual, 22,500 lbs. min capacity, 5” tubular with Stemco seals |
| Brakes | 16.5” x 7” air brakes, auto slack adjusters, 4S2M ABS |
| Tires | 11R x 24.5, 16 ply, chip-resistant (on/off road) |
| Fenders | Bolted front and rear |
| Lighting System | DOT/ICC sealed beam, sealed wiring with rubber grommets & clips |
| Finish | Steel grit blasted (SP6), DTM polyurethane, rust-inhibiting self-priming |
