ROTADAIRON

Rotadairon Stone Burier W/ Mesh Rollers & Hydraulic Offset | RDL Series | Working Width 59", 70", 78" & 98" | Horsepower 45-90 HP | For Tractors

Rotadairon Stone Burier W/ Mesh Rollers & Hydraulic Offset | RDL Series | Working Width 59", 70", 78" & 98" | Horsepower 45-90 HP | For Tractors

$25,882.35
$25,882.35
Sale Sold out
Customizable
Fast
24/7 Support
  • Working Widths: 59", 70", 78", and 98" Covers medium to large plots with efficient soil inversion and debris burial
  • Tractor Power Requirement: 45–90 HP • RDL-150: 45–60 HP • RDL-180: 50–70 HP • RDL-200: 55–80 HP • RDL-250: 70–90 HP — compatible with mid-size and utility tractors
  • Maximum Working Depth: 6.25" (160 mm) Adjustable rear roller enables deep soil processing for seedbed prep
  • Rotor Diameter: 20" (510 mm) Oversized rotor with patented anti-sole blades for aggressive mixing and inversion
View full details

Products Description

Rotadairon Stone Burier W/ Mesh Rollers & Hydraulic Offset | RDL Series | Working Width 59", 70", 78" & 98" | Horsepower 45-90 HP | For Tractors

DESCRIPTION

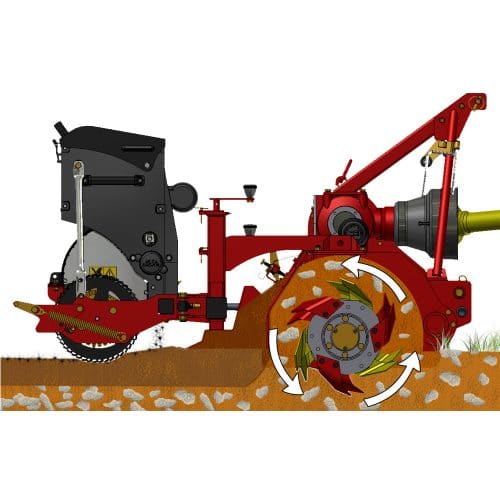

The Rotadairon® RDL Series is designed to handle comprehensive soil preparation needs for landscaping, green space renovation, and seedbed establishment. Available in four models—RDL 150, RDL 180, RDL 200, and RDL 250—this series covers a range of working widths and power requirements. Each model comes with a cast iron roller option for heavy-duty applications and a hydraulic offset feature for precise side adjustments. Built for durability, the RDL Series features an oversized rotor and anti-pad blades, ensuring effective soil overturning and stone burial, while the torque limiter with flywheel offers added protection for safe operation.

Key Features

  • Working Widths: 59", 70", 78", and 98" Covers medium to large plots with efficient soil inversion and debris burial
  • Tractor Power Requirement: 45–90 HP • RDL-150: 45–60 HP • RDL-180: 50–70 HP • RDL-200: 55–80 HP • RDL-250: 70–90 HP — compatible with mid-size and utility tractors
  • Maximum Working Depth: 6.25" (160 mm) Adjustable rear roller enables deep soil processing for seedbed prep

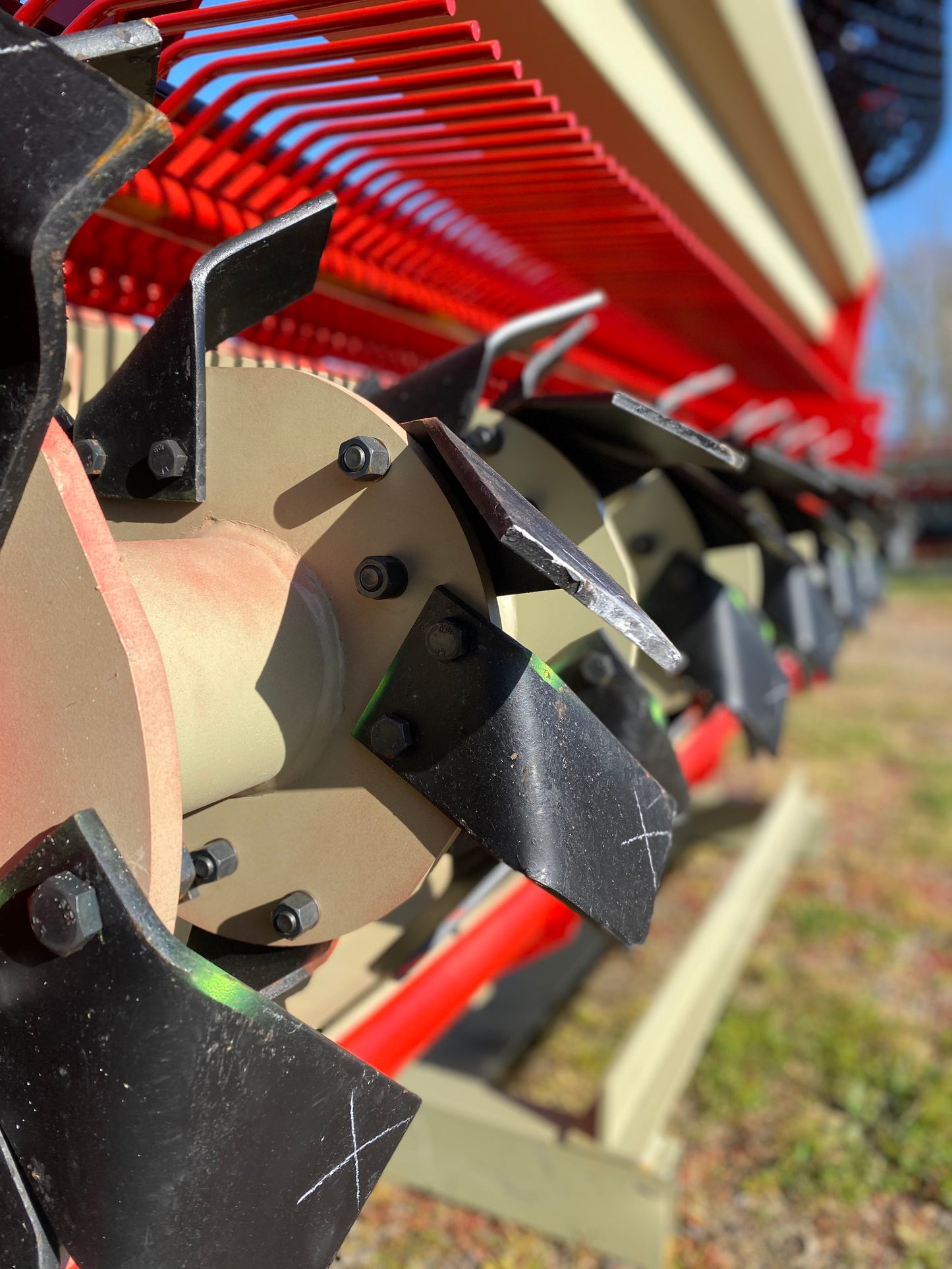

  • Rotor Diameter: 20" (510 mm) Oversized rotor with patented anti-sole blades for aggressive mixing and inversion
  • Blade Count • RDL-150: 48 blades • RDL-180: 54 blades • RDL-200: 60 blades • RDL-250: 72 blades — optimized for cutting density and soil turnover
  • Grid Finger Spacing: 20 mm (4/5") Filters out large debris while retaining fine soil for a smooth finish
  • Transmission System Angle gearbox with chain in oil bath for reliable power transfer
  • Oil Bath Torque Limiter with Flywheel Protects drivetrain from overload and ensures smooth operation
  • Hydraulic Offset Capability Allows lateral adjustment for working close to fences, walls, or crop rows

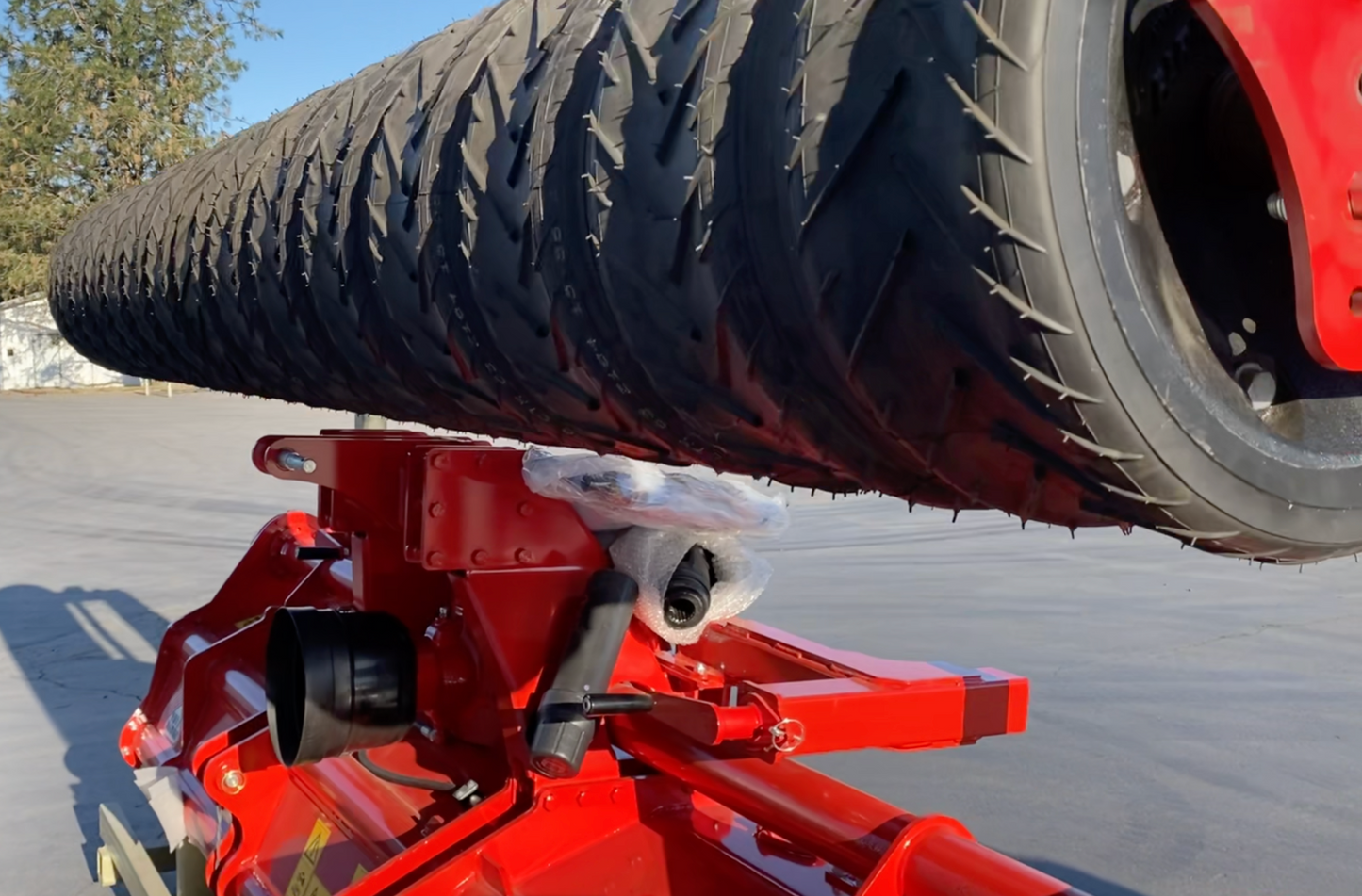

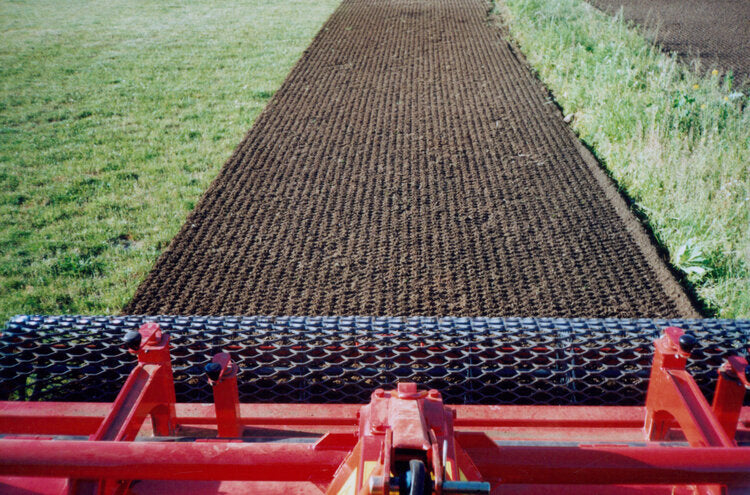

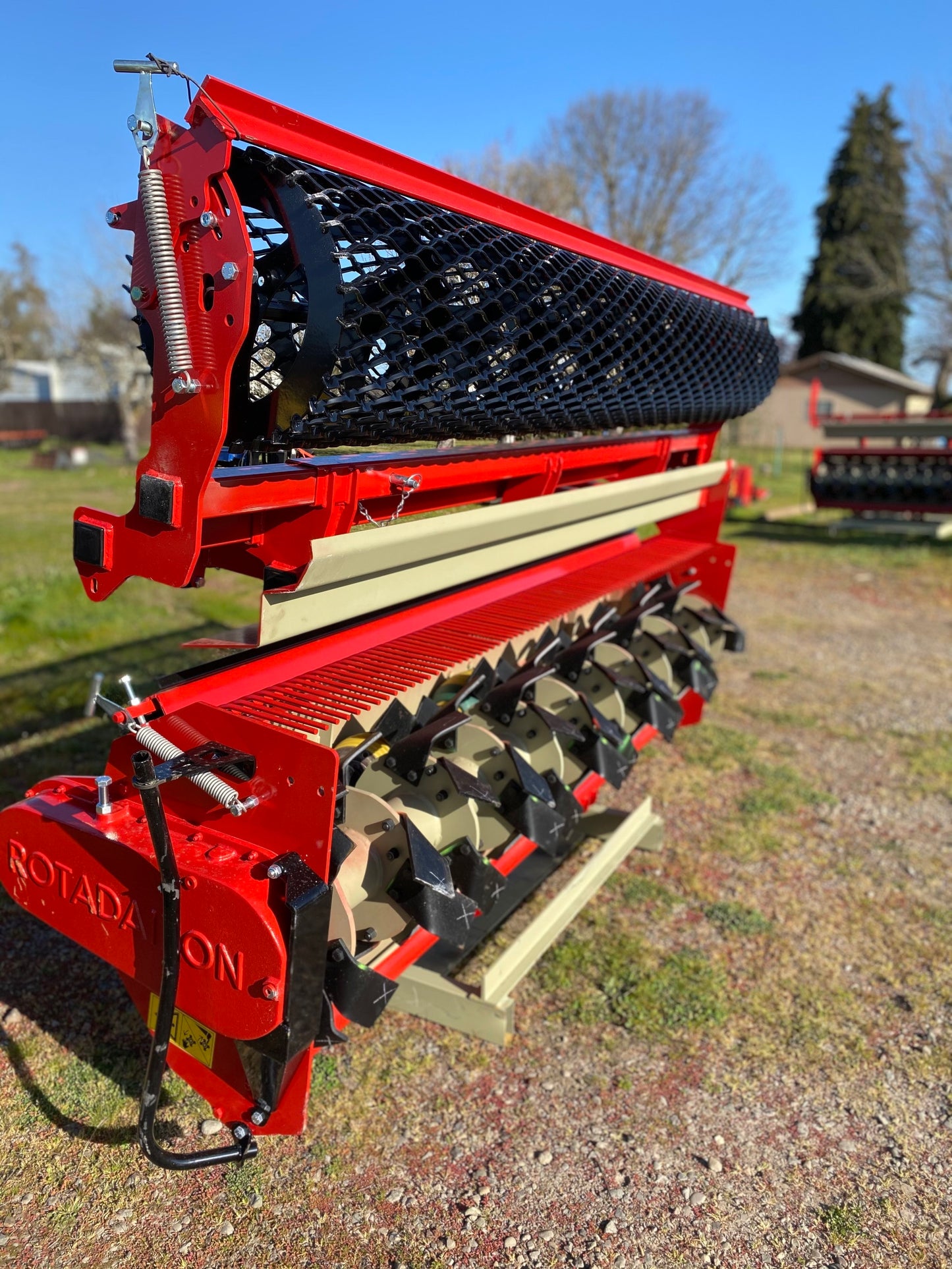

  • Roller Options • Mesh Roller: standard across all models • Iron Cast Roller: available for added compaction and finish
  • Forward Speed: 0.5–0.9 mph Optimized for thorough soil conditioning and safe operation
  • 3-Point Hitch Compatibility: Category I & II Secure mounting for a wide range of compact and utility tractors
  • PTO Speed: 540 RPM Matches standard tractor drivetrains for consistent rotor performance
  • Transport Dimensions • RDL-150: 76.75" W × 74" L × 44" H • RDL-180: 88.25" W × 75.5" L × 44" H • RDL-200: 97.5" W × 74.5" L × 44" H • RDL-250: 116" W × 74.5" L × 44" H

Detailed Specifications

    RDL Series Stone Burier

    Feature

    RDL 150

    RDL 180

    RDL 200

    RDL 250
    Working Width 1500 mm (59") 1774 mm (70") 1984 mm (78") 2492 mm (98")
    Total Width 1950 mm (76.75") 2240 mm (88.25") 2475 mm (97.5") 2944 mm (116")
    Working Depth (Max) 160 mm (6.25") 160 mm (6.25") 160 mm (6.25") 160 mm (6.25")
    Rotor Diameter 510 mm (20") 510 mm (20") 510 mm (20") 510 mm (20")
    Blade Count 48 54 60 72
    Grid Finger Spacing 20 mm (4/5") 20 mm (4/5") 20 mm (4/5") 20 mm (4/5")
    Weight (Mesh Roller) 798 kg (1759 lbs) 915 kg (2017 lbs) 965 kg (2127 lbs) 1134 kg (2500 lbs)
    Weight (Iron Roller) 955 kg (2106 lbs) 1120 kg (2469 lbs) 1198 kg (2641 lbs) 1421 kg (3133 lbs)
    Tractor Power Required 45–60 HP 50–70 HP 55–80 HP 70–90 HP
    PTO Speed 540 RPM 540 RPM 540 RPM 540 RPM
    Forward Speed 0.5–0.9 mph 0.5–0.9 mph 0.5–0.9 mph 0.5–0.9 mph
    3-Point Hitch Category I & II Category I & II Category I & II Category I & II
    Transport Dimensions 1930×1880×1120 mm 2190×1920×1120 mm 2410×1890×1120 mm 2920×1890×1120 mm
