Product Description

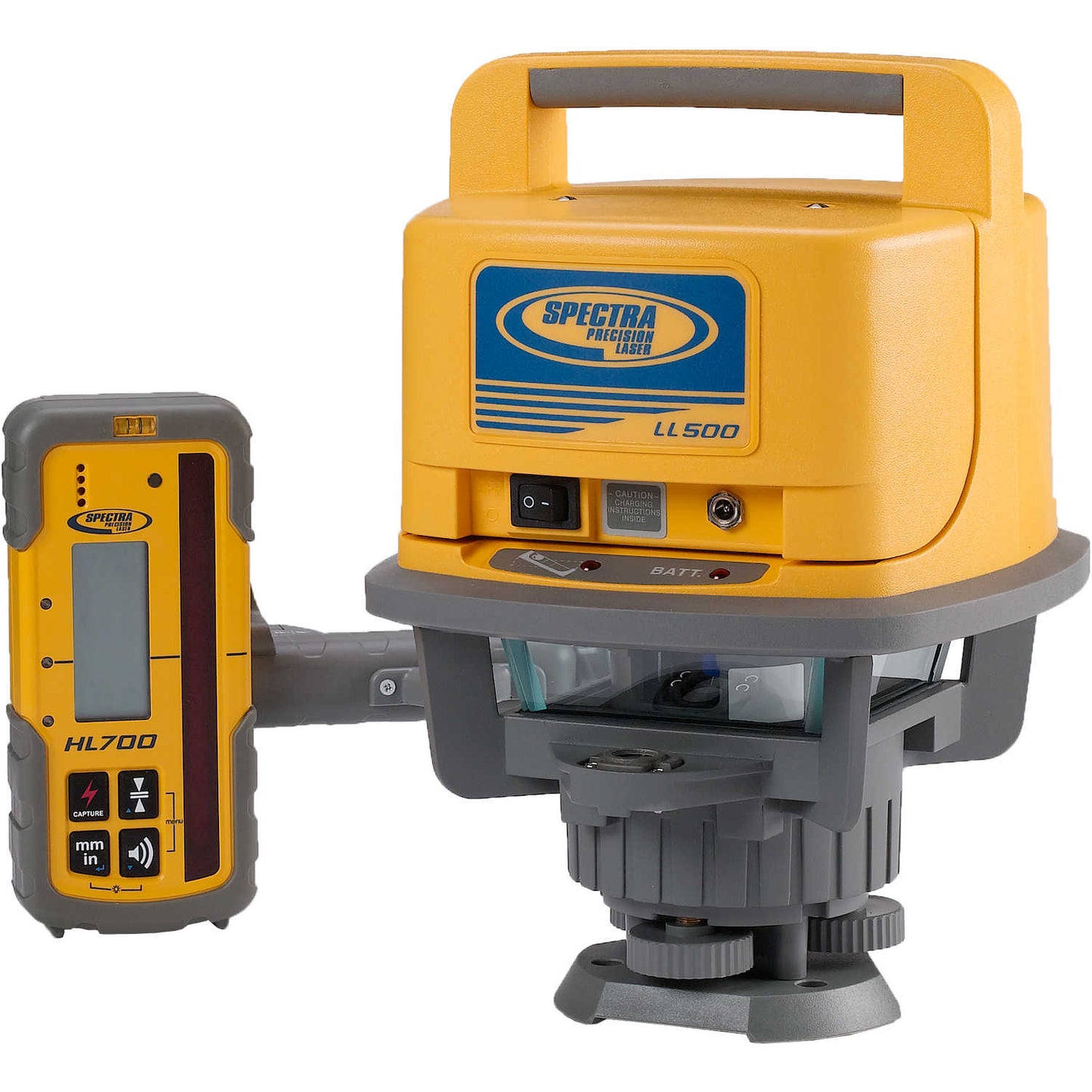

Spectra® Geospatial LL500 Laser Level with HL700 Laserometer
DESCRIPTION
So much power packed into this receiver.
The HL700 Laser Receiver features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time, and increasing productivity.
Designed for long range measurements across your entire job site, the self-leveling LL500 features a 1,600´ (500 m) working diameter and increases productivity by reducing the need for multiple setups. The LL500 allows for easy one-person operation and features a built-in “out-of-level” shutoff that maintains accuracy over the entire work area and minimizes errors. The laser transmitter sends a laser beam to provide an elevation reference that can be picked up by the included HL700 Laserometer. The HL700 measures and displays beam location and features dual-sided LCD’s. The HL700 displays how far you are from on-grade, allowing for fast elevation checks without moving the rod clamp. A 127 mm (5˝) reception height speeds beam pickup in grade match and alignment applications. The HL700’s anti-strobe sensor prevents construction lights from setting off the receiver so that true laser beam signals are more easily identified.
Key Features
- Strengths of the HL700 include:
- Reliable Accuracy
All our models have different settings to suit your jobsite tolerances. The units of measure can be displayed in millimeters, centimeters, feet & inches and fractional inches.
- Reception Length
The longer the reception zone, the quicker you can acquire the laser beam allowing you to get your work done faster. When used in vertical, a longer pick up zone allows more control when doing tilt-up or curtain walling.
- Crazy Simple
The laser receivers all include a display on the front and back for easy visual indication of detector status and grade information. The display shows proportional arrows to help you find the on-grade position rapidly. An adjustable audible tone indicates high, low and level. All basic functions are a single press away. Set your accuracy and loudness levels and get to work.
- Operating Time
Equipped with 2 AA batteries, all the models deliver long operating time to keep you working on the jobsite.
- Tougher than Tough
Designed to withstand a direct drop up to 10 feet* (3 meters) onto concrete meaning less downtime due to damage and service requirements. In addition, the IP67 waterproof housing protects the unit from the harsh environment it is used in. Drop it in a puddle or get concrete on it, just wash it off with a hose. It is that good we back it up with an over-the-counter exchange policy for all warranty claims within the defined warranty period giving you peace of mind.
Detailed Sepcifications
| Feature | Details |
|---|---|
| Working Radius | 1 m - 460 m (3 ft - 1500 ft) (Laser Dependent) |
| Laser Detection Height | 127.0 mm (5") |
| Numeric Readout Height | 102.0 mm (4") |
| Accuracy (Dead-band) | Ultra Fine: 0.5 mm (0.02 in / 1/32 in) Super Fine: 1.0 mm (0.05 in / 1/16 in) Fine: 2.0 mm (0.10 in / 1/8 in) Medium: 5.0 mm (0.20 in / 1/4 in) Coarse: 10.0 mm (0.50 in / 1/2 in) |
| Reception Angle | ± 45° minimum |
| Battery Life | 60+ hours; 16 continuous with backlight |
| Environmental | Waterproof, Dustproof to IP67 |
| Detectable Spectrum | 610 nm ... 780 nm |
| Beeper Volumes | Loud: 110 dBA Medium: 95 dBA Low: 65 dBA |
| Power Supply | 2 x 1.5 Volt “AA” batteries |
| Dimensions | 168.0 x 76.0 x 36.0 mm (6.6” x 3.0” x 1.4”) |
| Operating Temperature | -20°C...+60°C (-4°F...+140°F) |
| Storage Temperature | -40°C...+70°C (-40°F...+158°F) |
| Automatic Shut-Off | 30 minutes |
In Package
- LL500 Laser Level
- HL700 Laserometer
- Rod Clamp
- User Manual
