Product Description
TAG Debris & Brush Grapple Bucket | Width 72"-120" | Capacity 1.00–8.00 yd | Machine Size 6-40 Tons | For Wheel Loaders
DESCRIPTION
The TAG’s Debris & Brush Grapple Buckets are designed for efficient cleanup and handling of loose, lightweight materials such as tree limbs, green waste, brush, trash, and demolition debris. Equipped with two independently controlled top clamps, operators can secure uneven or wide loads with precision—ideal for irregular material profiles. The grapple bucket comes in three customizable side profiles (full sides, half sides, and cut-away) and offers multiple clamp styles, including standard open clamps, enclosed plate clamps, and expanded metal clamps for visibility and containment. Built for performance in landscaping, municipal cleanup, and light waste operations, each bucket includes a bolt-on cutting edge and rear wear pads for long-term durability. Hydraulic actuation requires a third-function circuit, and units are available in Pin-On and Quick Coupler formats.
Key Feature
- Dual Independent Hydraulic Clamps Clamps operate separately for irregular load stabilization and improved grip flexibility

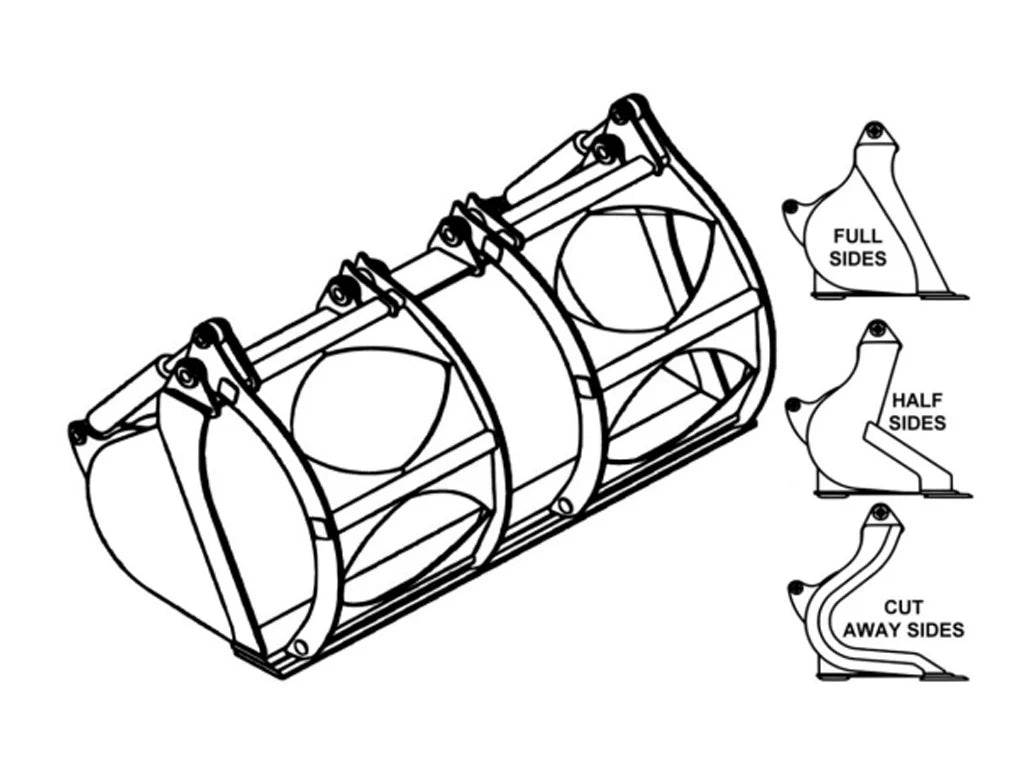

- Three Side Profile Options Choose between full sides for maximum containment, half sides for visibility, or cut-away for aggressive scoop access

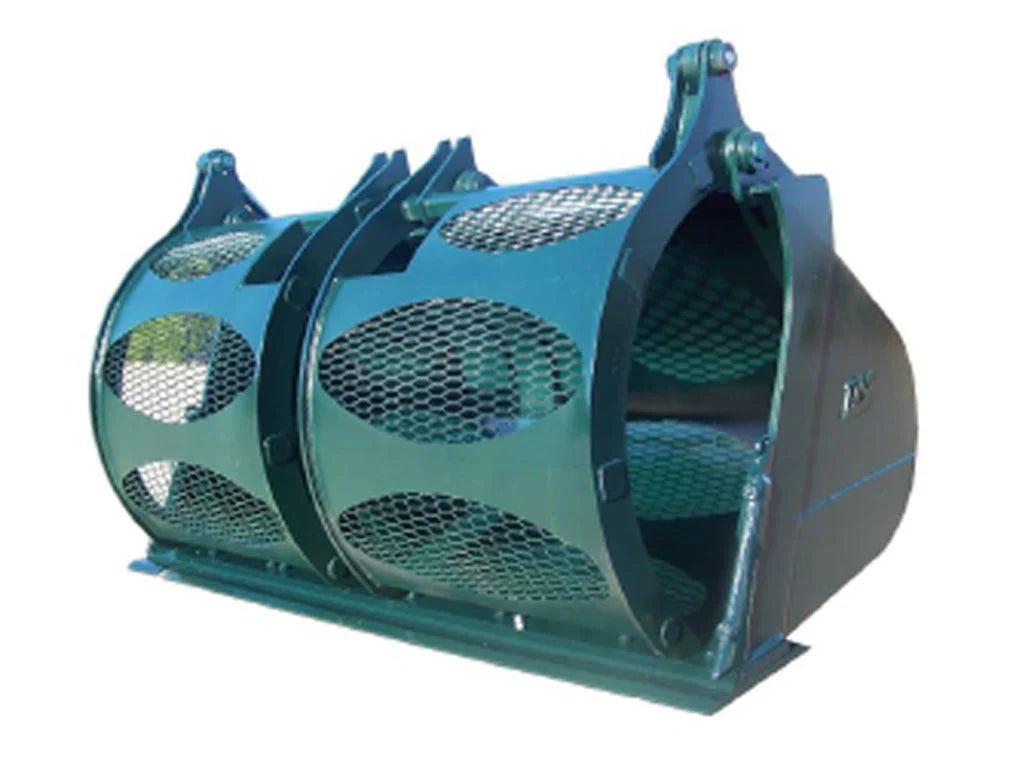

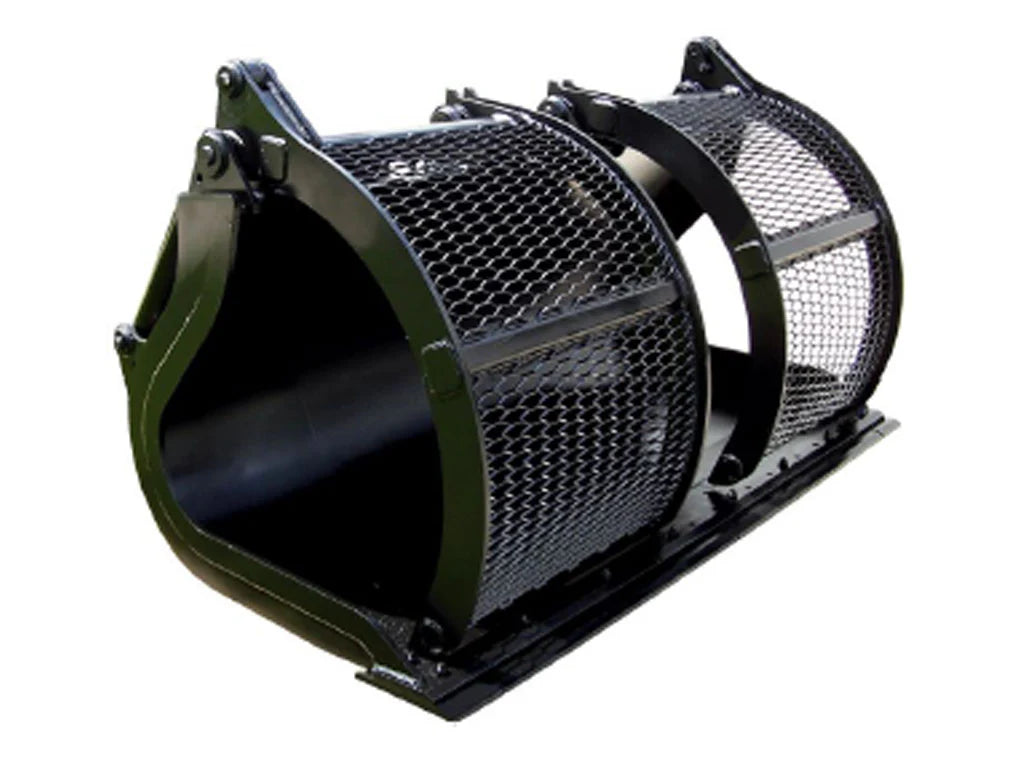

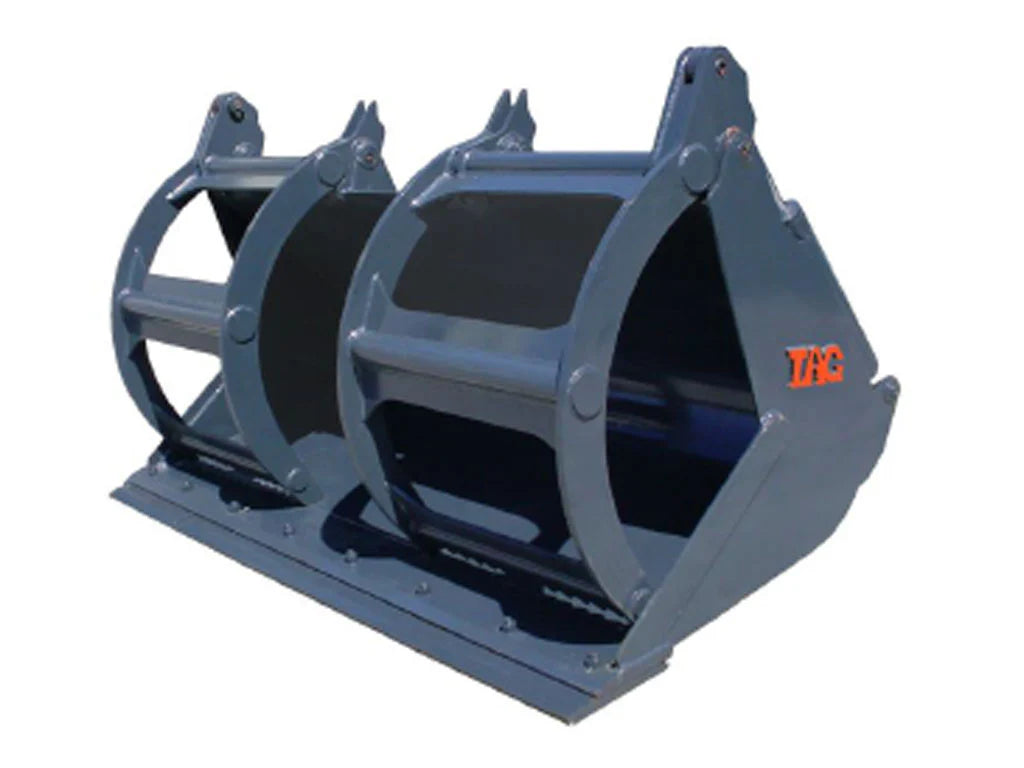

- Three Clamp Configurations Available Open-frame clamps for brush and limbs, Enclosed plate clamps for fine debris, Expanded metal clamps for lightweight visibility.
- Includes Bolt-On Cutting Edge & Rear Wear Pads Reinforced bottom structure for longer service life and reduced maintenance
- Hydraulically Powered Clamps (3rd Function Required) Ensures responsive material control during grapple operation.
-
Mounting Styles Available Compatible with direct Pin-On or Quick Coupler adapters for most loader types.
Detailed Specifications
| Capacity (yd³) | Estimated Weight (lbs) | Approx. Width (in) |
|---|---|---|
| 1.00 | 1,800 | 72″ (6 ft) |
| 1.50 | 2,100 | 78″ (6.5 ft) |
| 2.00 | 2,200 | 84″ (7 ft) |
| 2.50 | 2,625 | 90″ (7.5 ft) |
| 3.00 | 2,950 | 96″ (8 ft) |
| 3.50 | 3,425 | 102″ (8.5 ft) |
| 4.00 | 3,800 | 108″ (9 ft) |
| 4.50 | 4,425 | 108″ (9 ft) |
| 5.00 | 4,600 | 114″ (9.5 ft) |
| 5.50 | 5,100 | 114″ (9.5 ft) |
| 6.00 | 5,725 | 120″ (10 ft) |
| 6.50 | 6,225 | 120″ (10 ft) |
| 7.00 | 6,800 | 120″ (10 ft) |
| 7.50 | 7,200 | 120″ (10 ft) |
| 8.00 | 7,600 | 120″ (10 ft) |
