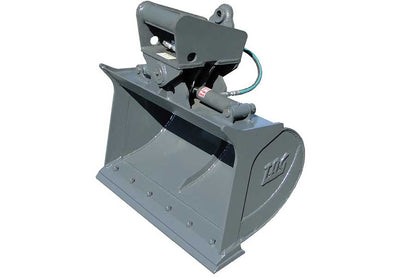

TAG Hydraulic Tilt Bucket | Dual-Cylinder | 42"–54" Width | Capacity 0.33–0.43 yd³ | Bucket Weight 758–863 lbs | Machine Size 7–10 Ton | For Mini Excavators

Product Description

TAG Hydraulic Tilt Bucket | Dual-Cylinder | 42"–54" Width | Capacity 0.33–0.43 yd³ | Bucket Weight 758–863 lbs | Machine Size 7–10 Ton | For Mini Excavators

DESCRIPTION

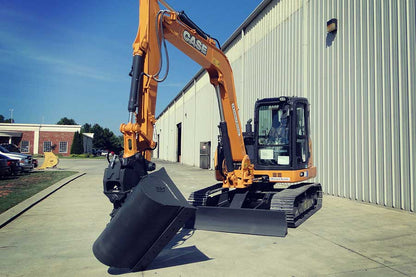

The TAG Hydraulic Tilt Bucket Series delivers precise shaping and finish grading capabilities for mini excavators in the 14,000–20,000 lb (7–10 ton) range. Designed to streamline trench profiling and slope work, each unit features a dual-cylinder tilt top that allows the bucket to rotate up to 45 degrees left and right, eliminating the need to reposition the machine.

Built for strength and finish control, these buckets are constructed with double-bottom shells, internal rib reinforcements (for wide-format models), and a double-radius, dual-taper profile for enhanced flow and fill efficiency. The double-beveled bolt-on edge is reversible, providing extended wear life and ease of maintenance. Ideal for grading contractors, utility crews, and landscapers needing precision without sacrificing durability.

Key Features

• Machine Compatibility: Designed for 7–10 ton mini excavators (14,000–20,000 lb).

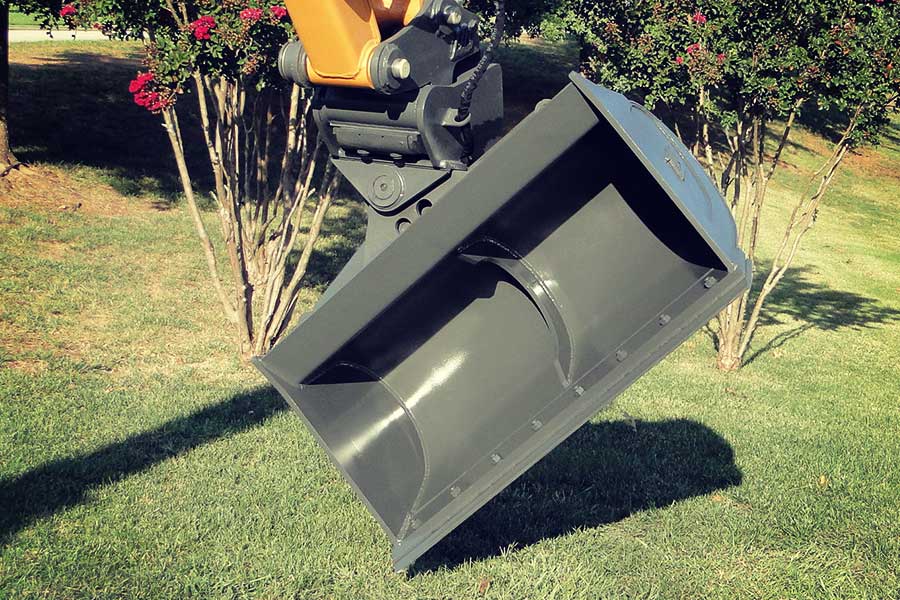

• Tilting Mechanism: Dual hydraulic cylinders allow 45° articulation left/right.
• Mount Style: OEM-style pin-on mounting configuration.

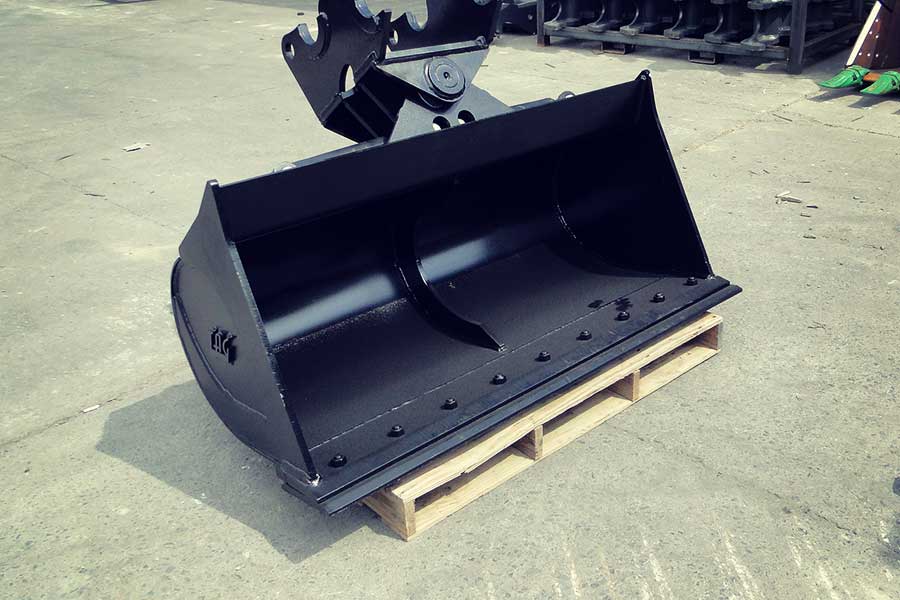

• Shell Design: Double-bottom construction resists heavy-duty wear, Internal rib reinforcements on wide widths improve torsional strength.
• Bucket Geometry: Double-radius and dual-taper enhances fill, shaping, and discharge.
• Cutting Edge: Reversible bolt-on edge with double bevel for extended edge life.
• Opening Design: Clean, smooth channel allows unobstructed material flow.
• Typical Applications: Finish grading, ditch shaping, slope control, trench cleanup.
• Ordering Note: Custom sizes available on request; lead times vary by configuration.


Detailed Specifications

Host Machine Compatibility
