Product Description
TAG Heavy Duty Recycling Grapple Buckets | Width 72"-120" | Capacity 1.00–8.00 yd | Machine Size 6-40 Tons | For Wheel Loaders
DESCRIPTION

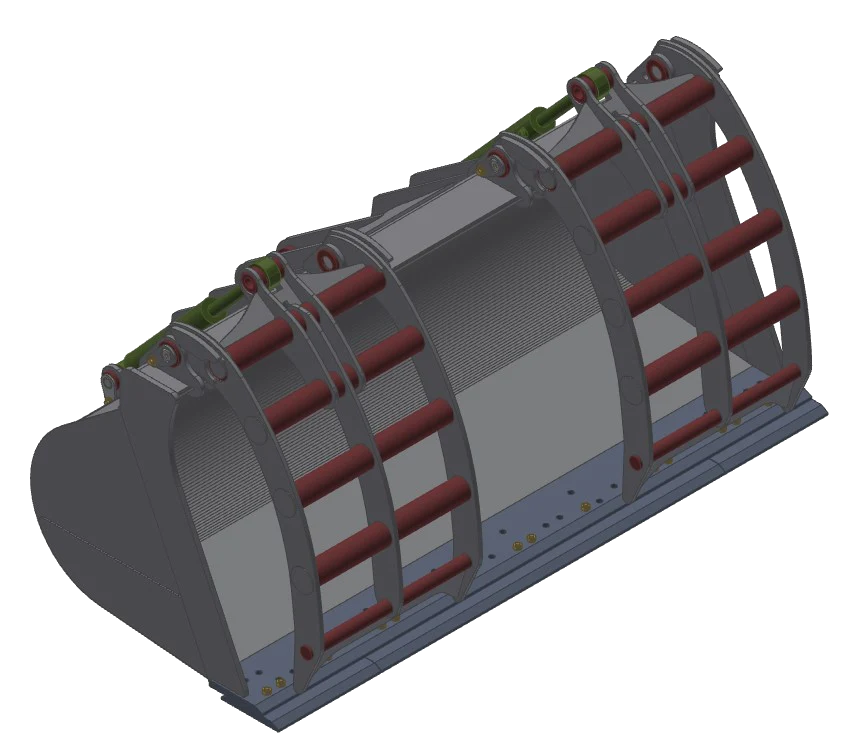

The TAG's Heavy Duty Recycling Grapple Buckets are engineered for rugged, continuous-duty operation in demanding waste transfer stations and recycling environments. Designed to load, compress, and maneuver high volumes of loose debris, these buckets feature robust ladder-style clamp arms, oversized hinge pins, and industrial-grade clamp stops for maximum material retention and cycle reliability.

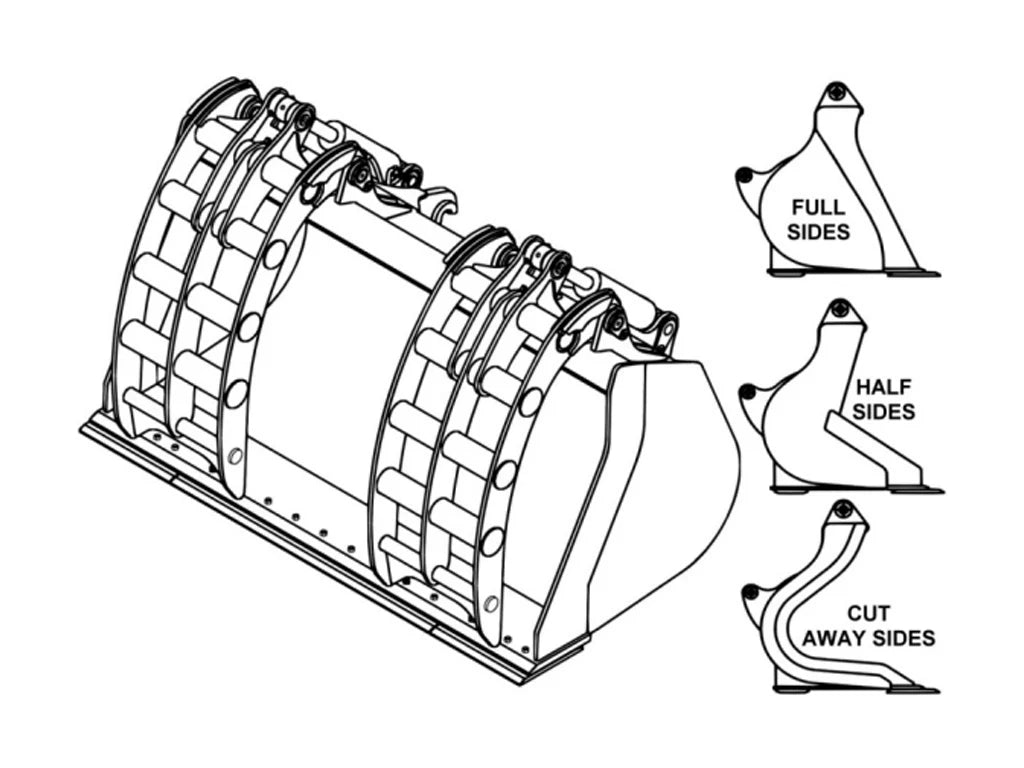

Available in multiple side wall profiles—full sides, half sides, and cut-away side walls—each bucket can be configured to match the material flow, visibility, and operator preference of the facility. Standard build includes a bolt-on cutting edge and rear wear pads, with optional rubber wear edges and pads for reduced surface impact. Requires a third-function hydraulic circuit for grapple clamp operation. Buckets can be mounted via Pin-On or Quick Coupler system.
Key Feature
- Heavy-Duty Construction for Recycling & Transfer Yards Ladder-style grapple arms, extra clamp stops, and reinforced hinges ensure durability and load control.
- Three Side Profile Options Choose full sides for containment, half sides for visibility, or cut-away sides for aggressive loading.
- Bolt-On Cutting Edge & Rear Wear Pads Reinforced ground contact zones extend longevity and reduce service intervals.
- Optional Rubber Edges & Pads Available Minimize impact against trailers, concrete, and sensitive surfaces.
- Third-Function Hydraulics Required Powers the clamp opening/closing during loader operation.
-
Mounting Versatility Available in Pin-On or Quick Coupler configuration for full fleet compatibility.
Detailed Specifications
| Capacity (yd³) | Estimated Weight (lbs) | Approx. Width (in) |
|---|---|---|
| 1.00 | 1,925 | 72″ (6 ft) |
| 1.50 | 2,245 | 78″ (6.5 ft) |
| 2.00 | 2,350 | 84″ (7 ft) |
| 2.50 | 2,810 | 90″ (7.5 ft) |
| 3.00 | 3,150 | 96″ (8 ft) |
| 3.50 | 3,365 | 102″ (8.5 ft) |
| 4.00 | 4,065 | 108″ (9 ft) |
| 4.50 | 4,735 | 108″ (9 ft) |
| 5.00 | 4,920 | 114″ (9.5 ft) |
| 5.50 | 5,455 | 114″ (9.5 ft) |
| 6.00 | 6,125 | 120″ (10 ft) |
| 6.50 | 6,670 | 120″ (10 ft) |
| 7.00 | 7,275 | 120″ (10 ft) |
| 7.50 | 7,700 | 120″ (10 ft) |
| 8.00 | 8,130 | 120″ (10 ft) |
