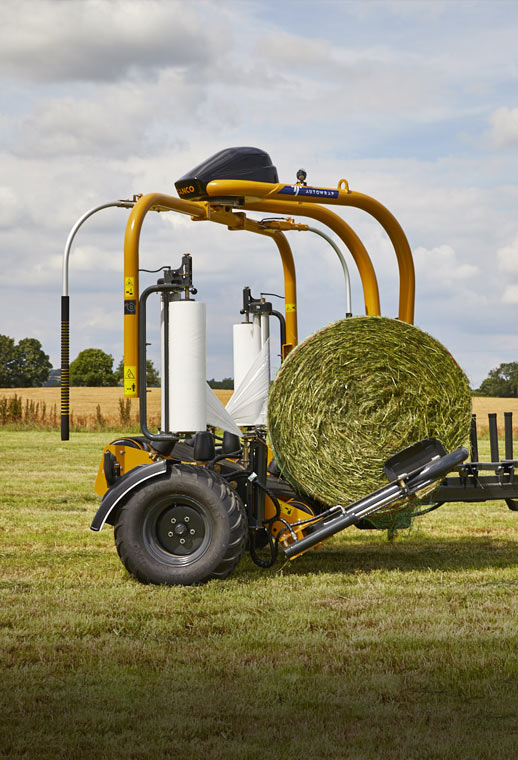

Tanco Round Bale Wrapper | Model D66-1400-V | Width 105" | 30-60 GPM | 40-60 HP | For Skid Steers, Tractors & Loaders
DESCRIPTION
The Tanco D66-1400-V 1400 Variwrap Round Bale Wrapper is the ultimate solution for high-output, precision bale wrapping. Designed with variable speed control and a unique split table, this advanced wrapper ensures efficient, stable operation while handling up to 110 bales per hour. Auto-load and auto-park features allow for seamless transitions from road to field operation, saving you time and reducing manual effort. The telescopic Cut & Start system offers an ultra-reliable film cut and start, while the robust construction handles wet and heavy bales with ease. With a focus on reducing ground compaction and ensuring a smooth wrapping process, the D66-1400-V is perfect for farmers and contractors who demand speed, consistency, and durability in their wrapping operations.
Key Features
- Efficient Auto-Load Mechanism: Automatically starts wrapping once bales are detected, speeding up workflow and reducing manual handling.
- Variable Speed Control: Allows fine-tuned adjustment of hydraulic functions for smoother operation and better control over wrapping speed.

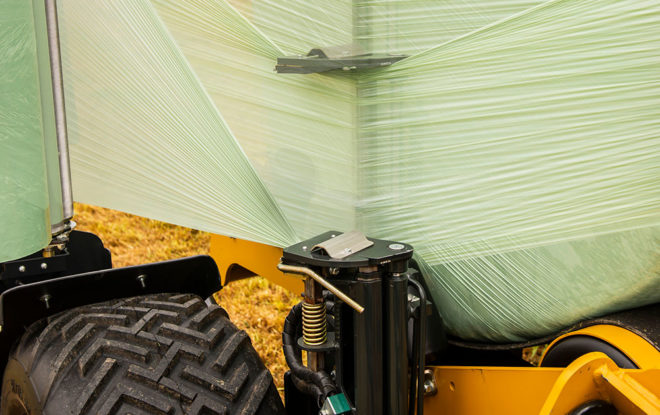

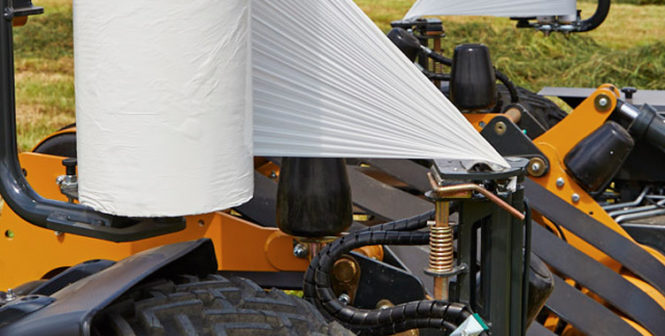

- Telescopic Cut & Start System: Extends three times its resting length, securely gathering plastic film before cutting for an ultra-reliable wrap.

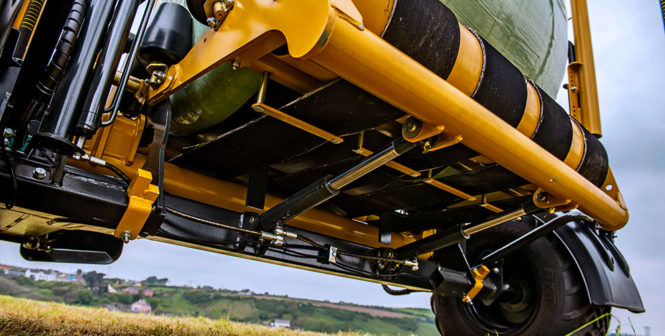

- Split Wrapping Table: Ensures smooth transition between bale loading and unloading while maintaining low ground pressure for added stability.
- Heavy-Duty Construction: Built to withstand the rigors of handling wet, heavy, and large bales without compromising on performance.

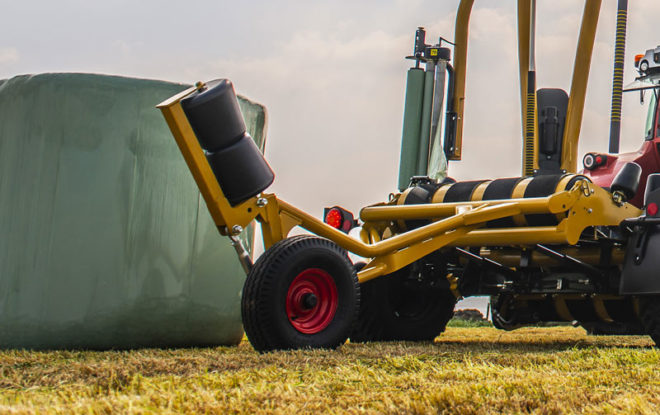

- End-Tip Kit Option: Allows bales to be placed on their flat end for improved bale protection and ease of off-loading.
- Fast & Reliable Performance: Wraps up to 110 bales per hour, making it an ideal choice for high-output applications.
- Optimized for Variable Conditions: Performs excellently on wet, heavy, and uneven bales, providing consistent results across varying conditions.
- Ergonomic and User-Friendly Controls: RDS Expert Controller and joystick-compatible for simplified machine operation during long, demanding shifts.

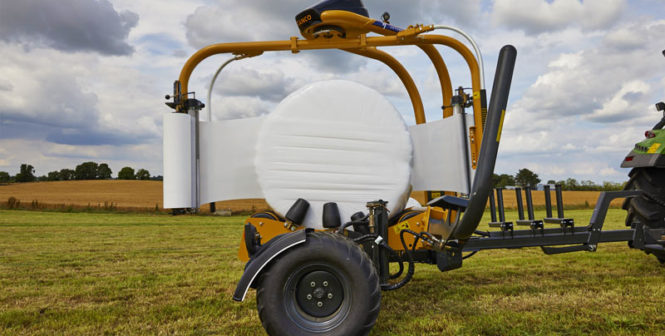

- Low Ground Pressure: Even weight distribution across wheels minimizes soil compaction, preserving field health while enhancing machine stability.
- Automatic Hydraulic Cut & Start: Safely cuts and starts film wrapping with no manual intervention, ensuring a quick and secure operation.
- Push Button Auto-Park & Unpark: Streamlines storage and setup, reducing downtime during machine transitions between tasks.
- Dual Stretch Film Dispenser: Offers built-in 55% and 70% stretch options for greater film control and durability.
- Adaptable to Multiple Film Types: Supports the option for 500mm film adapters, allowing for custom film usage.
- Robust Hydraulics: Designed for high-efficiency operation with a minimum hydraulic oil flow of 30 l/min, ensuring powerful performance.
- Customizable Extras: Choose from options like the Load Sensing Kit and Radio Remote Control to further enhance operational efficiency.
Detailed Specifications
| Specification | Tanco D66-1400-V |
|---|---|
| Model | D66-1400-V |
| Width | 8' 9" (2.73 meters) |
| Max Hydraulic Flow | 30-60 GPM |
| Horsepower Range | 40-60 HP |
| Bale Capacity | Up to 110 bales per hour |
| Transport Length | 12' 9" (3.94 meters) |
| Transport Height | 9' 6" (2.92 meters) |
| Weight | 2,910 lbs (1,320 kg) |
| Bale Dimensions (Max) | 4' x 5' (1.25m x 1.50m) |
| Max Bale Weight | 3,086 lbs (1,400 kg) |
| Minimum Oil Flow | 30 l/min (8 US GPM) |
| Maximum Oil Flow | 60 l/min (16 US GPM) |
| Minimum Oil Pressure | 180 bar (2,600 PSI) |
| Free Flow Return | Yes |
| Pre-Stretcher | Two 30" (750mm) pre-stretchers included |
