Product Description
Titan Attachments Offset Flail Ditch Bank Mower | Cutting Width 48"–78" | Hammer Blades | Up to 3" Mulching | Horsepower 20–90 HP | For Tractors
DESCRIPTION

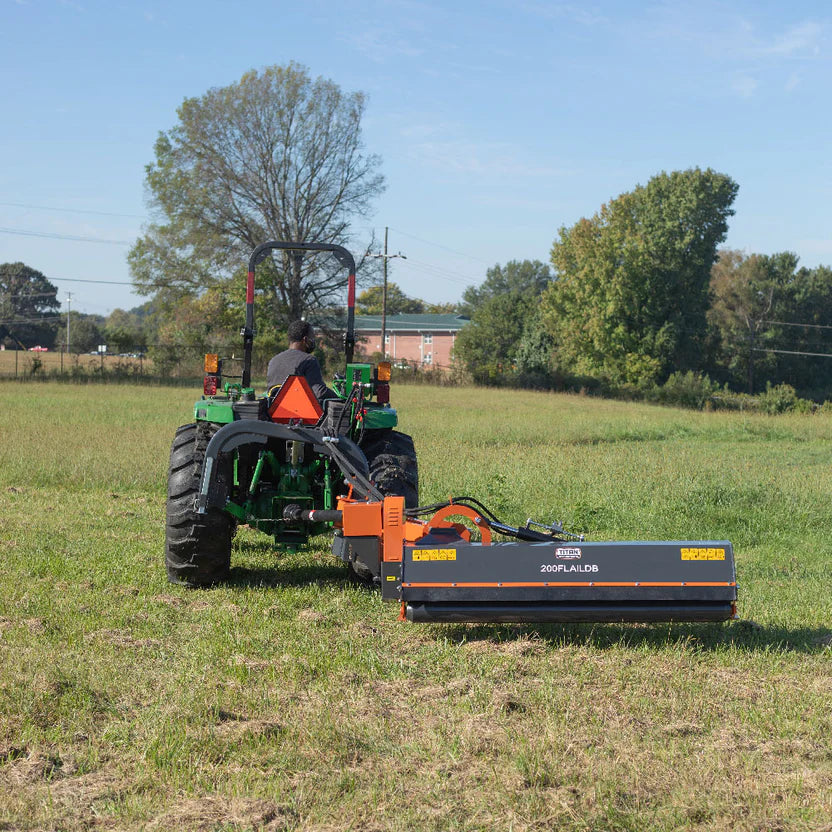

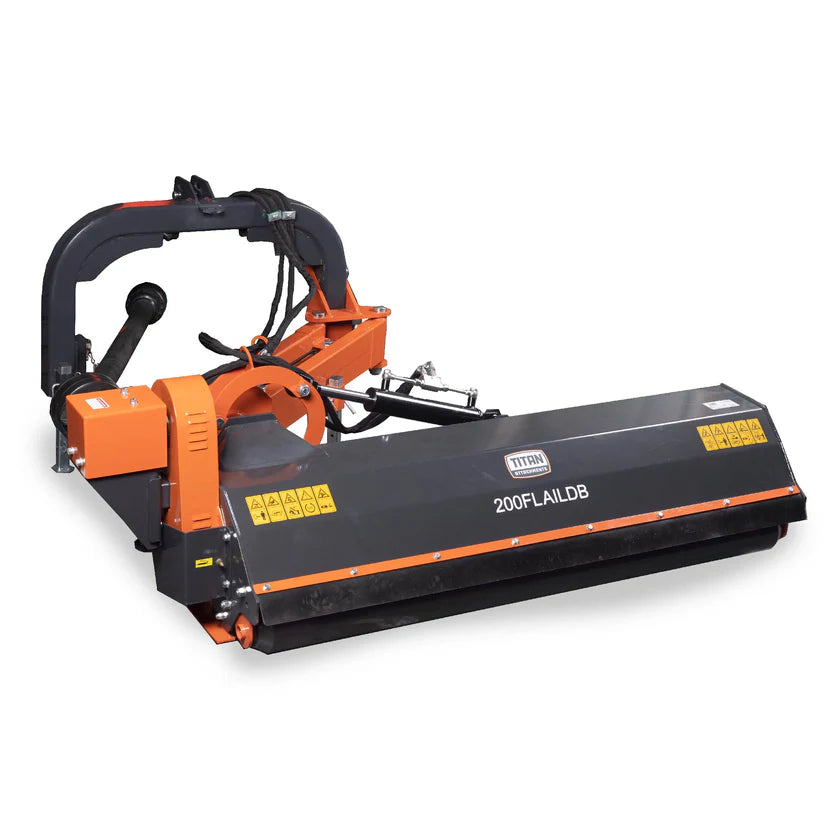

Clear ditches, embankments, and field edges with precision using the Offset Flail Ditch Bank Mower Series, available in 48" to 78" cutting widths. These rear-mounted mowers connect to Category 1 or 2 tractors via a 3-point hitch and are powered by a 540 RPM PTO shaft with a shear bolt for overload protection. Each mower features replaceable hammer-style flail blades that mulch grass, brush, and saplings up to 3" thick, dispersing debris as nutrient-rich mulch. The offset hitch allows safe operation along slopes and road edges, while the adjustable rear roller maintains consistent cutting height across uneven terrain. The 48", 57", and 65" models pivot 65° up/down and rotate 90° vertically, ideal for Cat 1 tractors. The 78" model, built for Cat 2 tractors, pivots 90° up and 49° down for steep slope work. With forged blades, sealed rotor bearings, and safety chains, these mowers are built for long-term durability and clean results.
Key Features
- Cutting Widths: 48", 57", 65", 78" Choose the size that fits your tractor and terrain.

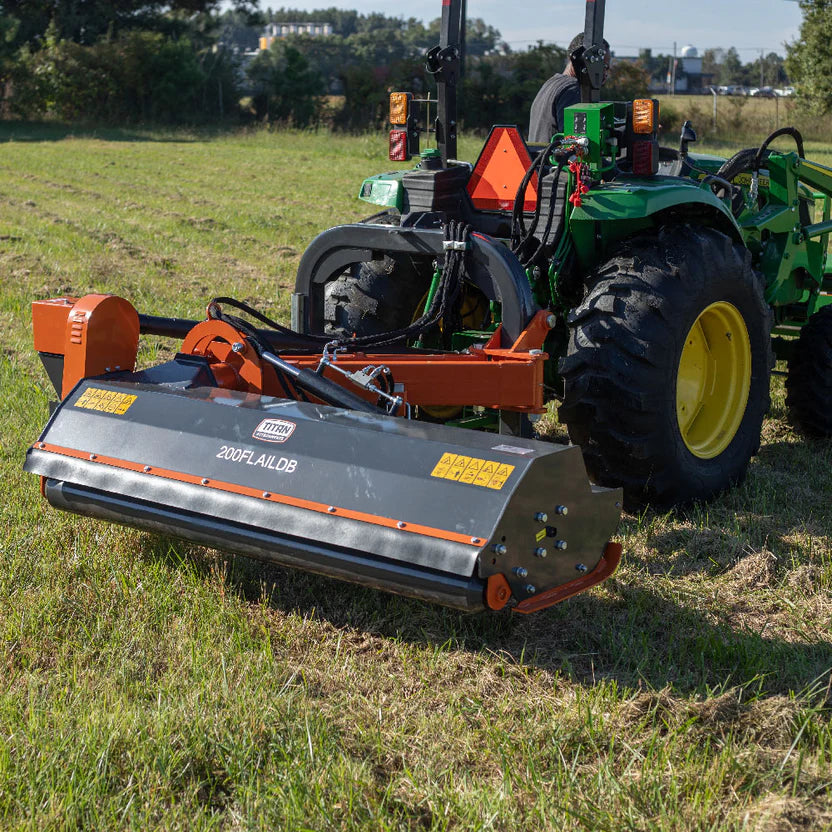

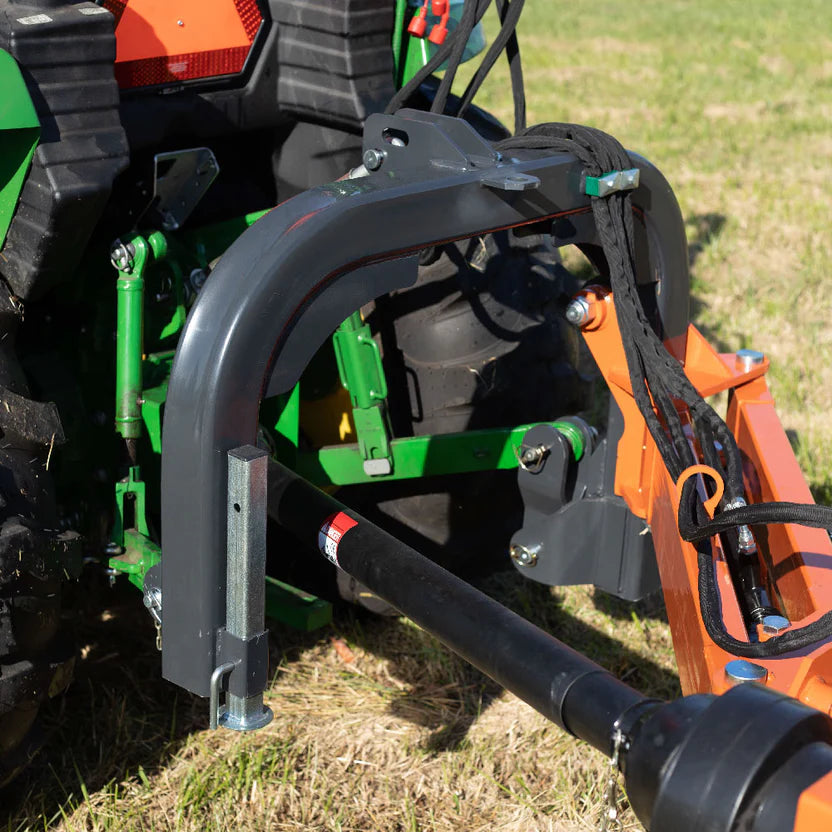

- Offset Hitch Design Keeps tractor wheels safely grounded while mowing ditches and slopes.

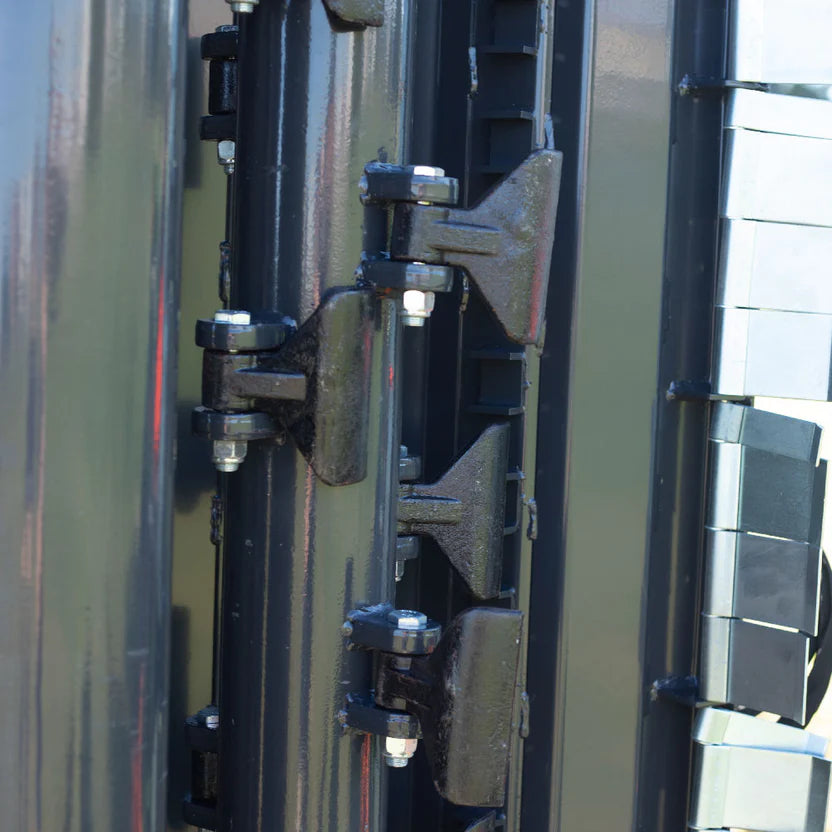

- Hammer-Style Flail Blades Mulch material up to 3" diameter; forged and replaceable.

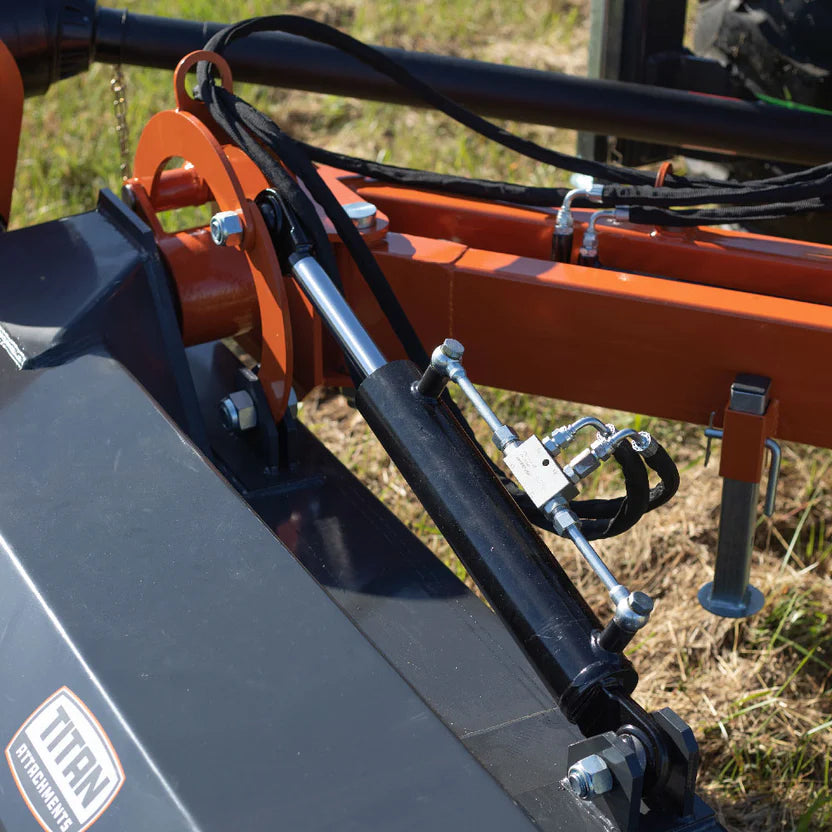

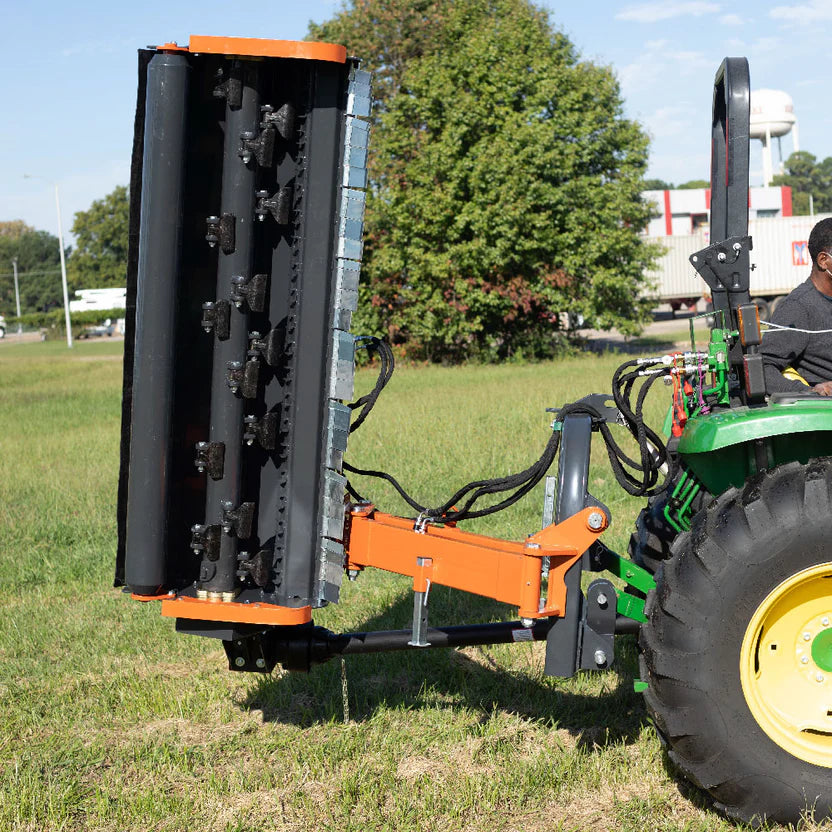

- Pivot & Vertical Rotation 65° up/down pivot and 90° vertical transport (Cat 1 models); 90° up / 49° down (Cat 2 model).

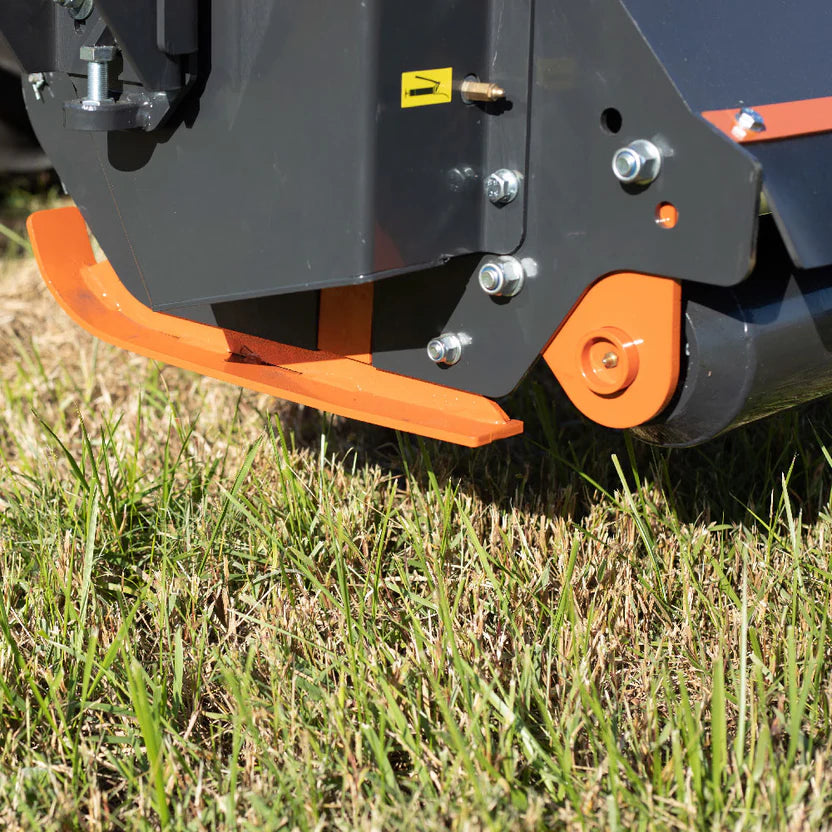

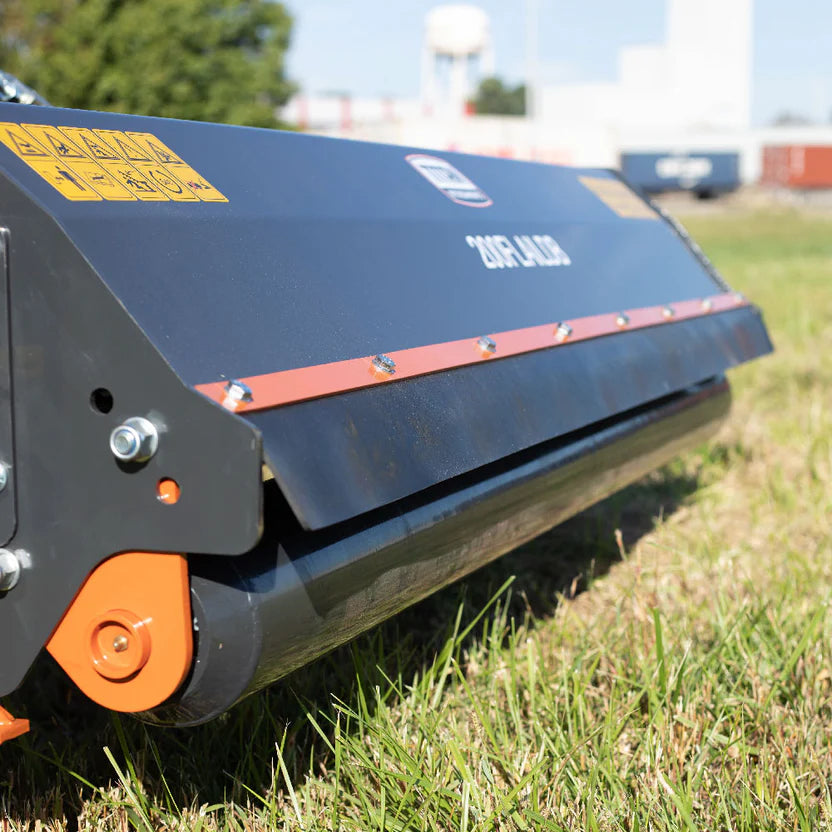

- Adjustable Rear Roller Maintains consistent cutting height across uneven terrain.
- PTO Driven (540 RPM) Powered by tractor’s PTO with shear bolt protection.
- Sealed Rotor Bearings Tapered roller bearings for long-lasting performance.
-

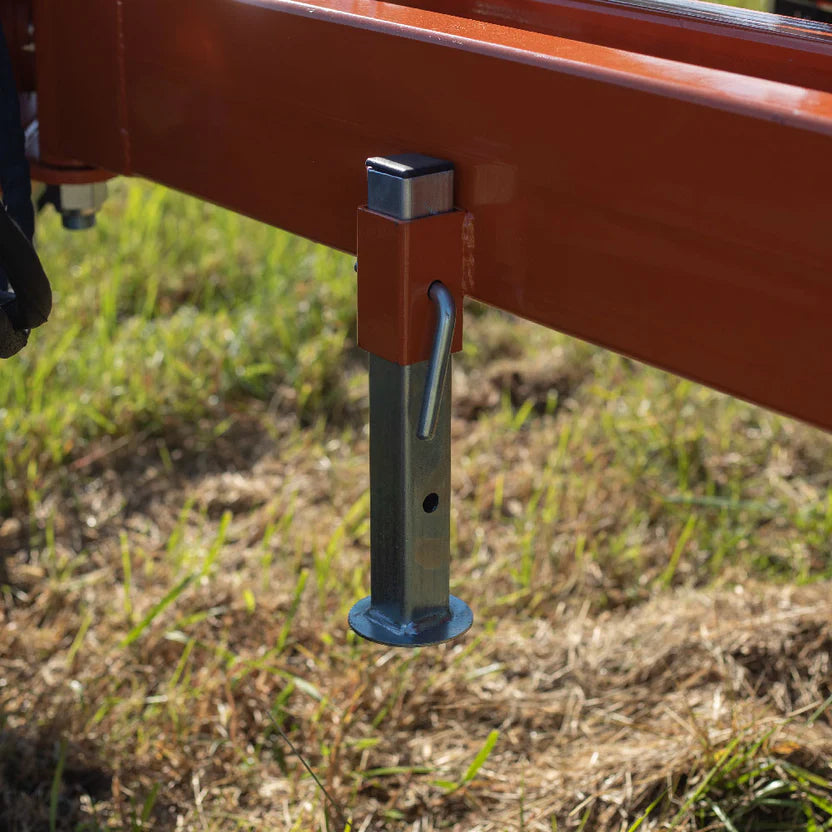

Safety Chains & Kickstand Added protection and easy storage.
Detailed Specifications
Cat 1 Models (48" & 57")
| Specification | 48" Model | 57" Model |
|---|---|---|
| Cutting Width | 48 in | 57 in |
| Overall Width | 57 in | 66 in |
| Side Plate Thickness | 0.25 in | 0.25 in |
| Roller Diameter | 4 in | 4 in |
| Rotor Shaft Diameter | 4.5 in | 4.5 in |
| Blade Swing | 14 in | 14 in |
| Pivot Angle | 65° up/down | 65° up/down |
| Vertical Transport | 90° | 90° |
| Number of Belts | 3 | 3 |
| PTO Speed | 540 RPM | 540 RPM |
| Power Required | 20–50 HP | 25–50 HP |
| Minimum Power | 20 HP | 25 HP |
| Drive Type | PTO | PTO |
| Hitch Category | Cat 1 | Cat 1 |
| Product Weight | 551 lb | 643 lb |
Cat 1 & Cat 2 Models (65" & 78")

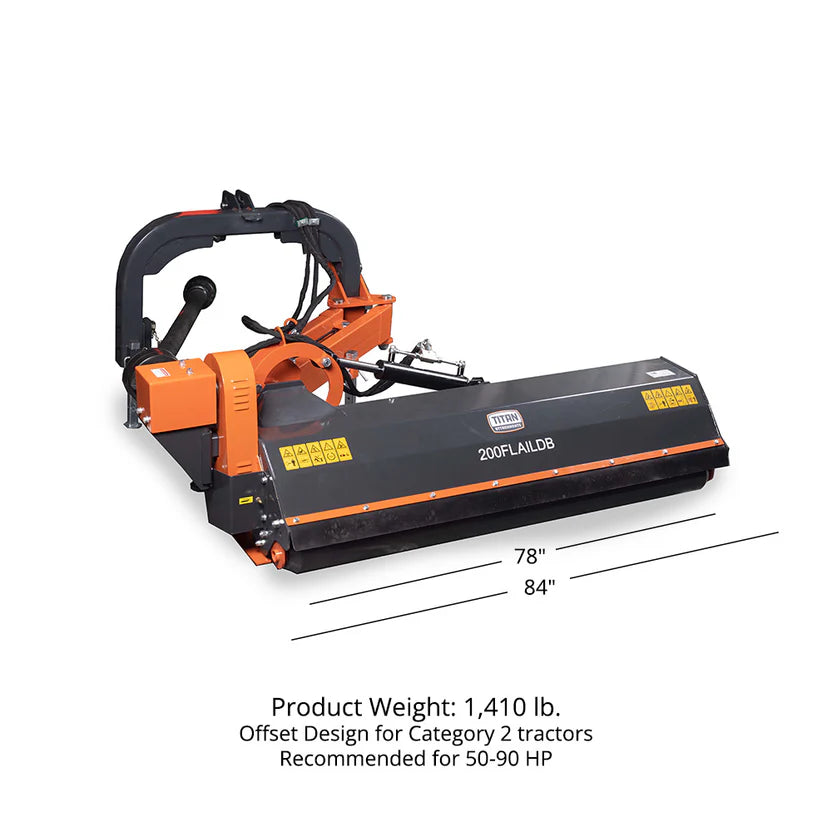

| Specification | 65" Model | 78" Model |
|---|---|---|
| Cutting Width | 65 in | 78 in |
| Overall Width | 74.5 in | 84 in |
| Side Plate Thickness | 0.25 in | 0.31 in |
| Roller Diameter | 4 in | 6 in |
| Rotor Shaft Diameter | 4.5 in | 5 in |
| Blade Swing | 14 in | 15 in |
| Pivot Angle | 65° up/down | 90° up / 49° down |
| Vertical Transport | 90° | — |
| Number of Belts | 3 | 4 |
| PTO Speed | 540 RPM | 540 RPM |
| Power Required | 30–50 HP | 50–90 HP |
| Minimum Power | 30 HP | 50 HP |
| Drive Type | PTO | PTO |
| Hitch Category | Cat 1 | Cat 2 |
| Product Weight | 701 lb | 1,410 lb |
