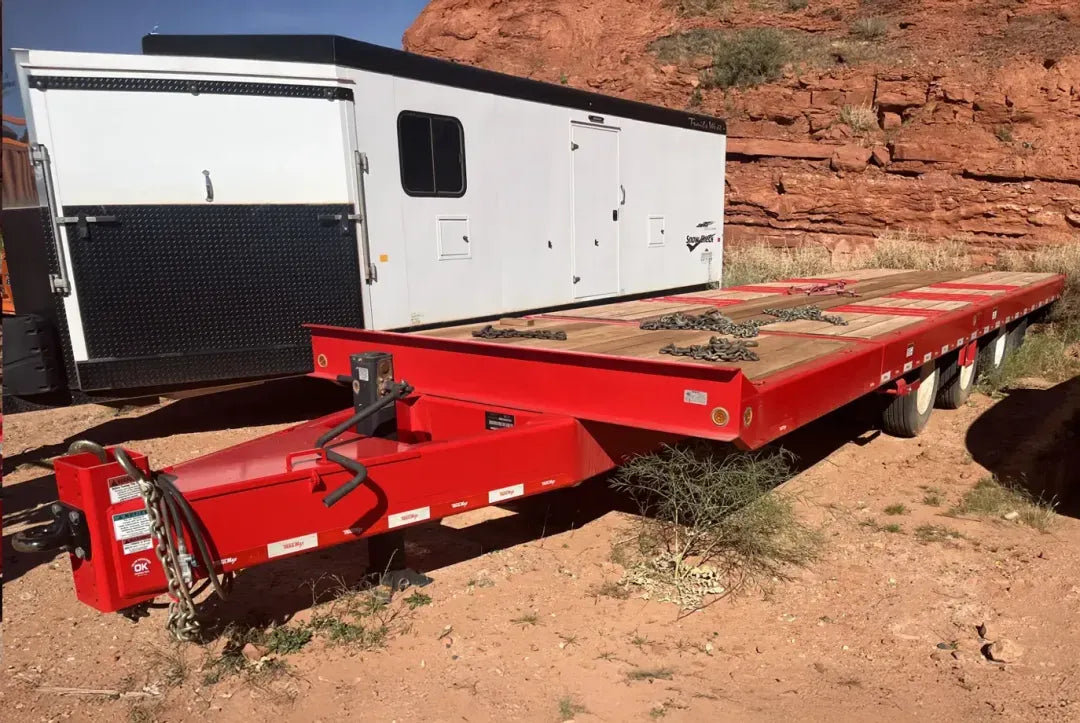

Valor | 60TS Tag Trailer | 40' Length | 60,000 lbs Capacity | 102" Width | USED | For Heavy-Duty Equipment & Industrial Hauling
Valor | 60TS Tag Trailer | 40' Length | 60,000 lbs Capacity | 102" Width | USED | For Heavy-Duty Equipment & Industrial Hauling
Regular price
$66,000.00
Regular price
Sale price
$66,000.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Valor | 60TS Tag Trailer | 40' Length | 60,000 lbs Capacity | 102" Width | USED | For Heavy-Duty Equipment & Industrial Hauling
Ripping It is Partnered with Western Truck to provide the best pricing and service for Valor.
DESCRIPTION
The 2022 Valor 60TS Tag Trailer is a rugged, high-performance transport solution, engineered to maximize durability, efficiency, and load security in demanding hauling applications. Featuring a tubular subframe, reinforced crossmembers, and heavy-duty suspension, this trailer ensures superior stability for oversized freight, construction equipment, and industrial materials.
With a GVWR of 72,940 lbs and a 60,000 lb distributed load capacity, this trailer is built for reliability, making it ideal for large-scale transport operations. The integrated safety features, including grade 70 tensile strength chains, over-center deck latches, and multiple securement points, provide peace of mind when hauling even the toughest loads.
Designed with power requirements (kW/HP optimized) for seamless integration into hauling systems, the Valor 60TS Tag Trailer is equipped with Hutch H-9700 tri-axle suspension, full air brakes with ABS, and steel outboard brake drums, ensuring maximum control, safety, and performance. Whether moving heavy machinery or industrial freight, this trailer is built for high-impact hauling.
Key Features
- USED & Reliable: Tested durability for heavy-duty performance.
- Heavy-Duty Tubular Subframe & Reinforced Structure: High-tensile perimeter rails, 5" tubular crossmembers on 12” and 16” centers for enhanced strength.
- Optimized Power Requirements: Designed for efficient load distribution (kW/HP optimized) ensuring seamless hauling operations.
- Premium Suspension & Axle Configuration: Hutch H-9700 suspension system, three 25,000 lb axles, and fabricated hangers for stability. Axle alignment capability ensures smooth transport performance.
- Industry-Leading Load Securement & Safety Features: (18) two-way chain slot/stake pockets, (14) 1" diameter D-rings for optimal cargo control. Over-center slider shaft deck latch with tension adjuster, lever, and safety pin for extra security.
- High-Performance Braking & Wheels: Full air brakes with Maxi Spring system, ABS-equipped automatic slack adjusters for precision stopping power. Steel uni-mount wheels with radial load range J tires for long-haul reliability.
- DOT-Approved Lighting & Finish: Phillips-sealed electrical system, rubber-isolated LED lighting, and conspicuity tape for enhanced visibility.
- Premium Decking & Storage Features: 2" oak outer deck with No.1 grade fir center for reinforced stability. Integrated lockable toolbox and open tool tray for secure equipment storage.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | 2022 Valor 60TS Tag Trailer |
| GVWR | 72,940 lbs |
| Capacity (Distributed) | 60,000 lbs |
| Base Weight | 12,940 lbs |
| Frame Construction | Tubular Subframe with High Tensile Perimeter Rails |
| Crossmembers | 5" Tubular Crossmembers on 12" and 16" Centers |

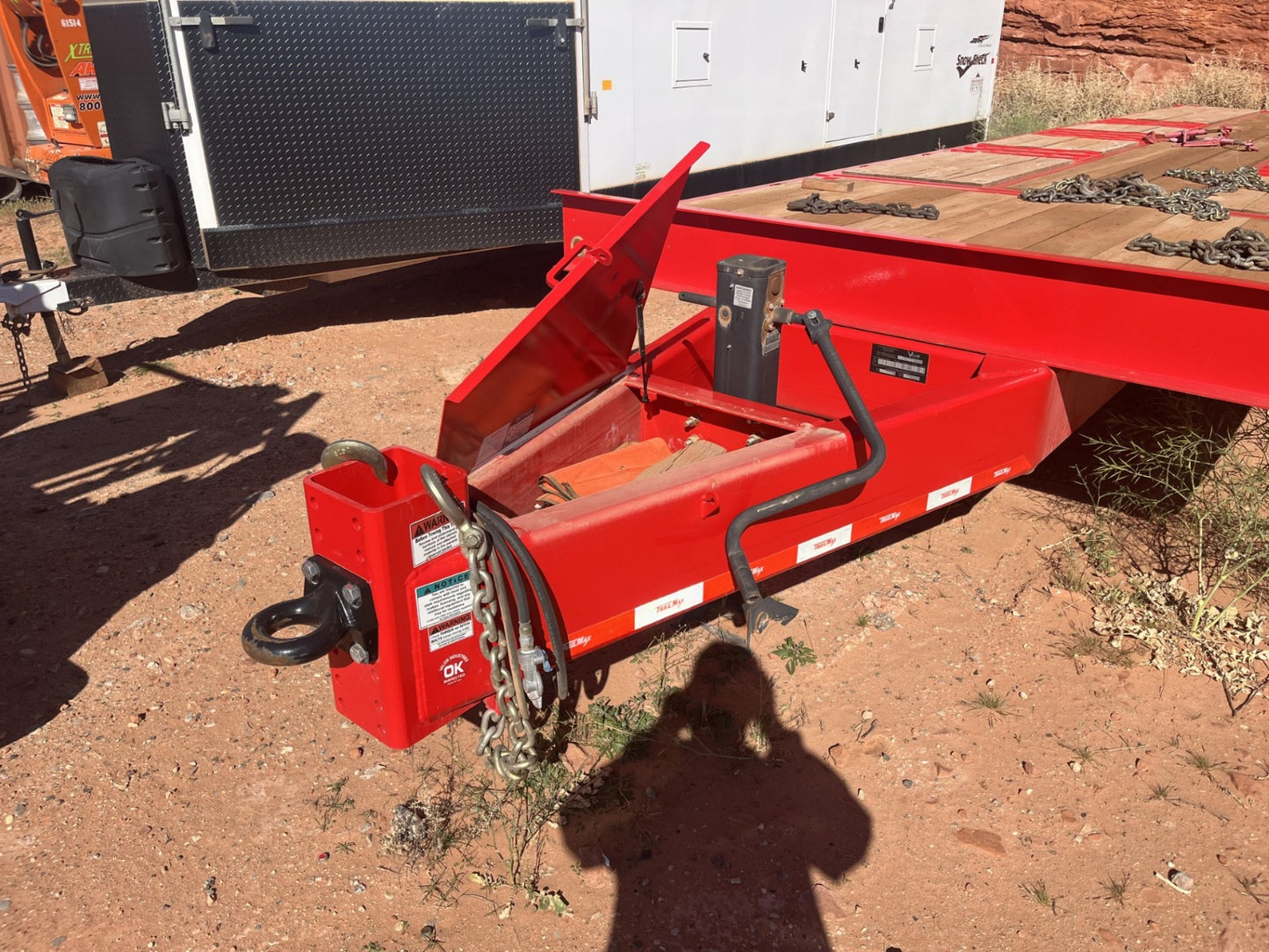

| Hitch | 3" ID Lunette Eye, 90,000 lb Capacity, Adjustable Height |
| Landing Gear | 35,000 lb Lift Capacity with Drop Foot |
| Safety Chains | (2) 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches |
| Deck Latch | Over-Center Slider Shaft with Tension Adjuster, Lever, and Safety Pin |
| Cushion Cylinder | 4" x 16" with Internal Metered Flow for Smooth Loading & Unloading |
| Load Securement | (18) 2-Way Chain Slot/Stake Pockets, (14) 1" Diameter D-Rings |
| Tool Compartment | Combination Open Tool Tray and Lockable Toolbox |
| Axles | (3) 25,000 lb Capacity |
| Hubs | 8 on 275mm Bolt Circle with M22 Lug Nuts |
| Brakes | 12-1/4" x 7-1/2" S-CAM Full Air Brakes with Maxi Spring Brakes on Both Axles |
| Brake System | Automatic Slack Adjusters, 2S/2M ABS |
| Drums | Steel Outboard Type |
| Suspension | Hutch H-9700 Tri-Axle with Fabricated Hangers and Axle Alignment Capability |
| Wheels | Steel 17.5" x 6.75" Uni-Mount 8 on 275mm Bolt Pattern |
| Tires | ST 235/75R 17.5 Radial Load Range J |
| Surface Preparation | Sandblasted |
| Finish Coating | 1-Stage Zinc-Based Paint, VIPER RED |
| Electrical System | Phillips Sealed System with Rubber Isolated LED Lighting |
| Deck Material | 2" Oak on Outer Deck Areas, 2" Rough Surface Fir on Center Deck |
| Decking Width | 102" |
