Product Description
Kasco The Valu-Drill No-Till Drill | Models 48/72/96 | 48"-96" Working Width | 25-55HP | For Tractor
Included Options:
- Seed Tube Plugs - $35
- Seed Hopper Dividers - $85
DESCRIPTION

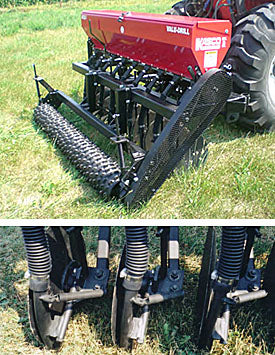

For those who want a simple, rugged drill with extra value, the Valu-Drill is the perfect choice. This drill is constructed of a heavy duty welded frame with 14” openers and oversized bearings. It is close-coupled, so it is easier to lift and can be used on smaller tractors. It works well in either no-till or worked soil. The Valu-Drill is available in a 4’, 6’, or 8’ wide machine.
- Uses the Same Proven Metering System as our Other Drills
- Heavy 3x3 Tube Welded Frame
- 14” Heavy Duty Openers with Oversized Bearings
- Openers and Cultipackers are Spring-Loaded
- Close-Coupled so It’s Easier to Lift
- Simple & Easy Depth Control
- Can be used in either NoTill or Tilled Soil
Key Features
- Reliable Metering System: Ensures precise seed placement across various seed types.
- Spring-Loaded Openers: Maintains consistent contact for optimal seeding.
- Compact & Easy-to-Lift: Close-coupled design for compatibility with smaller tractors.
- Adjustable Depth Control: Allows quick in-field adjustments for different soil conditions.
- Built to Last: Heavy-duty frame and oversized bearings for prolonged use.
Detailed Specifications
| Model | Working Width | HP Requirement | Weight | Row Spacing | Number of Rows |
|---|---|---|---|---|---|
| KVD-48 | 48" | 25 HP | 525 lbs | 7.5" | 6 |
| KVD-72 | 72" | 45 HP | 1,030 lbs | 7.5" | 9 |
| KVD-96 | 96" | 55 HP | 1,375 lbs | 7.5" | 12 |
| Part #: | KVD-48 |
| Mfg: | KASCO MANUFACTURING CO. INC. |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | DRILLS AND SEEDERS |
| Industry: | AGRICULTURAL |
| Machine Size: | 25HP |
| Attachment Size: | 48" WORKING WIDTH - 525lbs |
| Part #: | KVD-72 |
| Mfg: | KASCO MANUFACTURING CO. INC. |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | DRILLS AND SEEDERS |
| Industry: | AGRICULTURAL |
| Machine Size: | 45HP |
| Attachment Size: | 72" WORKING WIDTH - 1030lbs |
| Part #: | KVD-96 |
| Mfg: | KASCO MANUFACTURING CO. INC. |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | DRILLS AND SEEDERS |
| Industry: | AGRICULTURAL |
| Machine Size: | 55HP |
| Attachment Size: | 96" WORKING WIDTH - 1,375lbs |
Seed Chart - Valu Drill
| CROP |
SEEDING RATE (lbs /acre) |
SEED DROP (SETTING) |
| Alfalfa |
15-20 |
3/16" |
| Buckwheat | 45-60 | 7/16" |
| Canola | 10-12 | 1/8" |
| Clover, Sweet | 10-13 | 3/16" |
| Cowpeas | 25-40 | 3/8" |
| Fescue | 150-180 | 7/8" |
| Landscape Mixture | 120 - 150 | 7/8" |
| Millet, Japanese | 25-40 | 3/8" |
| Milo (Grain Sorghum) | 10-25 | 3/16" |
| Oats | 65-95 | 11/16" |
| Orchardgrass | 10-12 | 3/8" |
| Partridge Peas | 10-15 | 1/8" |
| Peas, Austrian Winter | 90-120 | 11/16" |
| Ryegrass, Annual | 30-35 | ½" |
| Ryegrass, Preannual | 125 - 160 | 13/16" |
| Turnips | 3-4 | 1/16" |
| Wheat | 120-180 | 3/4" |
| Fescue | 150-180 | 7/8" |
| Landscape Mixture | 120-150 | 7/8" |
| Preannual Rye Grass |
125-160 |
13/16" |
NOTE: NOT FOR USE WITH WARM SEASON GRASSES. NOTE: This seeding chart is to be used as a guide only. Desired seeding rate may vary according to application and geographic location.
