Woody Equipment 16′ Forestry Trailer Model 16-86 HV with Log Loader Model 170-HDT | Pull Type | For Trucks, Skidders & Tractor
Woody Equipment 16′ Forestry Trailer Model 16-86 HV with Log Loader Model 170-HDT | Pull Type | For Trucks, Skidders & Tractor
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Woody Equipment 16′ Forestry Trailer Model 16-86 HV with Log Loader Model 170-HDT | Pull Type | For Trucks, Skidders & Tractors
Description

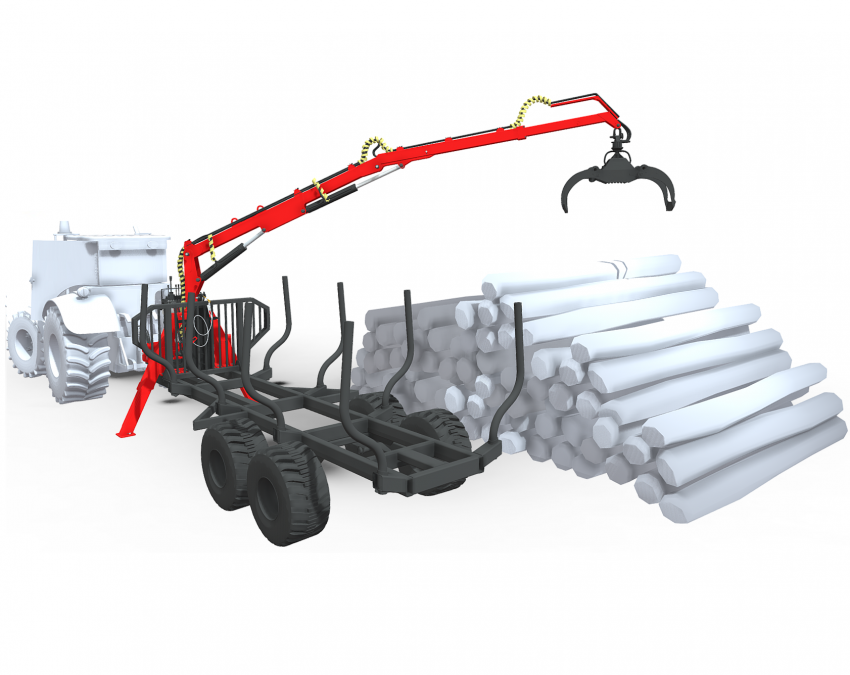

The Woody Equipment 16′ Forestry Trailer Model 16-86 HV paired with the Log Loader Model 170-HDT is a robust and versatile solution designed for efficient forestry operations. This pull-type trailer is compatible with trucks, skidders, and tractors, making it highly adaptable for various forestry tasks.
This trailer and log loader combination is ideal for forestry professionals looking for reliable and efficient equipment to handle their logging needs. The 170-HDT Telescopic Log Loader, equipped with a 17’ boom and a telescopic hydraulic boom extension, makes it suitable for demanding forestry tasks, providing excellent lift capacity and reach
Key Features
- Heavy-Duty Construction: Built to withstand tough forestry conditions, ensuring durability and longevity.
- 16-Foot Trailer: Provides ample space for transporting logs and other materials.
- Log Loader 170-HDT: Equipped with a powerful hydraulic log loader, making it easy to lift and move heavy logs.
- Compatibility: Designed to be used with trucks, skidders, and tractors, enhancing its versatility and ease of use.
-
Safety Features: Includes various safety mechanisms to ensure secure and efficient operation.
This trailer and log loader combination is ideal for forestry operations, offering a balance of durability, capacity, and versatility.
Note: Each trailer model is interchangeable with each loader model.
Detailed Specifications
Forestry Trailer
| Category | Details |
|---|---|
| Compatible with Log Loaders | Log Loader 150 HD, Log Loader 170 HD, Log Loader 130 HD |
| DIMENSIONS | |
| Load Length | 187’’ (15’ 6’') |
| Overall Length | 260’’ (21’ 7’') |
| Overall Width | 86’’ |
| Gross Trailer Weight | 3372 lb |
| CAPACITY | |
| Axle Capacity | 8000 lb / each |
| Trailer Tonnage | 8 Tons / 16000 lb |
| Volume | 383 cubic feet |
| Surface | 24.4 square feet |
| Surface Wood Cords | 0.76 Wood Cords (8’ Large X 4’ High) |
| CHARACTERISTICS | |
| Protective Grid | Inclusive |
| Number of Posts | 8 |
| Tires | 400-60-15.5 |
| OPTION | |
| 6000 lb Winch | 58-007 |
| Tires | 400-60-15.5<br>385-65-22.5 |
| Articulated Drawbar Double Cylinder | 59-076-05 |
Log Loader
| Category | 170-HDT |
|---|---|
| RECOMMENDED VEHICLE | |
| Tractors | 70 hp and more |
| Boom Length | 17’ |
| 36” Telescopic Boom on Teflon Strip | Standard on HDT model |
| Boom Rotation Swing | 300° |
| Loader Column Height | 75" |
| Lifting Capacity at Maximum Reach | 1400 lb. / 1300 lb. |
| Lifting Capacity at Mid Range | 2900 lb. / 2800 lb. |
| Recommended Flow | 4 - 8 gpm |
| Stabilizers | Telescopic |
| Grapple Open | 52" |
| Grapple Close | 3" |
| Grapple Rotation (Continuous) | 360° |
| Rotator Maximum Capacity | 3000 kg. |
| Total Weight (Without Trailer) | 2250 lb. / 2350 lb. |
| LOADER OPTION | |
| Hydraulic Winch | 6000 lb. |
| Power Unit (Honda) | 9 hp or 13 hp |
| Work Station | Available |
| Bucket | 14" or 18" |
