Product Description
Worksaver | Center Mount Post Driver | Model HPD-16 Series | Post Size Up to 11" x 10' | Manual & Hydraulic | Horsepower 45-65 HP | For Tractors
DESCRIPTION
The WORKSAVER FENCING POST DRIVER SERIES is your ultimate solution for fast, efficient, and precise post installation. Whether you're working with manual or hydraulic adjustment models, these post drivers offer unmatched performance to tackle all your fencing needs. From the HPD-22Q Manual Post Driver with an impact force of 80,000 lbs, to the high-powered HPD-26Q SHC Hydraulic Post Driver with a staggering 110,000 lbs of impact, this series delivers the versatility and durability you need to get the job done.
These center mount post drivers are compatible with Category I/II 3-point hitches, making them an excellent addition to most tractor setups. With options for both manual adjustment and hydraulic adjustment, you can choose the level of control you prefer. Each model is designed to deliver precise post placement, whether you’re driving small posts or heavy-duty, larger posts.
The WORKSAVER FENCING POST DRIVER SERIES is engineered for efficiency, safety, and long-lasting durability, ensuring that you spend less time worrying about equipment and more time getting the job done.
Key Features
- Manual & Hydraulic Adjustment Options: Choose from manual or hydraulic adjustment models to suit your workflow.
- High Impact Force: Ranges from 32,000 lbs to 110,000 lbs of impact, giving you the power to handle even the toughest posts.
- Post Size Compatibility: Drive posts from 5" to 11" in diameter, making it ideal for a wide range of fencing projects.
- Stabilizer Legs & Bubble Level: Ensures stability and ease of positioning for accurate and controlled post driving.
- Tilt Adjustment: Front/rear tilt of 10-17° and left/right tilt of 17-20° for precise alignment, regardless of terrain.
- Compatible with Category I/II 3-Point Hitches: Designed to fit most tractor models for seamless integration.
- Durable Construction: Built with high-quality materials to withstand tough agricultural and construction environments.
- Efficient Hydraulic Requirements: Hydraulic models require a minimum of 3-4 GPM, ensuring optimal hydraulic performance.
Detailed Specifications
| Feature |
HPD-22Q Manual Post Driver |
HPD-22Q SHC Hydraulic Post Driver |
HPD-26Q SHC Hydraulic Post Driver |
|---|---|---|---|
| Brand | WORKSAVER INC. | WORKSAVER INC. | WORKSAVER INC. |
| Model | HPD-22Q | HPD-22Q SHC | HPD-26Q SHC |
| Category | Tractor Attachment | Tractor Attachment | Tractor Attachment |
| Adjustment Type | Manual | Hydraulic | Hydraulic |
| Post Size Compatibility | 8" x 8' | 8" x 8' | 11" x 10' |
| Maximum Impact Force | 32,000 lbs at full stroke | 32,000 lbs at full stroke | 32,000 lbs at full stroke |
| Hydraulic Requirements | N/A | Hydraulic Flow Required | Hydraulic Flow Required |
| Stabilizer Legs | Yes | Yes | Yes |
| Tilt Adjustment | 10° Front/Rear, 17° Left/Right | 10° Front/Rear, 17° Left/Right | 17° Front/Rear, 20° Left/Right |
| Tractor Compatibility | Category I/II 3-Point Hitch | Category I/II 3-Point Hitch | Category II 3-Point Hitch |
| Weight | 600 lbs | 875 lbs | 875 lbs |
| Horsepower Range | 45-65 HP | 45-65 HP | 45-65 HP |
| Post Hugger Included | Yes | Yes | Yes |
| Feature |

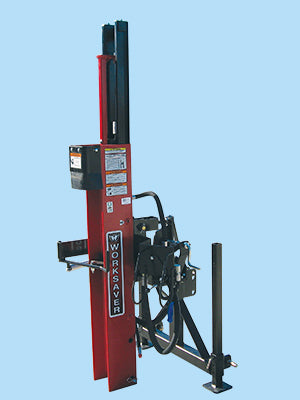

HPD-16 Manual Post Driver |
HPD-16 SHC Hydraulic Post Driver |
|---|---|---|
| Brand | WORKSAVER FENCING | WORKSAVER FENCING |
| Model | HPD-16 SHC | HPD-16 |
| Category | Post Driver | Post Driver |
| Adjustment Type | Hydraulic | Manual |
| Post Size Compatibility | 6" x 9' | 5" x 9' |
| Maximum Impact Force | 32,000 lbs at full stroke | 32,000 lbs at full stroke |
| Hydraulic Requirements | 3-4 GPM, auxiliary valve | 3-4 GPM, auxiliary valve |
| Stabilizer Legs | Yes | Yes |
| Tilt Adjustment | 17° Front/Rear, 20° Left/Right | 10° Front/Rear, 17° Left/Right |
| Tractor Compatibility | Category I/II 3-Point Hitch | Category I/II 3-Point Hitch |
| Weight | 875 lbs | 600 lbs |
| Horsepower Range | 45-65 HP | 45-65 HP |
| Post Hugger Included | Yes | Yes |
Manuals & Documents
OPERATION MANUAL HPD22Q
PARTS MANUAL HPD22Q
BROCHURE POST DRIVERS
OPERATION MANUAL HPD22SHC
PARTS MANUAL HPD20SHC
BROCHURE POST DRIVERS
OPERATION MANUAL HPD26
PARTS MANUAL HPD26SHC
BROCHURE POST DRIVERS
OPERATION MANUAL HPD16
PARTS MANUAL HPD16
BROCHURE POST DRIVERS
OPERATION MANUAL HPD16SHC
PARTS MANUAL HPD16SHC
BROCHURE POST DRIVERS
