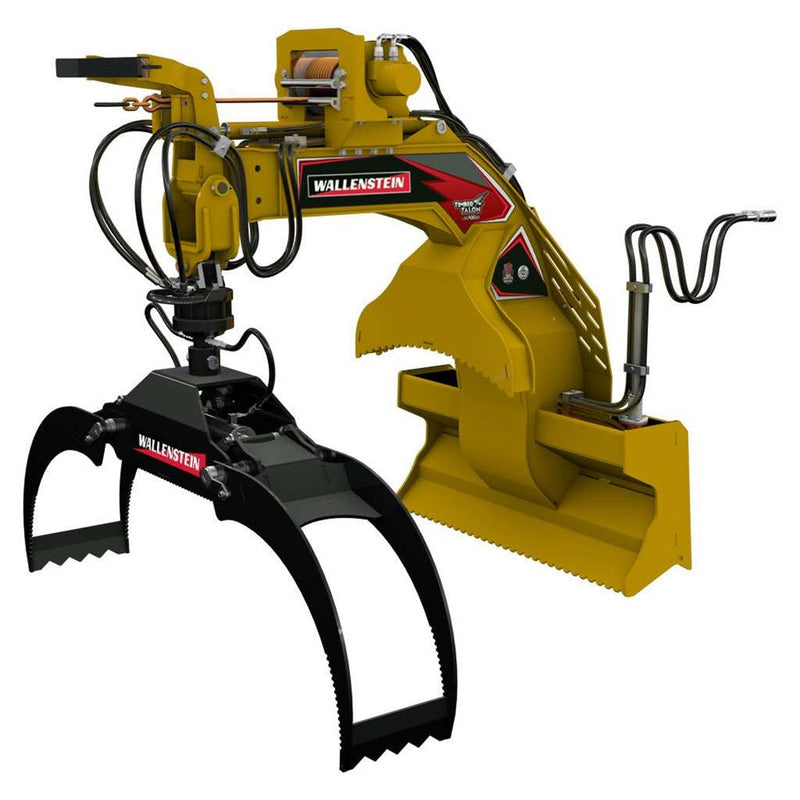

Wallenstein Skid Steer Grapple

The Wallenstein SSL Log Grapple from the LXG Series is a skid steer attachment designed for handling logs, including loading, transporting, and stacking applications. The grapple mounts directly to a skid steer and is operated through the machine's hydraulic system, allowing the operator to control the grapple from the cab. The supplied product information identifies it as an option for forestry and log-handling work.

The supplied product listing identifies a 48-inch grapple opening for the Wallenstein SSL Log Grapple. The LXG400 Series also includes configurations with larger openings, but customers purchasing the specific 48-inch version should use the specifications for that model rather than assuming the larger LXG configurations apply. Wallenstein documentation confirms that the LXG420 models have a maximum opening of 48 inches, with the grapple able to close around material as small as 3 inches.

The Wallenstein SSL Log Grapple is designed for skid steer use and mounts directly to the skid steer. The LXG400 Series uses the skid steer's remote hydraulic system to operate the grapple. Compatibility should be confirmed against the specific skid steer model, hydraulic system, mounting arrangement, and required hydraulic flow before purchase.

The supplied Wallenstein SSL Log Grapple listing specifies a 5–10 GPM hydraulic flow range. This is an important specification when matching the attachment to a skid steer because the machine's hydraulic system needs to meet the requirements of the selected grapple configuration. Customers should verify their skid steer's available hydraulic flow and the exact specifications of the selected LXG model before ordering.

The LXG Series includes different configurations depending on the model. The supplied information identifies options such as 360° hydraulic rotation, 180° spring-return rotation, and an integrated winch on selected models. The 48-inch LXG420 configurations are available with either 180° spring return or 360° hydraulic rotation. These differences are important when choosing a grapple because rotation and control configuration affect how the attachment can be positioned while handling logs.

Start by confirming the skid steer's hydraulic flow, mounting compatibility, and operating requirements, then compare the required grapple opening and configuration. The 48-inch LXG420 models provide a 3–48-inch grapple opening, while the larger LXG430 models extend to 72 inches. The LXG420R uses 360° hydraulic rotation, while the LXG420S uses 180° spring-return rotation. For the specific SSL Log Grapple listing, the stated hydraulic flow is 5–10 GPM. Checking these specifications against your skid steer and the size of logs you intend to handle will help you select the appropriate configuration.
