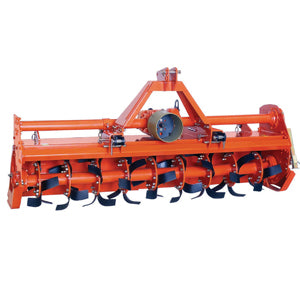

Rankin 3-Point Tractor Rotary Tiller Model SPR-260 | 100" Working Width | 85 HP For Tractor
Rankin 3-Point Tractor Rotary Tiller Model SPR-260 | 100" Working Width | 85 HP For Tractor
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Rankin 3-Point Tractor Rotary Tiller Model SPR-260 | 100" Working Width | 85 HP For Tractor
Included Options:
- Custom Colors Available: Reach out for more information.
- Optional Spare Parts: Additional blades and skid shoes available.
DESCRIPTION
The Rankin SPR-260 Rotary Tiller is built for large-scale agricultural operations, ensuring efficient and effective soil preparation. Engineered with a 100-inch working width, this high-capacity tiller provides superior tillage performance, reducing compaction and improving seedbed conditions.
Designed to handle various soil conditions, the SPR-260 features multiple speed settings, including 4 speeds at 540 RPM and 2 speeds at 1000 RPM, allowing operators to adjust performance based on field requirements. The gear-driven system ensures consistent power transfer, while the slip clutch-protected PTO shaft safeguards the tiller against overloads.
Equipped with 60 blades across 10 flanges, the SPR-260 delivers maximum soil pulverization, improving moisture retention, aeration, and nutrient distribution. The adjustable skid shoes provide control over tillage depth, ensuring optimal results across different field conditions.
Whether you’re preparing a seedbed for planting, mixing soil amendments, or breaking up compacted ground, the Rankin SPR-260 is the ultimate rotary tiller for heavy-duty applications.
Key Features
- 8" Maximum Tillage Depth: Achieves deep soil tillage, ideal for thorough seedbed preparation.
- 4 Speeds (540 RPM) / 2 Speeds (1000 RPM): Offers adjustable speed options to accommodate different soil conditions and tractor setups.
- Drive Shaft with Slip Clutch: Protects against overloads and mechanical failures.
- 6 Blades per Flange: Ensures efficient soil mixing and thorough tillage.
- Gear Drive: Provides reliable power transmission for consistent and durable performance.
- Some Assembly Required: Minimal setup needed, ready for operation quickly.
Benefits
- Enhanced Tillage Capability: Deep tillage of up to 8" ensures optimal soil preparation for planting.
- Versatile Speed Options: Adjustable speeds cater to different soil conditions, increasing operational flexibility.
- Durable Construction: Built with high-quality, gear-driven components for long-lasting reliability.
- Safety Features: Slip clutch on the PTO shaft protects against overload, extending the lifespan of the machine.
- User-Friendly: Comes with adjustable skid shoes and a parking stand for easier handling, operation, and storage.
Detailed Specifications
| Feature | Details |
|---|---|
| SKU | RAN-SPR-260 |
| Weight | 1490 lbs |
| Identifier | RAN-3579 |
| Model | SPR-260 |
| Horsepower Recommended | 85 HP Minimum (63.4 KW) |
| Width - Overall | 110" (279 cm) |
| Width - Working | 100" (254 cm) |
| Tines / Rods | 60 Total - 6 Blades per Flange; 10 Flanges |
| Tilling Depth | Up to 8" (20 cm) |
| Unit Drive Type | 540 RPM Rear Tractor PTO |
| PTO Shaft | Included, with Heavy Duty Slip Clutch Protection |
| Rotor Shaft Drive Type | Gear Driven |
| Skid Shoes | Adjustable and Replaceable, Included |
| Parking Stand | Included Standard |
| Hitch Connection Type | Category 2, 3-Point Hitch |
| Color | Orange |
| Manufacturer | Rankin Equipment |
In Package
- Rankin SPR-260 Rotary Tiller
- PTO Shaft with Slip Clutch Protection
- Adjustable Skid Shoes
- Parking Stand
- Assembly Instructions
