Product Description
2024 Industrias America Offset Finish Disk | Model 2428 | Working Width 24' | Blade Size 24" | Horsepower 130 To 160 HP | For Tractors
DESCRIPTION
The 2024 Industrias America 2428 Offset Finish Disk is a powerful soil preparation tool designed to handle large-scale farming tasks with ease. Featuring a 10' 3" cutting width, this disk provides efficient coverage, allowing you to till and prepare soil in fewer passes. Built with durable Gauge 3 frame tubing, customizable blade configurations, and greasable bearings, this heavy-duty disk is ready to tackle tough field conditions.
The 2428 Offset Disk comes equipped with 24-inch notched front blades and offers the option for smooth or notched rear blades to maximize soil penetration and mixing. With 9-inch disc spacing, it ensures consistent soil cutting and effective residue management. For added convenience, an optional hydraulic cylinder and hoses are available for easier operation and precise adjustments in the field.
Key Features
- 24-foot working width covers more ground per pass, reducing fuel costs and saving valuable time during tillage.
- Compatible with tractors rated between 130 To 160 horsepower, offering optimal performance across a range of mid- to large-sized ag equipment.
- Heavy-duty tubular steel frame built from 3-gauge steel ensures long-term durability even under harsh field conditions.
- 24-inch front notched blades with optional smooth or notched rear blades enhance soil penetration and mixing efficiency.
- 9-inch blade spacing provides thorough residue management and consistent soil turnover for ideal seedbed preparation.
- Adjustable gang angles (15° To 21°) allow you to fine-tune aggressiveness based on soil conditions or crop needs.
- Pull-type design with clevis hitch makes for easy connection to most standard tractors, simplifying field setup.
- Approximate unit weight between 5,000 and 6,500 lbs offers ideal down pressure for effective soil cutting and field leveling.
- Transport width of 12 feet allows for safe and legal movement on roadways between fields.
- Greasable bearings reduce maintenance downtime and extend equipment lifespan.
- Optional hydraulic cylinder and hoses allow in-field adjustments from the tractor cab for enhanced operator control.
- Suitable for secondary tillage, seedbed finishing, and breaking up post-harvest residue.
- Designed to work efficiently in a variety of soil types, including heavy clay and mixed loam.
- Overall length of approximately 20 feet provides a stable footprint and optimal weight distribution during operation.
- Ideal for row crop, hay, or pasture management operations seeking a reliable, large-scale finish disk.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | 2428 Offset Finish Disk |
| Working Width | Approx. 24 ft (7.31 m) |
| Transport Width | Approx. 12 ft (3.66 m) |
| Overall Length | Approx. 20 ft (6.10 m) |
| Height | Approx. 5 ft (1.52 m) |
| Blade Size | 24" x 1/4" (Notched and Plain options) |
| Blade Spacing | 9 inches |
| Number of Blades | Approx. 28–32 (depending on configuration) |
| Gang Angle | Adjustable (15°–21° typical range) |
| Weight | Approx. 5,000 – 6,500 lbs (2,268 – 2,948 kg) |
| Horsepower Required | Minimum 130–160 HP |
| Frame | Heavy-Duty Tubular Steel |
| Hitch Type | Pull-Type with Clevis Hitch |
| Primary Use | Field Finishing, Seedbed Prep, Secondary Tillage |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

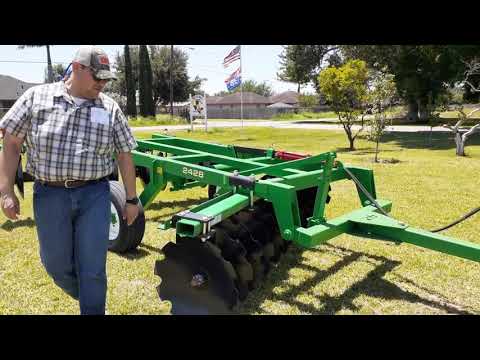

Videos
