ADAPT Drone Boat - Autonomous Spraying Boat - Extended Length - Hybrid Powertrain

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

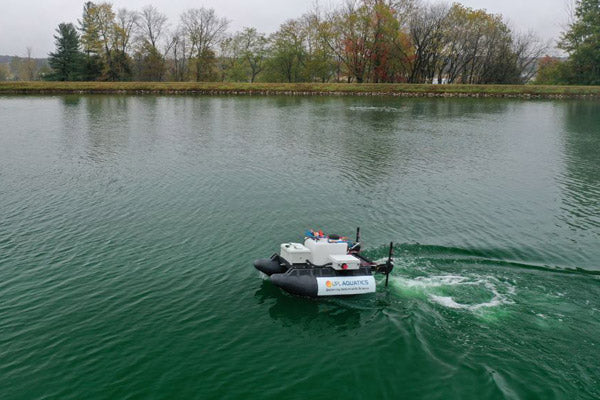

ADAPT Drone Boat - Autonomous Spraying Boat, Extended Length, Hybrid Powertrain

DESCRIPTION

The ADAPT™ drone boat can be operated manually or autonomously. In autonomous mode, the operator creates a predefined track that is stored in the boat’s memory, allowing the boat to run the track automatically when directed by the applicator. An enhanced feature of autonomous mode allows the applicator to set specific waypoints for precise spray applications, reducing the potential of exposure to the aquatic applicator.

The 72-inch-long boat can reach a top speed of 7 mph, with a run time of 4 hours within a 1-mile distance. With a 16-gallon spray tank and on/off feature, the boat can apply herbicides and algaecides to various species quickly and efficiently. The boat is also equipped with several safety features, including a real-time video camera mounted on the bow which transmits a video feed to the applicator on the hand-held controller. Redundant GPS receivers, inertia meters and compasses significantly reduce the possibility of a “fail to run” situation. If there is a low battery or signal loss, the boat will automatically return to the original launch point.

This unmanned pontoon boat can be outfitted with any variety of different payloads. We customize the boat configuration to meet your needs. We also have a hybrid powertrain that allows a small gasoline generator to power the boat, and have developed larger boats for specialty industrial tasks.

RMD Systems has developed a small, unmanned pontoon boat that can be outfitted with a variety of different payloads. Currently, RMD supplies the boat with a 16-gallon sprayer system.
The sprayer system uses a collection of valves that allow the operator to fill and drain the tank from the shore using the remote control. The speed of the pump can be controlled, and the pump can be controlled autonomously via the autopilot (using pre programmed GPS flight paths).
The boat features a pair of trolling motors that control not only the speed but also the direction of the boat. The trolling motors are mounted on a moving jackplate that allows the motors to be raised and lowered in the water and on the trailer during travel. A real time high-definition camera mounted on the bow of the boat allows first person video to be transmitted to the controller and the operator on the shore. A miniature, waterproof laser rangefinder provides object detection and avoidance in the front of the boat. The boat runs off a 12v, 100Ah lithium iron phosphate battery. The boat has approximately 4 hours of run time on a single battery when operating in autonomous GPS waypoint mode. The boat also has a ‘loiter’ capability, where the boat will hold position in the water even when disturbed by wind and currents. RMD can customize the boat configuration, payload, and other features to meet the exact needs of the customer. RMD has developed a hybrid powertrain that allows a small gasoline generator to power the boat. RMD has also developed larger boats for specialty industrial tasks in open pit mines and other applications. Please contact RMD Systems directly to discuss your project’s needs.

The boat is capable of GPS waypoint missions, either with manual control of the pump and valves or autopilot (autonomous) control of the pump and valves. The speed of the pump can be varied or turned off entirely at any point in the mission for spot spraying or other applications. There is a small laser rangefinder in the front of the boat that serves as an object detection and object avoidance sensor.

The sample configurations below include ADAPT Station Controller, ADAPT Spray Flow Control, ADAPT lift system. Electric configurations include ADAPT Battery Pack and Hybrid Configuration include ADAPT Hybrid Power System.

The sprayer system uses a collection of valves that allow the operator to fill and drain the tank from the shore using the remote control. The speed of the pump can be controlled, and the pump can be controlled autonomously via the autopilot (using pre programmed GPS flight paths). The boat features a pair of trolling motors that control not only the speed but also the direction of the boat. The trolling motors are mounted on a moving jackplate that allows the motors to be raised and lowered in the water and on the trailer during travel.

A real time high-definition camera mounted on the bow of the boat allows first person video to be transmitted to the controller and the operator on the shore. A miniature, waterproof laser rangefinder provides object detection and avoidance in the front of the boat. The boat runs off a 12v, 100Ah lithium iron phosphate battery. The boat has approximately 4 hours of run time on a single battery when operating in autonomous GPS waypoint mode. The boat also has a ‘loiter’ capability, where the boat will hold position in the water even when disturbed by wind and currents.

The boat is capable of GPS waypoint missions, either with manual control of the pump and valves or autopilot (autonomous) control of the pump and valves. The speed of the spray pump can be varied or turned off entirely at any point in the mission for spot spraying or other applications. There is a small laser rangefinder in the front of the boat that serves as an object detection and object avoidance sensor.

Key Features

• Autonomous or Manual Operation: Pre-programmed GPS waypoint navigation or manual control for ultimate flexibility.
• High-Capacity Spray Tank: 16-gallon tank with autonomous fill, drain, and flow control capabilities.
• Hybrid Powertrain: 12V 100Ah Lithium Iron Phosphate battery with optional gasoline generator for extended operations.
• Safety & Precision: Real-time video feed, redundant GPS, LiDAR rangefinder for object detection and avoidance.
• Customizable Payload: Configurations to meet industrial and specialty needs, including hybrid and larger models.

Detailed Specifications

*Endurance depends on atmospheric conditions and operating speed.
** Payload includes weight of spray system and liquid.
*** Operating range varies based on obstacles and atmospheric conditions.
**** Based on a 2000-hour maintenance cycle.

In Package

• ADAPT™ Drone Boat with dual pontoon design
• Integrated 16-gallon sprayer system
• High-definition real-time video camera
• LiDAR rangefinder for object detection
• Remote controller with Android OS and video downlink
• GPS-enabled autopilot system
• 12V 100Ah Lithium Iron Phosphate battery
