Product Description
AK Ziraat | TIREMIX Y8M3 | 8m³ | Feed/Mixer Wagon | HorsePower 65 HP | For Tractor
Ripping It is Partnered with United Biosolutions inc. to provide the best pricing and service for Brand AK ZIRAAT.
DESCRIPTION

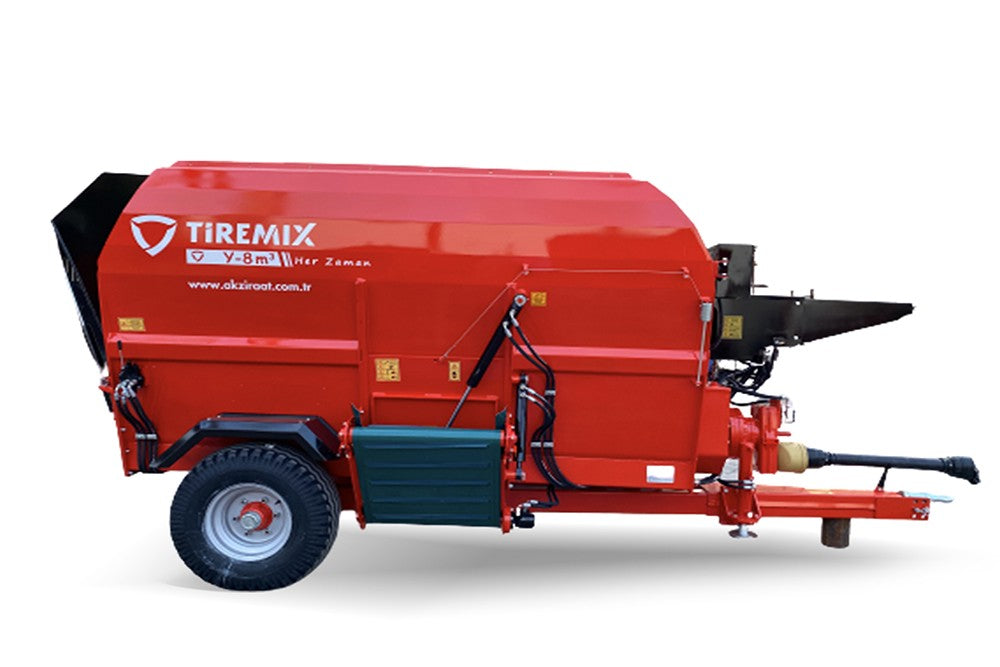

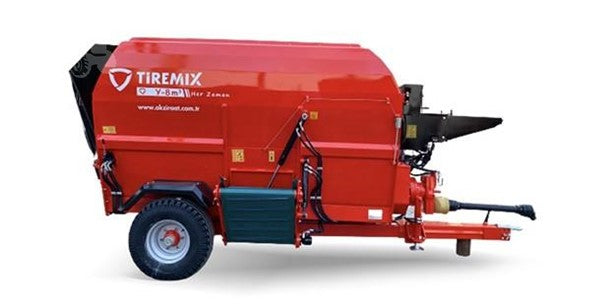

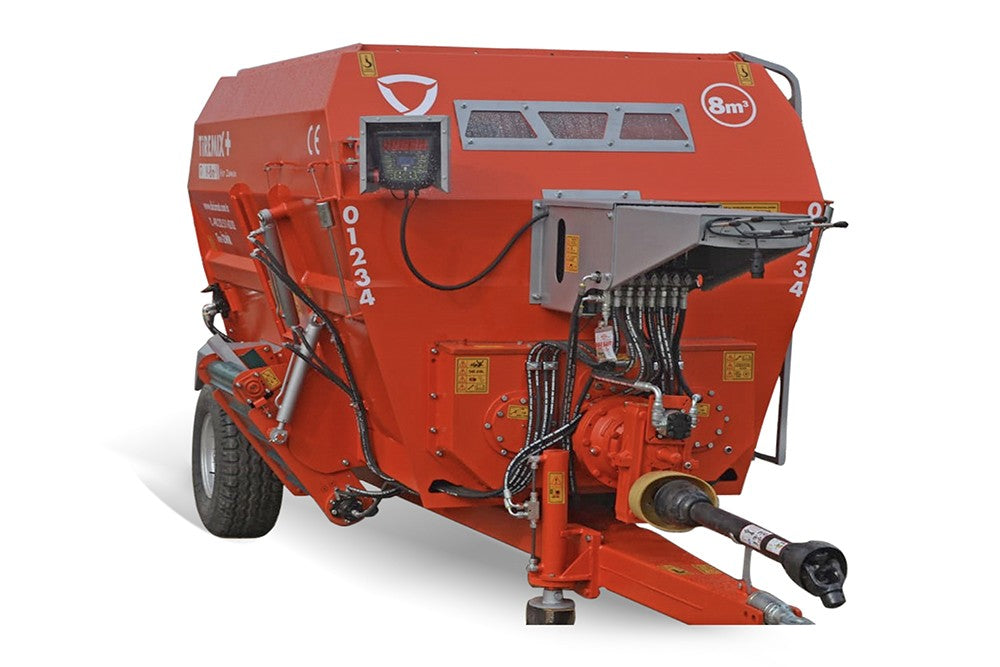

The AK ZIRAAT TIREMIX Y8M3 is a state-of-the-art feed/mixer wagon designed for modern livestock operations. Built for efficiency, durability, and precision, this 8m³ capacity machine ensures a uniform and homogenous mix, optimizing nutrition and feed utilization for your animals.Power Requirements Operates with a minimum of 65 HP tractor and PTO-driven system (540 RPM) with a planetary gearbox for efficient power transmission.
Equipped with dual horizontal augers, a planetary gearbox drive system, and high-strength ST52 steel construction, the TIREMIX Y8M3 offers unmatched performance for dairy farms, cattle operations, and feedlots. The machine is engineered for seamless operation, reduced feed wastage, and enhanced productivity making it a must-have for any livestock feeding system.
Key Features

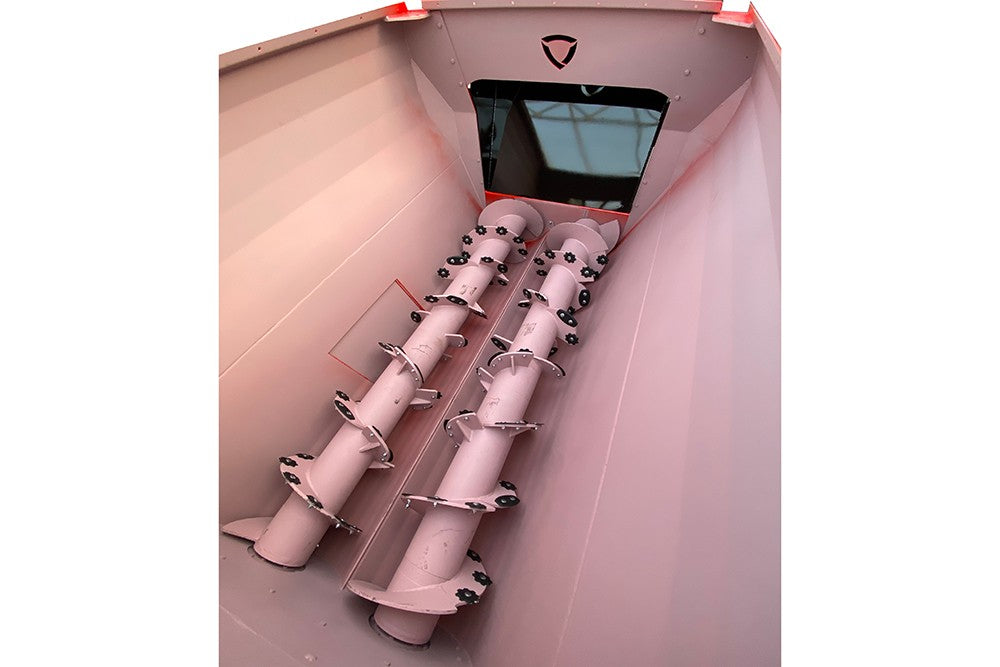

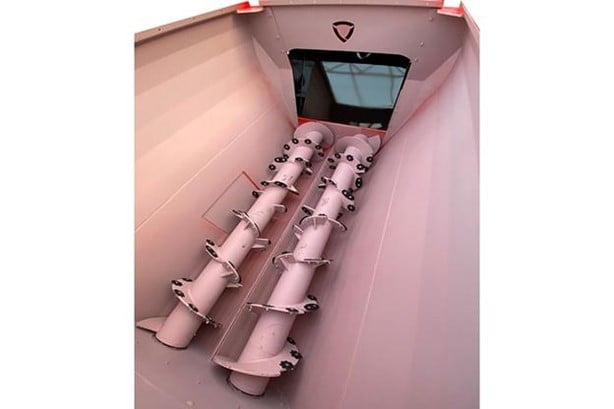

- Powerful Mixing Performance Equipped with dual horizontal augers to ensure an even and thorough mix.
- Robust Construction Built with ST52 high-strength steel, featuring 10mm thick bottom plates and 15mm auger scroll thickness for durability.
- Efficient Hydraulic System Powered by an oil pump with a 24L tank, ensuring smooth and reliable operation.
- Power Requirements Operates with a minimum of 65 HP tractor and PTO-driven system (540 RPM) with a planetary gearbox for efficient power transmission.
- Sharp & Durable Knives Includes 60 star knives and 28 oval knives, designed for fine cutting and optimal mixing.
- Customizable Options Features optional weighing scales, loading buckets, and belt conveyors for enhanced functionality.
- Compact Yet High-Capacity Despite its 8m³ capacity, the machine remains compact and maneuverable.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | AK ZIRAAT |
| Model | TIREMIX Y8M3 |
| Capacity | 8 cubic meters (10.4 cubic yards) |
| Required Power | 65 HP |
| Drive System | Planetary Gearbox |
| PTO Speed | 540 RPM |
| Hydraulic System | Oil Pump (24L Tank) |
| Augers | 2 x Horizontal |
| Auger Scroll Thickness | 15mm (0.6") |
| Bottom Thickness | ST52 Steel, 10mm (0.4") |
| Auger Pipe Thickness | 17mm (0.66") |
| Knives | 60 Star Knives, 28 Oval Knives |
| Tire Dimensions | 10.5/80/15.3 |
| Width | 2050mm (80.7") |
| Height | 2200mm (86.6") |
| Length | 2350mm (92.5") |
| Weight System | Optional |
| Belt Conveyor | Optional (Second Side) |
| Loading Bucket | Optional |
| Warranty | 12 Months |
