Product Description
Amped Outdoors 3-Bank Marine Charger with M8 Ring | Model AO-0329M | 36V LiFePO4 Battery
Description

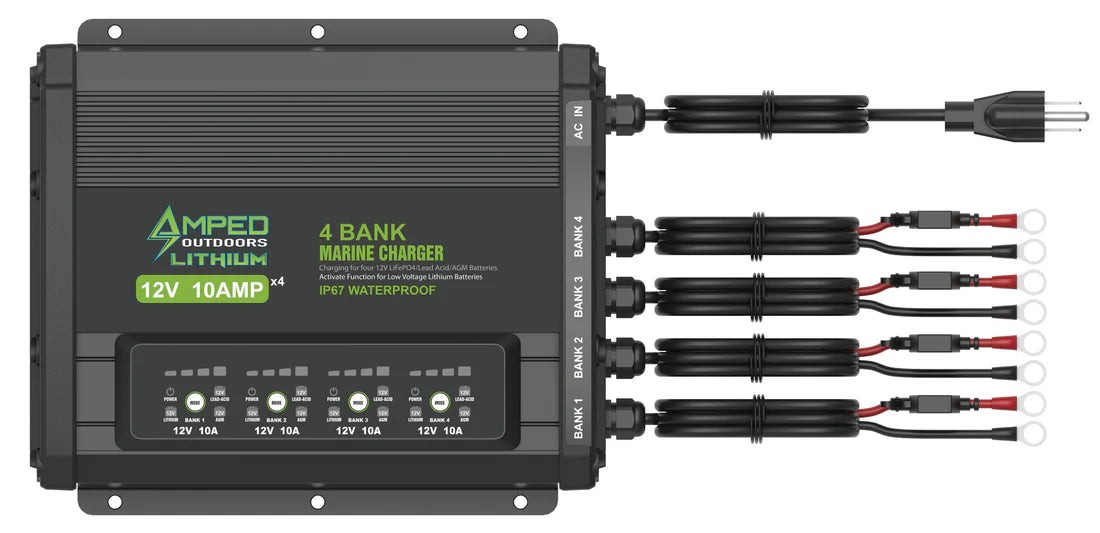

The Amped Outdoors 4 Bank 12V On-Board Battery Charger will allow you to charge 4 12V batteries. The 12V charging banks have a selectable Lead Acid, AGM and Lithium battery charging mode. Each bank is rated for 10A max output.
Key Features
- Multi-Bank Charging: Charges a 36V Amped Outdoors LiFePO4 Battery (or multiple in parallel) while also charging two 12V batteries.
- Selectable Charging Modes: 12V charging banks have selectable modes for Lead Acid, AGM, and Lithium batteries.
- High Output: Each bank is rated for 10A max output.
- Wake Up Function: For low voltage of lithium batteries (press mode button on bank panel for 3-5 seconds to activate).
- LED Indicators: Power, battery type, and charging status LED indicators.
- Cooling System: Aluminium stretched plate and waterproof cooling fan for better heat dissipation.
- Ingress Protection: Filled with pure epoxy resin for high waterproof level IP67.
- Circuit Protection: Includes short-circuit protection, reverse connection protection, overcharge protection, and over-temperature protection.
- Wide Working Temperature Range: Operates between -10°C to 40°C.
- Nominal Working Temperature: 25°C.
- Relative Humidity: Operates in 5% to 95% humidity.
Detailed Specifications
|
Product Name |
1-Bank Marine Charger with M8 Ring |
3-Bank Marine Charger with M8 Ring |
3-Bank Marine Charger with M8 Ring |
4-Bank Marine Charger with M8 Ring |
|
Model |
AO-0264M |
AO-0328M |
AO-0329M |
AO-0330M |
|
Input |
105-125V AC, 60Hz |
|||
|
Output |
1*16V/10A |
2*12V/10A +24V/10A |
2*12V/10A +36V/10A |
4*12V/10A |
|
Product Size |
166*245*99mm 6.5x9.6x3.9" |
304*245*99mm 12x9.6x3.9" |
361*245*99mm 14.2x9.6x3.9" |
304*245*99mm 12x9.6x3.9" |
|
Charging Battery Type |
16V LiFePO4 Battery |
12V LiFePO4/Wet/ AGM; 24V LiFePO4 Battery |
12V LiFePO4/Wet/AGM; 36V LiFePO4 Battery |
12V LiFePO4/Wet/AGM |
|
LED Indicators |
Power & Battery Type & Charging Status LED Indicators |
|||
|
Activate Function |
Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
|||
|
Full Cut-off Voltage |
18V-18.25V |
14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.0V-44.2V for 36V Lithium Battery |
||
|
Cooling Type |
Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
|||
|
Ingress Protection |
Filled with pure epoxy resin for high waterproof level IP67 |
|||
|
Circuit Protection |
Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection |
|||
|
Working Temperature Range |
-10°C~40°C |
|||
|
Nominal Working Temperature |
25°C |
|||
|
Relative Humidity |
5%~95% |
|||
