Anderson Bale Wrapper | Model Ellipse 660 | Width 277" inches | Horsepower 75 HP | For Tractors

Anderson Bale Wrapper | Model Ellipse 660 | Width 277" inches | Horsepower 75 HP | For Tractors

$61,900.00
$61,900.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Increased Wrapping Cycle Time: Cycle time (loading, wrapping, unloading) is less than one minute. Efficiently handles large, irregular bales without ejecting them during the process.
  • Not Limited in Bale Size: Wraps bales up to 5' wide by 5'6" in diameter. Ensures compatibility with larger bales compared to conventional wrappers.

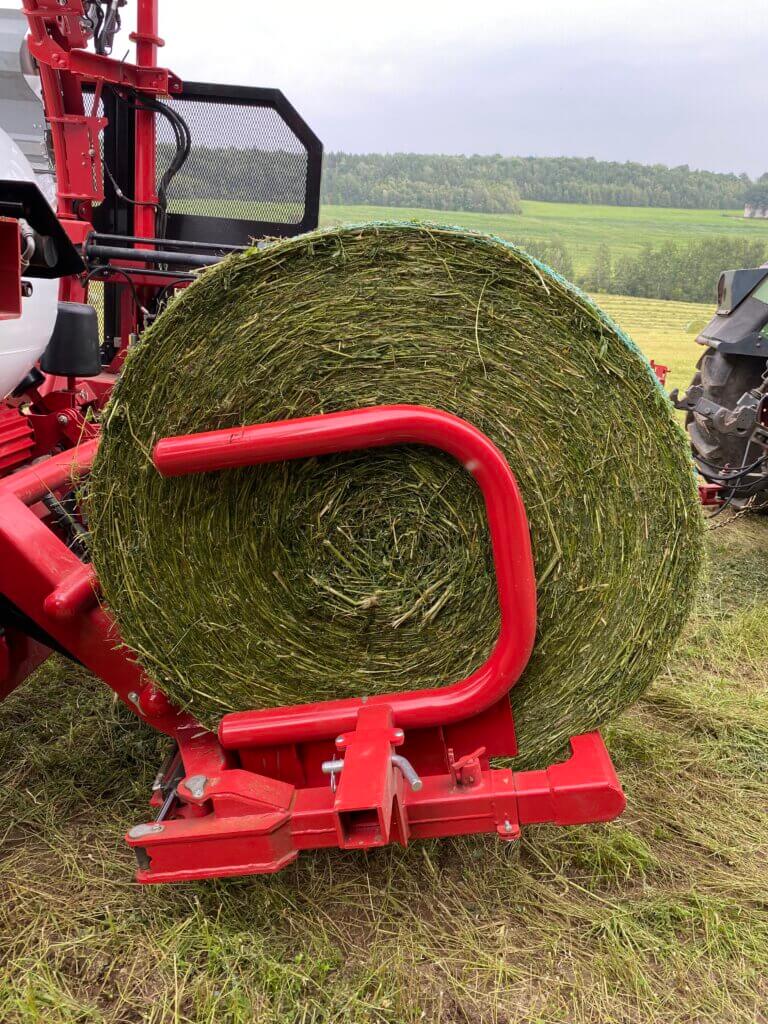

  • Rear Bale Guide: Gently sets the wrapped bale on the ground during unloading.
View full details

Product Description

Anderson Bale Wrapper | Model Ellipse 660 | Width 277" inches | Horsepower 75 HP | For Tractors

DESCRIPTION

The Ellipse 660 Bale Wrapper is a state-of-the-art machine engineered to efficiently wrap large bales while minimizing operational challenges. Designed for high productivity, this wrapper handles round bales up to 5'6" in diameter and provides unmatched wrapping cycle speeds. Its robust features and advanced mechanisms make it a perfect solution for farms requiring fast and reliable bale wrapping.

Key Features

  • Increased Wrapping Cycle Time: Cycle time (loading, wrapping, unloading) is less than one minute. Efficiently handles large, irregular bales without ejecting them during the process.
  • Not Limited in Bale Size: Wraps bales up to 5' wide by 5'6" in diameter. Ensures compatibility with larger bales compared to conventional wrappers.
  • Rear Bale Guide: Gently sets the wrapped bale on the ground during unloading.
  • Fast Wrapping Process: Smooth transition using a lowering front roller and a lifting arm for seamless wrapping and loading.
  • Adjustable Bale Guide: Ensures consistent and uniform plastic application for precise wrapping.
  • Robust Lifting Arm: Capable of transporting one bale while wrapping another, enhancing productivity.
  • Hydraulic Cut & Hold System: Automatically cuts and secures the plastic film, preparing for the next bale.
  • Plastic Film Monitoring: Alerts operators in case of film rupture or failure for quick action.
  • Additional Film Storage: Capacity to transport 6 rolls: 2 in the dispensers and 4 in the storage section.

Detailed Specifications

    Feature Ellipse 660 Specification
    Bale Dimensions Up to 5'6" (1.65 m) diameter, Up to 5' (1.5 m) length
    Wrapping Speed Up to 75 bales/h
    Wrapping Process Automatic
    Mode Pulled behind
    Aluminum Film Stretcher 2 x 30"
    Engine N/A
    Bale Dumper 2 position series ball flipper
    Bale Guides Rollers Standard
    Leveling System N/A
    Road Lights For tractor
    Night Work Lights Standard
    Tires 15.0/55-17 14PRTL
    High Flotation Tires Standard
    Cut & Hold System Hydraulic
    Self-Loading Arm Standard
    Electronic Bale Counter Standard
    Tractor Hydraulic Flow 15 gpm (57 liters/min)
    Tractor Hydraulic Pressure 2500 psi (172 bar)
    Hydraulic Connections Load sensing and pump output + 1 hydraulic output + free return OR 2 hydraulic outputs + free return
    Dimensions Width: 23 ft 1 in (7.04 m), Height: 9 ft 10 in (2.97 m), Length: 10 ft 7 in (3.22 m)
    Overall Weight 5780 lbs
