Product Description
ANDERSON | Hay Merger | MERGEPRO915 | 30' Swath | Horsepower 100-180 HP | For Tractor
DESCRIPTION
The ANDERSON MergePro 915 is an elite, high-performance hay merger crafted for farmers who demand precision, productivity, and durability from their harvesting equipment. Engineered with efficiency in mind, the MergePro 915 is perfect for large-scale forage operations and delivers unparalleled swath consistency with minimal crop loss. Whether you're working on flat ground or uneven terrain, this merger adapts to your environment and offers smooth crop pickup, optimized drying, and intelligent delivery.
The camless pickup design, heavy-duty belt conveyors, and smart hydraulic systems make the MergePro 915 a top-tier choice for maximizing forage quality and productivity. Its powerful hydraulic system, multiple delivery options (left, right, center), and user-friendly tractor cab controls make this unit a perfect blend of innovation and ease of use. Compact in transport, yet expansive in function, the MergePro 915 redefines what’s possible in forage harvesting.
Key Features
- Camless Pickup: The camless 6-row pickup reel eliminates unnecessary components, resulting in higher working speeds and reduced maintenance.
- Fastest Working Speed: Achieve maximum working speeds of up to 18 mph (28 km/h) for efficient hay merging.
- Adaptive True Ground Speed: Constantly monitors ground speed to ensure consistent crop delivery on the conveyor belt.
- Deflector Above Pickup and Belt: Optimizes crop flow for better drying effects while preventing damage to leaves.
- Multiple Crop Delivery Options: Offers versatile delivery configurations, including left, right, and center delivery modes.
- Narrow and Simple Transport: Compact design allows for easy transport and storage, ideal for navigating tight spaces.
- Heavy Duty Belt Conveyors: Commercial-grade conveyors ensure efficient crop transition and require minimal maintenance.
- No Compaction: Large skid shoe surface minimizes soil compaction, protecting both the machine and the field.
| Feature | Description | Photo (if available) |
|---|---|---|

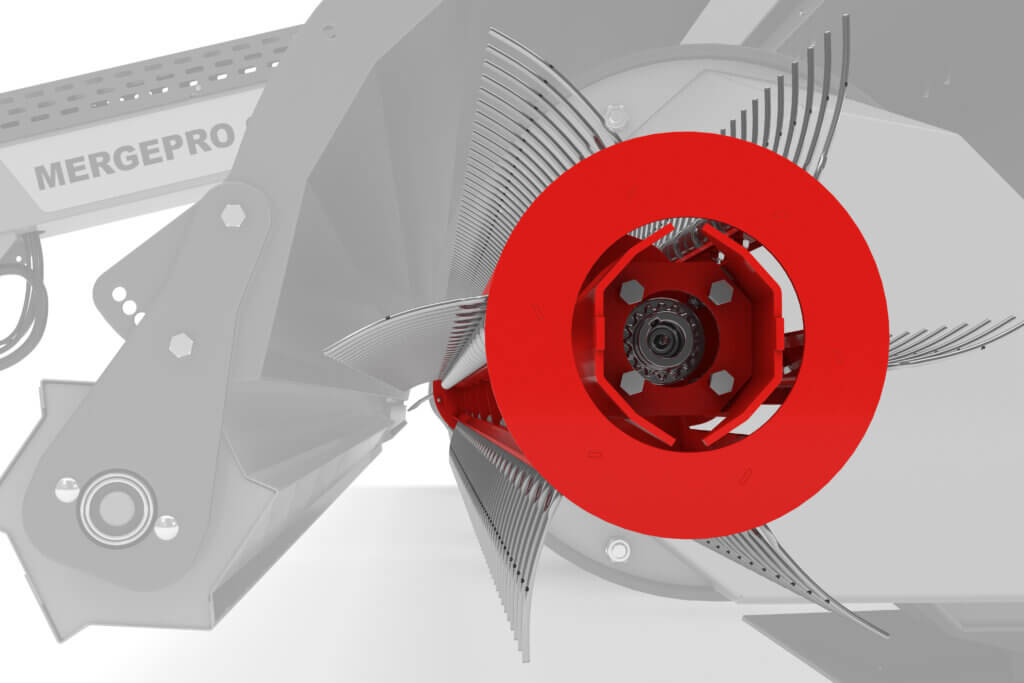

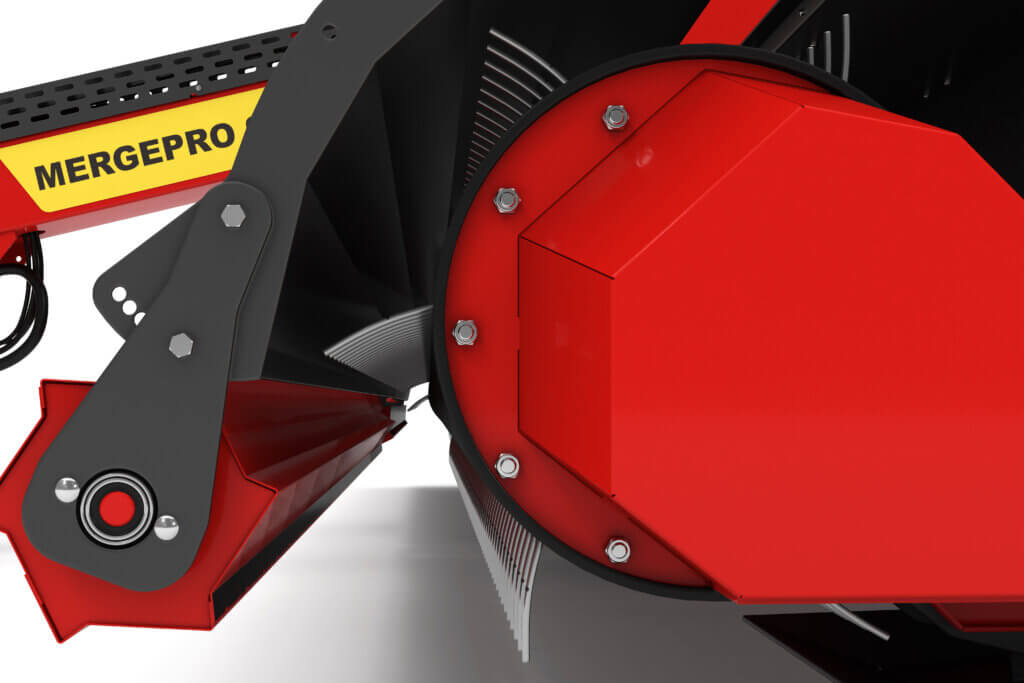

| CAMLESS PICKUP | Camless 6 row pickup reel means, no unnecessary bearings, control rollers, curved tracks and tine carrier profiles. Significantly fewer components for higher working speed and reduced maintenance. Simple rotation, no additional moving parts, no additional wear. Less parts = less maintenance. |  |
| FASTEST WORKING SPEED | Cam less pickup also allows for maximum working speed from 0 to 18 mph (0-28 km/h) |  |
| ADAPTIVE TRUE GROUND SPEED | This truly unique feature to the MERGEPRO allows the pickup and belt to be constantly monitoring the ground speed and adjusting themselves to deliver constant and equal crop on the belt as you go insuring consistent swath. |  |

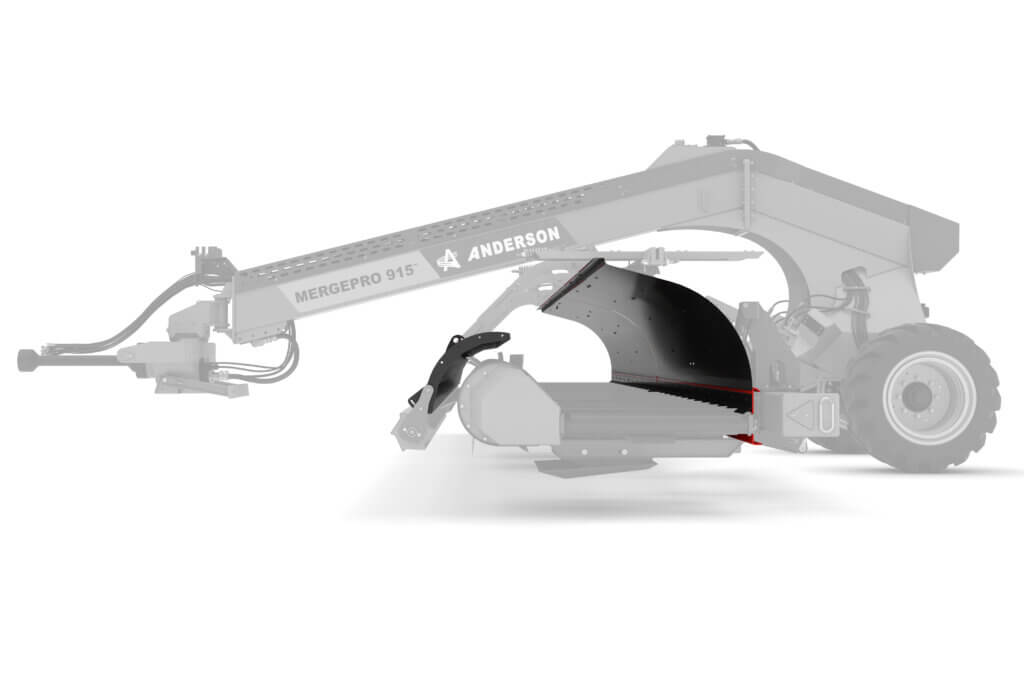

| DEFLECTOR ABOVE PICKUP AND BELT | Optimizing the crop upside down rotation for better drying effect of the forage.Insures constant and smooth flow of the crop from the field ground to the belt conveyor without damaging the leaves or letting them flying off the swath. |  |

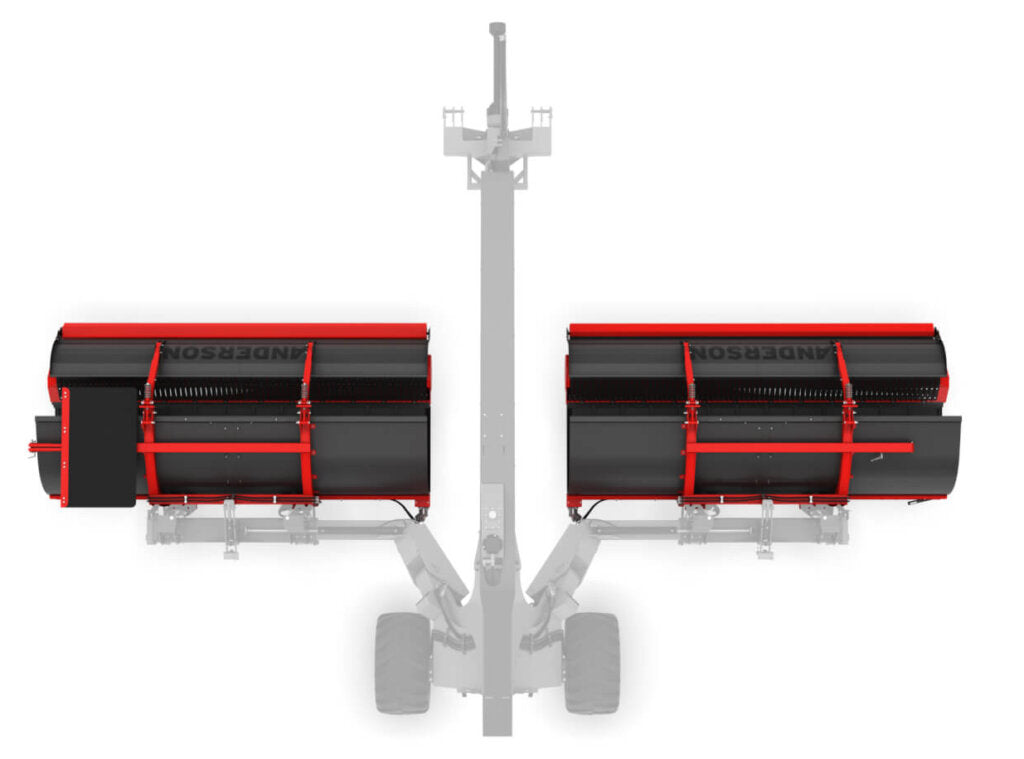

| MULTIPLE CROP DELIVERY OPTIONS | Left, Right, Left and Right, Left Left with center delivery, Right right with center delivery, All center. Dimensions of 25 ft (7,62m) when working in side delivery and 30ft (9,15m) in center delivery mode. |  |

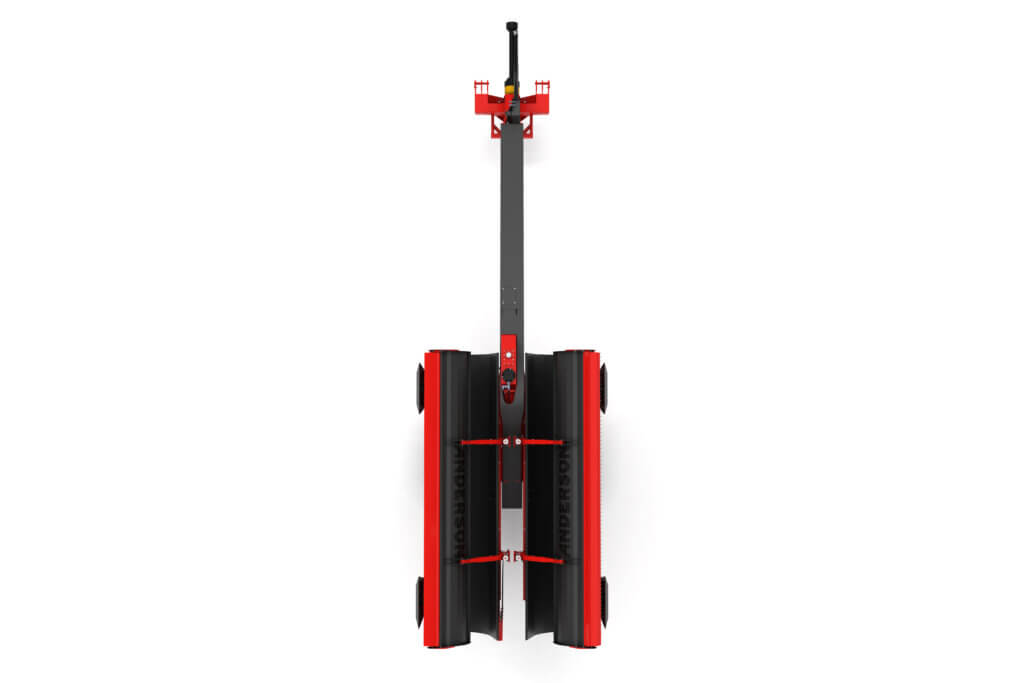

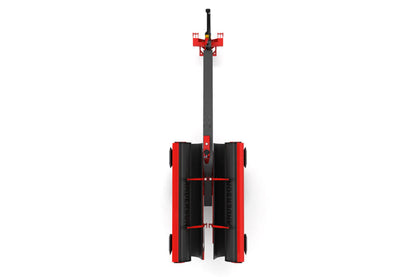

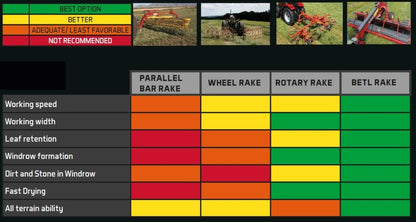

| NARROW AND SIMPLE TRANSPORT | For the same raking width as a rotary rake, belt rakes are much more compact in size, making them much easier to use and store. Their stability and weight also make them easier for your tractor to lift, making transport and navigation of rough roads simpler and making them ideal for working in tight spaces. |  |

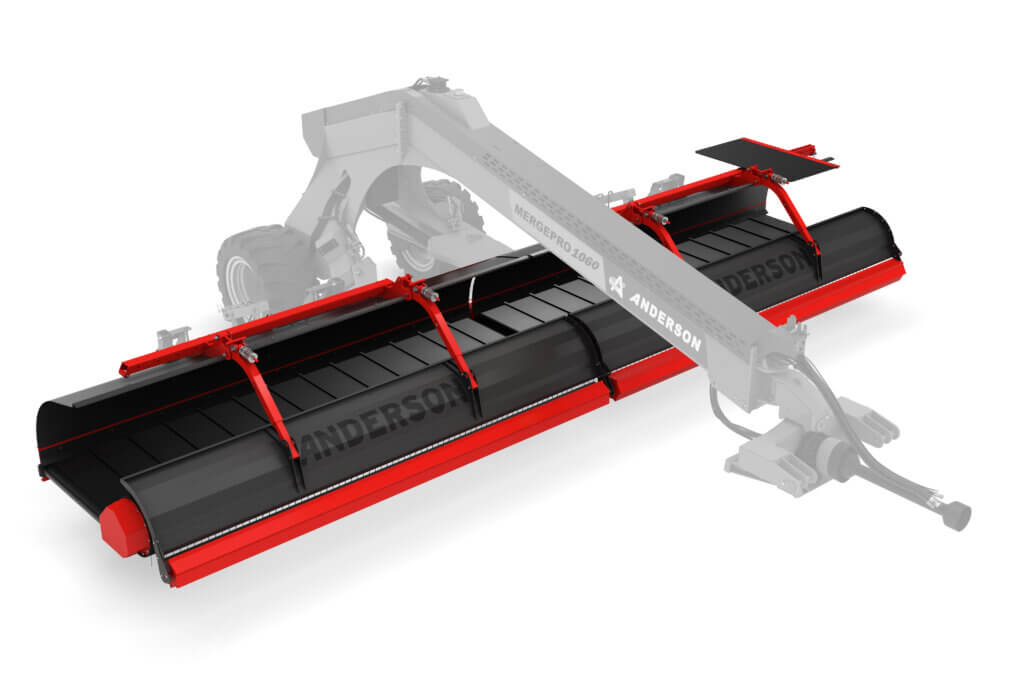

| HEAVY DUTY BELT CONVEYORS | Commercial-grade belt conveyors provide efficient transition from crop to windrow, regardless of delivery side. The conveyor belt is self-cleaning and requires no tracking adjustments. The belt tension can be adjusted without any tools. |  |

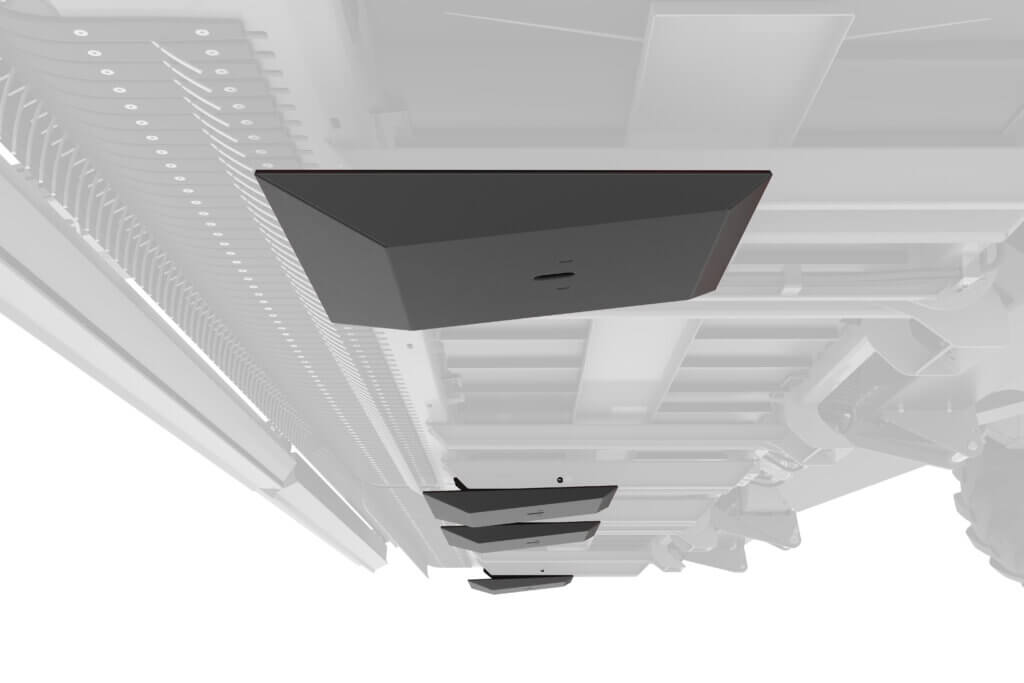

| NO COMPACTION | The large contact surface of the skid shoes ensures, even in very soft and wet soil conditions, that the MERGEPRO glides smoothly over the ground. This support surface has a damping effect and thus reduces system oscillations and vibrations. Low compaction is equally achieved due to our hydraulic adjustable suspension system. This protects the entire system and the field. |  |
Detailed Specifications
| Specification | Details |
|---|---|
| Model | MergePro 915 |
| Manufacturer | ANDERSON |
| Category | Tractor Attachments – Hay Merger |
| Attachment Working Width | 30 ft (9.15 m) center, 25 ft + 5 ft side |
| Swath Width (Center) | 4.6 ft (1.40 m) |
| Swath Width (Side with Swathboard) | 3 to 5 ft (0.91 to 1.52 m) |
| Number of Pickup Units | 2 |
| Pickup Width (Tine-to-Tine) | 12.5 ft (3.81 m) |
| Transport Dimensions (W x H x L) | 8.3 ft x 11.4 ft x 27.6 ft |
| Height (for shipping) | 10.4 ft (3.17 m) |
| Minimum Power Requirement | 100 HP (flat ground) |
| Power Requirement (flat @ 28km/h) | 140 HP |
| Power Requirement (all terrain @ 28km/h) | 180 HP |
| PTO Requirements | 1 3/8 Z21 1000 @ 800 RPM (included) |
| 1 3/8 Z6 540 @ 540 RPM (compatible) | |
| Optimal PTO Speed Range | 800 RPM (0–28 km/h) / 540 RPM (0–20 km/h) |
| Maximum Working Speed | 18 mph (28 km/h) |
| Hydraulic Flow Rate | 38 GPM @ 800 RPM / 26 GPM @ 540 RPM |
| Hydraulic Motors | Hydraulic piston (conveyor), 243 RPM pickup |
| Oil Reservoir Capacity | 95 US gal (360 L) |
| Oil Type | TDH |
| Cooling System | Standard oil cooling |
| Tires (Transport Chassis) | 560 / 45-22.5 RADIAL |
| Conveyor Dimensions (L x W) | 12.8 ft x 36 in (3.9 m x 0.92 m) |
| Delivery Options | Left, Right, Center |
| Conveyor Control (From Cab) | Yes |
| Pickup Height Range | 0–3 in (7.2 cm) |
| Hitch Compatibility | 2-Point Cat. 2 & 3 |
| Electronic Variable Pickup Speed | Yes |
| Road Lights & Signaling | Included |
| Hydraulic Connections Required | 2 outlets standard (1 optional) |
| Approx. Machine Weight | 5000 kg (11,000 lbs) |
| Adjustable Skid Shoes | Standard |
Comparison Chart
| Feature / Specification | ANDERSON MERGEPRO915 | ANDERSON MERGEPRO915 HYD BRAKES |
|---|---|---|
| Brand | Anderson | Anderson |
| Model | MERGEPRO915 | MERGEPRO915 HYD BRAKES |
| Category | Tractor Attachments | Tractor Attachments |
| Sub-Category | Hay Merger | Hay Merger |
| Working Width (Center Swath) | 30 ft (9.15 m) | 30 ft (9.15 m) |
| Working Width (Side Swath) | 25 ft + 5 ft swath | 25 ft + 5 ft swath |
| Swath Width (Center) | 4.6 ft (1.40 m) | 4.6 ft (1.40 m) |
| Swath Width (Side with Swathboard) | 3 to 5 ft (0.91 – 1.52 m) | 3 to 5 ft (0.91 – 1.52 m) |
| Number of Pick-Up Units | 2 | 2 |
| Pick-Up Width (Tine-to-Tine) | 12.5 ft (3.81 m) | 12.5 ft (3.81 m) |
| Transport Width | 8.3 ft (2.53 m) | 8.3 ft (2.53 m) |
| Transport Height | 11.4 ft (3.47 m) | 11.4 ft (3.47 m) |
| Transport Length | 27.6 ft (8.41 m) | 27.6 ft (8.41 m) |
| Transport Height (Shipping) | 10.4 ft (3.17 m) | 10.4 ft (3.17 m) |
| Minimum Power Requirement (Flat 8 mph) | 100 HP | 100 HP |
| Minimum Power (Flat 18 mph) | 140 HP | 140 HP |
| Minimum Power (Other Terrain 18 mph) | 180 HP | 180 HP |
| PTO Requirement | 1 3/8 Z21 1000 @ 800 RPM (included) Compatible with 1 3/8 Z6 540 @ 540 RPM (not included) |
Same as standard model |
| PTO RPM & Working Speed | 800 RPM (0–28 km/h) 540 RPM (0–20 km/h) |
Same as standard model |
| Max Working Speed | 18 mph (28 km/h) | 18 mph (28 km/h) |
| Hydraulic Flow Requirement | 38 GPM @ 800 RPM 26 GPM @ 540 RPM |
Same as standard model |
| Conveyor Belt Motor | Hydraulic Piston Motor | Same as standard model |
| Pickup Hydraulic Motor | 243 RPM @ 28 km/h | Same as standard model |
| Oil Reservoir Capacity | 95 US gal (360 L) | Same as standard model |
| Oil Type | TDH | TDH |
| Oil Cooling System | Standard | Standard |
| Tires on Transport Chassis | 560 / 45-22.5 RADIAL | 560 / 45-22.5 RADIAL |
| Conveyor Length / Width | 12.8 ft / 36 in (0.92 m) | Same as standard model |
| Discharge Capabilities | Right, Left, Center | Same as standard model |
| Conveyor Direction Control (In-Cab) | Yes | Yes |
| Pickup Height Range | 0 – 3 in (7.2 cm) | 0 – 3 in (7.2 cm) |
| Hitch | 2-point Category 2 & 3 | Same as standard model |
| Electronic Pickup Speed Control (In-Cab) | Yes | Yes |
| Road Lights & Signaling | Yes | Yes |
| Hydraulic Connections Required | 2 outlets (1 optional) | Same as standard model |
| Approx. Machine Weight | 5000 kg (11,000 lbs) | 5000 kg (11,000 lbs) |
| Adjustable Skid Shoes | Standard | Standard |
| Hydraulic Brakes | Not included | Included ✅ |
